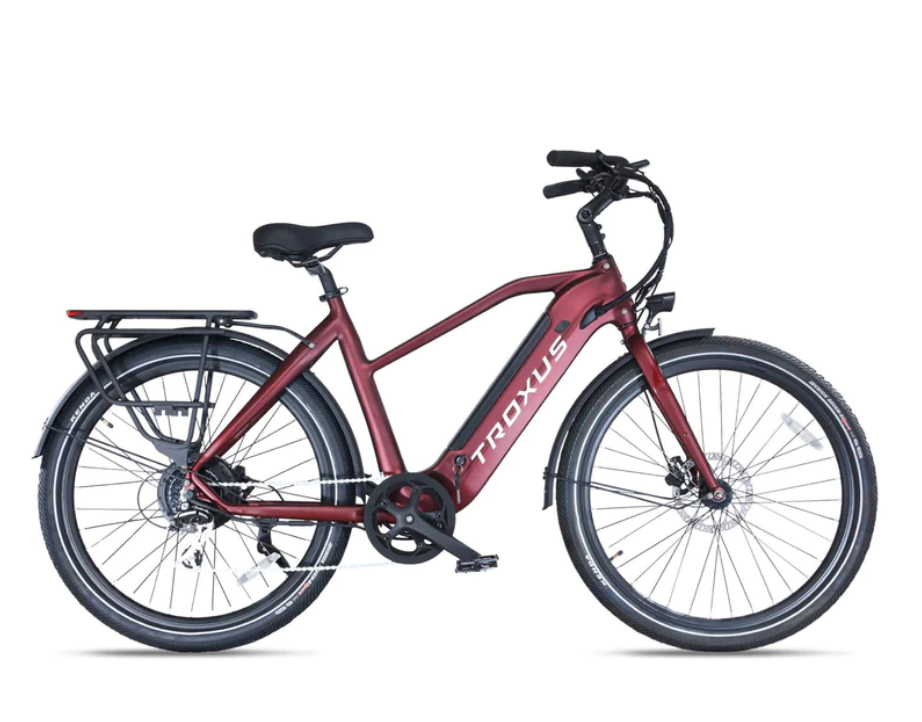

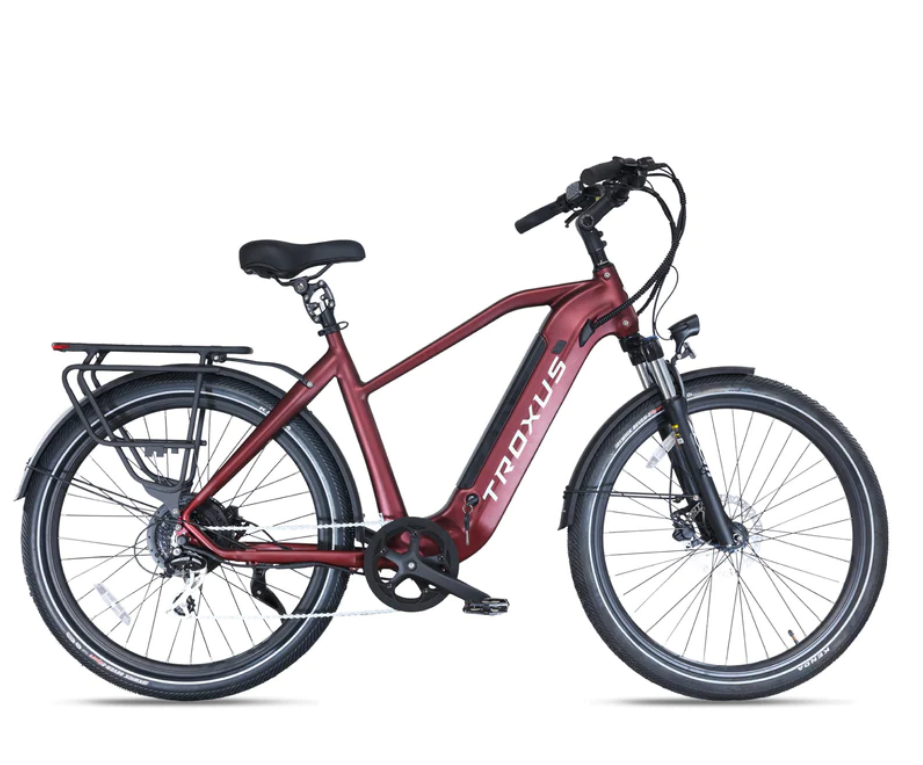

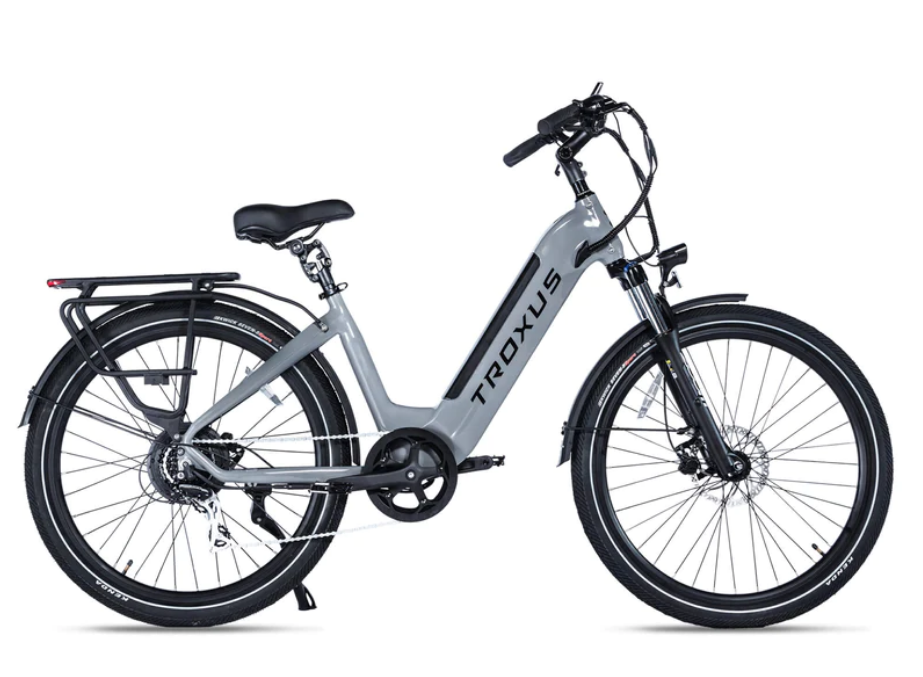

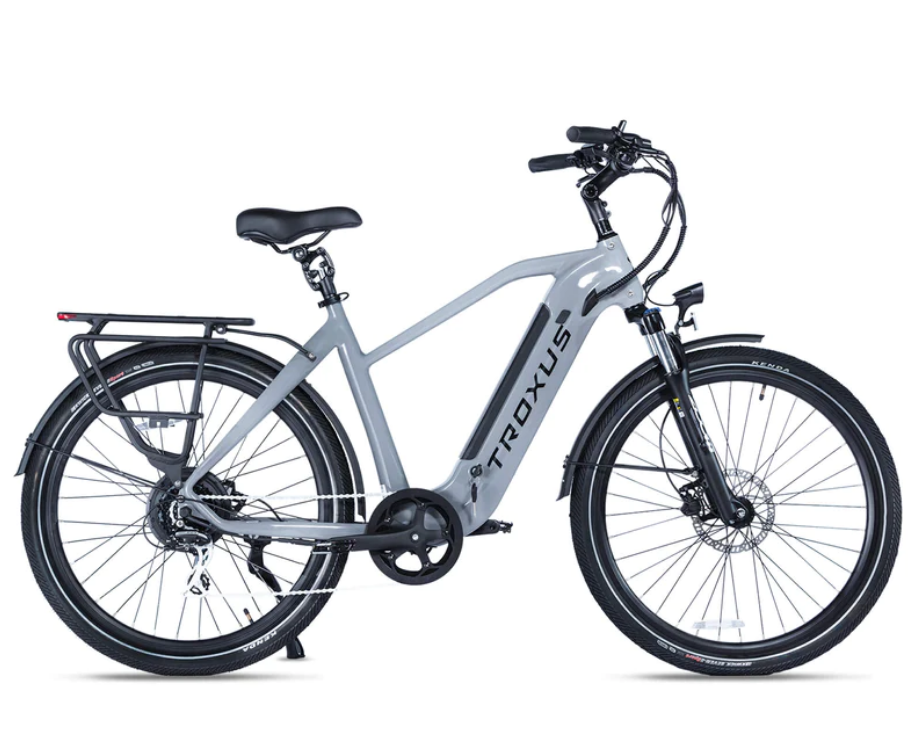

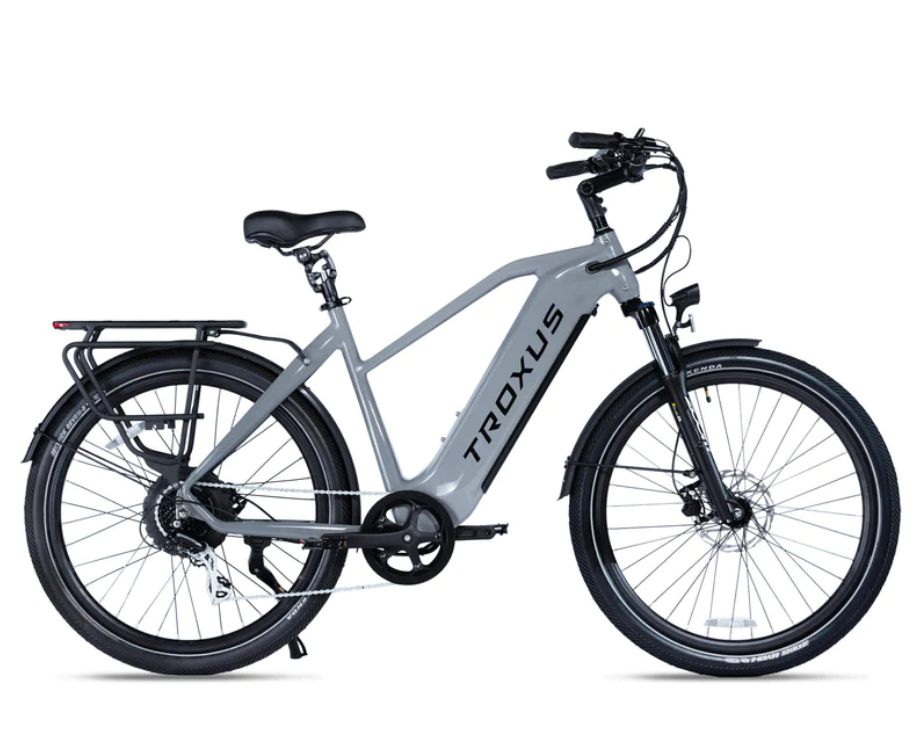

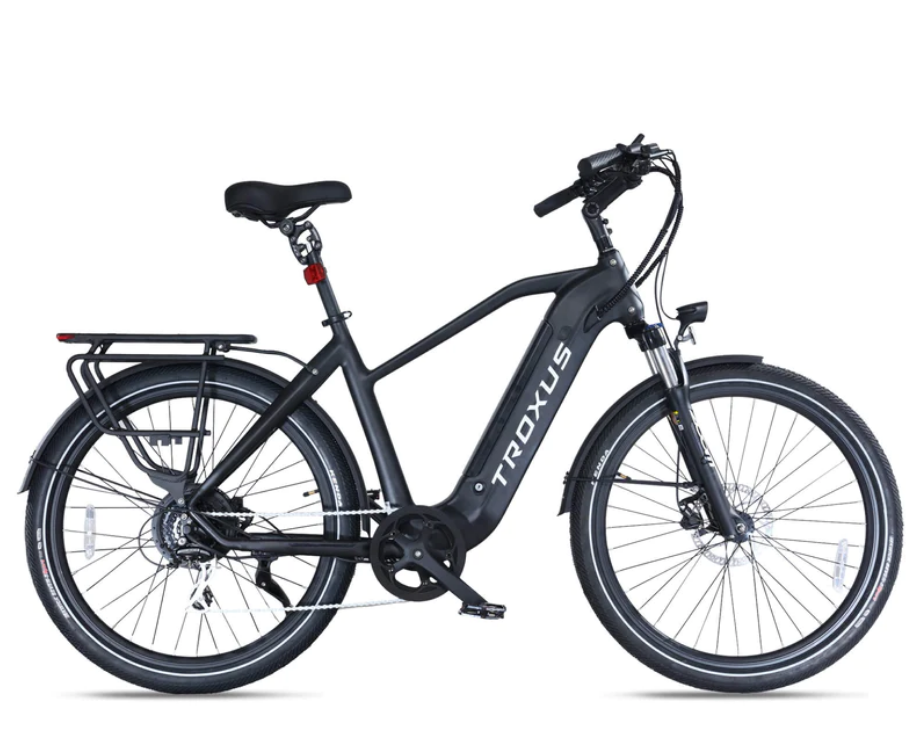

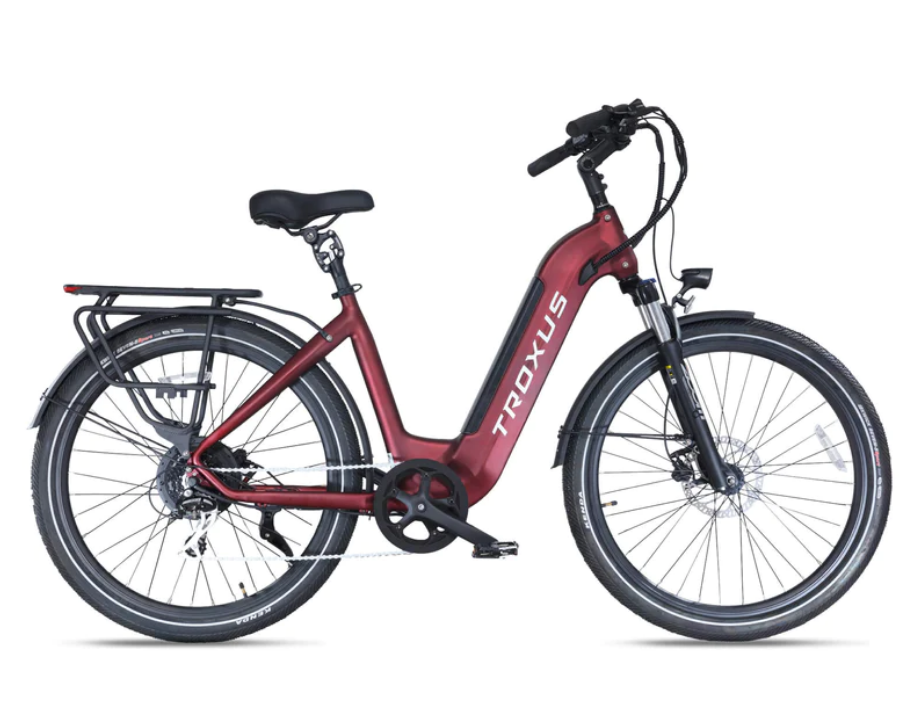

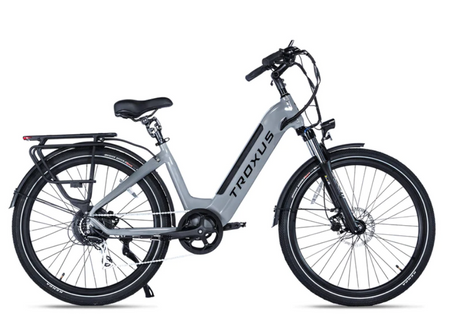

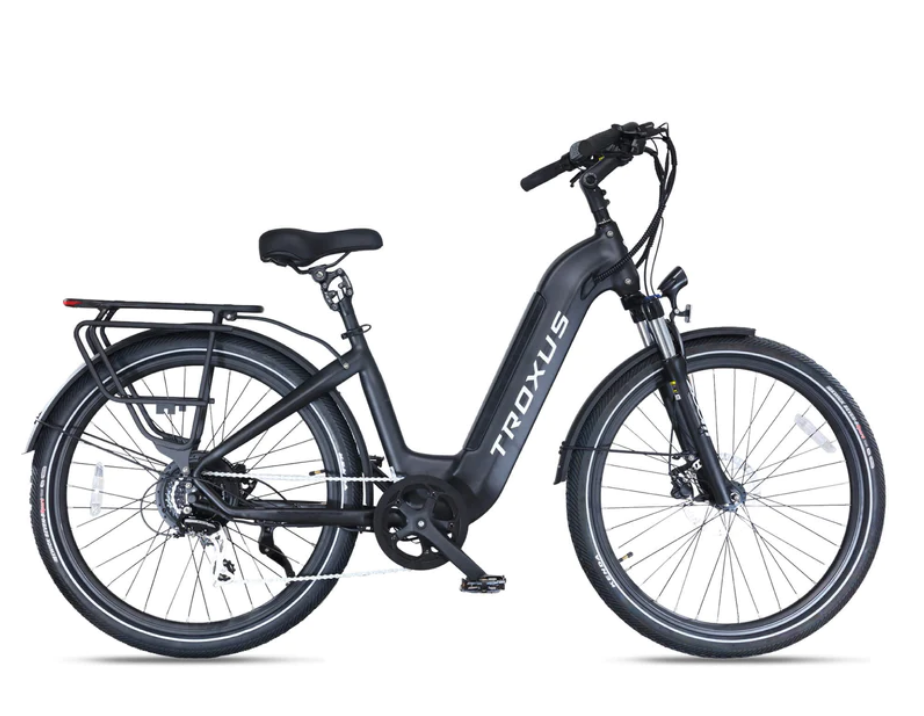

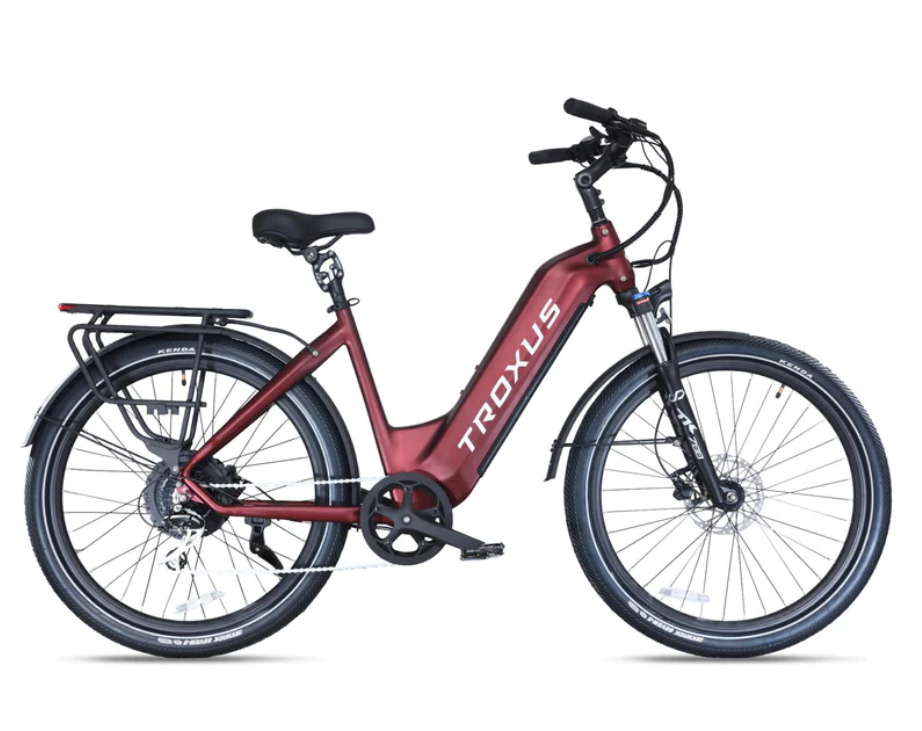

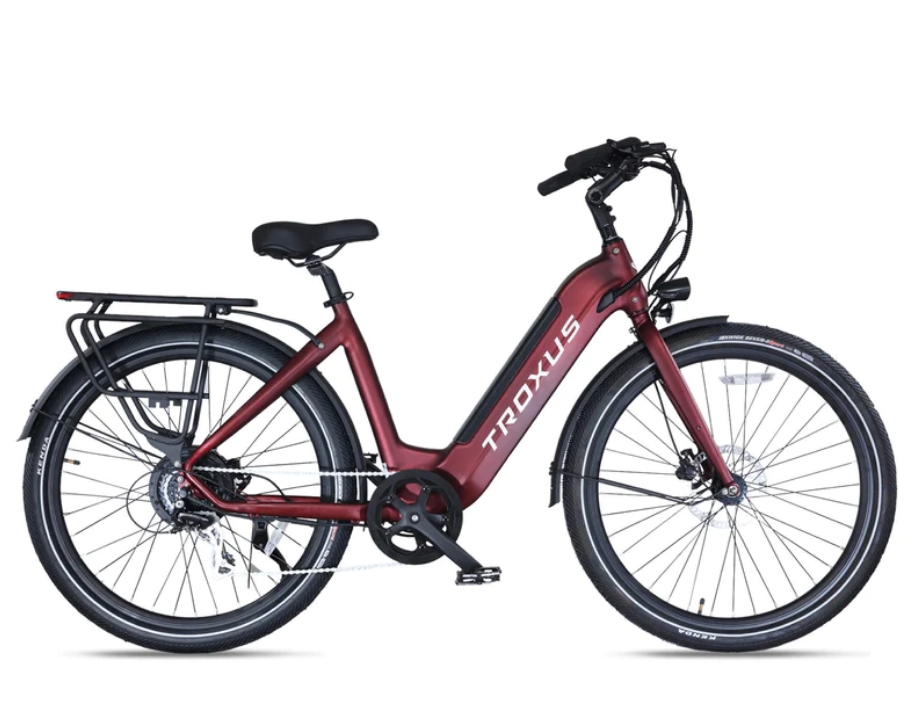

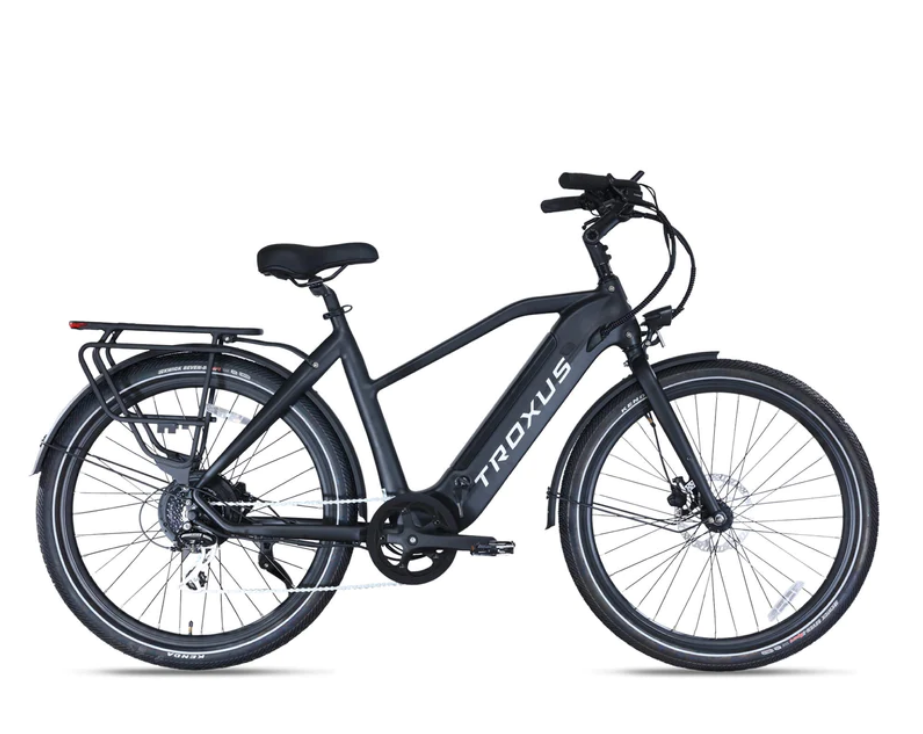

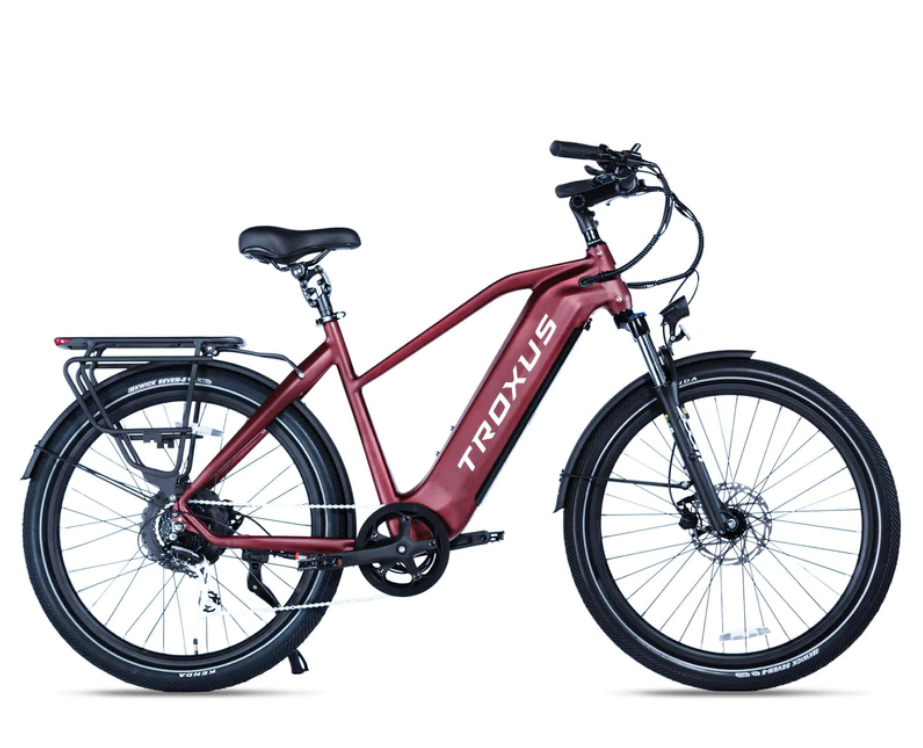

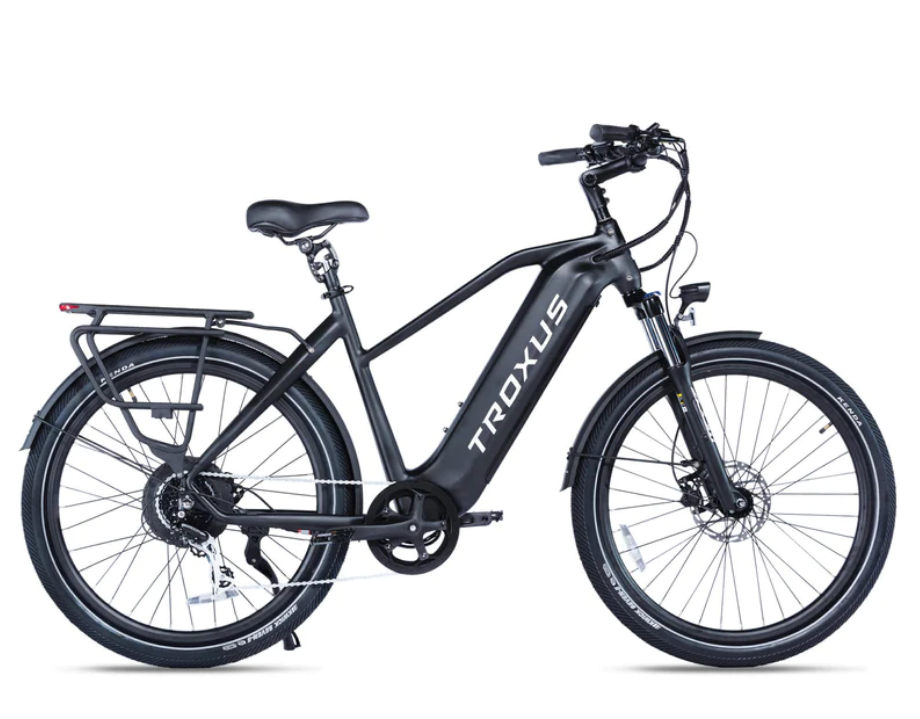

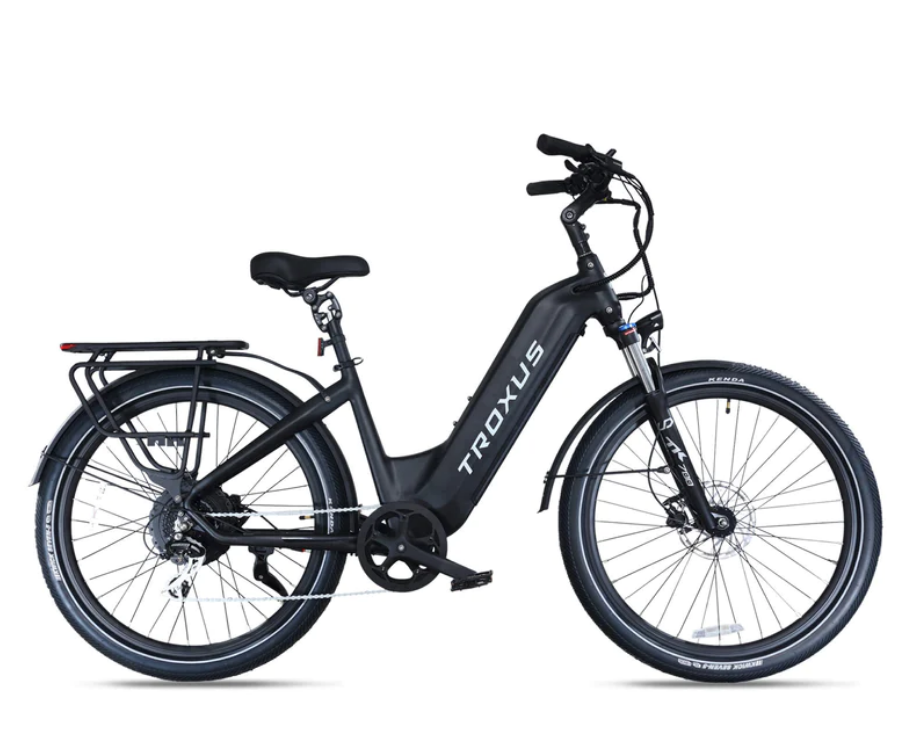

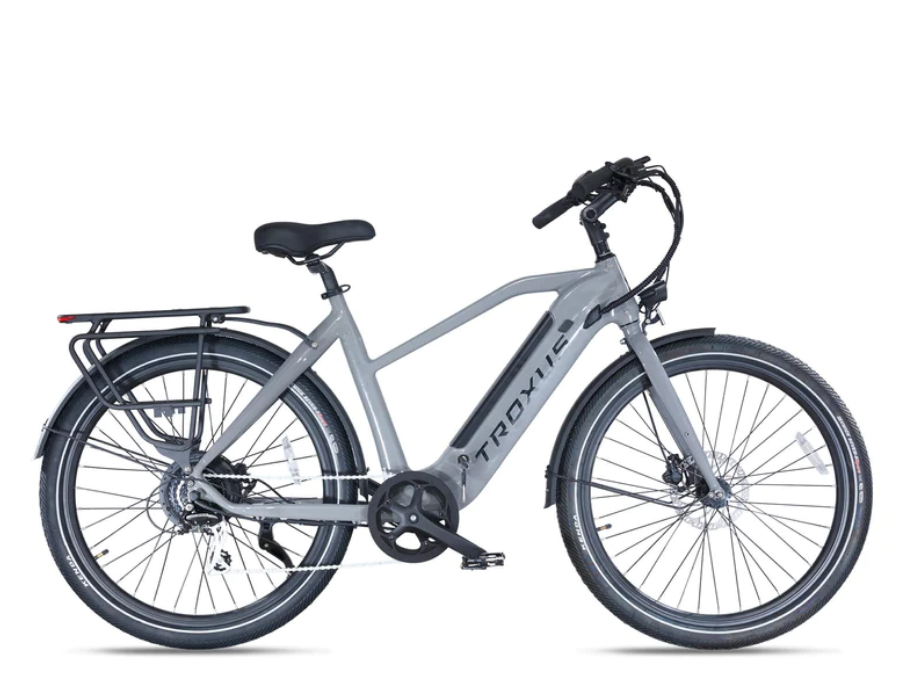

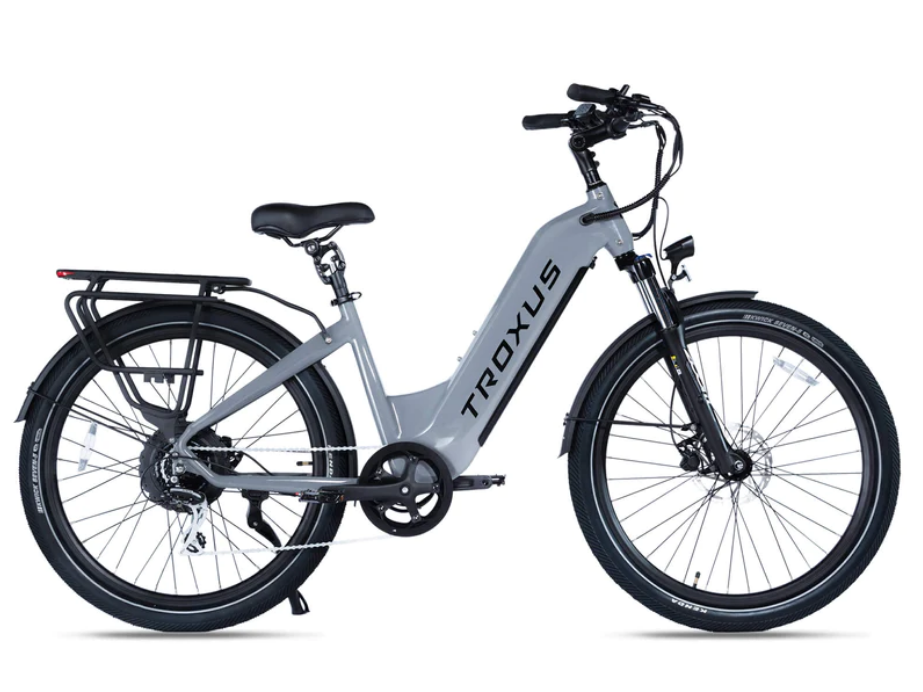

Troxus Trax Commuter

BAFANG® 500W/750W Motor Power

Smooth running and better handling. The rear hub motor runs smoothly and quietly, and the direct power distribution also makes the bike easier to handle, greatly improving rider safety. Rear hub drive bikes have much better traction than ones with front wheel drive due to better weight distribution. This is especially important for those looking for an electric mountain bike as they are more likely to go off-road when the ground is less firm and therefore need a better grip.

500W/750W hub motors are among the most ad-vanced and powerful hub motors in their class Though compact, they offer 65 to 75 N.m of max motor torque for optimum hill climbing, range, and speed. The thumb throttle provides easy speed and power control. The Bafang motor is what helps your Trax climb up to 28mph, when assisting your pedaling efforts.

SAMSUNG® 15A To 30A Battery

The range, stability, and safety of Trax e-bikes are all effectively increased by these 720Wh/960Wh/1440Wh remov-able lithium-ion batteries with Samsung cells. These batteries have improved discharge and charge efficiency, longer life span, and the ability to deep cycle while maintaining power. With pedal assistance, a single charge can take you from 55 to 110 miles. Best of all, after 1000 charges, the battery will still retain 80% of its capacity.

Smooth Welding

Smooth welding is a mark of superior craftsmanship. A smooth welded frame is structurally strong with functional elegance, and verifies the high-end quality. Every rider deserves a beautiful bicycle to carry them on their daily commute, to help express their identity.

SR Suntour® Suspension Seatpost

The suspension seatpost can also extend the amount of time you’re comfortable in the saddle by absorbing persistent small bumps and vibrations that come from gravel roads, double tracks, and trails. This makes it an especially compelling component upgrade for lengthy bikepacking trips and long-distance touring.

TEKTRO® HYDRAULIC BRAKES

Tektro® Hydraulic brakes provide superior braking performance and durability. With proper maintenance, braking power remains at brand-new levels for up to 5 years. These brakes provide powerful braking in all conditions, and easy modulation for consistent control.

SHIMANO® 8-SPEED SHIFTER

The Shimano® 8-speed gear shifting system offers you more choice while riding in a variety of conditions and terrain. Paired with the pedal-assist system, you can always find the speed that suits your journey. Using this system accurately can increase the range of a single charge by up to 15%.

TROXUS TRAX COMMUTER SPECIFICATIONS

MOTOR

Bafang® 48V/750W Hub-Drive Motor

THROTTLE

Thumb Throttles on Handlebars

DISPLAY

Colorful screen with USB charging, LCD Smart Easy Read Display with Backlight, Waterproof IP67

SPEED

Pedal Assist top speed at 28mph;Throttle top speed at 20mph

BATTERY

Samsung® 48V/15-30A Battery(720Wh-1440Wh),5000mAh single cell capacity

SENSORS

Cadence Sensor

PEDAL ASSIST

0~5 level pedal assist

CHARGER

15A Version: MDN® 54.6V 2A smart charger;

20A&30A Version:MDN® 54.6V 4.5A smart charger:

DoE&BC certificated,6-8 hours full charging

RANGE

55-110 Miles Average

FRAME

6061 Aluminum Alloy Frame
alloy, 3 Frame Sizes

Net WEIGHT

15A Rgd: 64.0 lbs

15A Sus: 68.5 lbs

20A Sus: 76.5 lbs

30A Sus: 80.5 lbs

PEDALS

9/16″Alloy Platform with CPSC/BS reflectors

FORK

15A Version: Zoom® Front Suspension Fork, 65mm travel

20A&30A Version: Uding® Front Suspension Fork, 80mm travel

 WEIGHT LIMIT

Standard Weight Limit 275LB

Maximum Weight Limit 353LB

KICKSTAND

Heavy duty aluminum

BOTTOM BRACKET

Gineyea® Square Taper, Sealed

CRANKSET

Wheel Top® 170mm w/46T, 3D forged alloy, Strong and rigid

REAR DERAILLEUR

Shimano® 8-speed Derailleur System

CASSETTE

Shimano®12-32T, 8 Speed Cassette

SHIFT LEVER

8 Speed

BRAKES

Tektro® Hydraulic Brake

CHAIN

KMC® chain, top rust prevention EPT

RIM

Powercir® Double Wall Aluminum 36h Front & Rear

SPOKES

Front wheel: black stainless 13 Gauge
Rear wheel: black stainless 12 Gauge

RACK

 Alloy with reflectors 80 pound capacity

FENDERS

Alloy Full Coverage

TIRES

15A Version: Kenda® 27.5"x2.2" w/ Thorn proof tubes, Reflective Sidewalls

20A&30A Version: Kenda® 27.5"x2.4" w/ Thorn proof tubes, Reflective Sidewalls

SADDLE

Troxus

SEATPOST

15A Rgd Version: Forged Alloy, 30.9*350mm， 2 Bolt Clamp

Other Versions:

SR Suntour® Suspension Seatpost

STEM

Zoom® Adjustable Stem, Threadless 31.8mm

SEAT CLAMP

Quick release

HANDLEBARS

Zoom® Aluminum 31.8 with 15 Degree Sweptback

LIGHTS

High intensity front and rear brake light

GRIPS

Ergonomic Comfort

PACKAGED

Above all accessories are included
