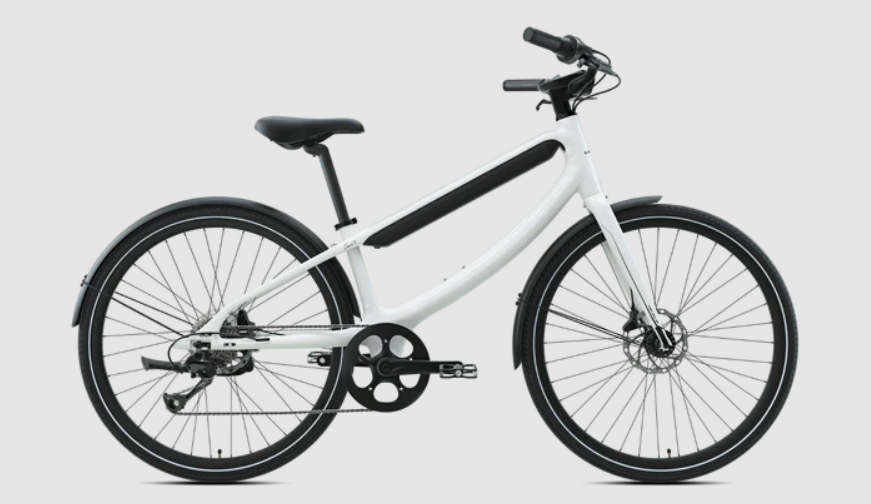

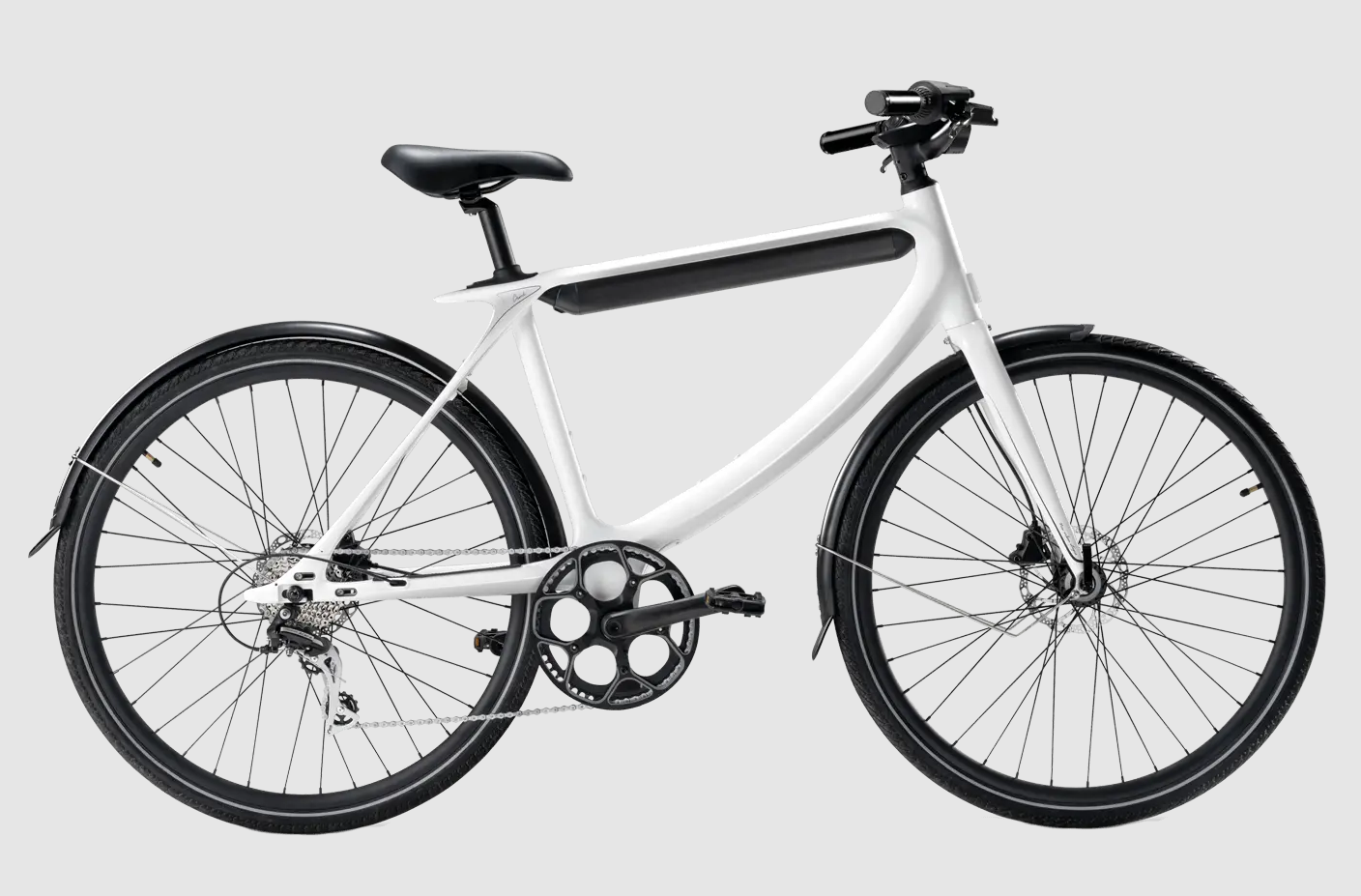

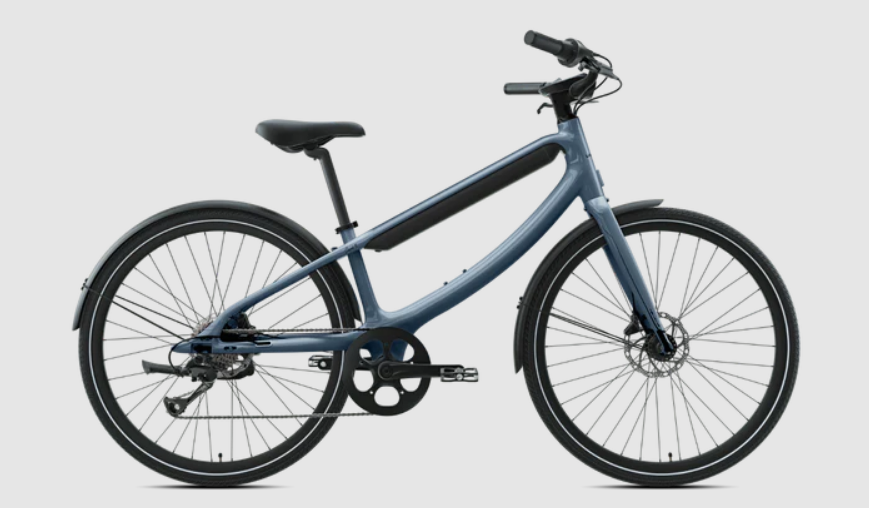

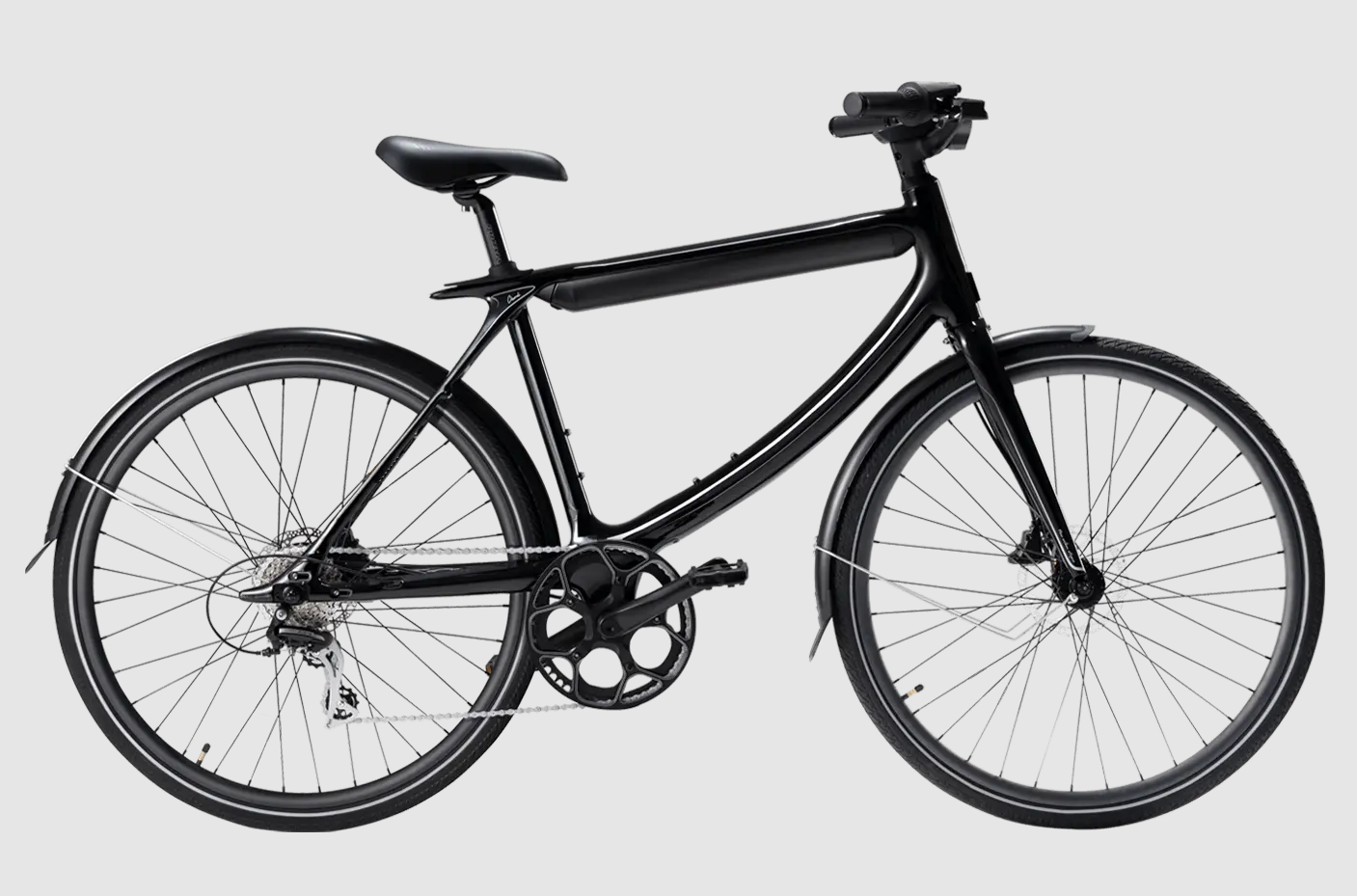

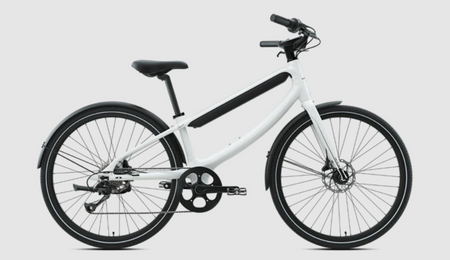

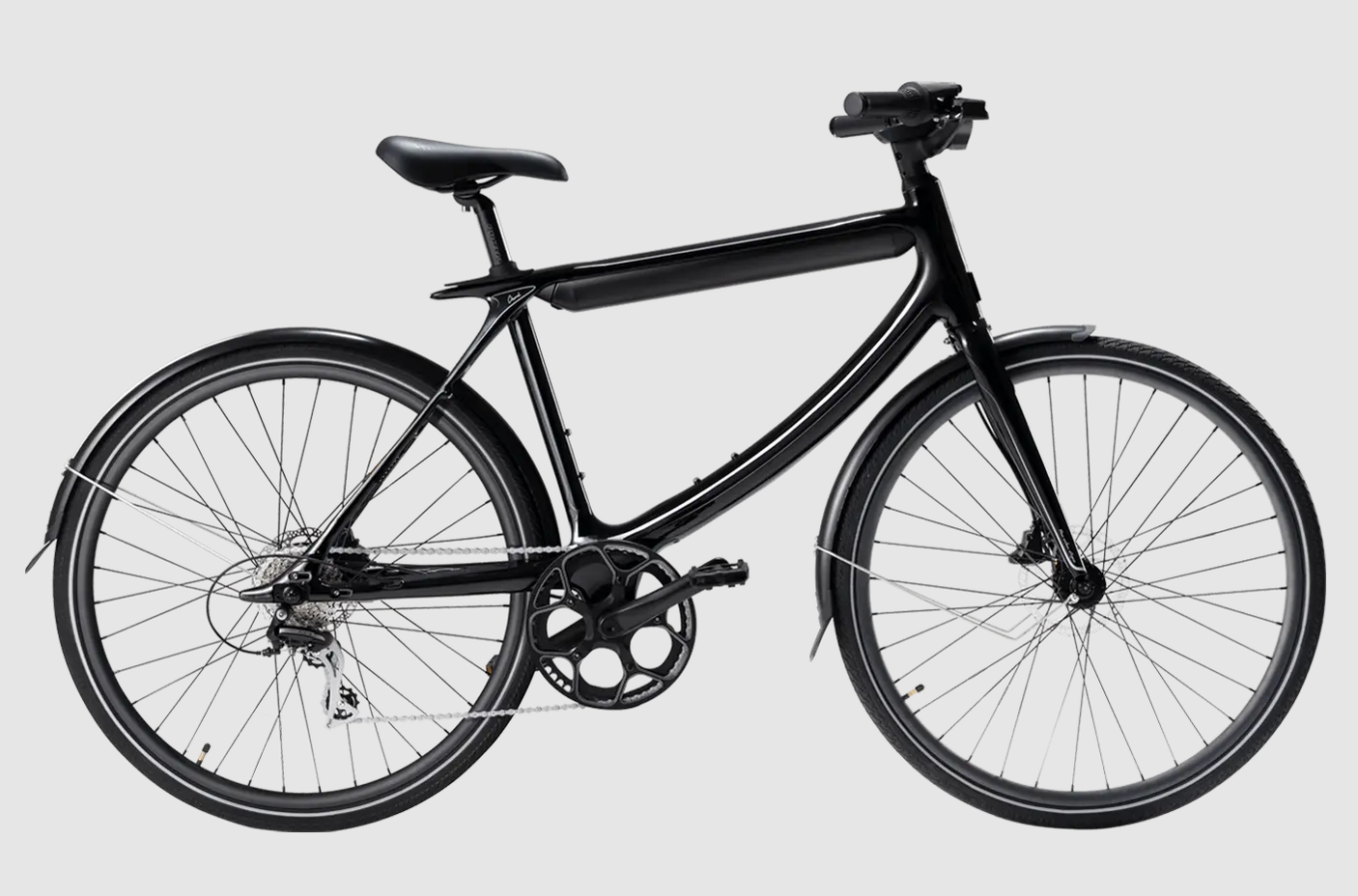

Urtopia Chord

Meet the new city ebike 2023 - the smartest electric town bike for urban adventurers. With a range of up to 75 miles, this ebike is ideal for commuting or leisurely rides. With the extra safety and convenience that comes with smart features, the Chord Ebike is your first step into a new era of cycling.

WHY - INSPIRED BY PIANO
The piano, with its elegant curves and simple color palette, perfectly embodied the vision we had for Chord. We wanted an ebike that would seamlessly blend into the city landscape, yet still stand out as a stunning work of art. And so, Chord was born.

WHO - PERFECT PERSONA
Who will be the character for this idea, the Croation pianist Maksim probably the best answer. His musical soul aligned with the product, sparking new inspiration for design. Working with him was like finding a soulmate for the design concept.

HOW - LIQUID FORGING
The advanced aluminum alloy casting technique offers 4 main advantages: seamless connected shapes, a wide range of possibilities for design, high product density, and superior strength with casting-like accuracy.

WHAT - URTOPIA CHORD
Design-wise, the Chord breaks away from traditional e-bike frame designs with its sleek, pure white curves that give the bike an air of simplicity and elegance.

PORTABLE BATTERY
A 352.8 Wh lithium-ion removable battery provides ample energy so a rider can travel up to 75 miles (31 miles min.) after a mere 3-hr charge.

INTEGRATED LIGHT
20 Lux Headlight with German road regulation-compliant design: a well-balanced combination of beauty and safety.

ADAPTIVE TORQUE SENSOR
Unlike jerky cadence sensing, proprietary torque sensor enables super-fast speed adaption.

FENDERS AND KICKSTAND
Navigate rough terrains and any weather conditions with our pre-installed fenders and kickstand included in the package.

RELIABLE HYDRAULIC DISC BRAKES
It provides reliable and consistent stopping power in any weather condition, ensuring a safe and smooth ride.

8-SPEED SHIMANO GEARING
Experience seamless gear shifts and tackle different terrain with the versatile 8-speed Shimano gearing system

RESPONSIVE MOTOR
The 350W intelligent motor delivers a quiet and smooth ride while also being energy-efficient, allowing riders to travel further.

URTOPIA CHORD SPECIFICATIONS

Smartbar Features

Voice control, fingerprint start, LED dot-matrix display, haptic interaction, bluetooth music, built-in navigation, GPS tracking, OTA upgrade.

Connectivity

eSIM with 4G, bluetooth and wifi

IoT Sensors

Accelerometer, gyroscope, torque

App
iOS & Android

Motor

Customized rear hub, 36V 350W 45nm

Speed Modes

Pedal, Eco, Comfort, Sport, Turbo

Top Speed (assisted)

20mph

Range

31-75 miles

Removable Battery

352.8 Wh Samsung Li-ion 2.5-hr quick charge

Weight

46lbs

Load-bearing Capacity

287lbs

Size

Chord - 5’7” - 6’5”

Body Material

6061 aluminum with liquid forging technology

Brakes

TEKTRO hydraulic disc brakes

Gearing

8-speed Shimano rear derailleur

Integrated Lights

StVZO headlight; rear light

Wheels

700C (ISO 622mm BSD) , inner rim 19mm

Tires

CST C1720, 700 x 42C with reflective strips
