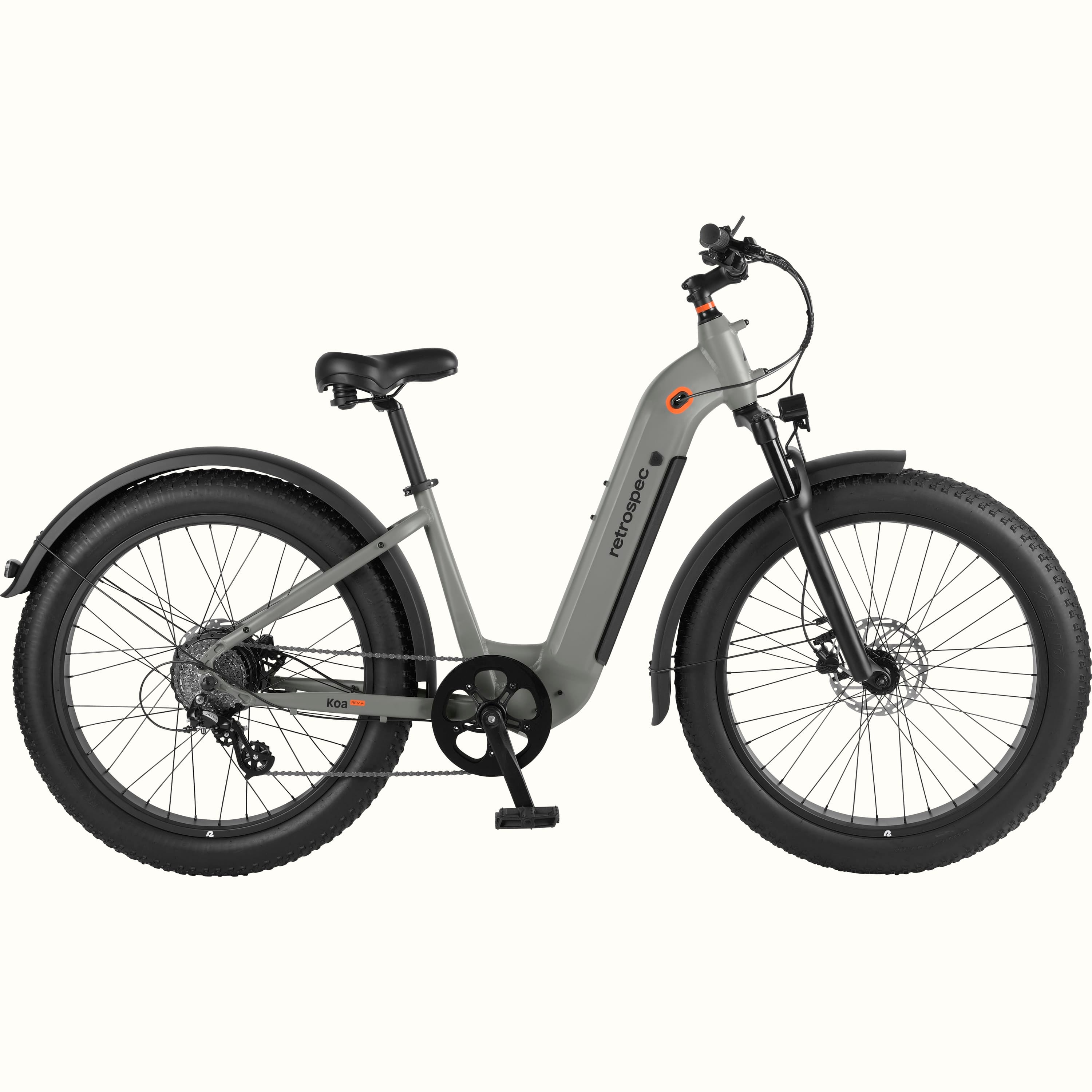

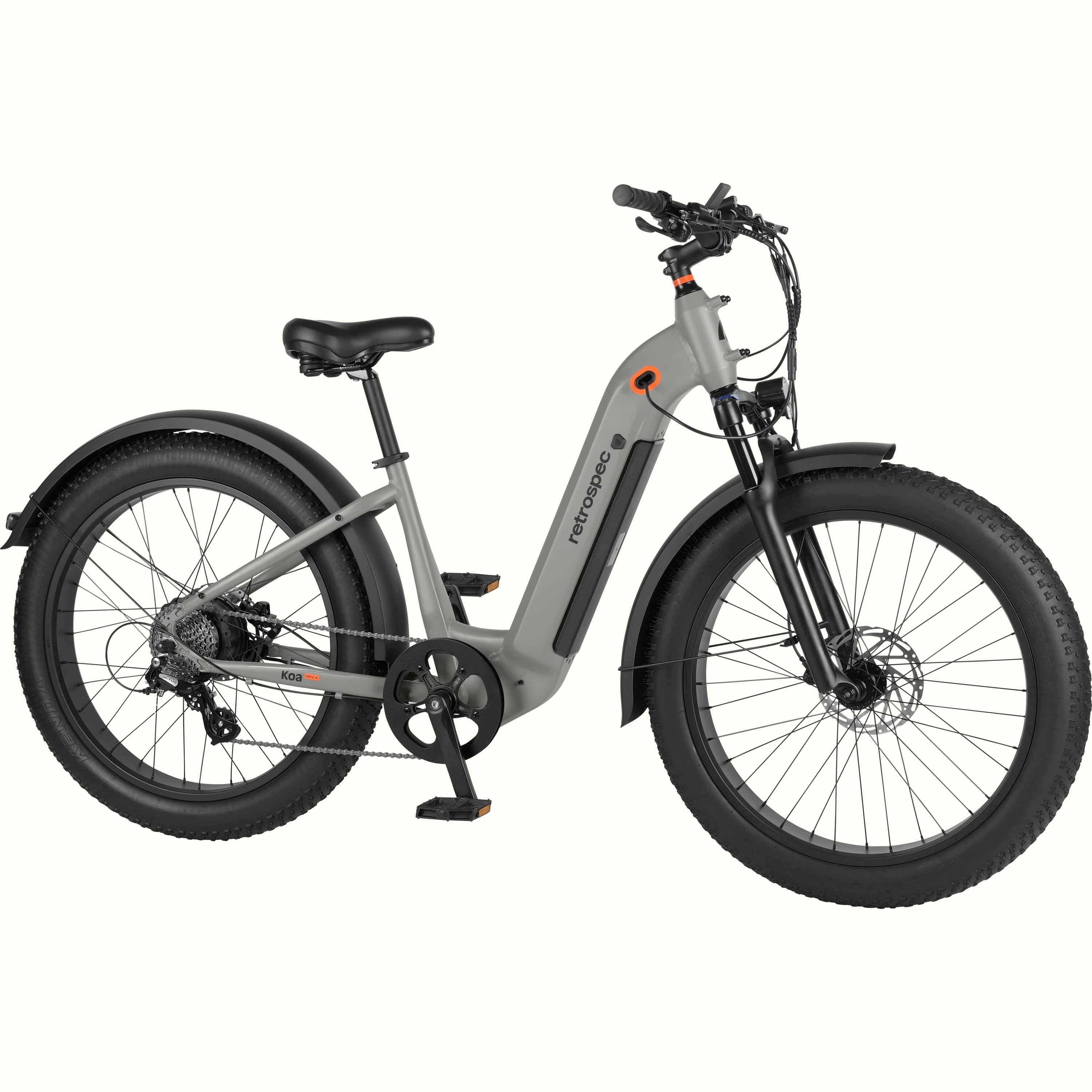

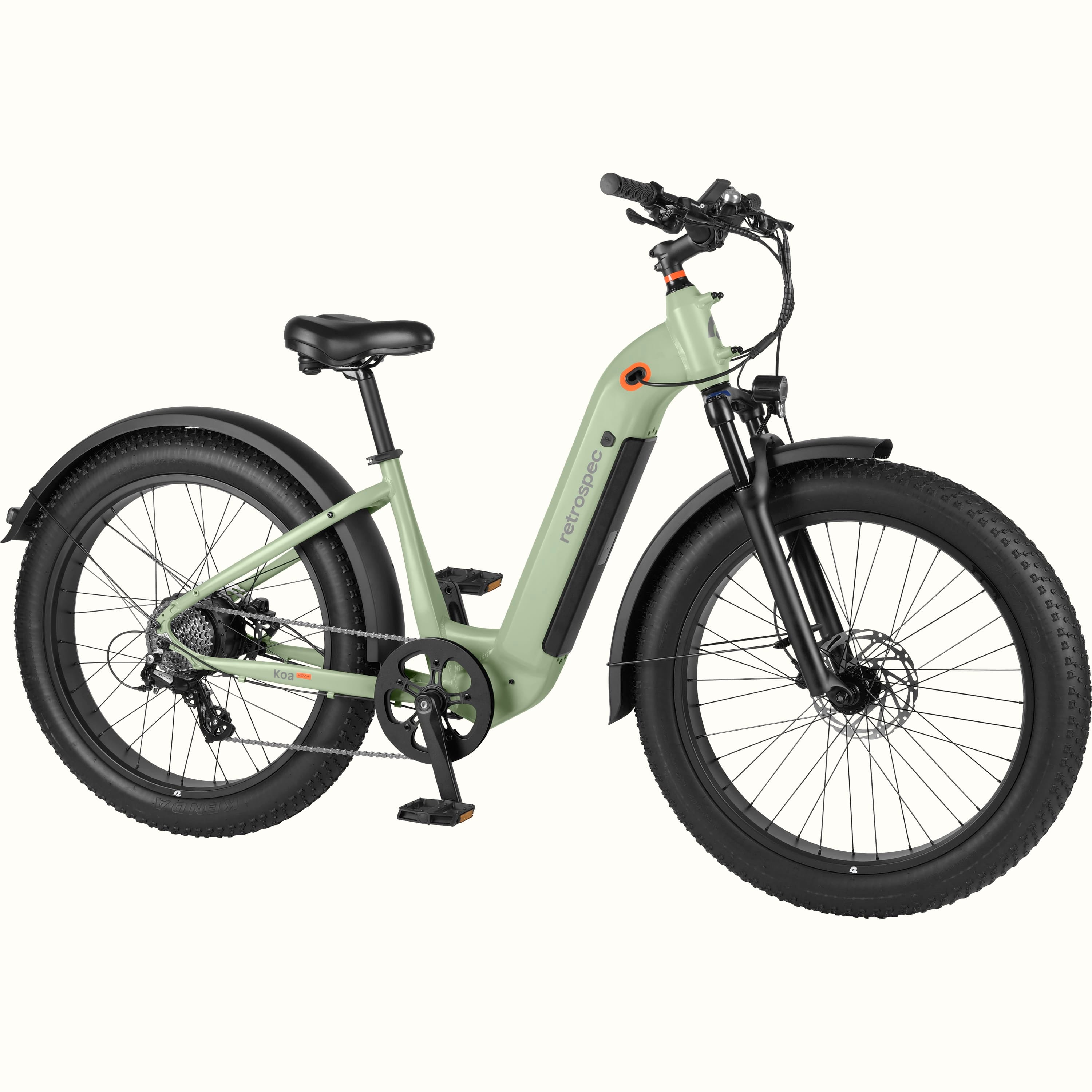

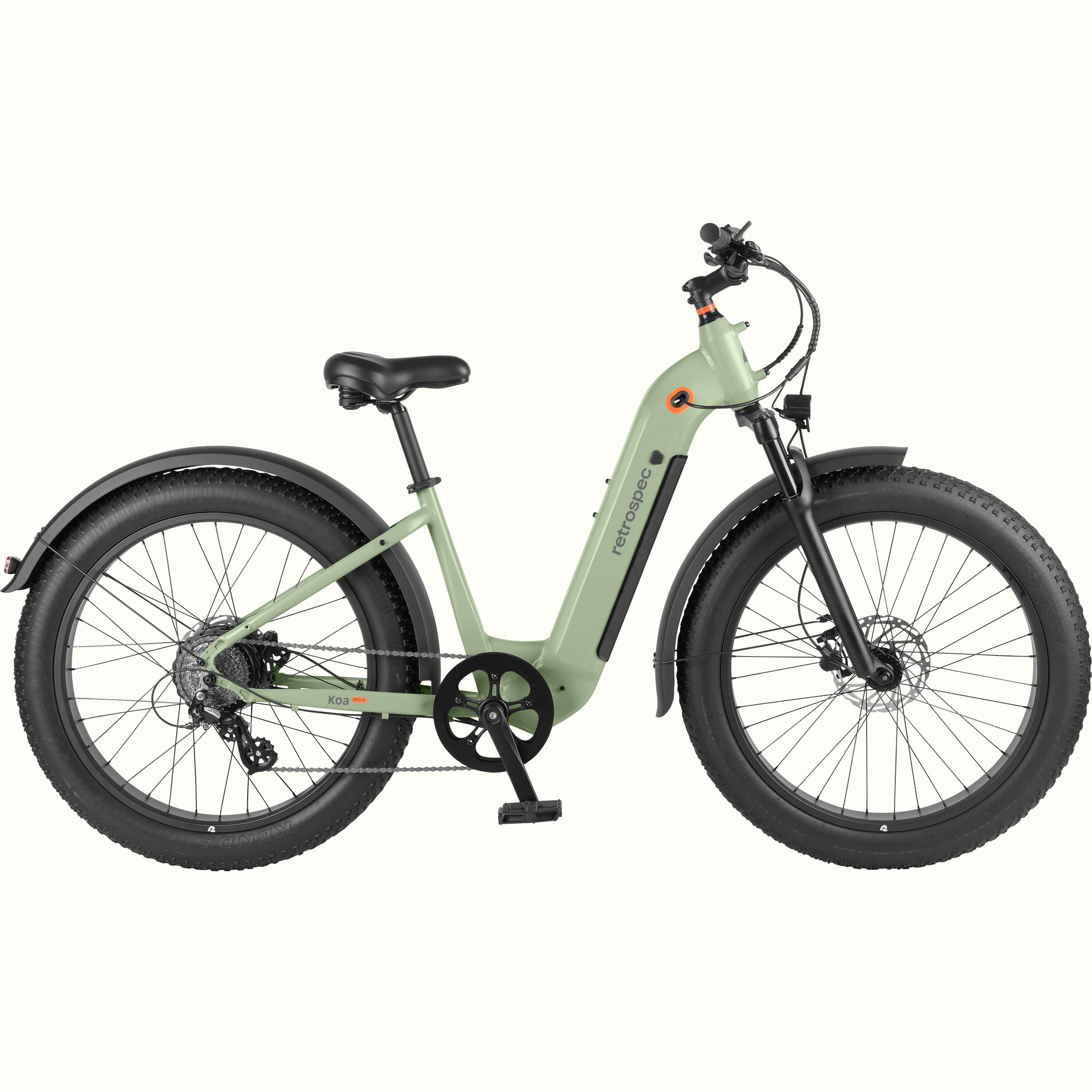

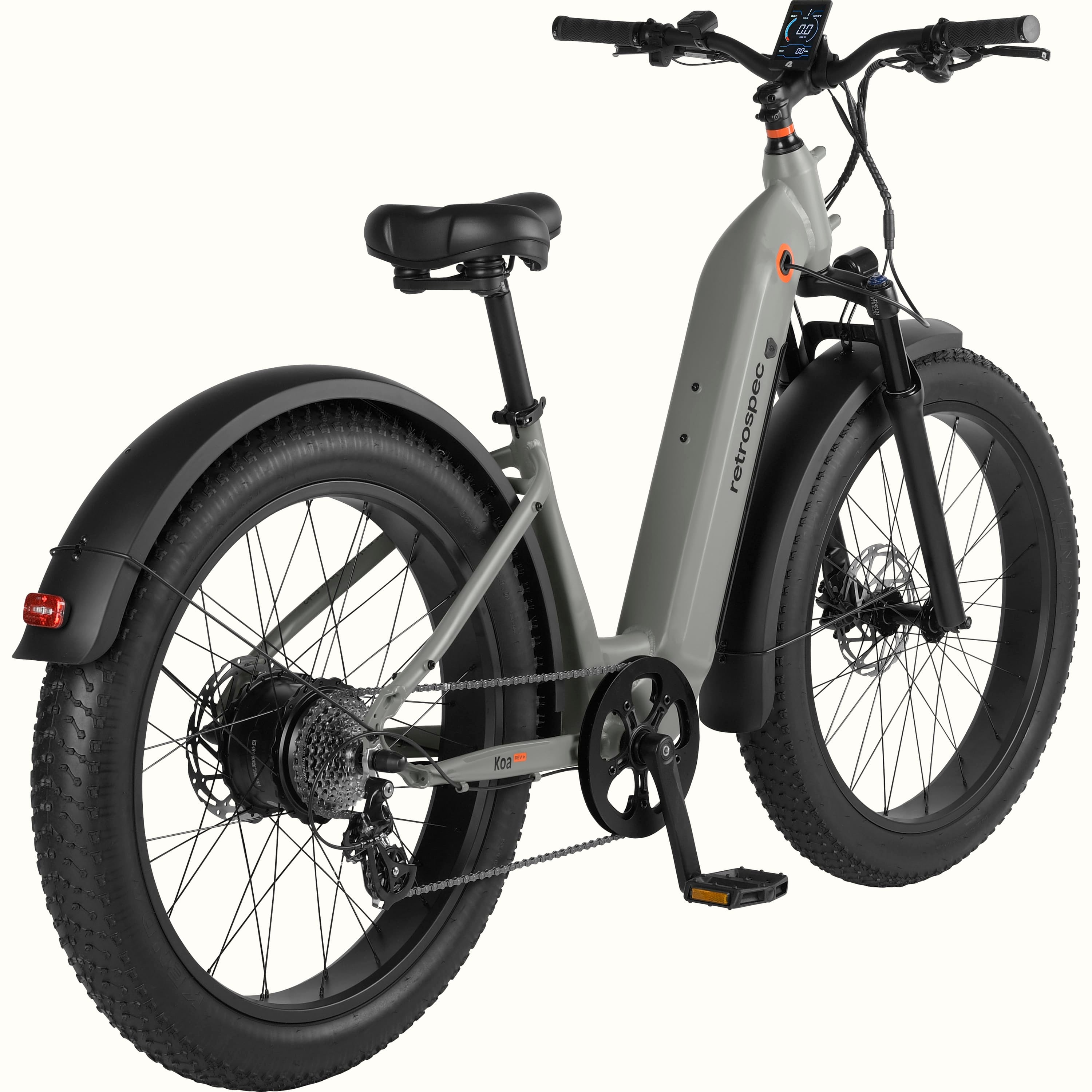

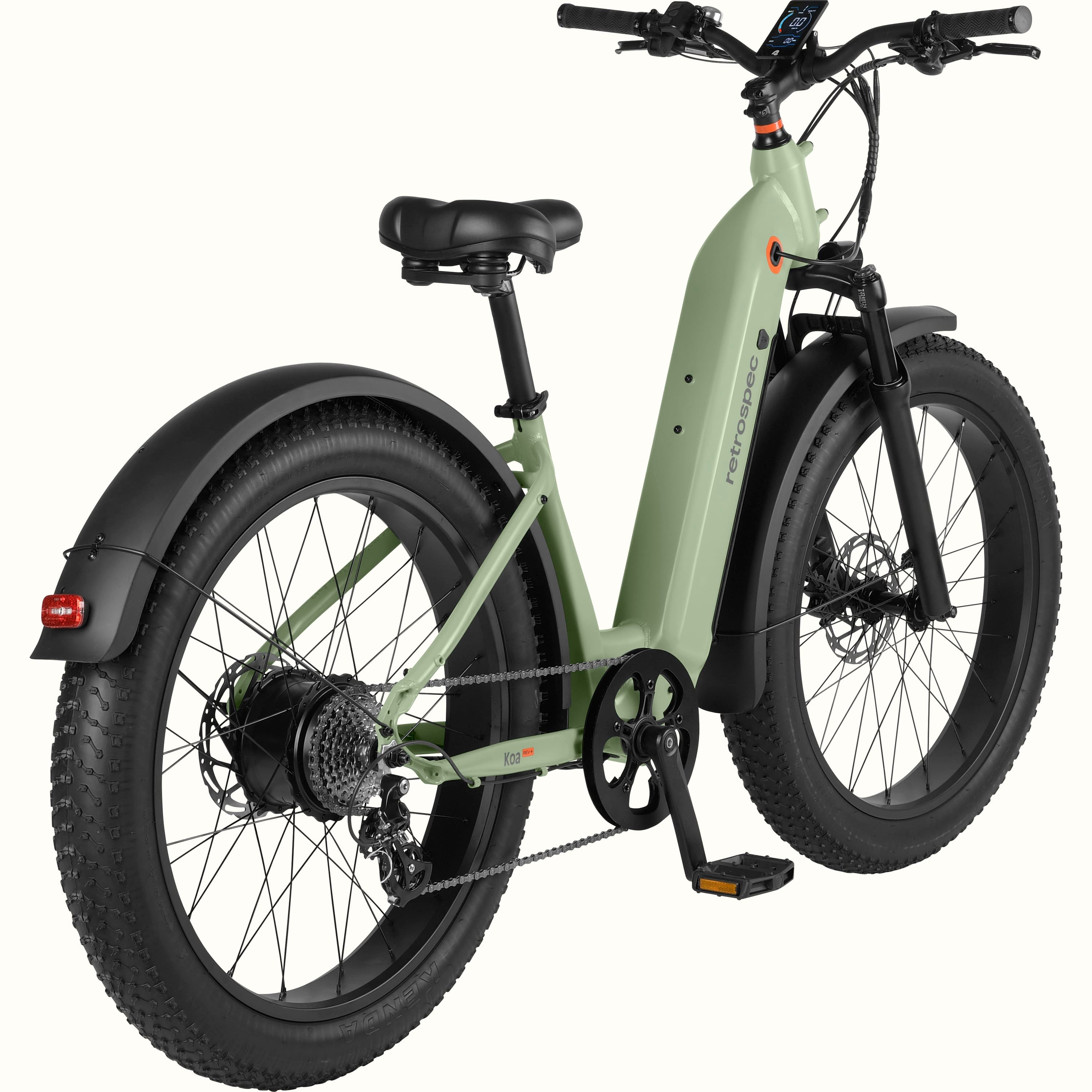

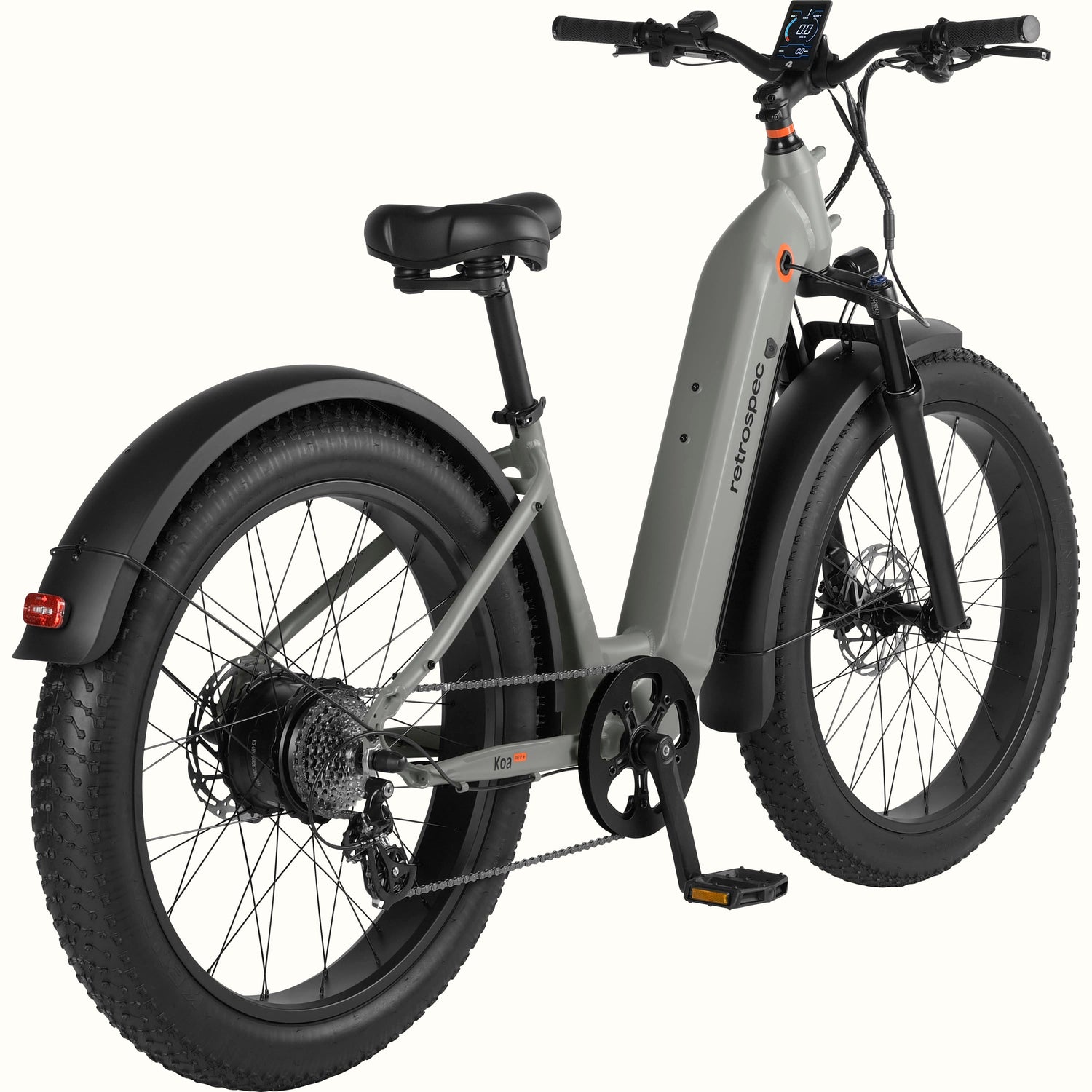

Koa Rev+ 2 Fat Tire Electric Bike - Step Through

• Sizes: 16.5" Step Through;

• Material: Alloy, 6061 TIG welded, hydroformed tubing

• Dropouts:
• Decals:
• Replaceable Der Hanger
• Fork:

DriveTrain

• Derailleur - Rear: Shimano Altus 8speed

• Shifter: Shimano Rapidfire Plus

• Crankset: 46T w/double alloy chainguard

• Chain: KMC Z8.

• BB: JIS square taper cartridge

• Freewheel/Cog: Shimano 11-34T



Wheelset

• Rims: Alloy 36H for disc brake

• Hubs: Alloy bolt on 17mm nut

• Spokes: 13G/2.3mm w/brass nipples

• Tires: 26 x 4.0, with moto-belt anti-puncture protection



Components

• Headset: Threadless, 1 1/8"

• Brakes: Tektro hydraulic with ebike specific 180mm rotors and semi-metalic pads
• Handlebars: Alloy 700mm

• Grips: Comfort with alloy lock rings

• Stem: Die-Casting alloy; 31.8mm barbore, ext. 60mm +6d, 4-bolt faceplate

• Saddle: SuperSoft MTB

• Seatpost: Alloy; 30.9mm diameter, 400mm length

• Seatpost Clamp: Alloy QR

• Pedals: Alloy platform 9/16"



Extras

• Kickstand: Rear mount, adjustable, aluminum alloy

• Lights: Integrated/system-powered front and rear lights w/brake function

• Fenders: Full coverage front and rear

• Tools: 4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver

• Weight - Bike (Assembled w/battery): 71 lbs

• Class: Class 2: pedal-assist and/or throttle-assisted, 20 mph max.

• Rover Compatible: Yes

E-Power System

• Motor: 750W geared

• Battery: 48V 720W LG 21700 cells

• Modes: PAS/Thumb throttle Left side , cadence sensor

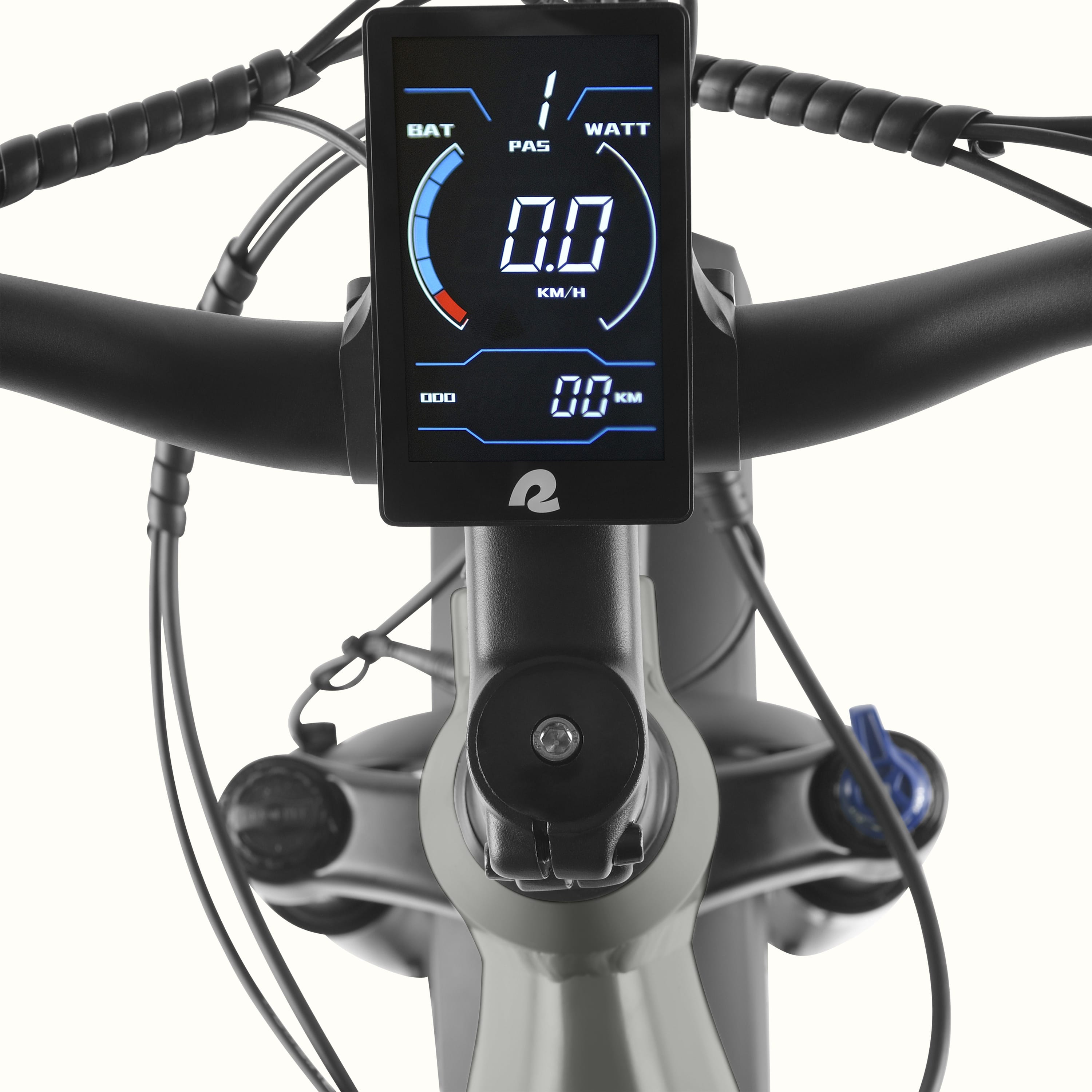

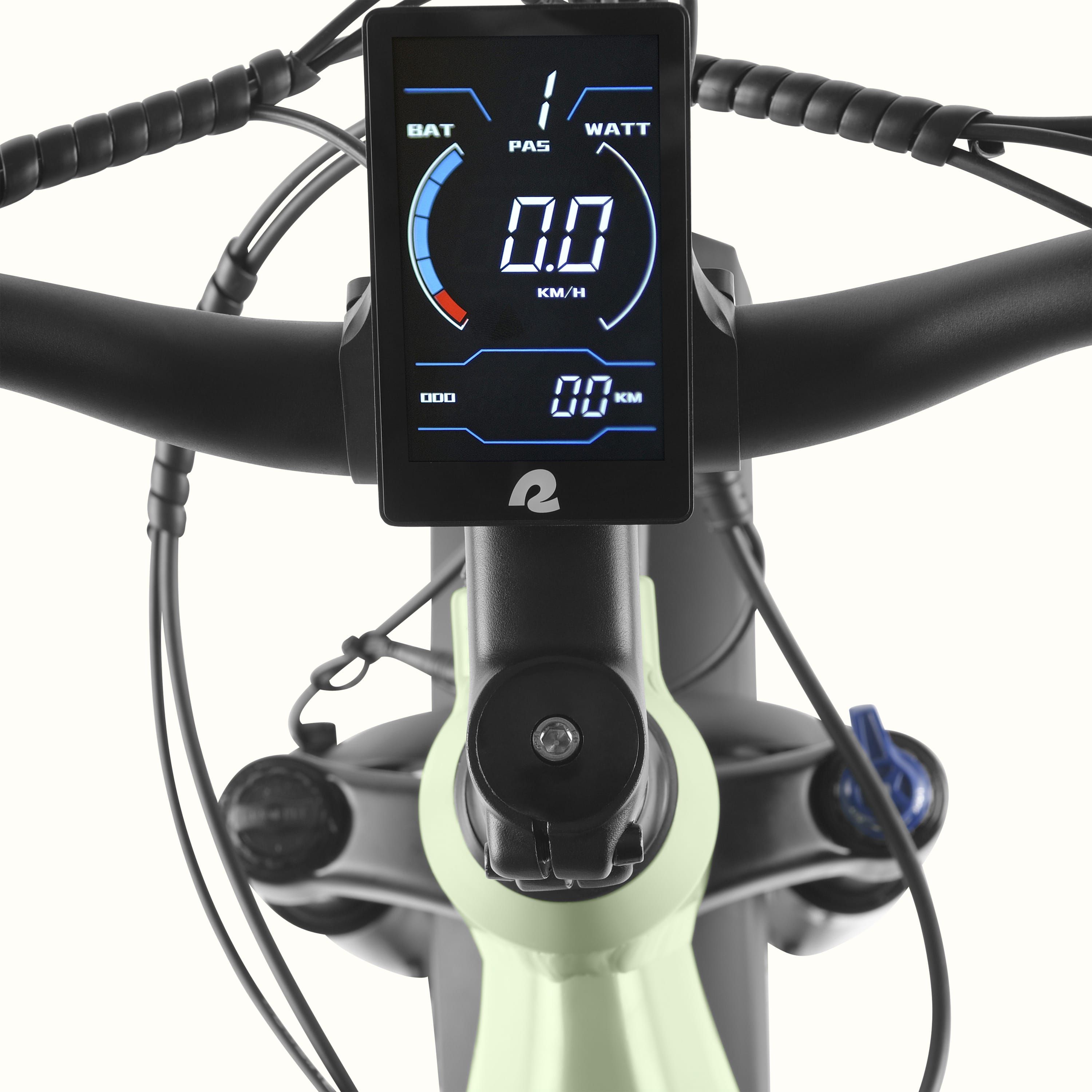

• Display: Full color display with 6 levels of assist, anytime throttle and walk mode.

• Controller: Retrospec 22Amp
• Charge Time: Approximately 6hrs
• Watt Hours: 720Wh
• Range: 720Wh: 50+ Miles
