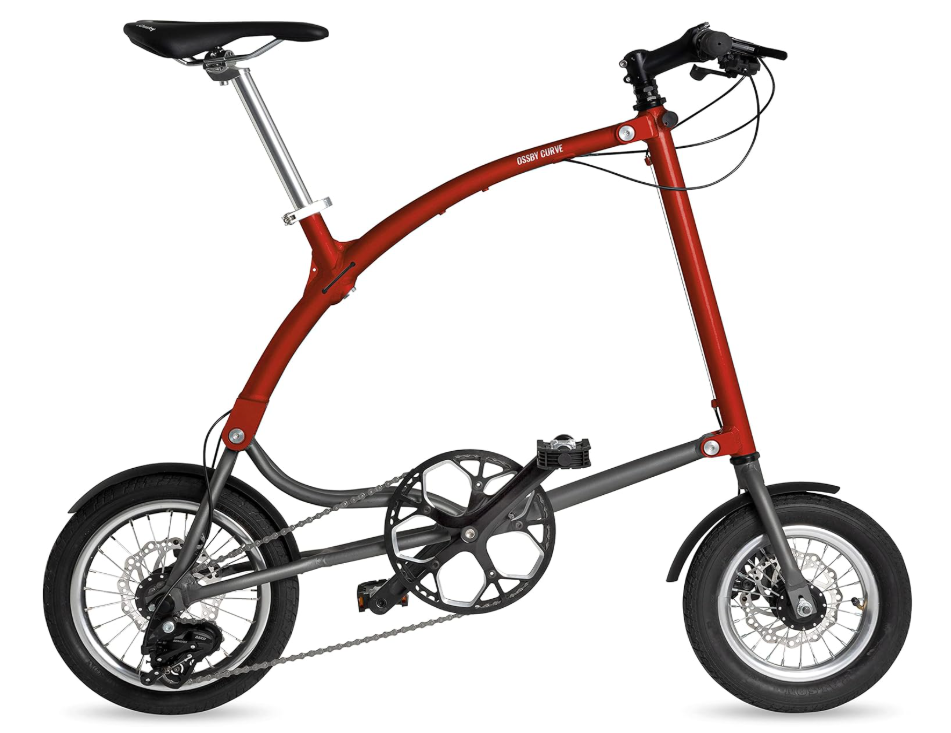

Ossby Curve Electric bike

FOLDING ELECTRIC BIKE – 100% URBAN

The perfect balance between design and technology to achieve a different bike with only 13.5 kilos of weight. It offers 70 km of autonomy and will allow you to move anywhere without fearing the slopes. Decide the level of assistance you need from your mobile and let nothing stop you!

Ossby Curve Electric Specifications

WEIGHT
13.5kg on the Curve Electric model

SIZE
Unfolded: 93 cm / 120 cm
/ 55cm and Folded: 93cm / 70cm / 22cm.

EASYUP FOLDING
Folded in 1 second. Simply by pulling the crank up, in a single movement, the bike will halve its size and allow it to be moved on its wheels.

ALL IN ONE ELECTRICAL SYSTEM
On the rear wheel are the battery, motor and sensors.

Autonomy: 70km. Motor: 250 W | Battery: 30V and 10Ah Lithium Ion with Panasonic cells.
Battery life cycles: + 500.
Motor touch torque: 25Nm.

Engine control via App on Android as iOS. The communication between the mobile and the ''All In One'' system is done via Bluetooth to avoid cables.
Charge in less than 4 hours by means of the input located on the shaft, in any electrical outlet.
3 levels of assistance: Eco, Tour and Sport.TRANSMISSION
Both models feature a 53T plate and a 3-speed shift system with 11T, 13T, and 15T sprockets.

FOLDING HANDLEBAR
A design patented by Ossby that allows its folding with a simple movement and in turn offers the necessary robustness for a pleasant ride.
