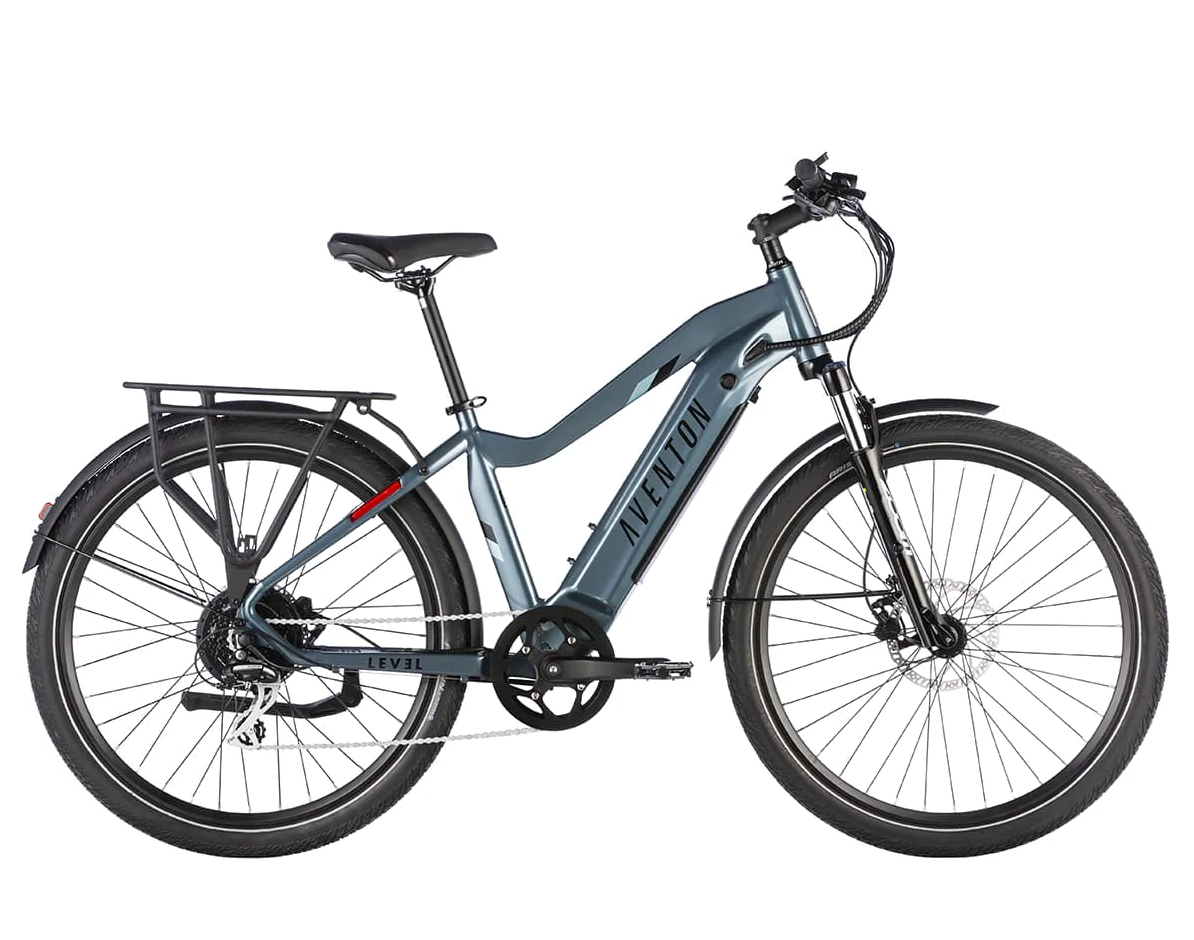

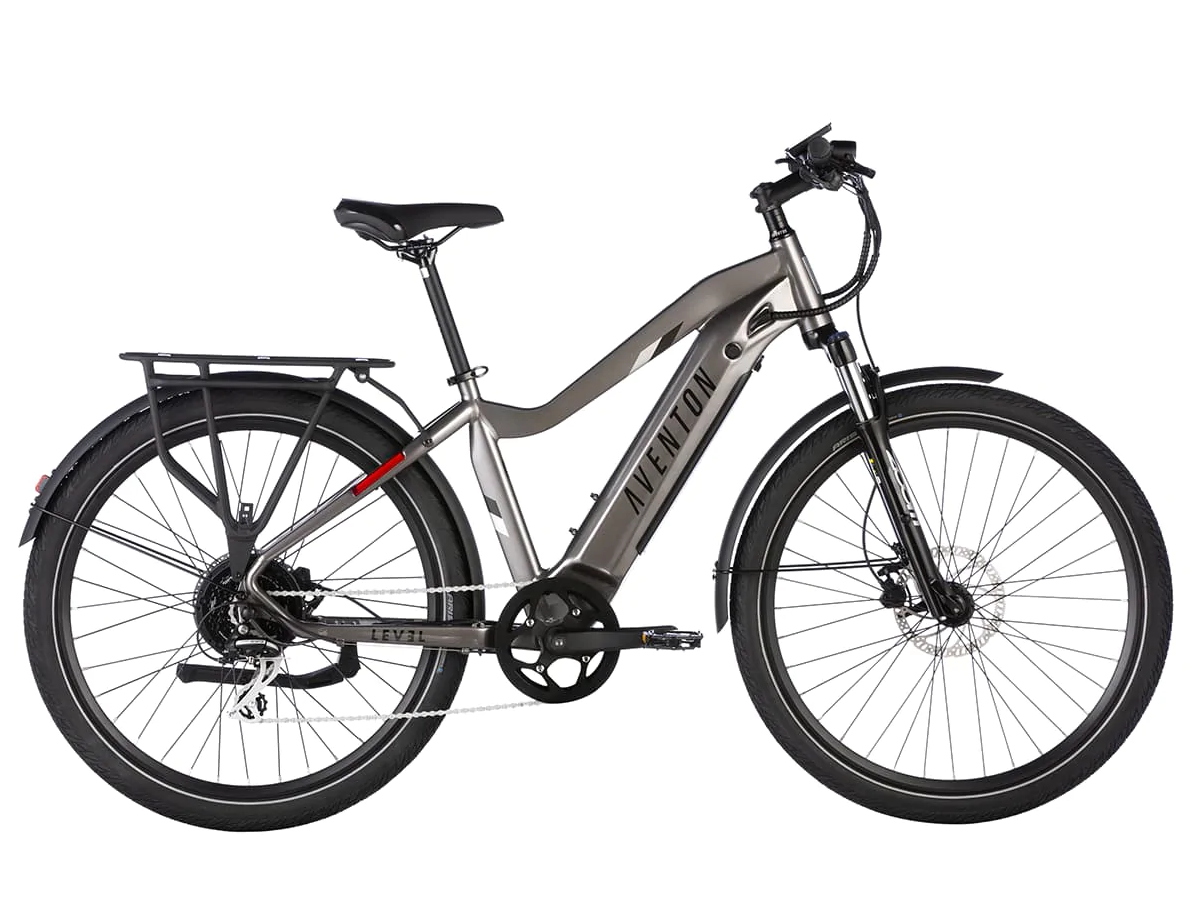

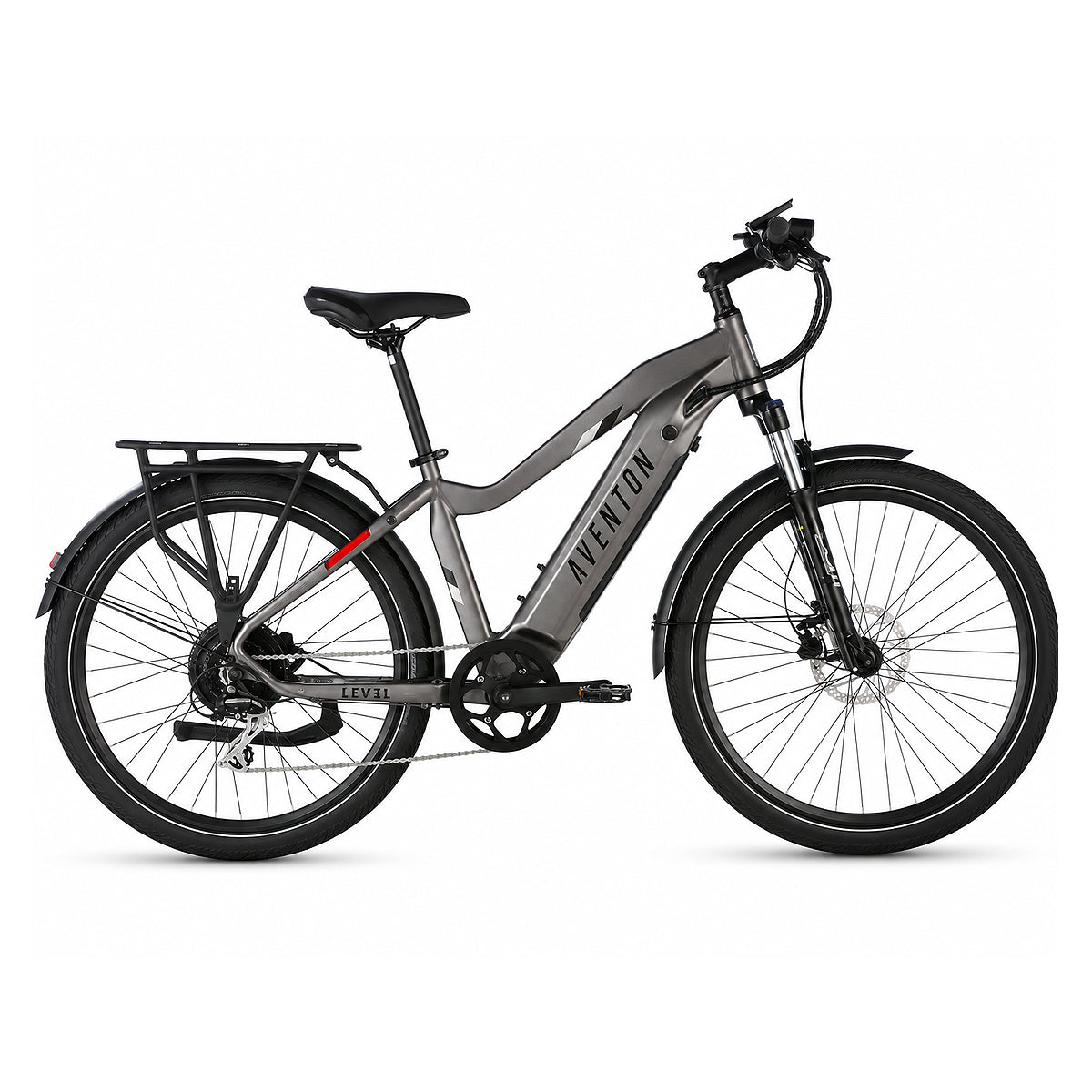

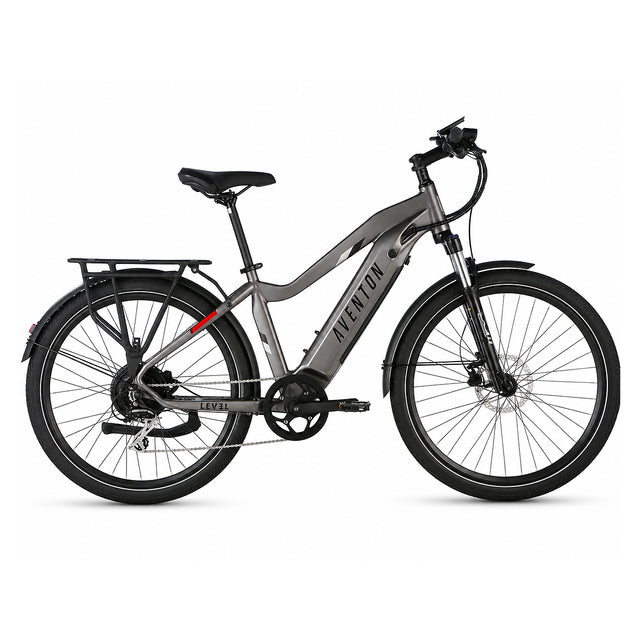

Aventon Level.2

Aventon Level.2

Reinvent joyriding with Level.2. An upgrade to our flagship commuter ebike, Level.2 is as innovative as it is efficient. A fully integrated battery, four integrated lights, and a front suspension fork provide ultimate comfort and safety no matter the terrain or time of day. Equipped with preinstalled fenders and a rear rack, Level.2 can transport it all, from work essentials to picnic goodies, without the elements taking their toll. Aventon’s first electric bike engineered with a torque sensor means a more natural riding experience. Take control of your ride with Level.2 intuitively amplifying your effort or go against electric and pedal solely with your power.

TORQUE SENSOR
Level.2;s upgrade torque sensor recognizes how light or hard you’re pedaling, meeting you exactly where you’re at amplifying your own power. Not only promoting a more natural riding experience but also conserving battery life and extending range!

BACKLIT LCD DISPLAY
Monitor your speed, battery life, distance traveled, and more mid-ride with intuitive color display. Sync to the Aventon mobile app for additional riding data and to connect with the larger Aventon community!

FRONT SUSPENSION
A front suspension fork with up to 65mm of travel means you can ride anywhere and everywhere with comfort and confidence! Adjustable to match your preferences, Level.2 can absorb every bump in the road or be adjusted to your best feel in the road!

RACK AND FENDERS
Pre-installed fenders will protect you from the elements, rain or shine, while an attached rear rack means you can transport all of your essentials, whether you’re heading out for a picnic or heading home from work!

HUB MOTOR AND BATTERY
Discover your level with a powerful 500W rear hub motor. Paired with a torque sensor and fully integrated fast-charging battery, you’ll get to your destination in record time with juice still to spare.

PEDAL ASSIST AND THROTTLE
Five levels of pedal assist mean you’re in charge of how much or how little electric assist you get from your ebike, while a throttle will propel you at speeds up to 20 MPH, keeping you moving when pedaling is just an afterthought!

The Level.2 comes out of the box as a Class II ebike, with pedal assist and throttle going up to 20 MPH . It can be unlocked to a Class III ebike and can go up to 28 MPH on pedal assist. The Level.2 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited.

Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.

*Using PAS 1 throughout flat terrain with a rider weight of 160 lb.

AVENTON LEVEL.2 SPECIFICATIONS

MOTOR
750W (Peak) 500W (Sustained) Brushless Rear Hub Motor

THROTTLE
Throttle on demand - Throttle from a complete stop

DISPLAY
LCD Smart Easy Read Display with Backlight, Colorful screen with app

SPEED
Up to 28 MPH on Pedal Assist and 20 MPH on Throttle

BATTERY
Removable Internal Lithium-ion 48V, 14Ah (672Wh)

SENSORS
Torque Sensor

PEDAL ASSIST
5 Levels

CHARGER
48V 3 Amp Fast Charger, 4-5 Hour Charging

RANGE
Up To 60 Miles*

FRAME
6061 Double-Butted Aluminum Alloy with Internal Battery

WEIGHT
54lbs

PEDALS
9/16" Alloy Platform

FORK
Coil Spring Suspension, Thru-axle, 65mm travel with lockout

WEIGHT LIMIT
Maximum Payload Capacity: 300 lbs

KICKSTAND
Included, Rear Mount

GRIPS
Ergonomic Comfort

HEADSET
Sealed Bearing Headset

BOTTOM BRACKET
Square Taper, Sealed, Torque Sensor

CRANKSET
170mm w/ 46 T

REAR DERAILLEUR
8 Speed

CASSETTE
12-32T, 8 Speed Cassette

SHIFT LEVER
8 Speed

BRAKES
Hydraulic Disc Brakes, 180mm Rotors

CHAIN
122 Link, 8 Speed

RIM
Double Wall Aluminum 36h Front & Rear

SPOKES
Black Stainless 13G Front / 12G Rear

TUBES
Butyl Rubber, Schrader Valve

HUBS
36H Disc Thru-axle Front, Nutted Rear

TIRES
27.5” x 2.1” Hybrid Tires, Reflective Sidewalls

SADDLE
Aventon by Velok

SEATPOST
Aluminum Alloy, 27.2mm, 2-Bolt Clamp

STEM
Threadless, 31.8mm, 7 Degree Rise

SEAT CLAMP
31.8 mm Quick Release

HANDLEBARS
Aluminum 31.8mm, 680mm
