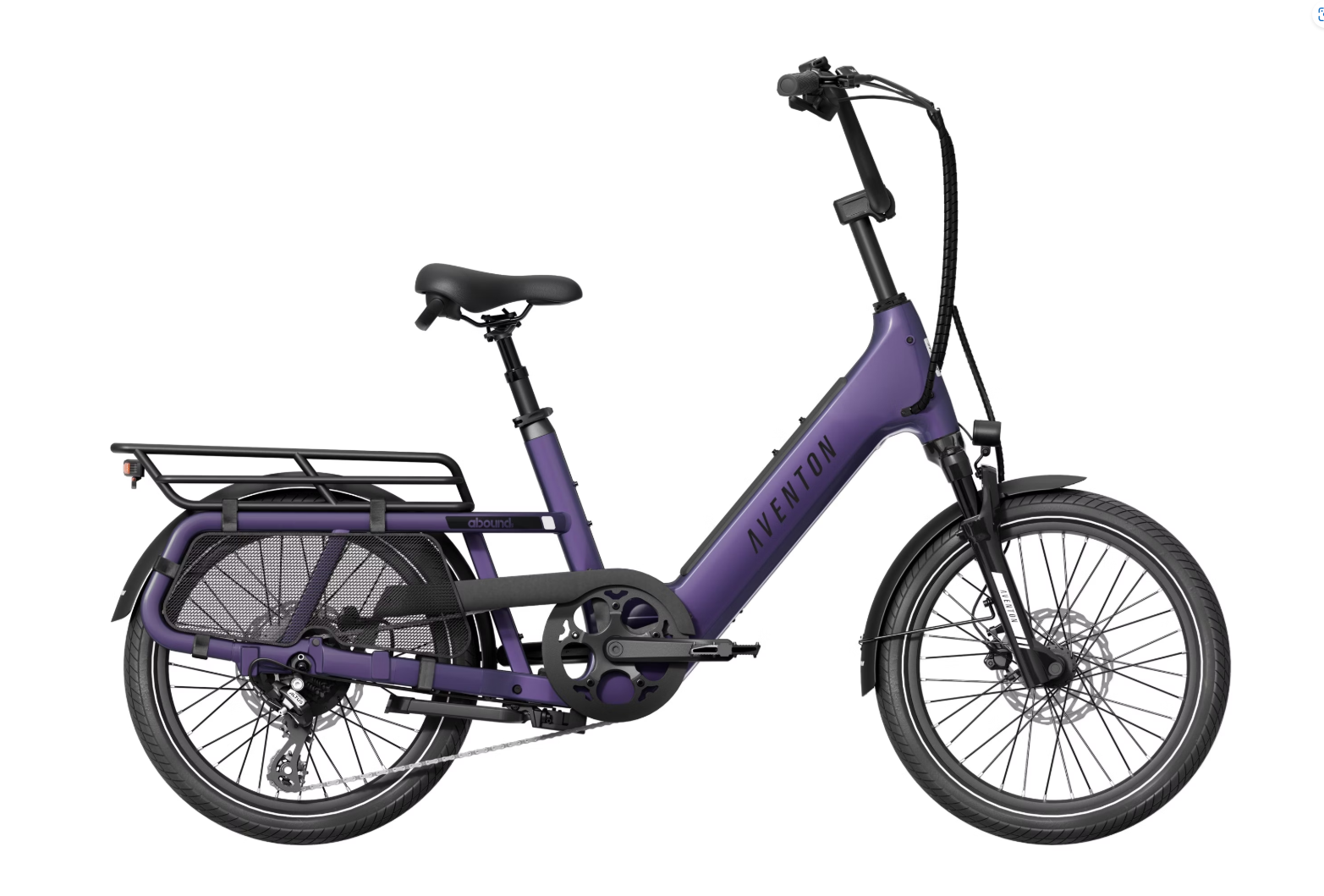

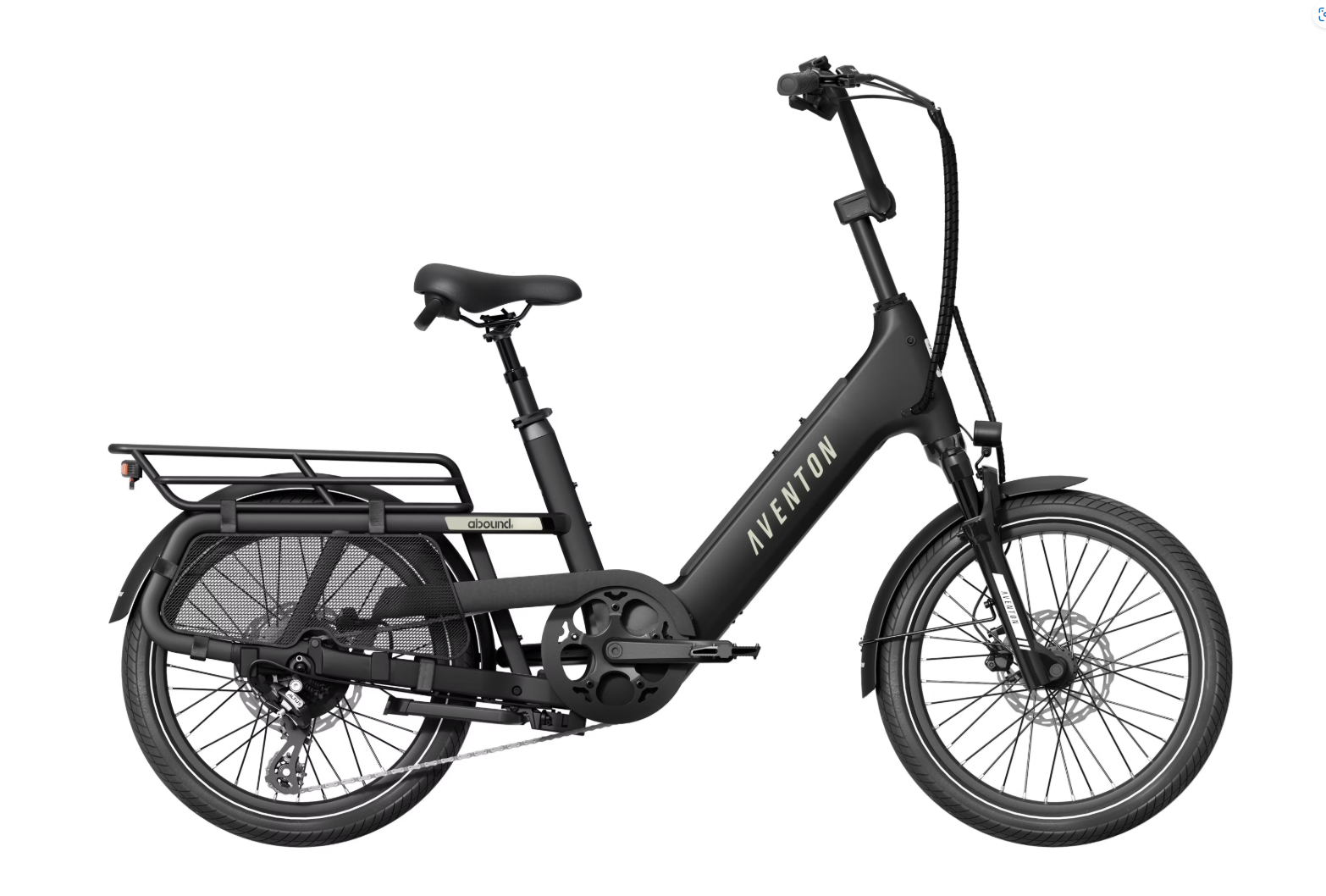

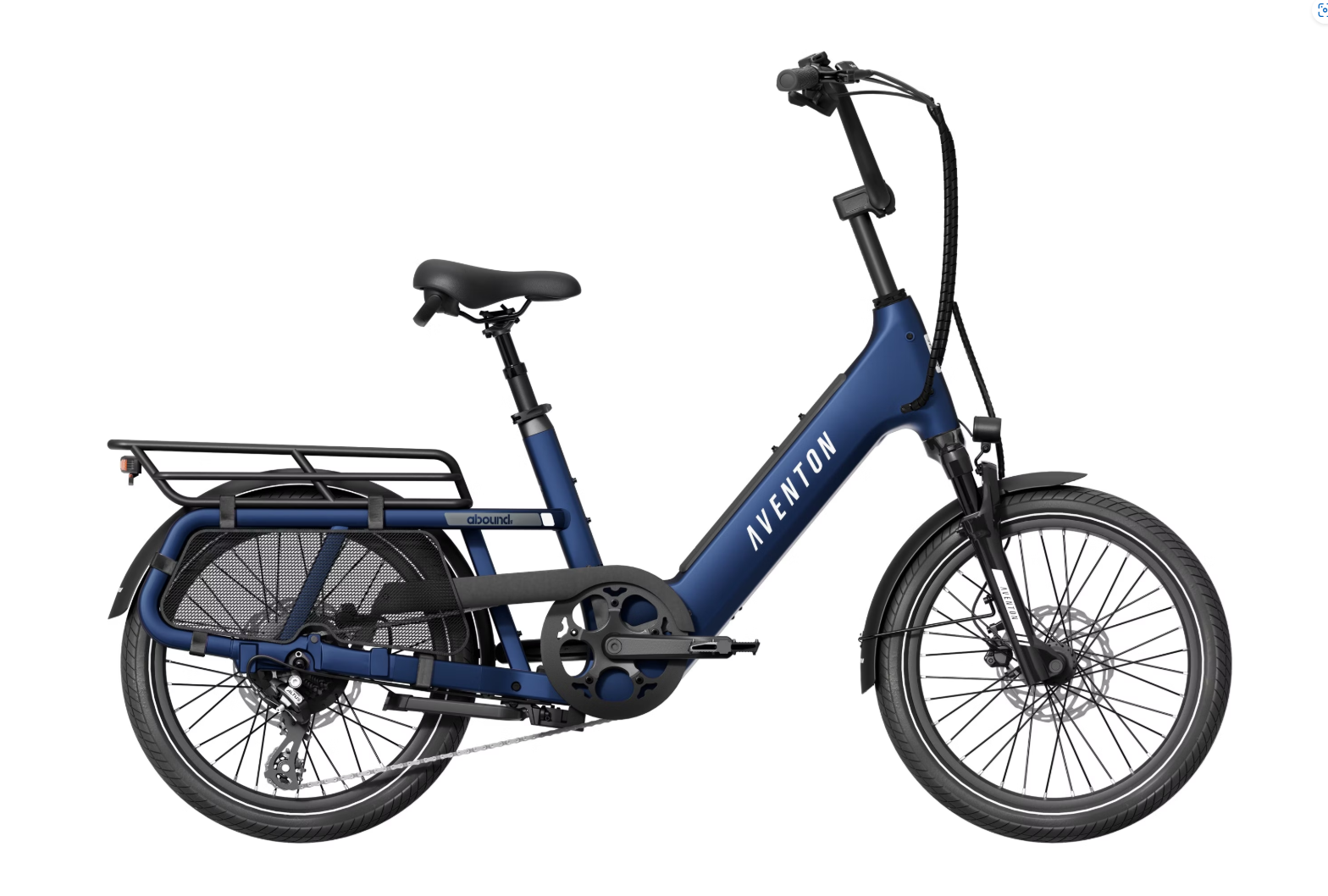

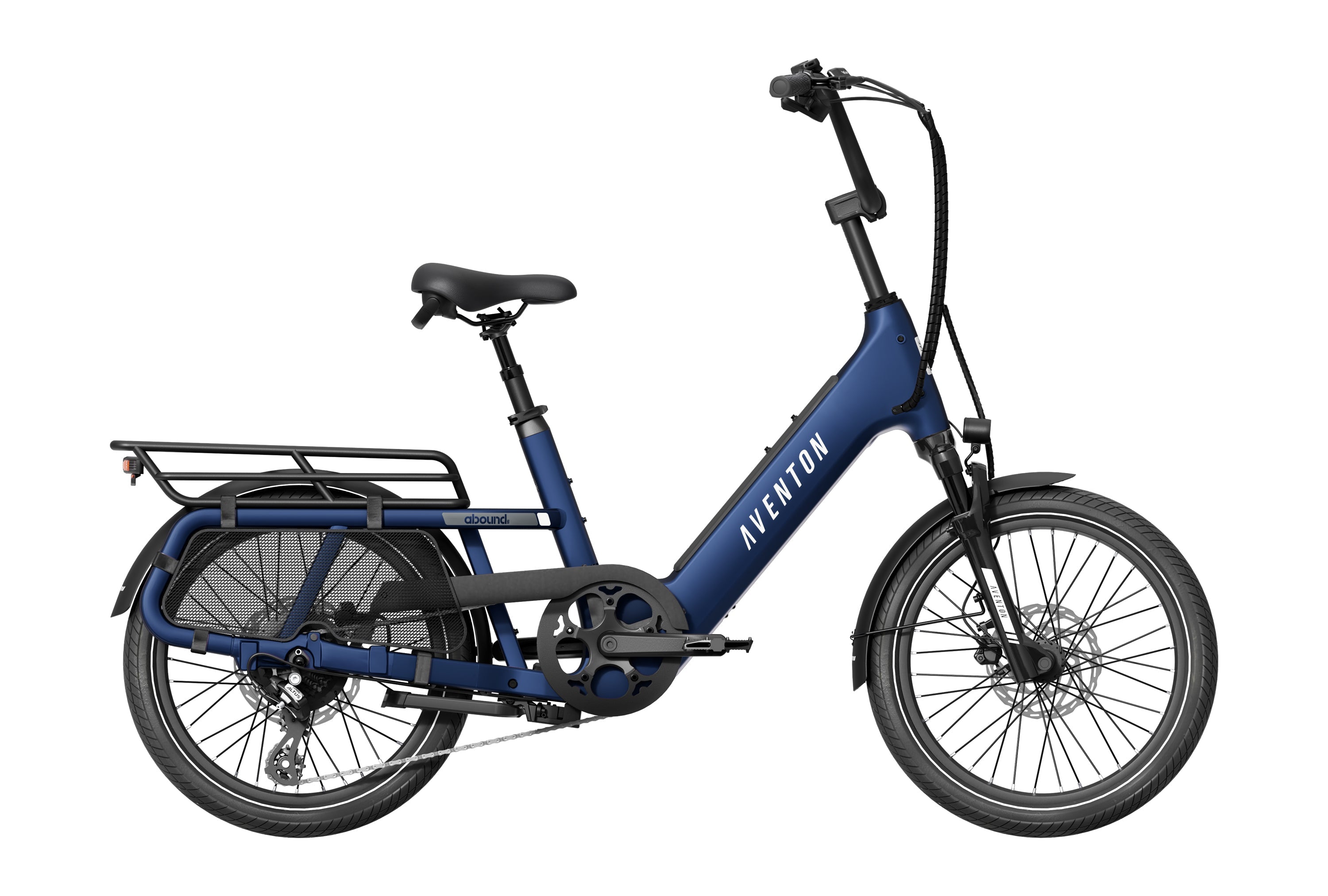

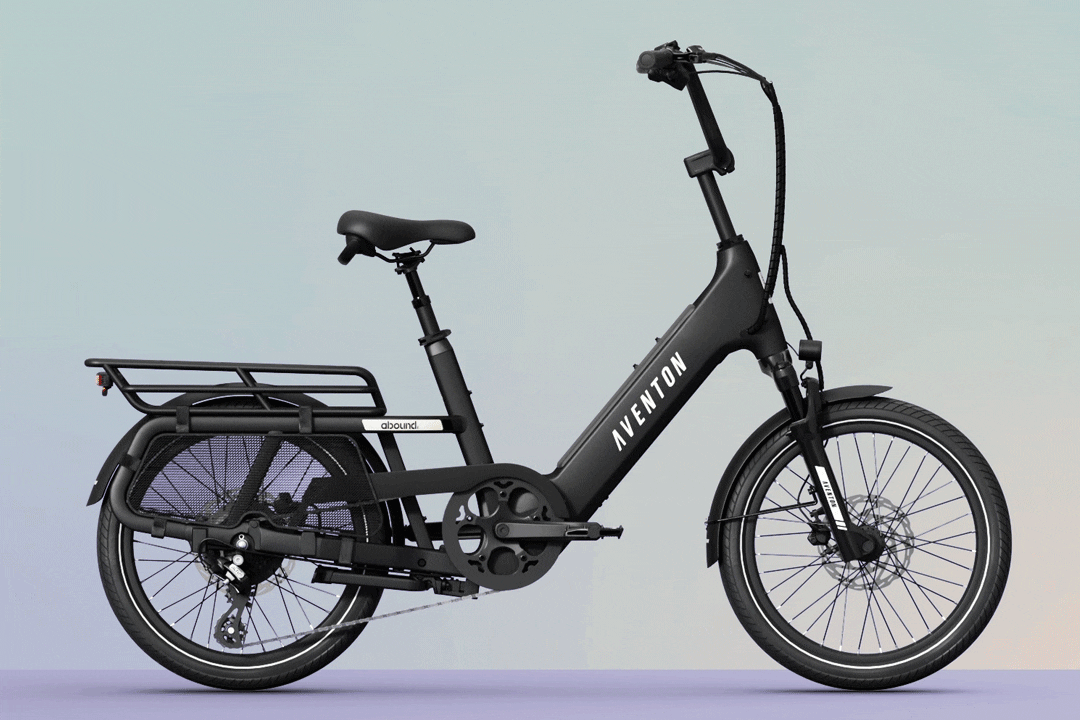

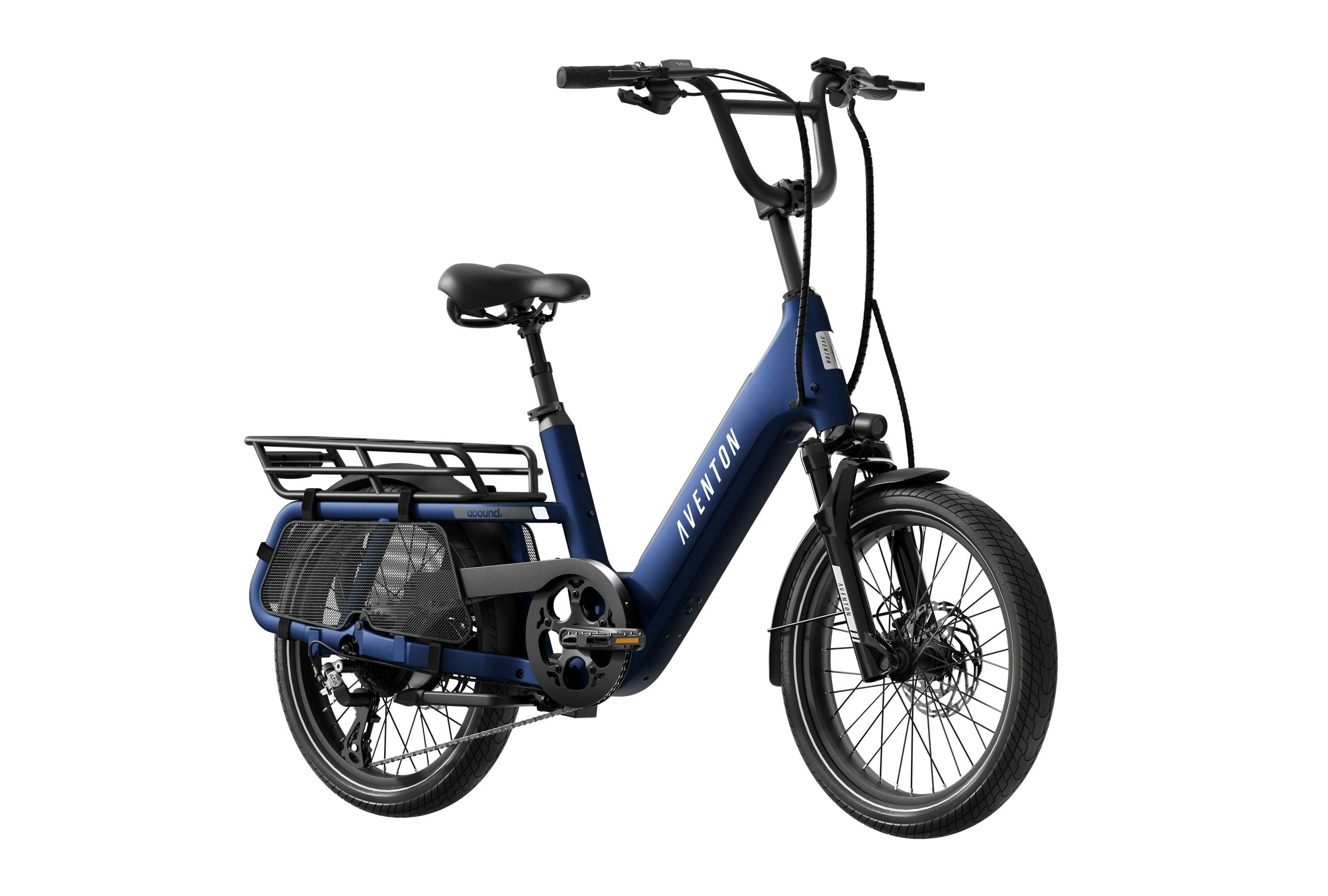

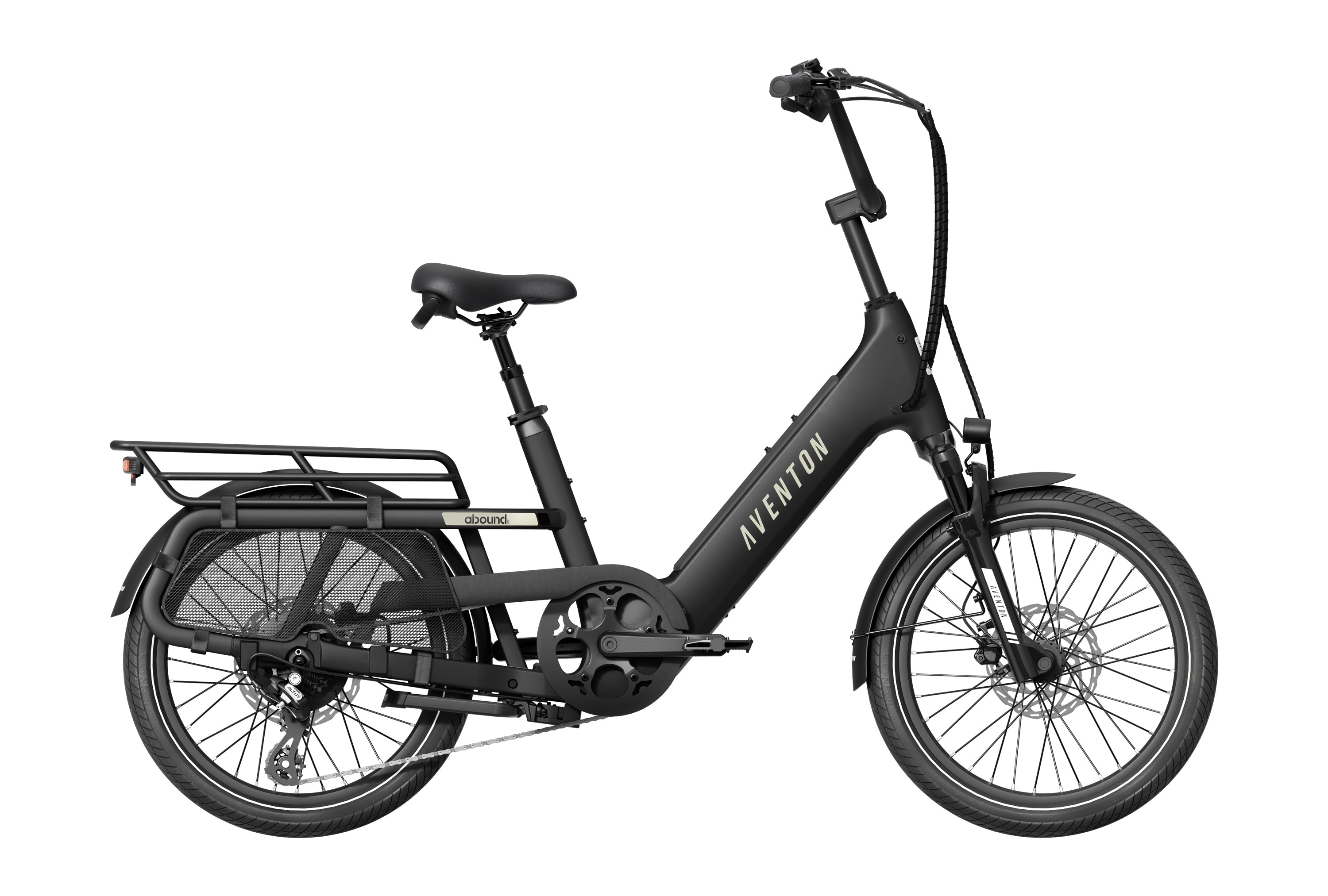

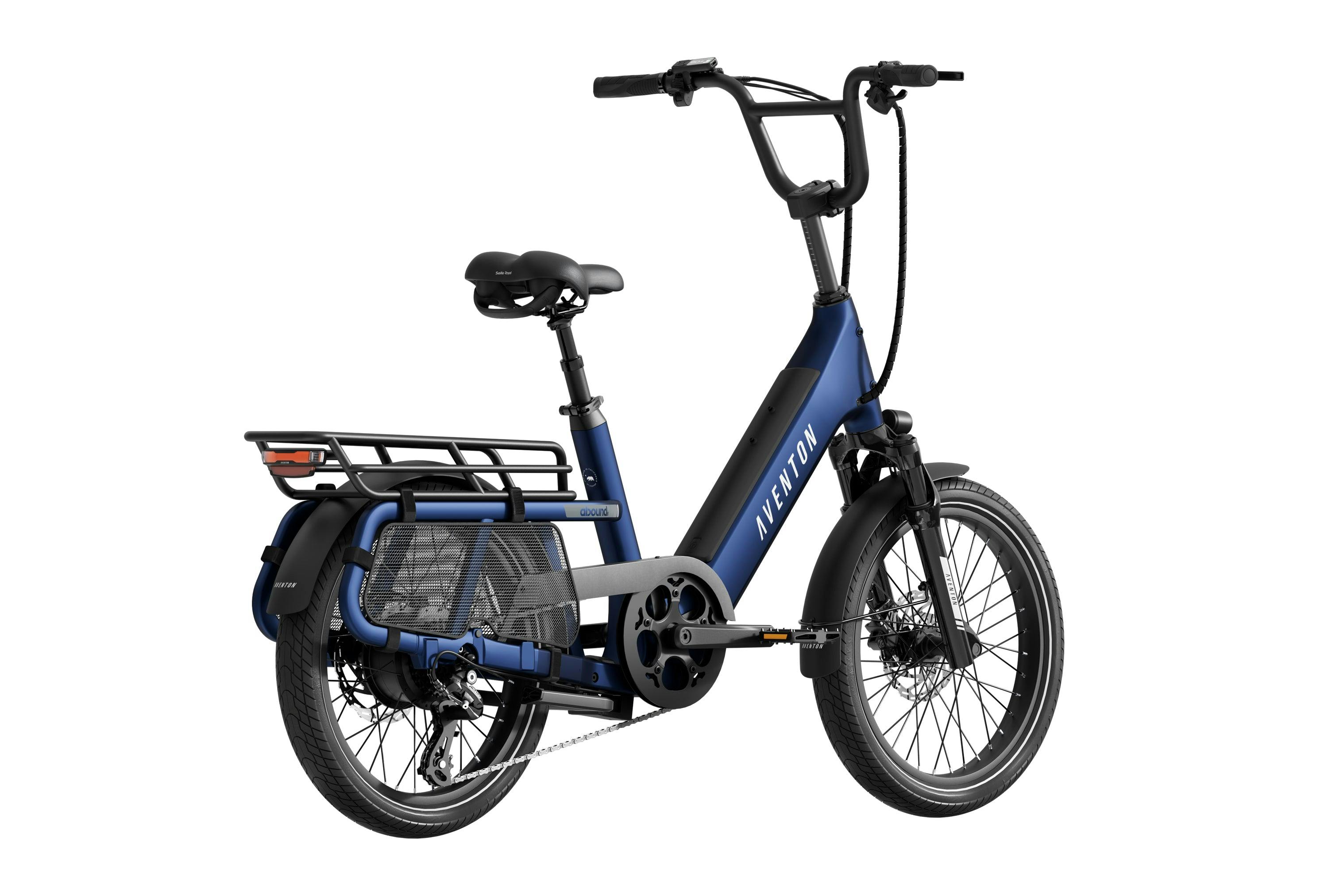

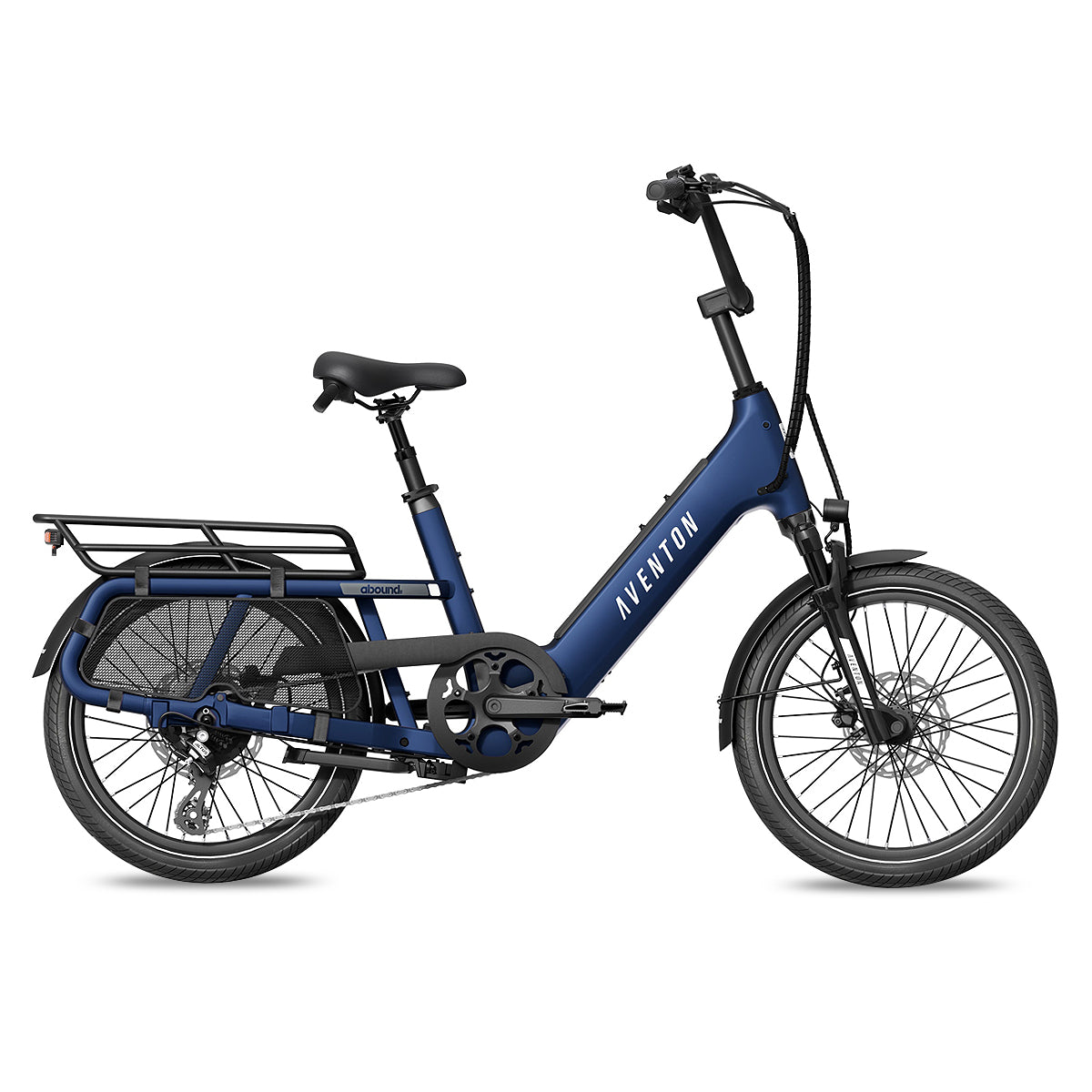

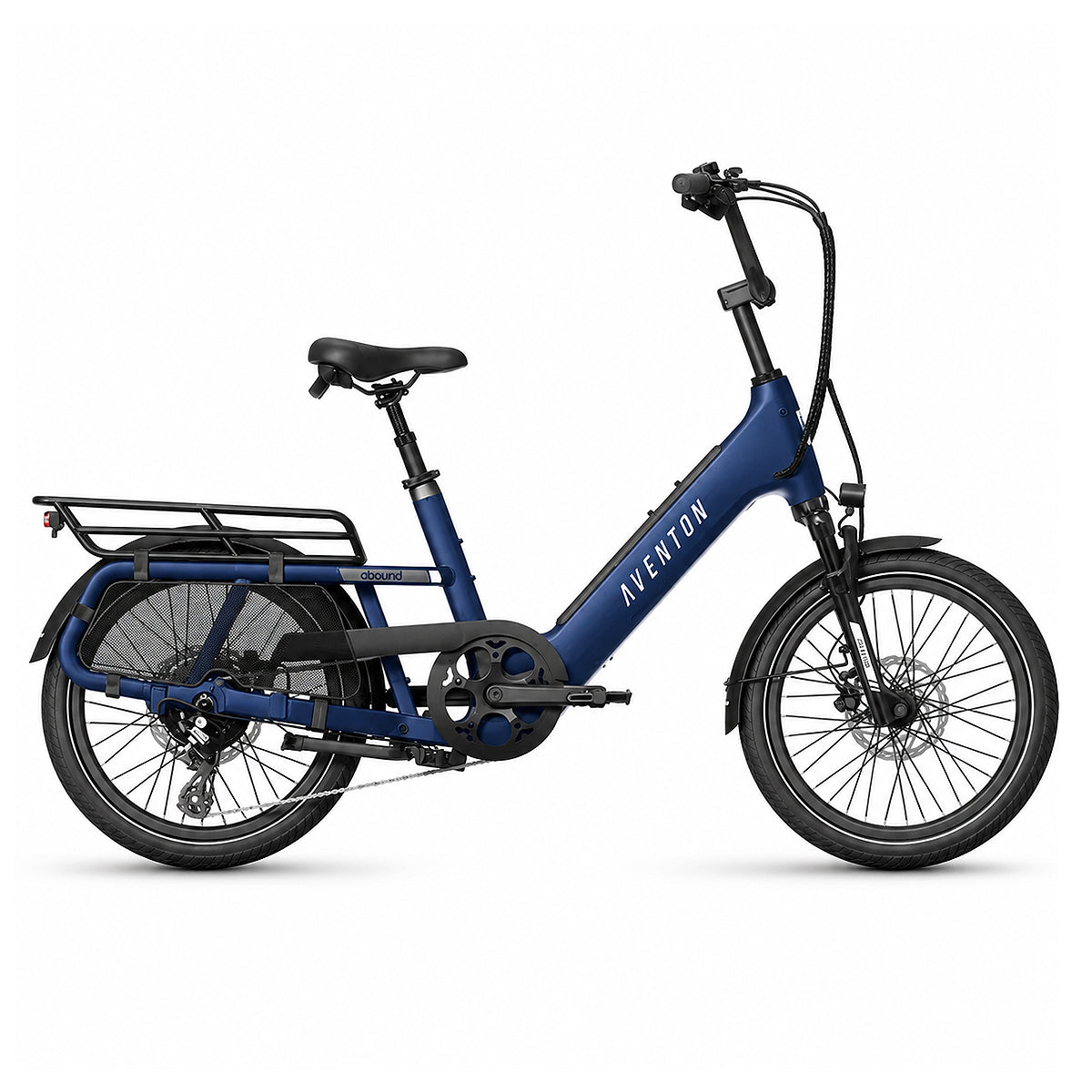

Aventon Abound SR

Call us at (888) 612 9883
Regular price $1,899.00
Color

IMPORTANT: ELV Motors, Inc. works hard to keep our website up to date. However, prices on the website may not reflect the actual current selling price, and inventory may not reflect current availability. Please call DURING STORE HOURS for the latest price and inventory and/or to complete an online order. Positive reviews are always welcome!

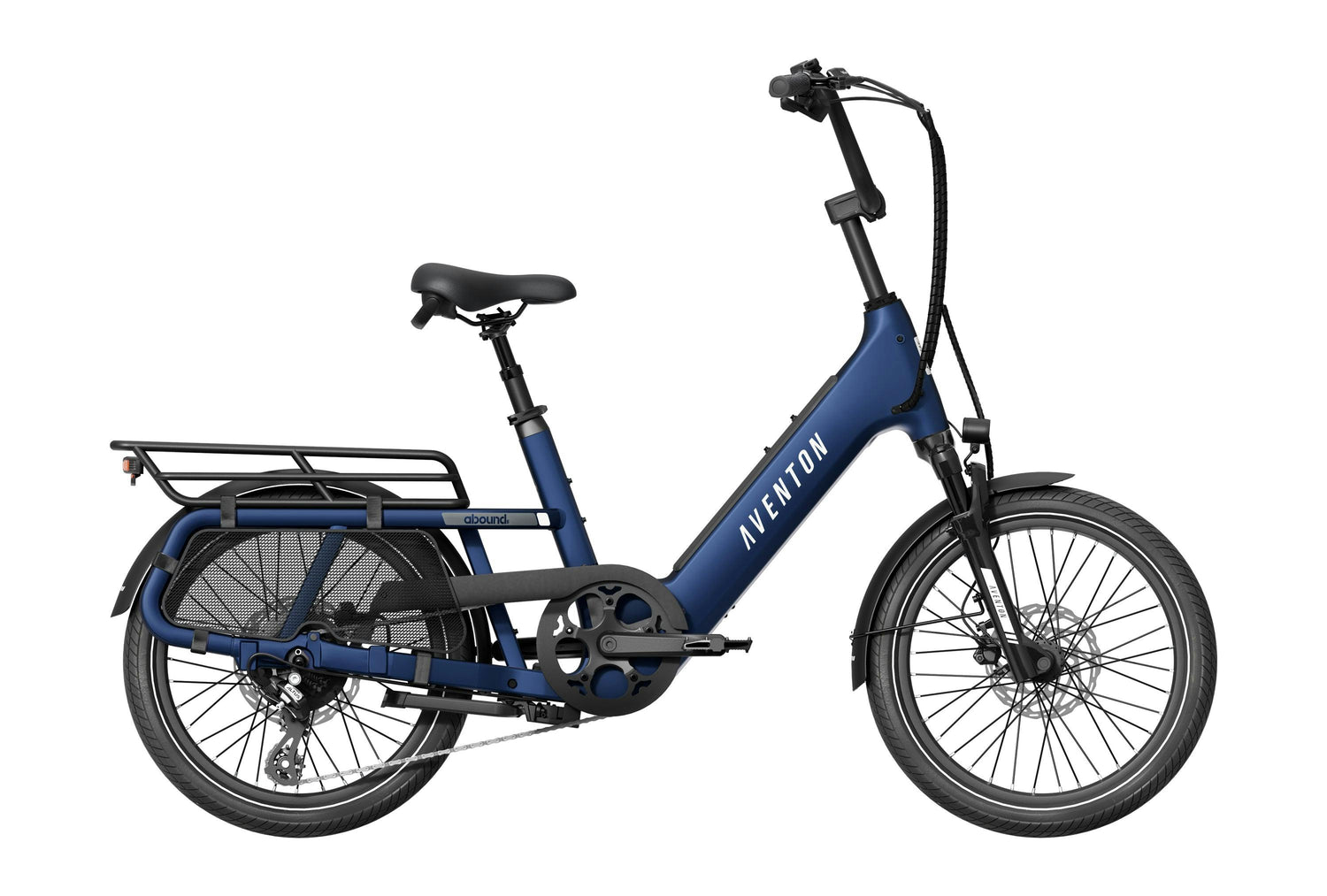

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security and GPS features give you total peace of mind.

Outfitted with an adjustable quill stem, suspension seatpost, and cutting-edge theft deterrent features, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.

It’s SRsly fun.

Enhanced security meets advanced technology

The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock, Geofencing and Passcode safeguards your Abound SR and deliver an ultimate peace of mind. When cruising, you can rely on GPS tracking, 4G connection and cloud synchronization to get your bike stats in real time.

Remote Lock & Geofence

The smart remote locking functionality lets you immobilize your bike right from the Aventon app. And the Geofencing feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control.

E-Lock Kickstand & Alarm

Quickly, easily and securely lock your kickstand right from your display or the Aventon app. Also, whenever there is movement or tampering, the Abound SR’s alarm system will activate audio and visual alerts. This is theft SRsly deterred.

Passcode & Keyless Battery

Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.

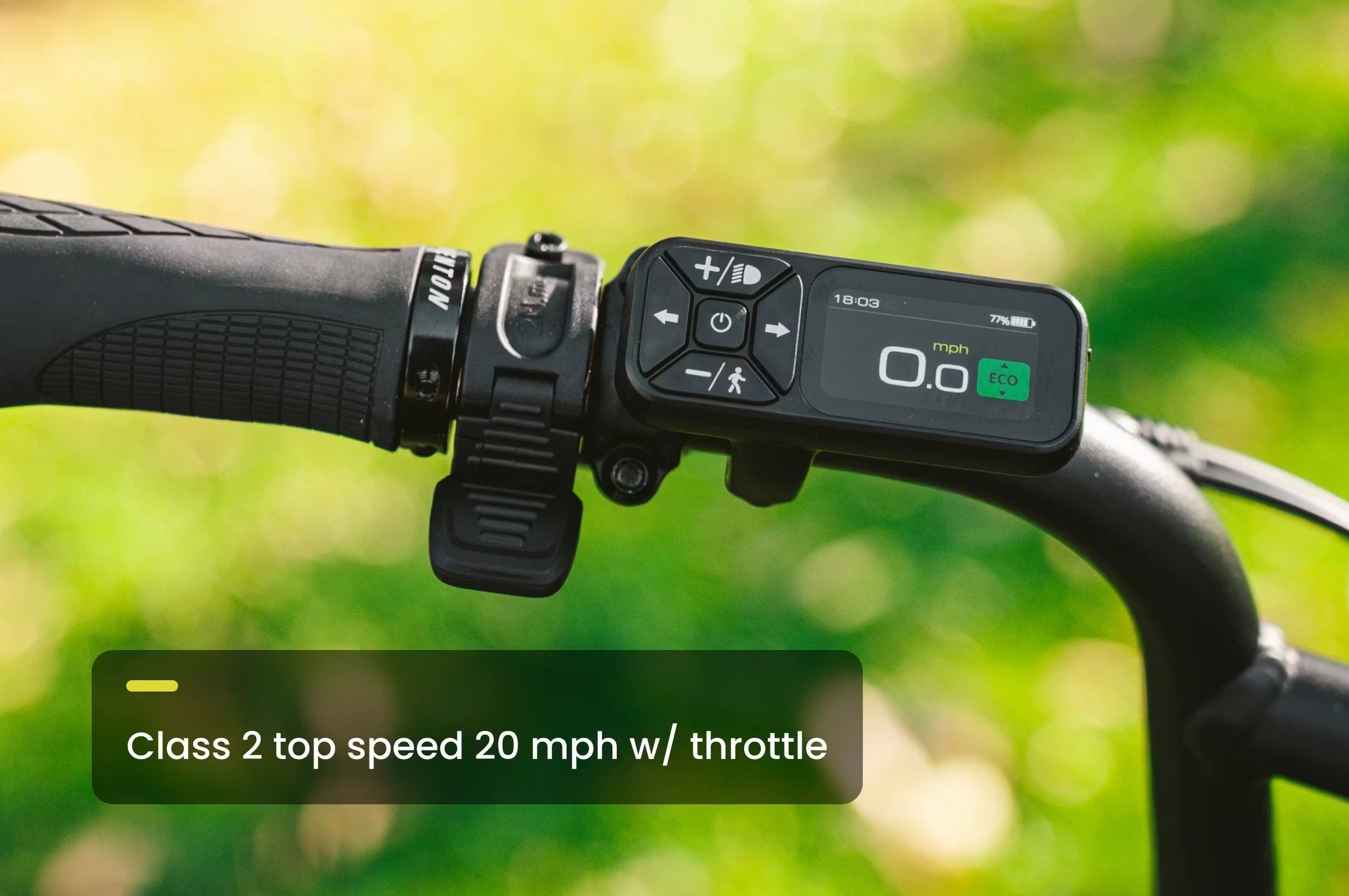

New Side Display with Intuitive Controls

Inspired by the simplicity and function of iconic MP3 players, the controls on the sleek new side display gives you an easy access to everything you need. Rest assured, it now has a USB-C port to conveniently charge your phone while you ride.

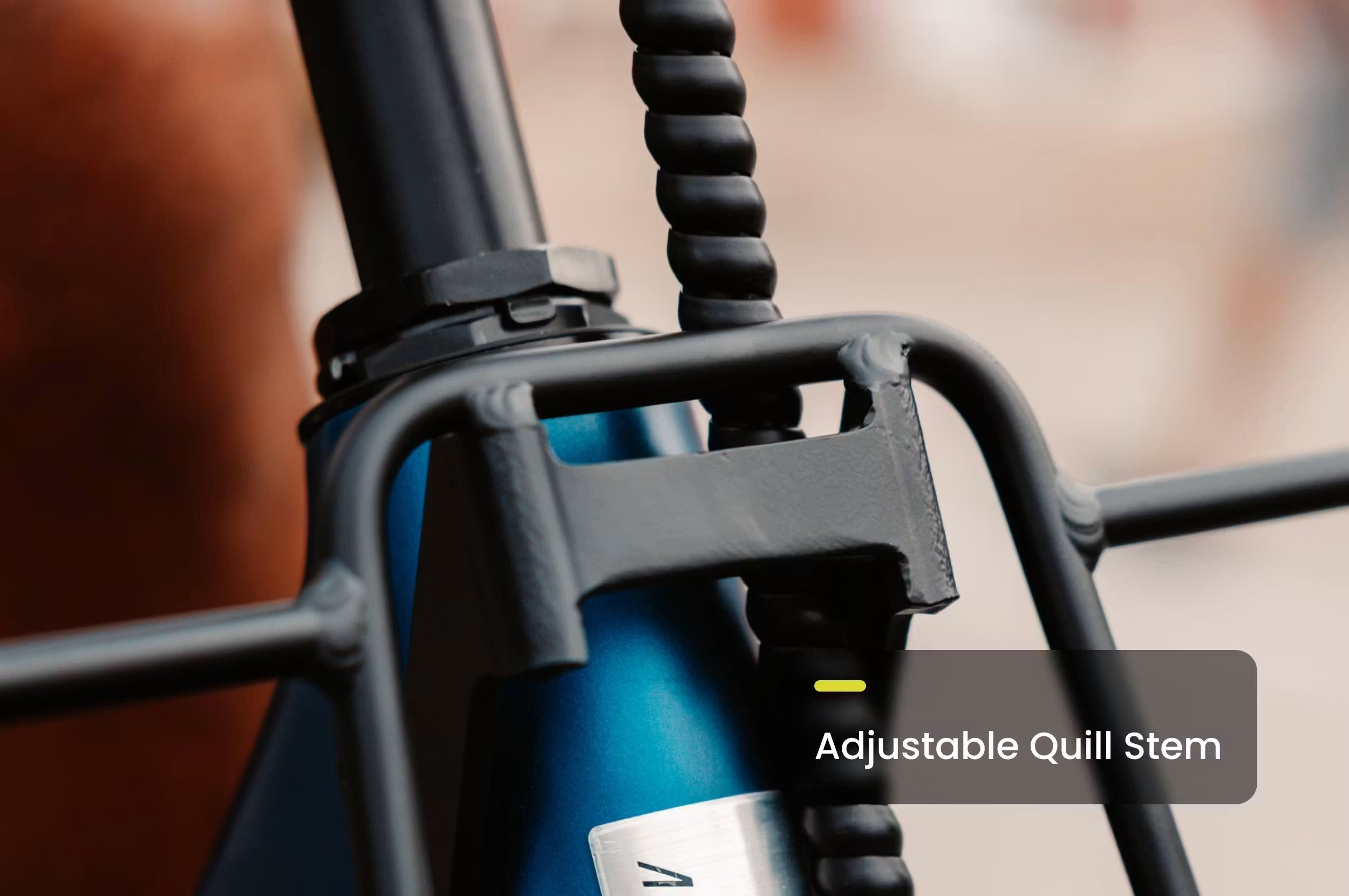

Adjustable Quill Stem & BMX Style Handlebars

The Abound SR is where agility meets maneuverability. Set the height of your seat for ultimate comfort and adjust the handlebars for ultimate control.

Aventon Abound SR E-Bike Specifications

General Info
Model
Abound SR Ebike

Weight
80 lbs

Total Weight Limit
440 lbs

Rider Height
4'11" - 6'3"

Class
Class 2 Ebike

Water Resistance
IPX4

Ideal Use
Cargo & Utility

Pedal Assist
3 Levels

Safety Certifications
UL and TUV Safety Certified
UL 2849 / UL 2271

Range
Up to 60 miles

Folding
No

Frameset
Fork
Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions

Frame Style
Step-Through

Frame
6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle

Wheelset
Tires
20 x 3.0 urban tire with reflective sidewalls

Wheels
20-inch, 12-gauge, 36-hole, double-wall aluminum, black

Ebike System
Motor Torque
80Nm

ECU
Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities

Throttle
Aventon LH Handlebar Mounted

Sensors
Double Sided Bottom Bracket Torque Sensor

Charger
Aventon 4A 42V

Display
Aventon BC147

Speed
Class 2

Battery
Aventon 36V, 20Ah, 708Wh, LG 21700 cells

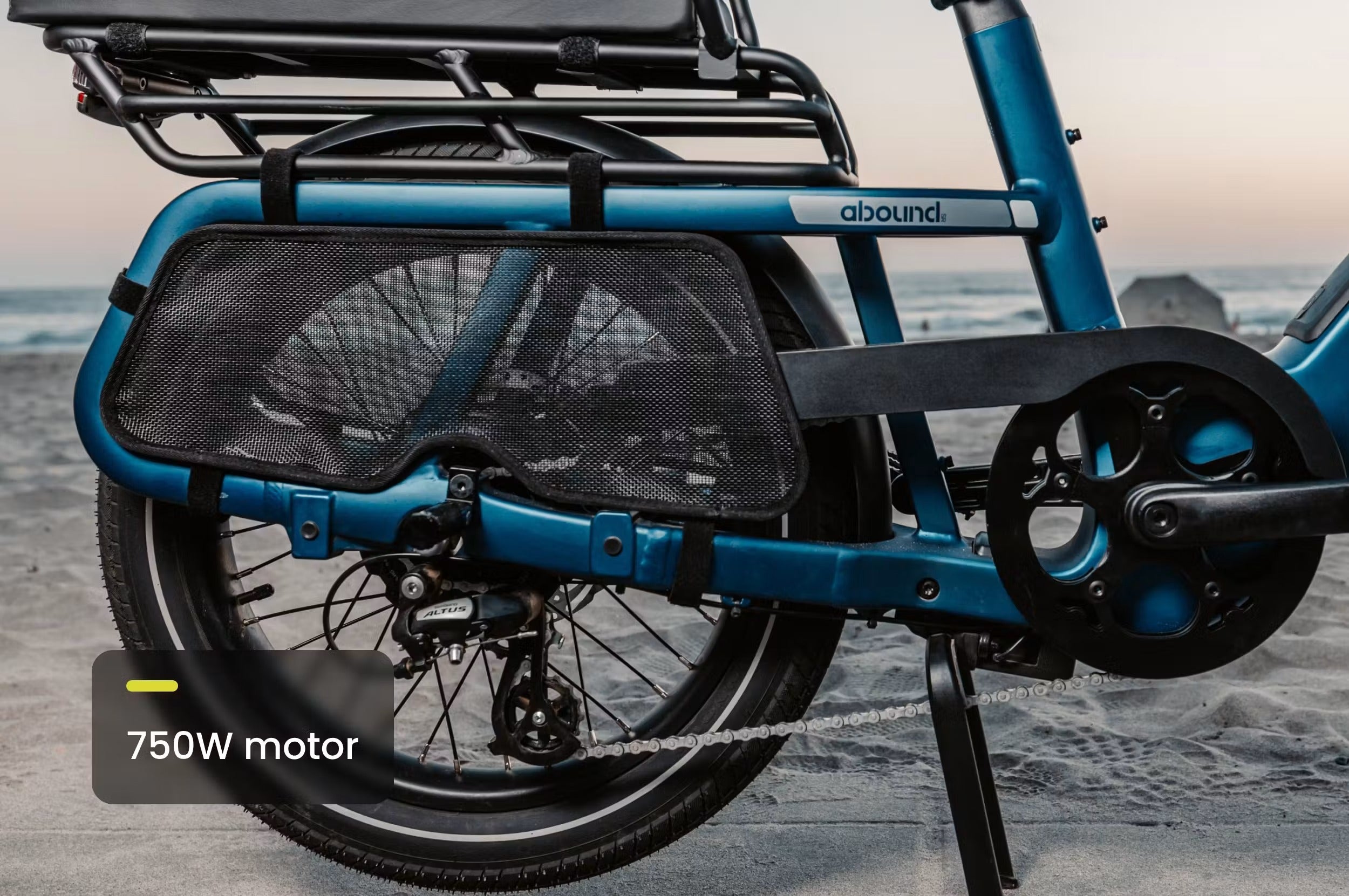

Motor
Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)

Brakes
Rear Brake Rotor
Tektro 203mm 6 bolt

Front Brake
Tektro HD-E3520 hydraulic disc brakes

Rear Brake
Tektro HD-E3520 hydraulic disc brakes

Front Brake Rotor
Tektro 180mm 6 bolt

Drivetrain
Chain
122 Link, 8 Speed

Chainring
52 tooth

Crank
3pc, 165mm crank arm

Rear Derailleur
Shimano Altus RD-M310 8 Speed

Shift Lever
Shimano SL-M315-8R 8 Speed

Cassette
Shimano CS-HG200-8 8 speed Cassette, 12-32T

Pedals
9/16" Composite Platform

Cockpit
Saddle
Aventon by SelleRoyal

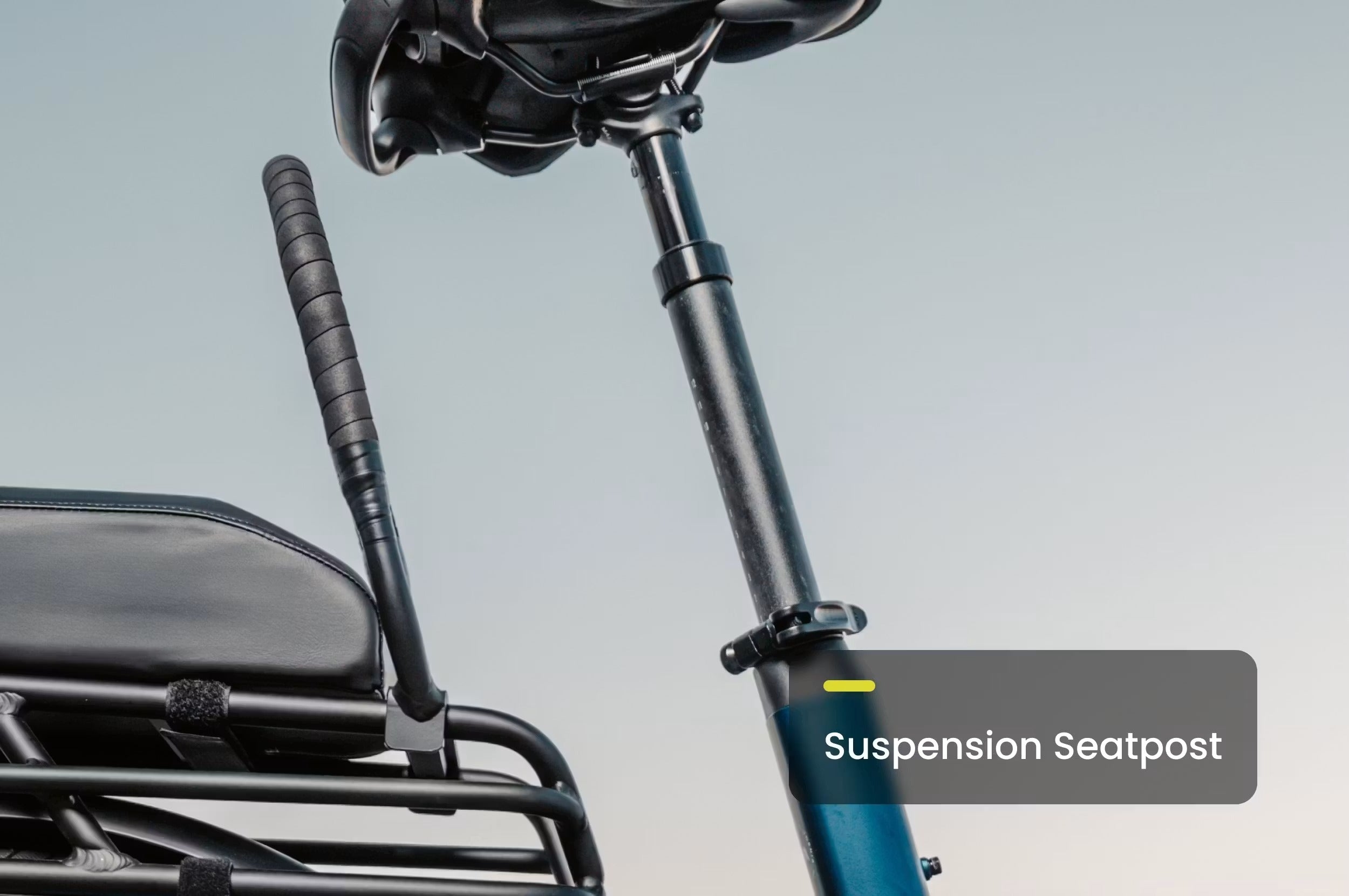

Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel

Handlebars
BMX Style, 31.8mm bar clamp, 680mm width

Stem
Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment

Seat Clamp
34.9mm Quick Release

Grips
Lock-on ergonomic

Included Accessories
Rear Rack
Included

Kickstand
Included: E-lock

Rear Wheel Mesh Guards
Included

Rear Rack Weight Limit
143 lbs
Technical Overview
The Abound SR ships as a Class II ebike, with pedal assist and throttle. The Abound SR will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Abound SR ebike and battery is UL Certified with UL 2849 for the ebike and UL 2271 for the battery. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your ebike in light rain. It won't be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your ebike. *Max range is determined using PAS 1 throughout flat terrain with a rider weight of 160 lbs.
