Technical Specification
Key Specs
Frame
6061 Aluminum Alloy Frame, Downtube Battery, Internal Cable Routing, Smooth Welds
Fork : Adjustable, 80mm Travel, with Lockout
Rear Derailleur: Shimano ALTUS RD-M310 8-speed
Cassette: 8S 13-32T
Shift Levers: Shimano ALSM3158RC

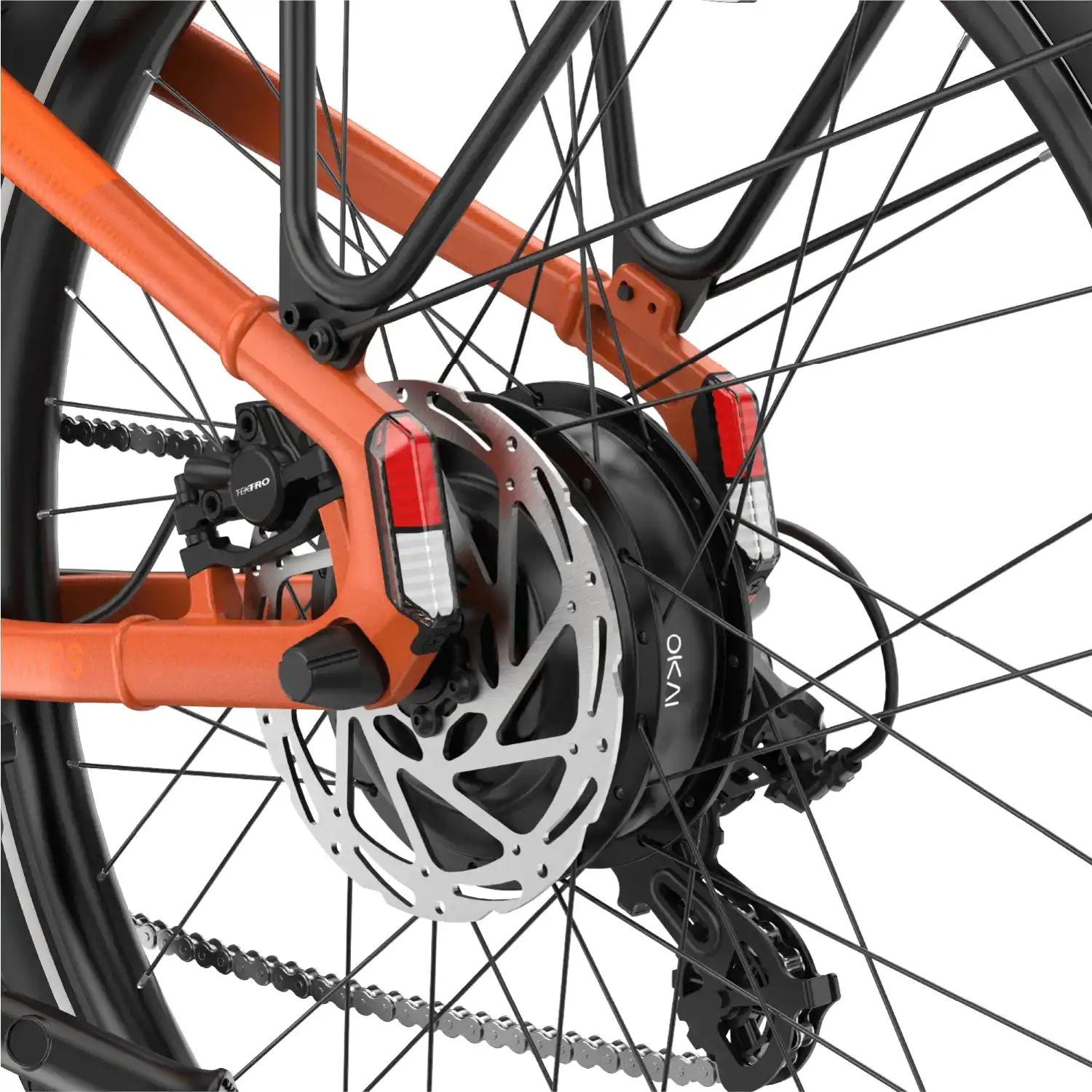

Motor: 500W Nominal, 750W Peak, 55Nm Torque, 48V

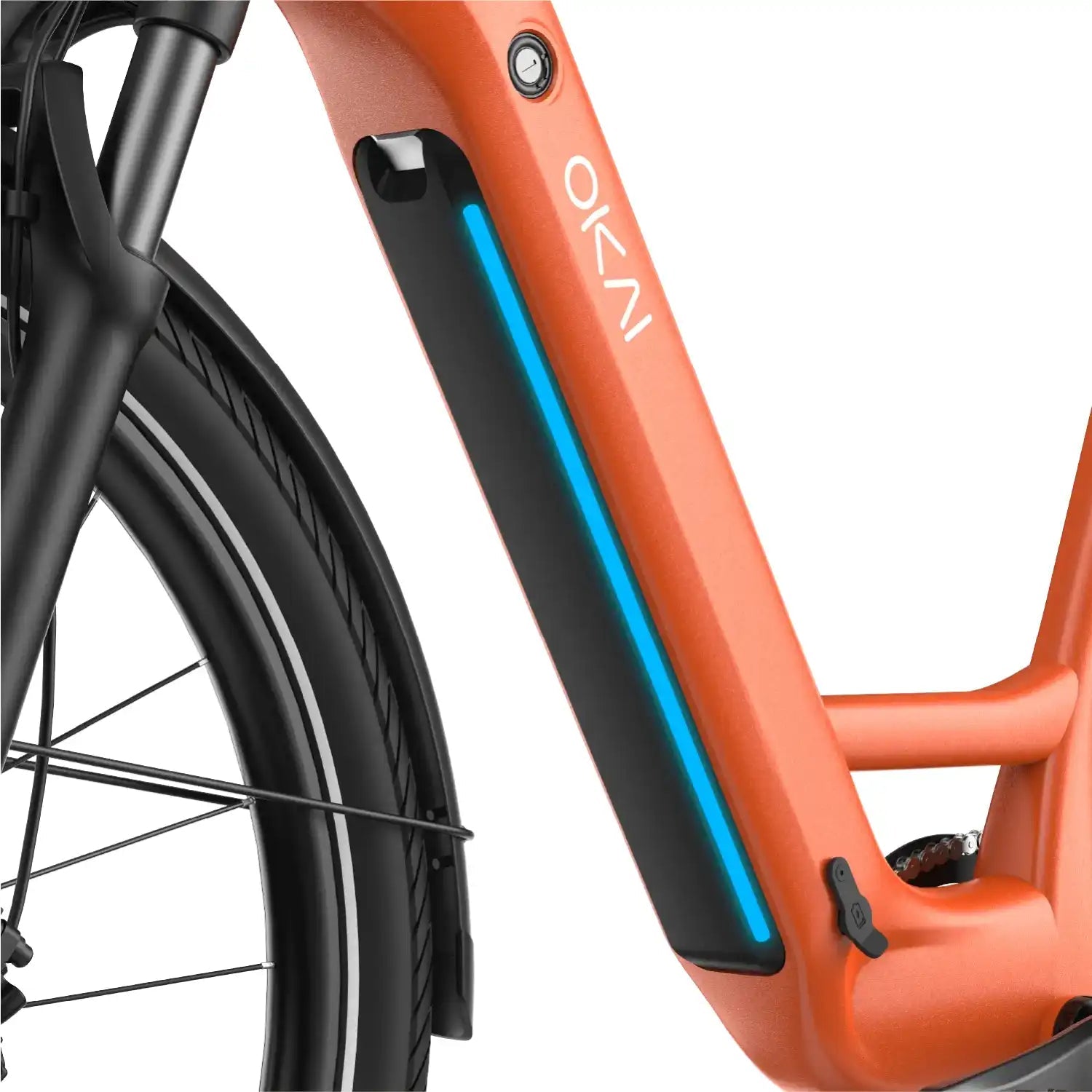

Battery Pack: 47.9V, 14.4Ah, 689.76Wh, Fully Integrated, Swappable, LG Battery Cells 21700

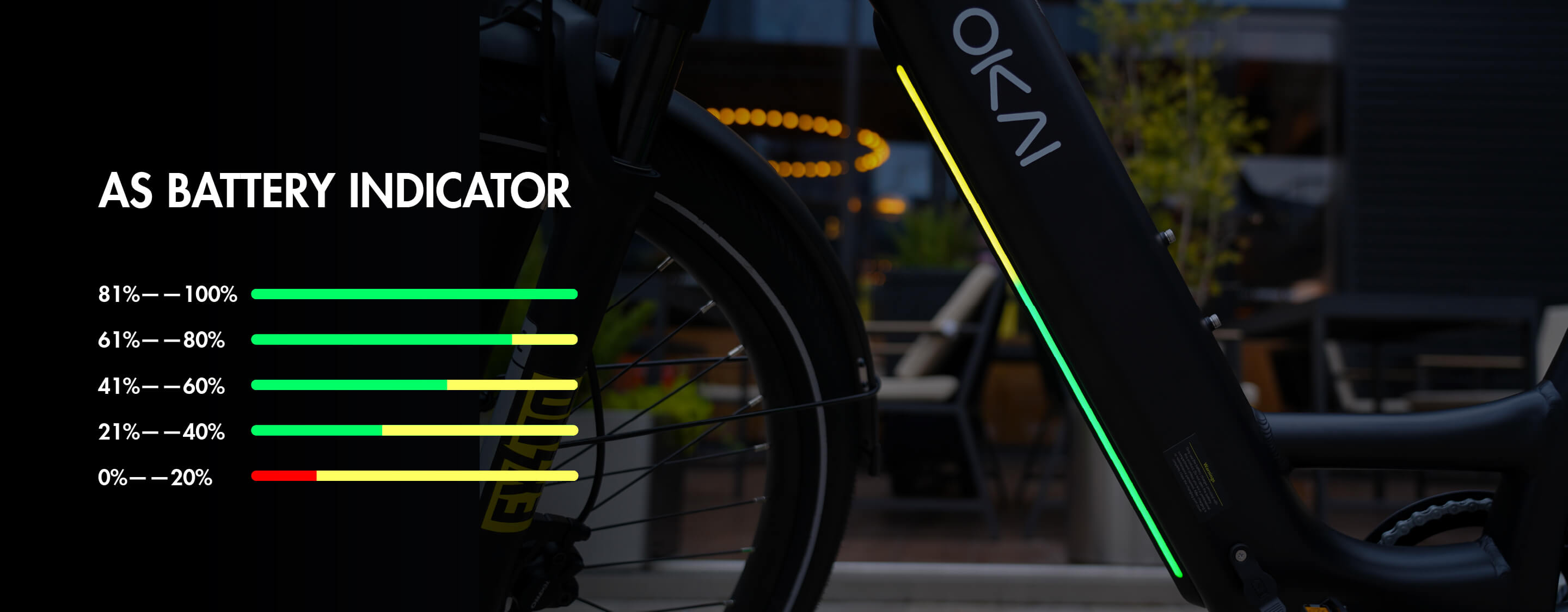

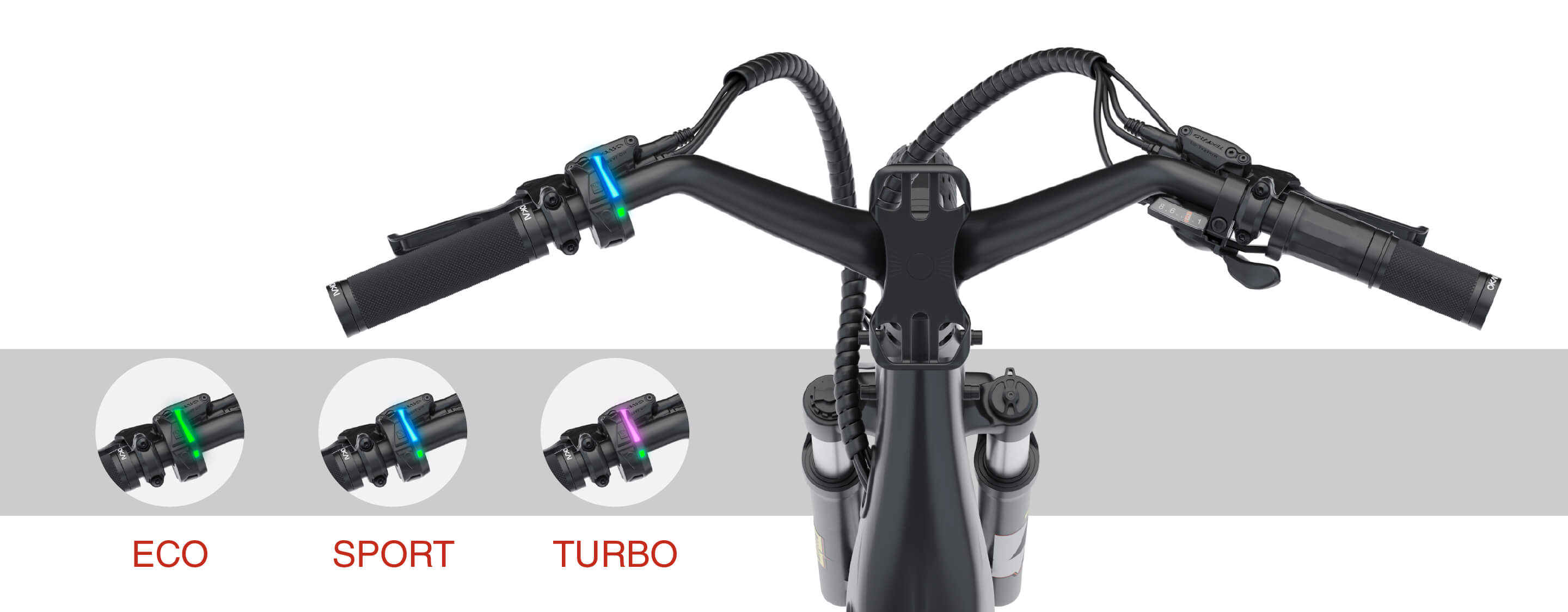

UI/Remote: Handlebar Remote, State of battery, State of Ride Mode
Brakes: Hydraulic, Tektro HD-E3520
Tires: 27.5x2.4 inch Tire, Schrader Valve
Pedals: Grip Tape & Reflectors
Charger: 54.6V 2A, 100-240V, UL Certified

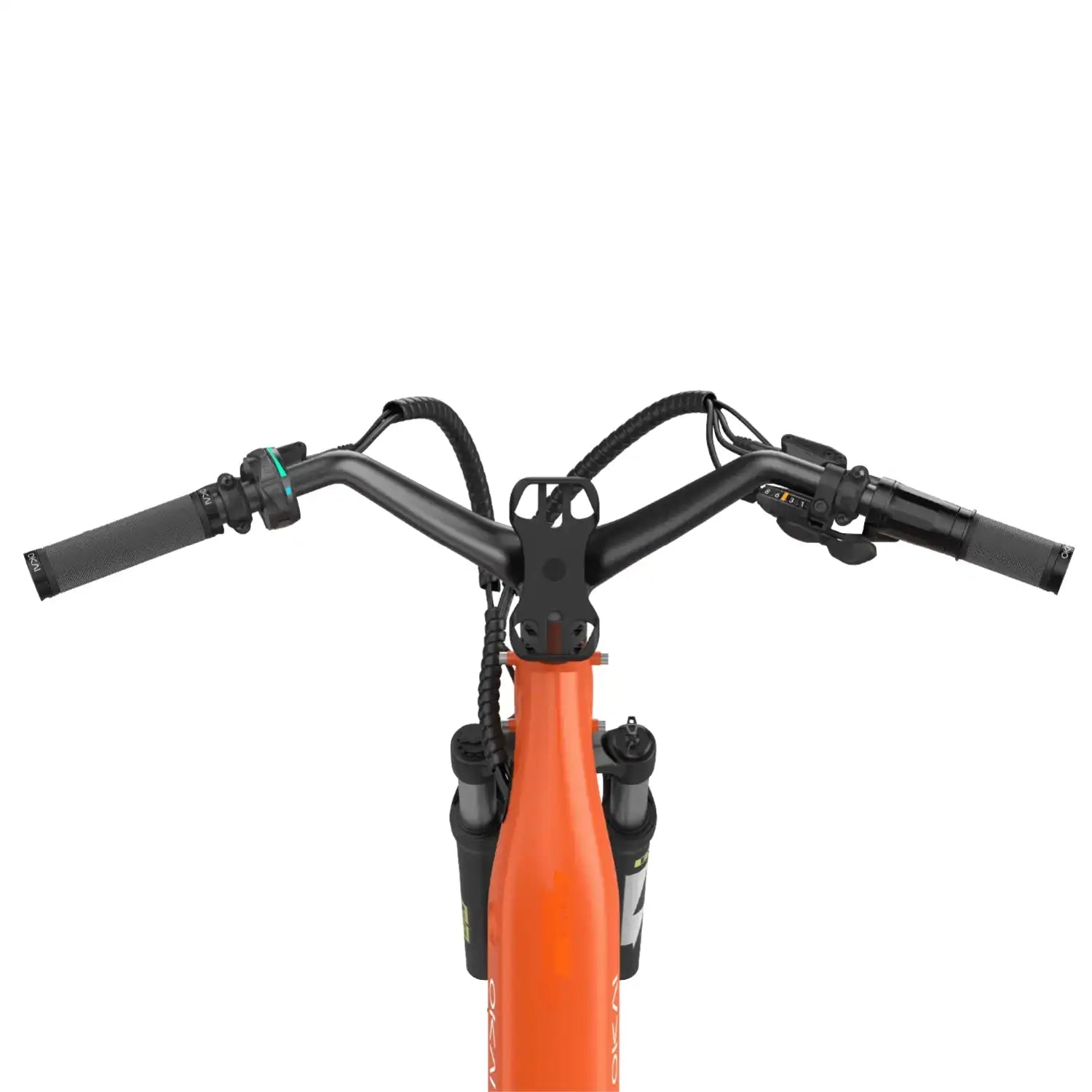

Handlebars: Alloy, Comfort Backsweep & Upsweep, 630mm Width
Grips: Ergonomics, 130mm Width
Handlebar Remote HUB: USB-C Charging Port, Turn Signal Button
Sensor: Torque sensor
Bike Safety Certifications:

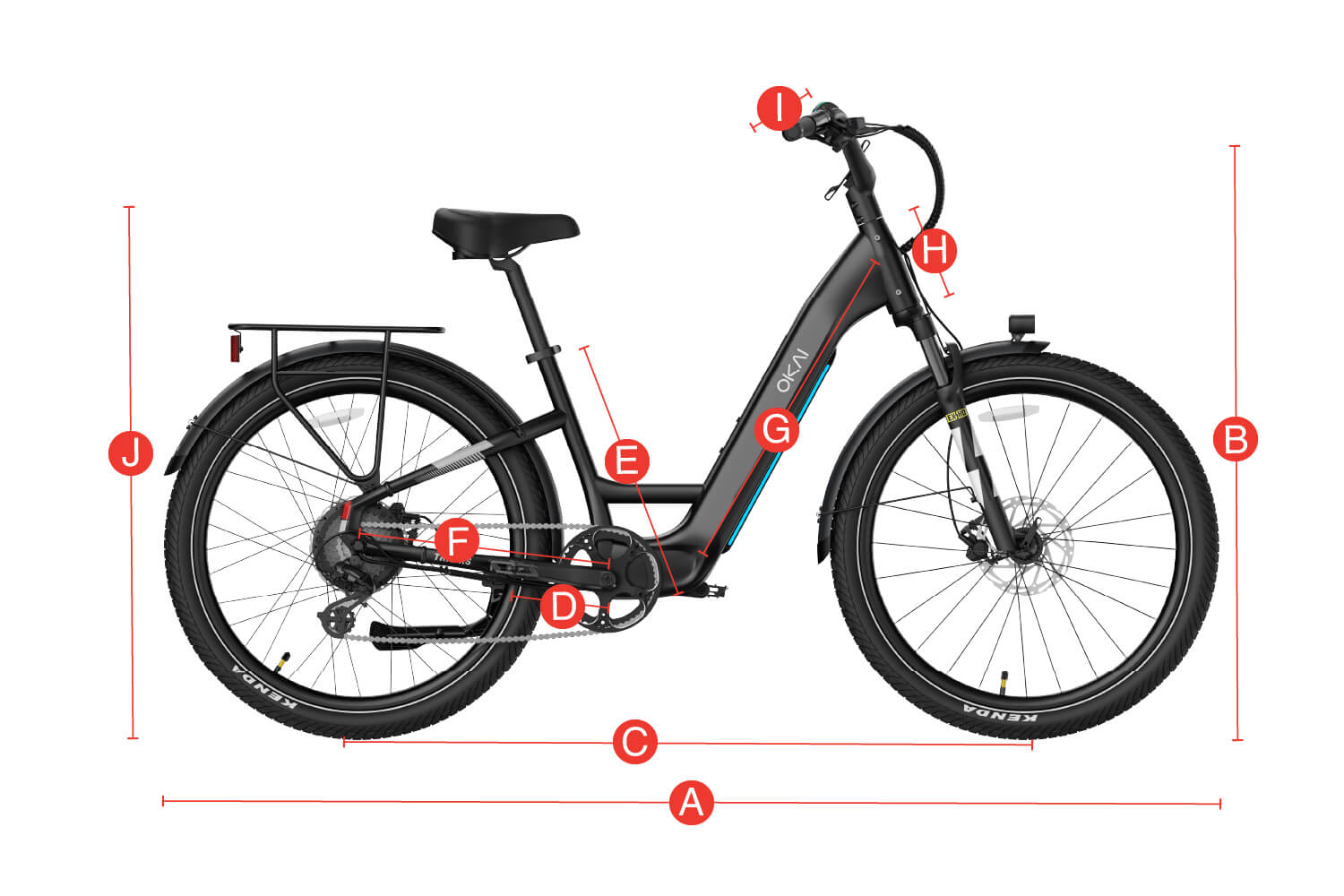

Geometry & Dimensions
