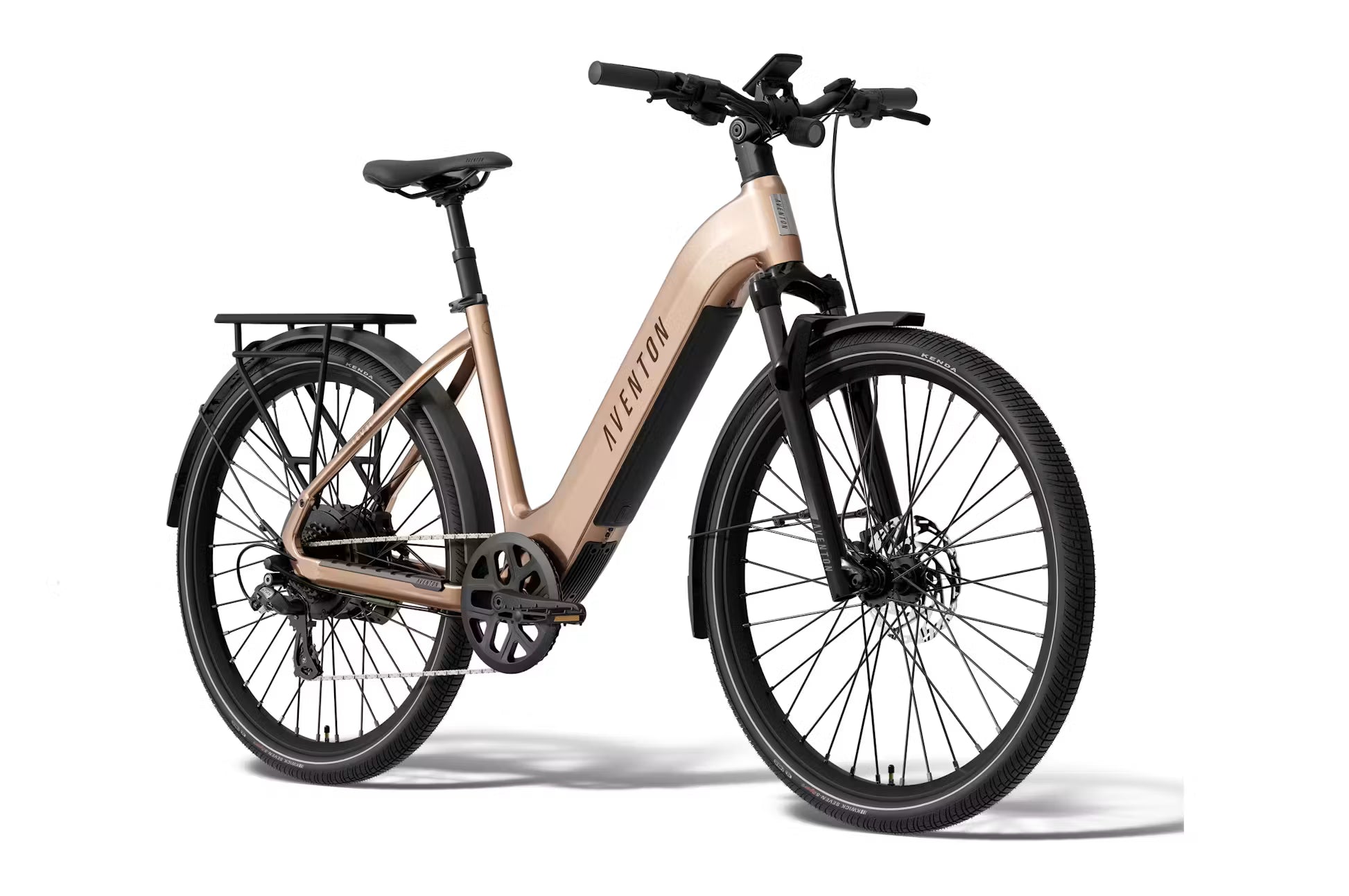

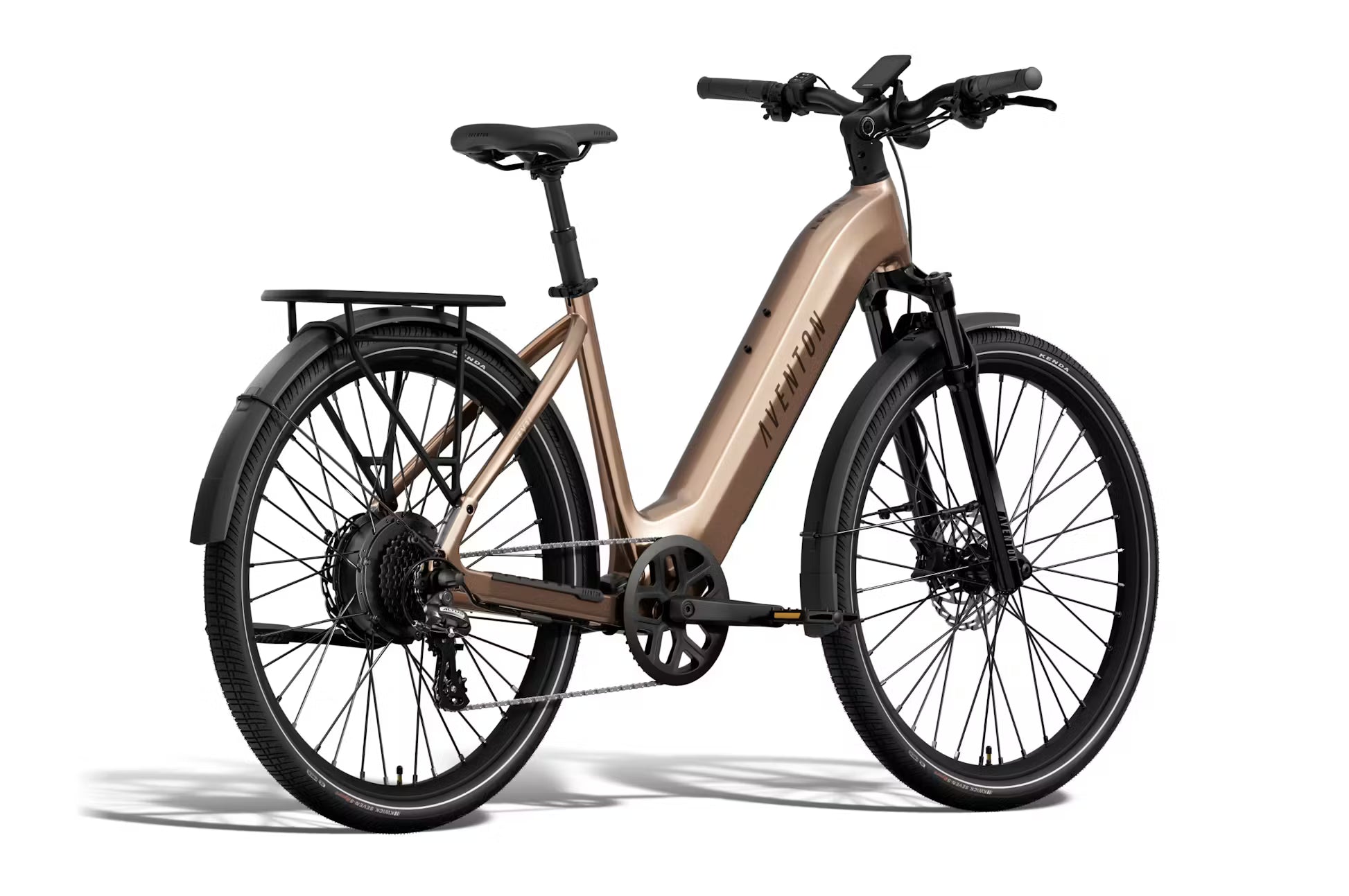

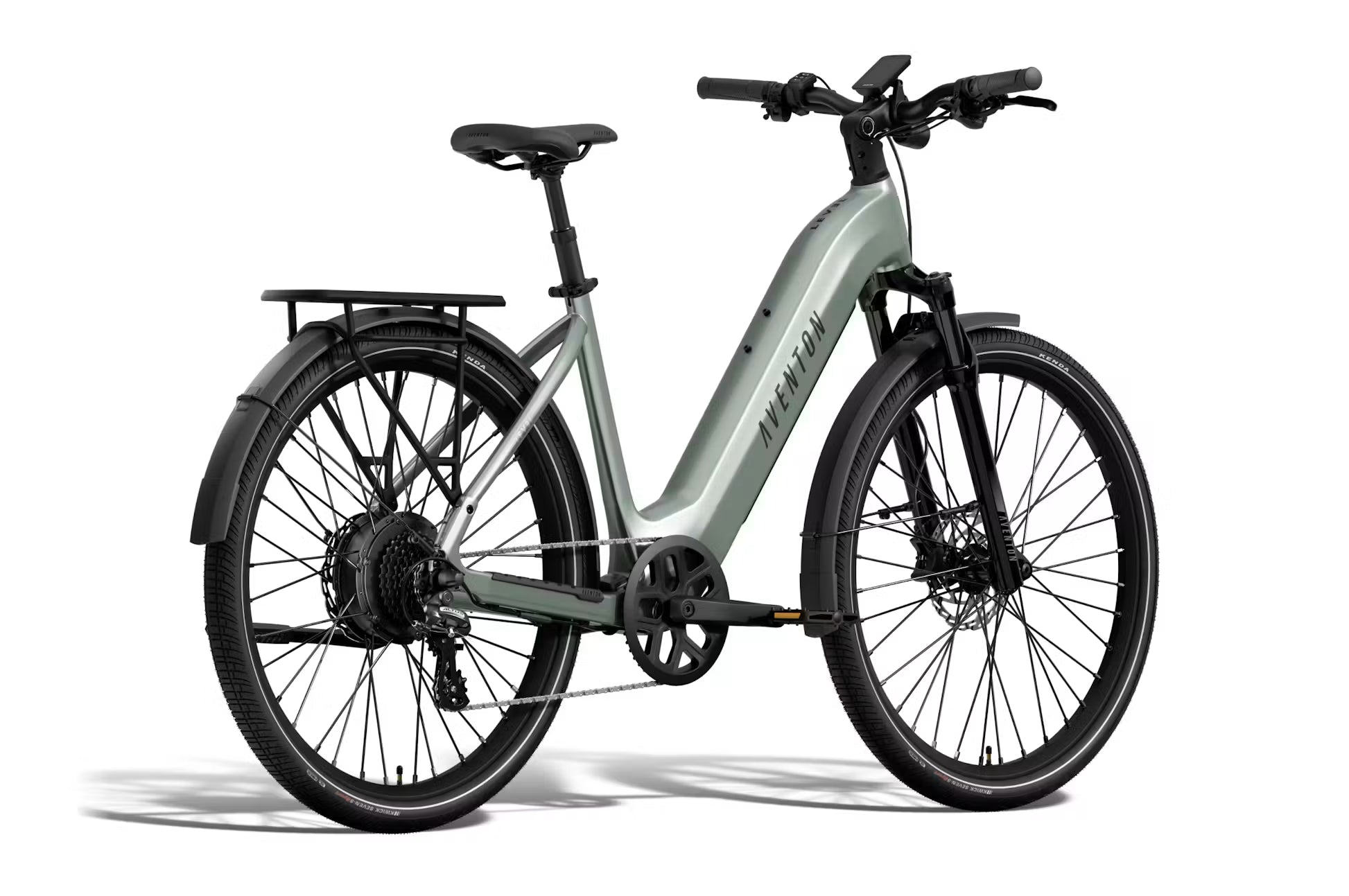

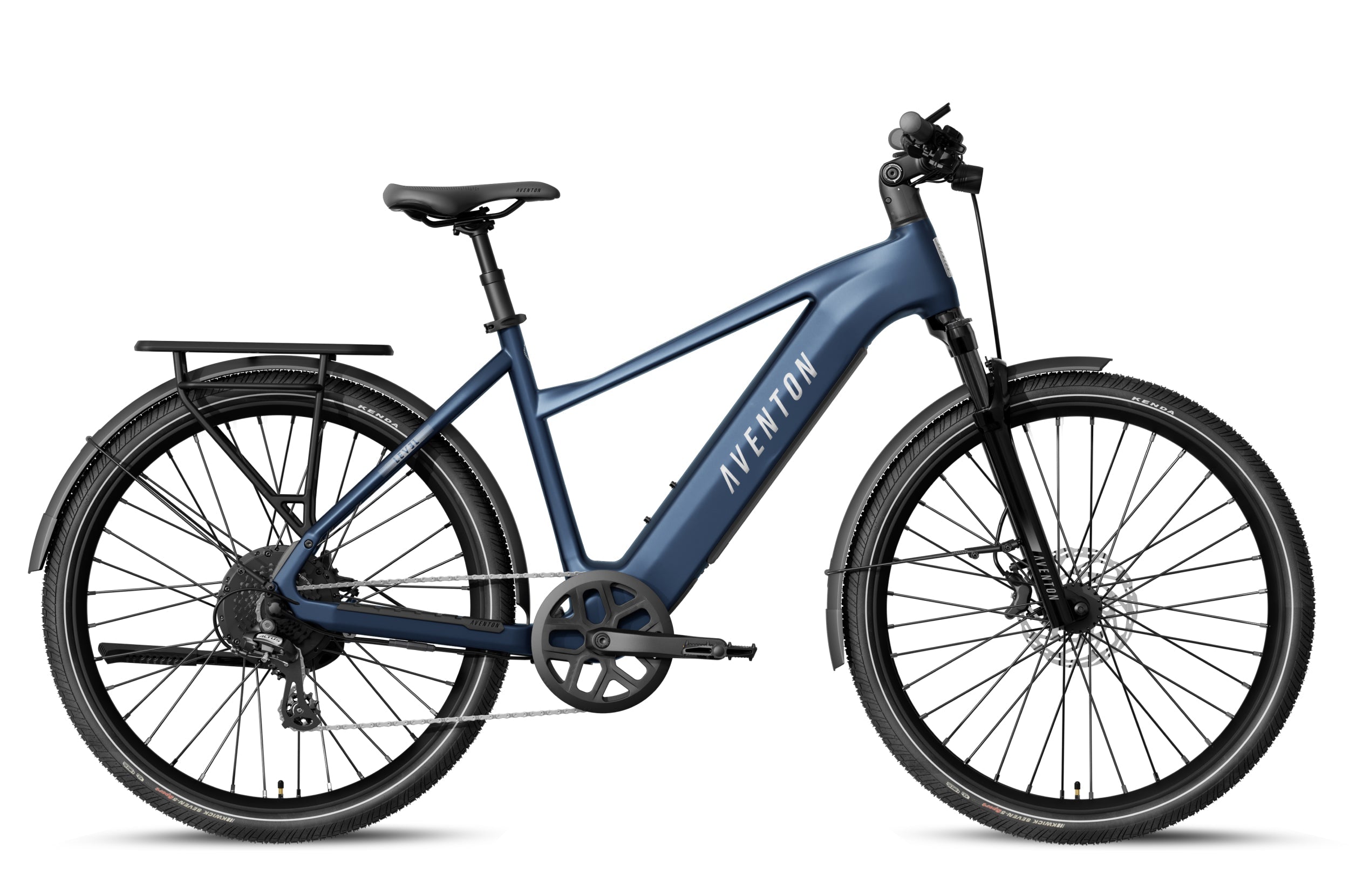

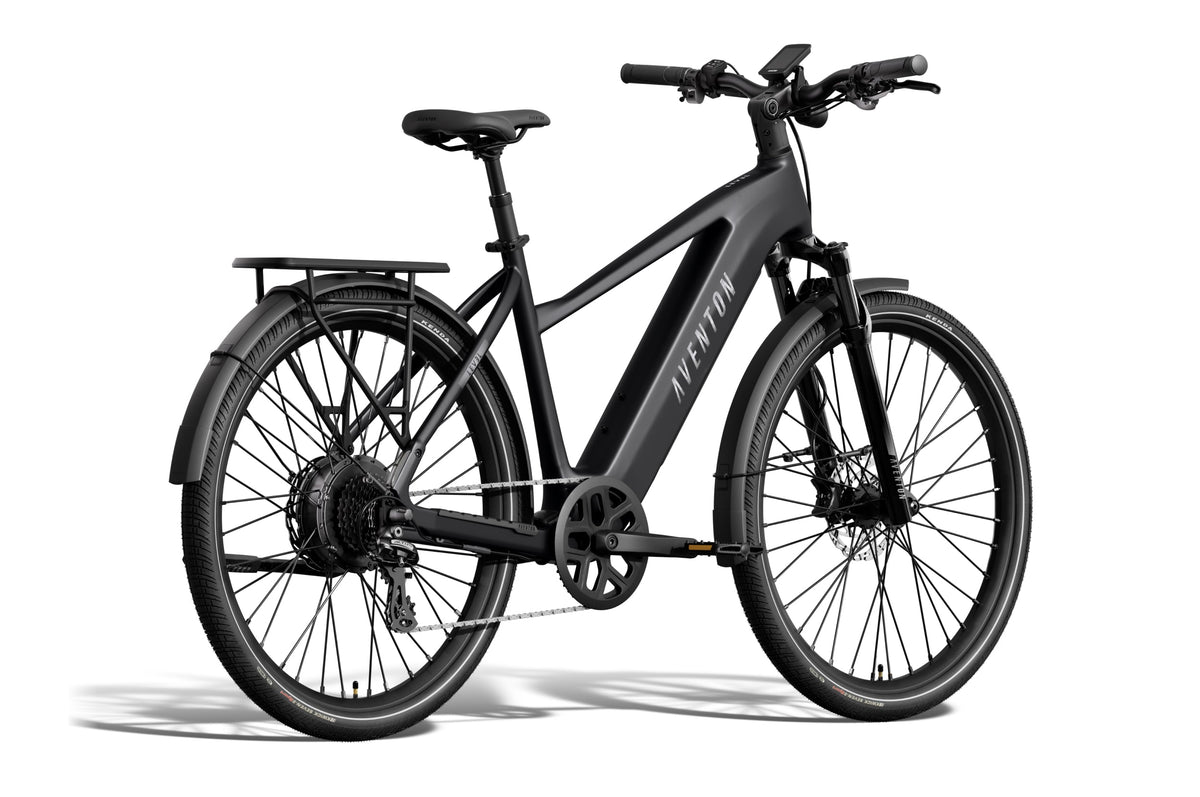

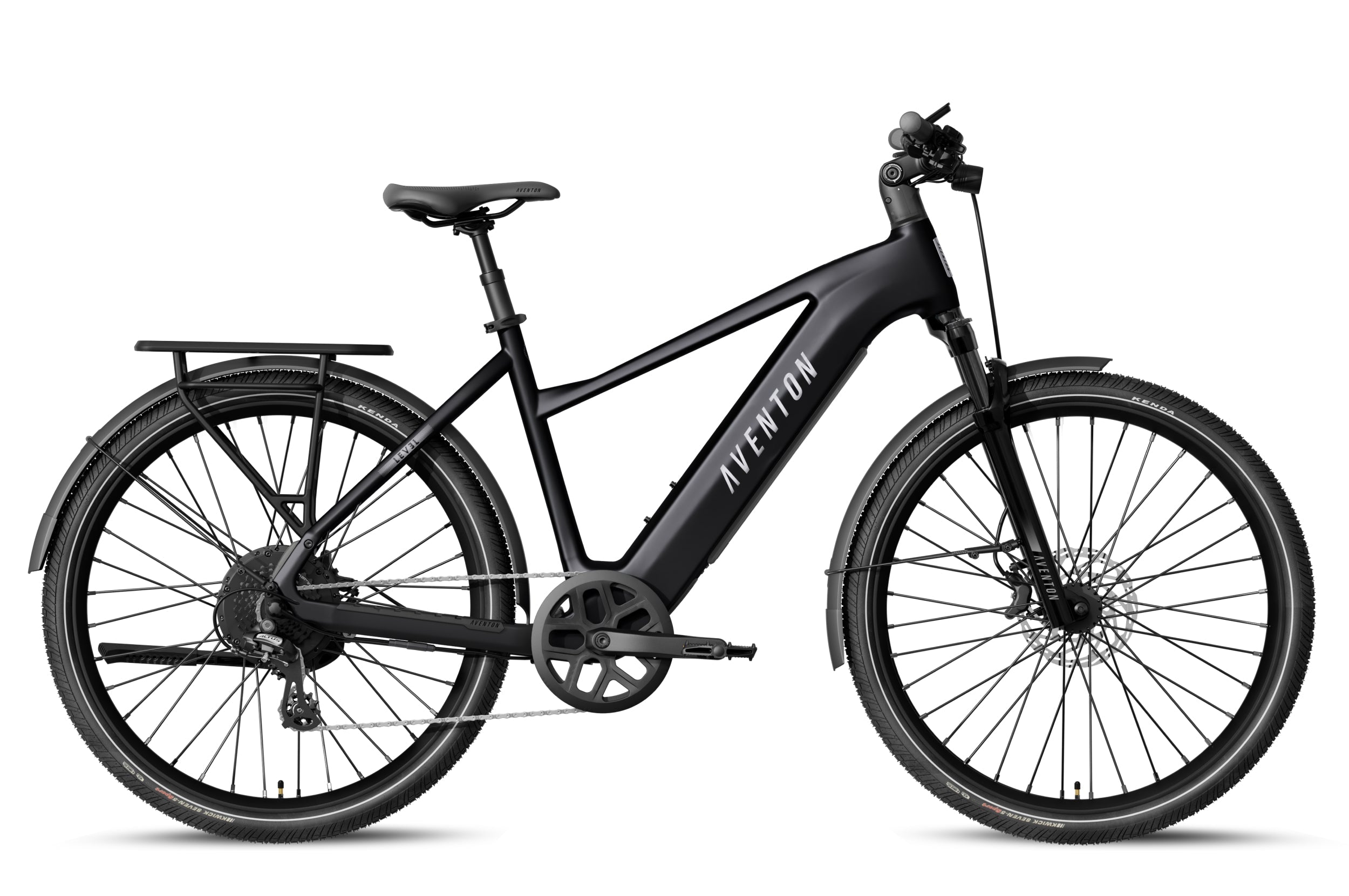

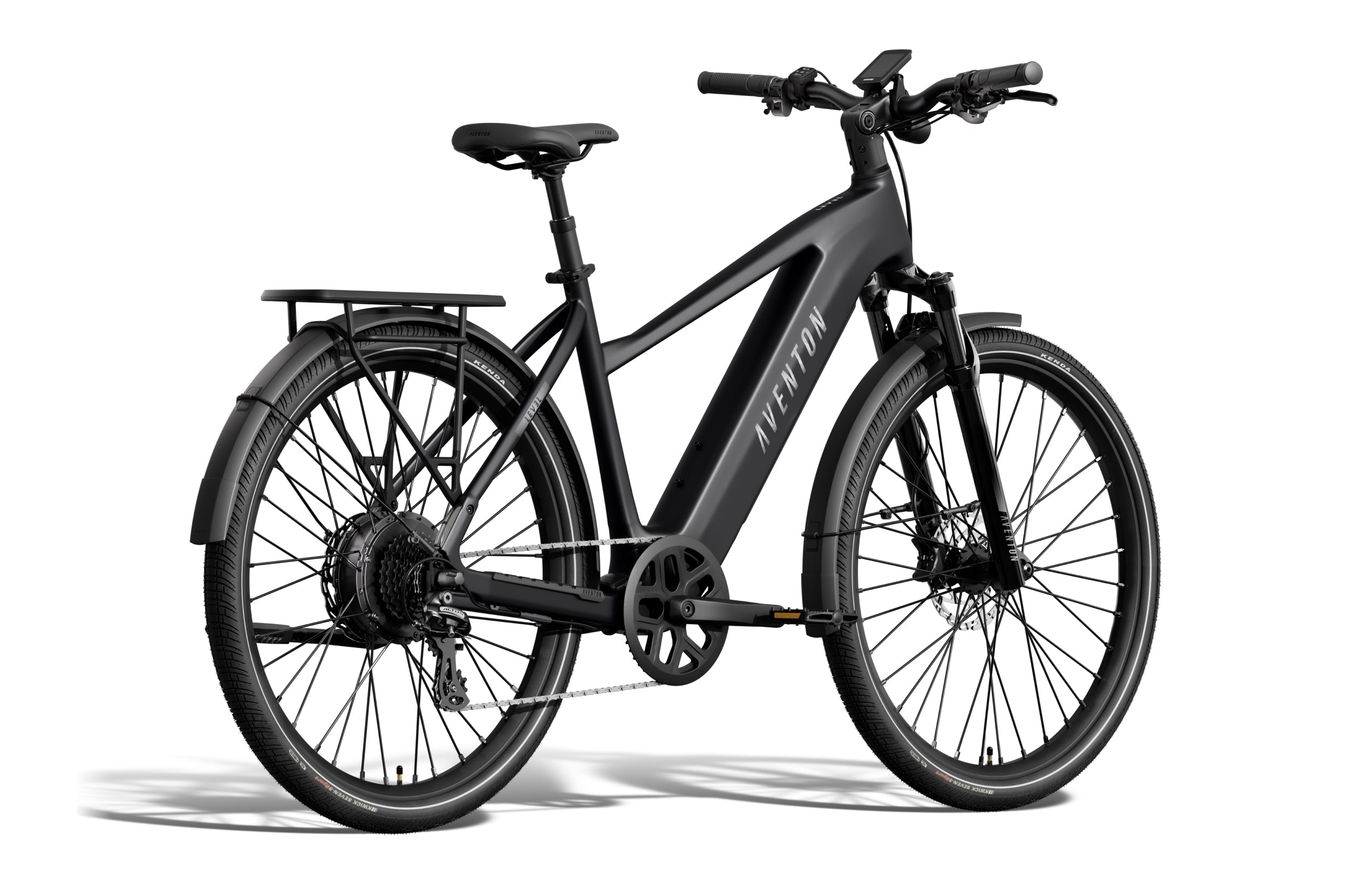

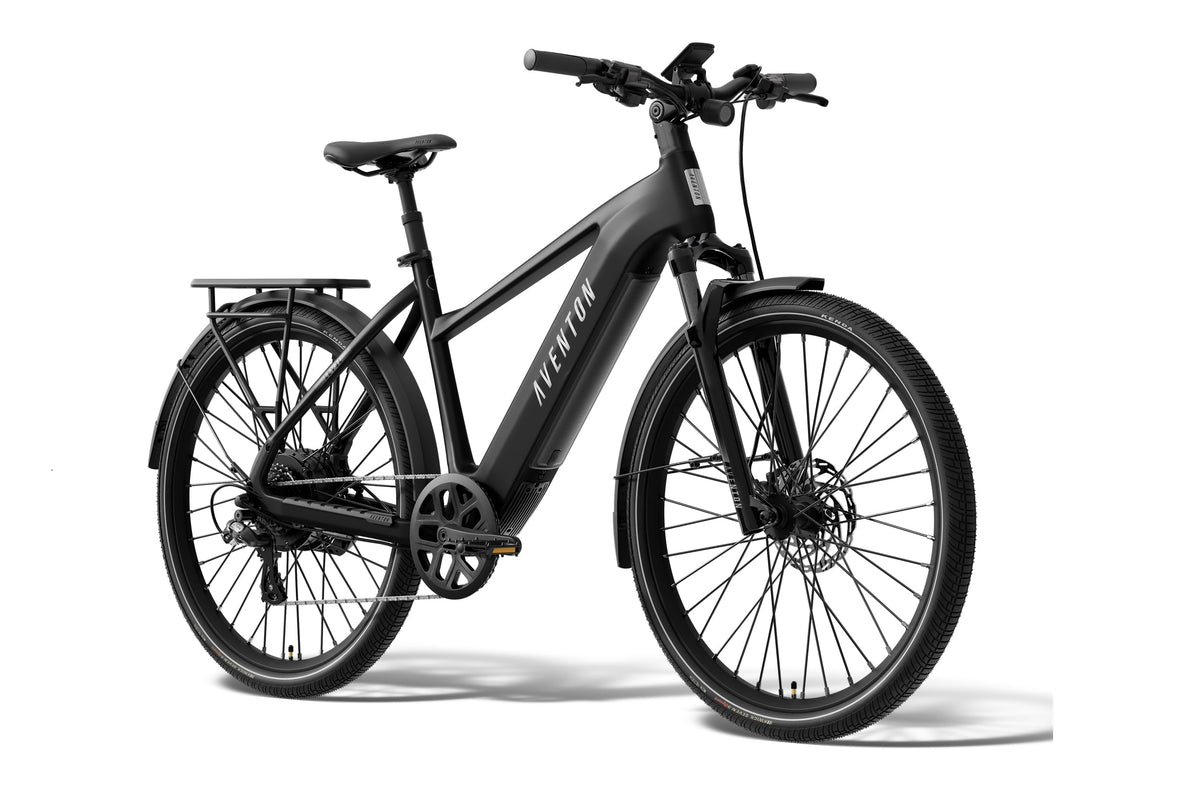

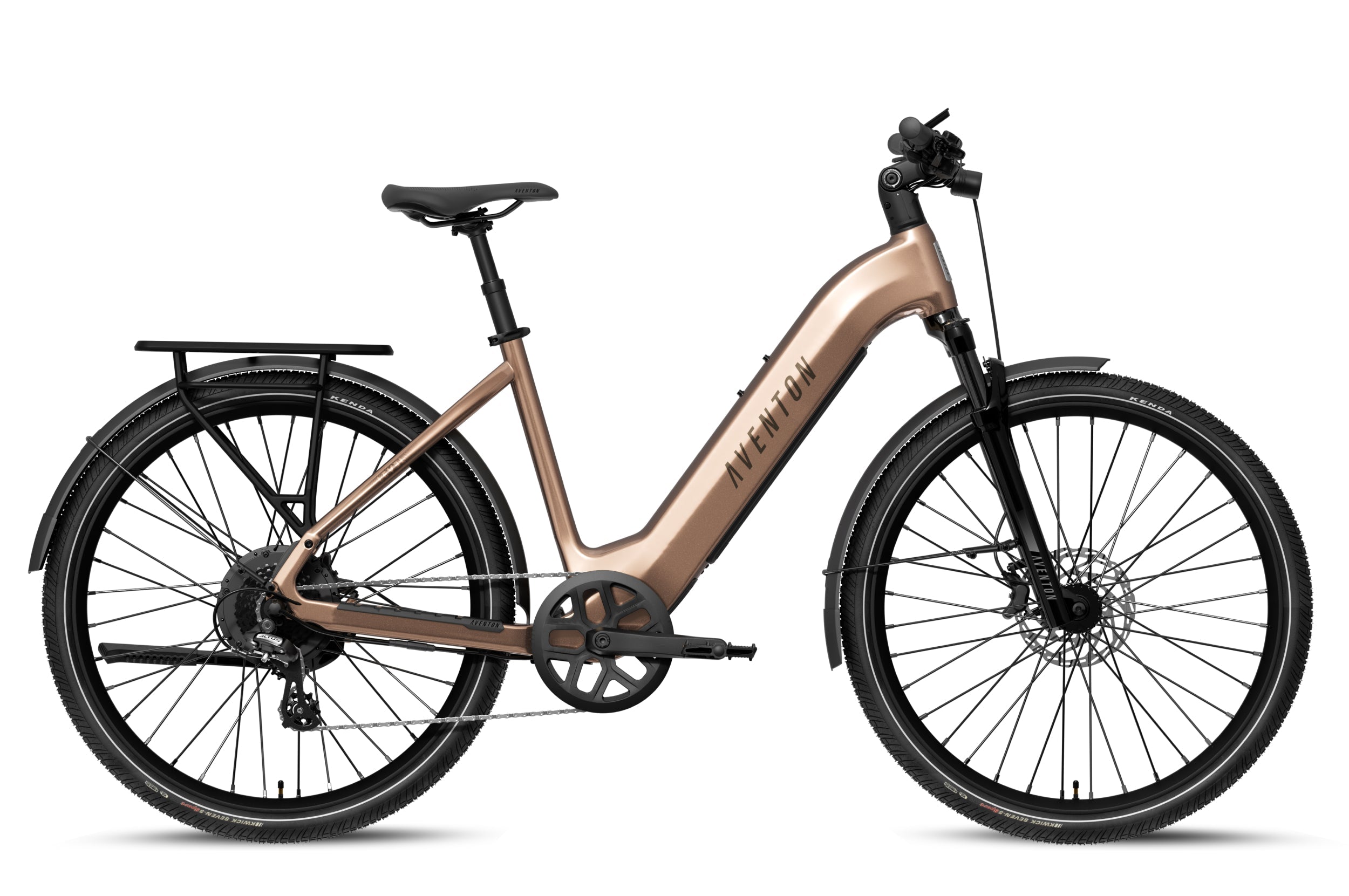

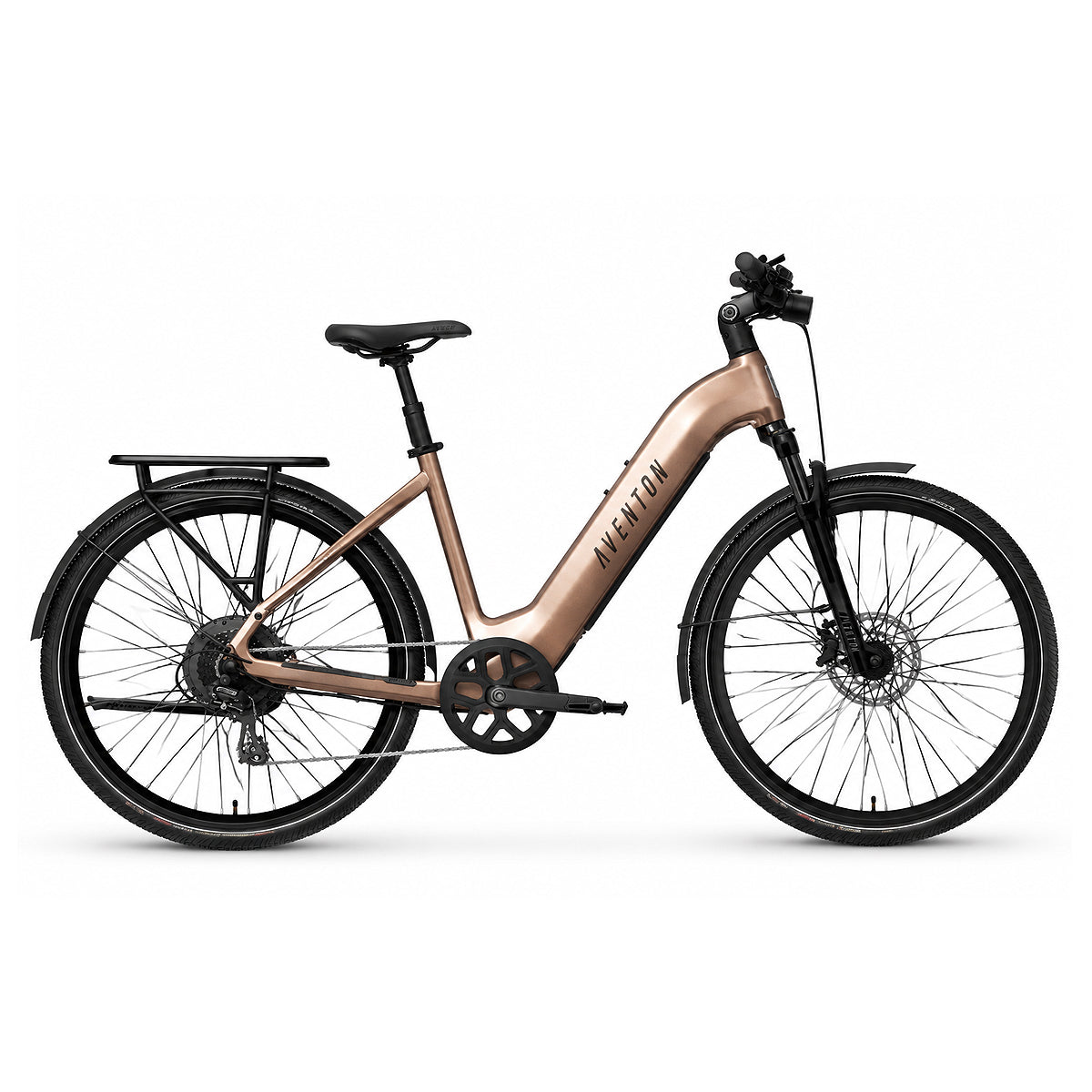

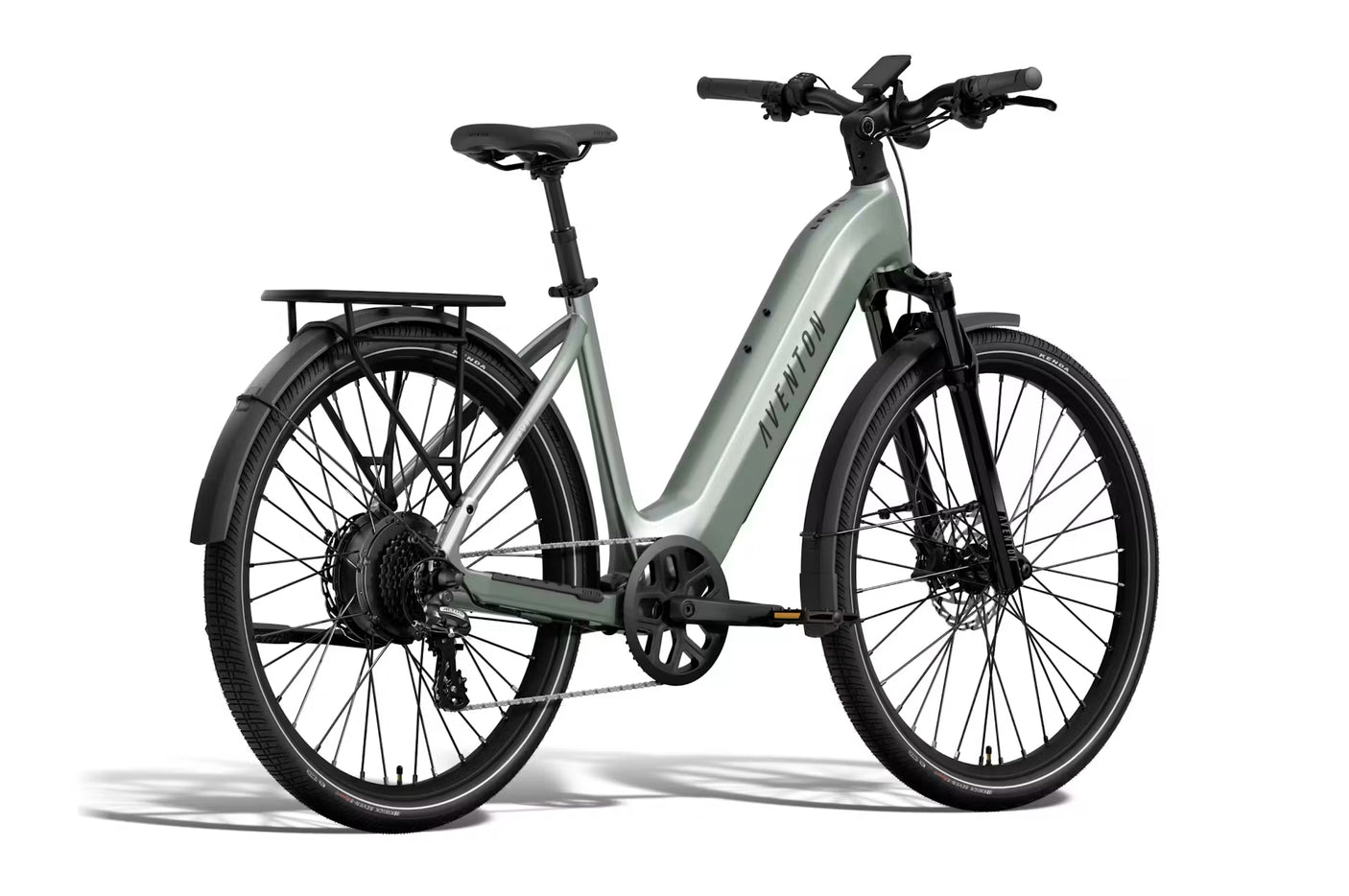

Aventon Level 4 REC Step-Through Ebike
Couldn't load pickup availability
IMPORTANT: ELV Motors, Inc. works hard to keep our website up to date. However, prices on the website may not reflect the actual current selling price, and inventory may not reflect current availability. Please call DURING STORE HOURS for the latest price and inventory and/or to complete an online order. Positive reviews are always welcome!
750W Hub Motor (1440W in Boost, 80Nm Torque)
Bigger Motor, Smoother Power, Whisper-Quiet Ride.
Higher motor output delivers stronger acceleration, for less effort on hills, bridges, and uneven roads; smoother, more confident starts at traffic lights.
Regenerative Braking
Charge on Descents. Gain ~10 Extra Miles.
Save battery and your brake pads with regenerative braking technology
Sensor Switch
Power Your Way - Natural Assist or Engaged Boost
Sensor Switch allows you to alternate between your torque and cadence sensor on the fly. Whether you want the natural pedaling sensation of torque sensor, or the responsive engagement of a cadence sensor, your Level 4 REC is able to easily swap between with the push of a button!
733Wh Removable Battery
Designed For Every Ride, Everyday
With an up-to-75 Mile Range, the long-range battery capacity supports the higher power output, relieving range anxiety for good.
Keyless Battery Access
Easy Battery Access
General Info
Weight: 68.5lbs
Total Weight Limit: 330 lbs
Rider Height: Regular - 4'11"-5'7". || Large - 5'7"-6'1"
Ebike Class: Class 2 (Convertible to Class 3)
Water Resistance: Bike - IPX5 // Components - IPX6
Range: Up to 75 Miles
Safety Certifications: UL Safety Certified UL 2849
Battery Safety Certifications: Certified to UL 2271
Frameset
Frame: 6061 Aluminum
Fork: 80 mm Travel, Adjustable Coil Spring with Preload Adjustment and Lockout, Nutted Axle
Rear Spacing: 148mm
Fork Spacing: 100mm
Wheelset
Front Wheel: 27.5" Double Wall Aluminum, 36 Hole, 15x100mm Thru Axle
Rear Wheel: 27.5" Double Wall Aluminum, 750W Nutted Axle Hub Motor
Tires: Kenda Kwick Seven-5 Sport 27.5"x2.2"
Ebike System
Motor: Hub Motor, 80Nm (96Nm in Boost Mode), 1188W Peak (1440W in Boost Mode)
Motor Torque: 80Nm
Motor Power: 750W (1188W Peak)

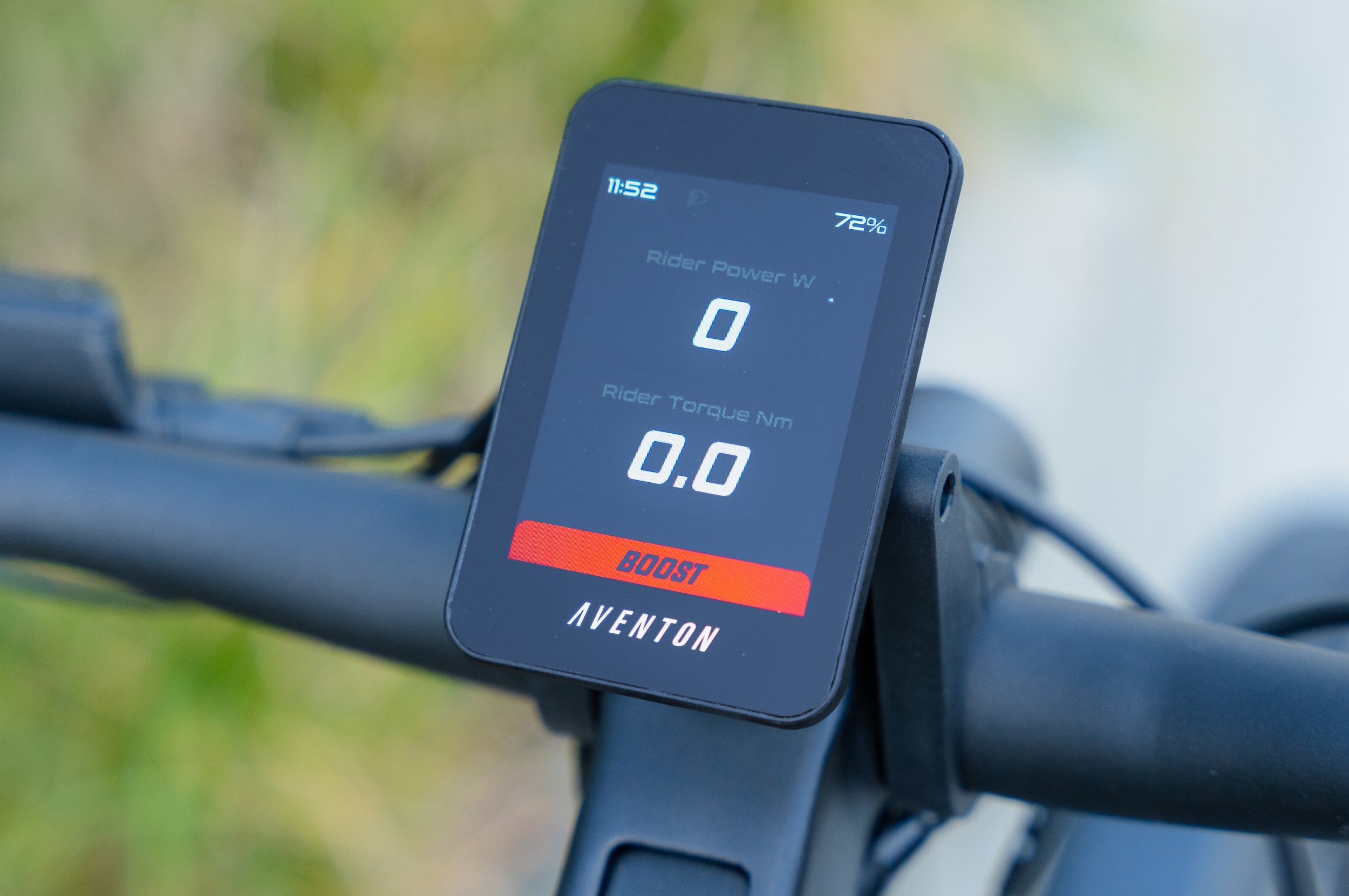

Display: Aventon A280
Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight: 8.7lbs
Controller: 36V, 33A
Throttle: Included
Sensors: Sensor Switch Compatible (Cadence & Torque)
Charger: 42V 4A charger
Charging time from 0% to 100%: 5 hours
Lights: Front and rear lights integrated
Smart Features: Regenerative Braking, Ride Tune, 4G/GPS, Unusual activity detection, E-lock, Hold Mode, Remote Notification
Brakes
Rear Brake: Tektro HD-E3520 2-Piston Hydraulic Disc w/ E-Cutoff
Front Brake Rotor: 180mm 6 bolt
Rear Brake Rotor:180mm 6 bolt
Brakes:Regenerative Braking
Drivetrain
Rear Derailleur: Shimano Altus RD-M310
Shifter: Shimano 8-Speed Trigger
Chain: 7/8 speed 120L
Cassette: Shimano CS-HG200-8 8 speed Cassette, 12-32T
Chainring: 48T
Chainring BCD:N/A
Crankset:165mm
Bottom Bracket: Square Tapered, Sealed, Double Sided Torque Sensor, 83mm x 158.5mm
Pedals: 9/16" Composite Platform
Cockpit
Saddle: Aventon Saddle
Seatpost: 30.9mm Aventon Suspension Seatpost with 50mm travel
Seatpost Clamp: 34.9mm
Handlebars: Aluminum 31.8mm, 680mm
Stem: Aluminum, 31.8mm Clamp, 60mm Length, 90 Degree Adjustable w/ Internal Routing
Grips: Aventon Lock on grips
