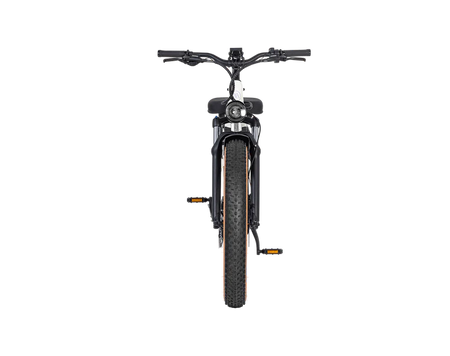

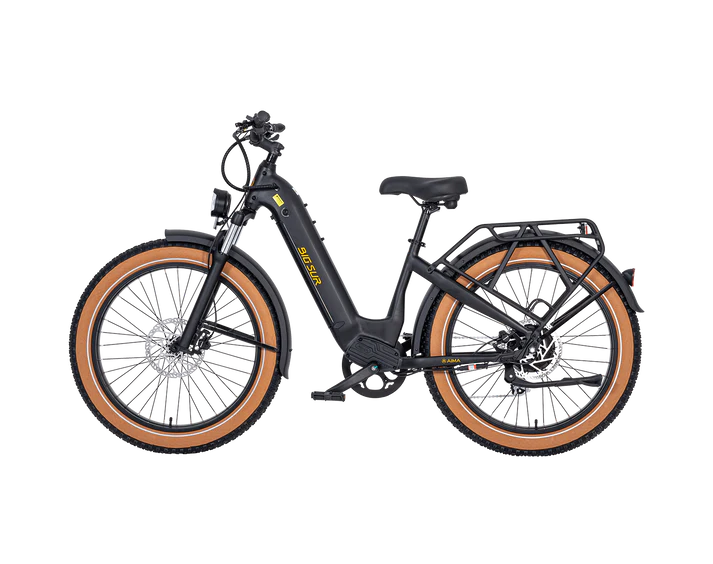

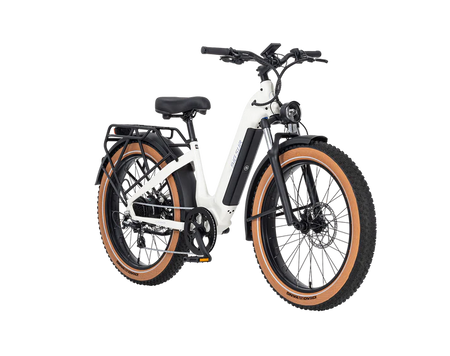

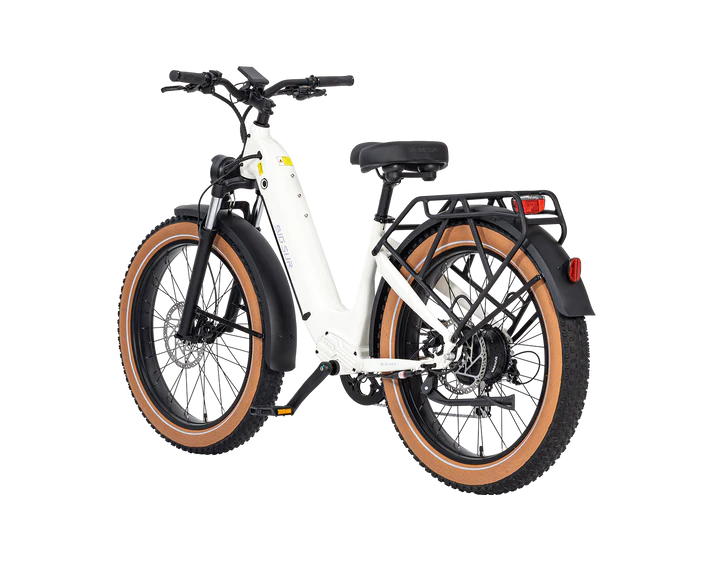

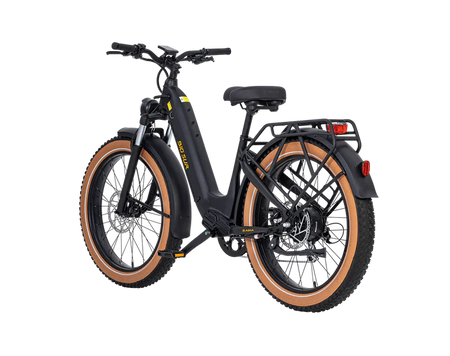

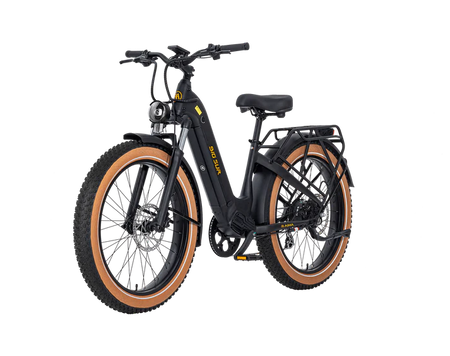

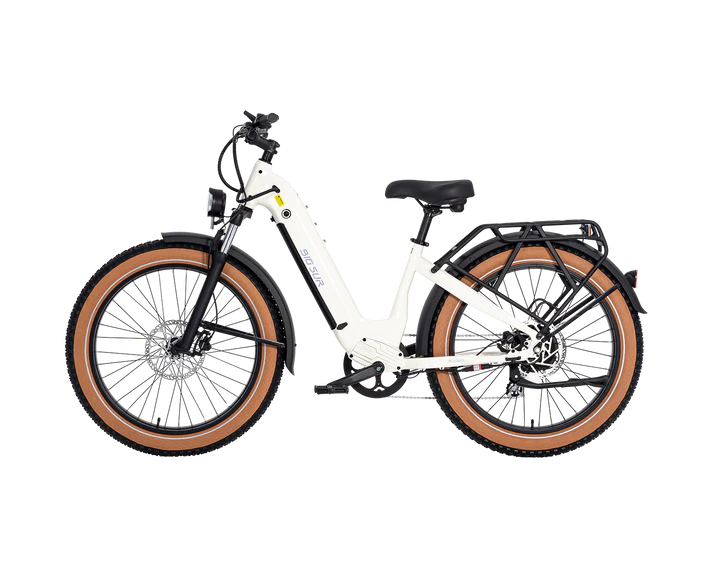

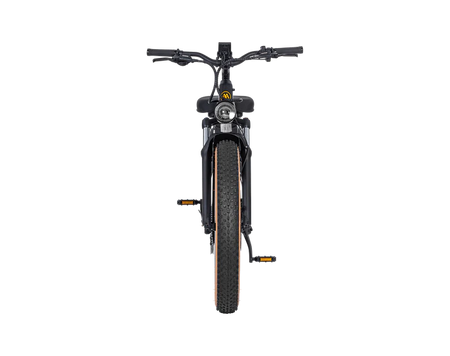

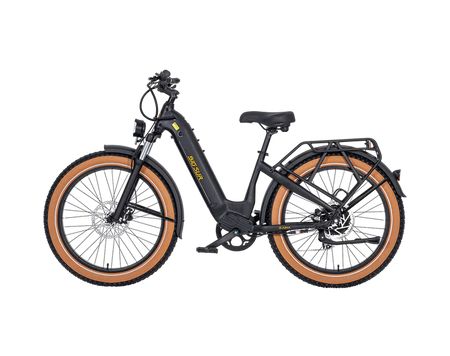

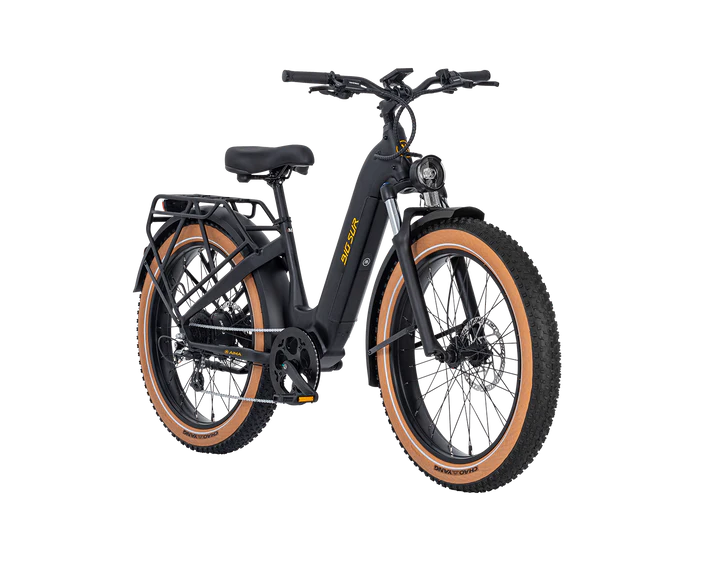

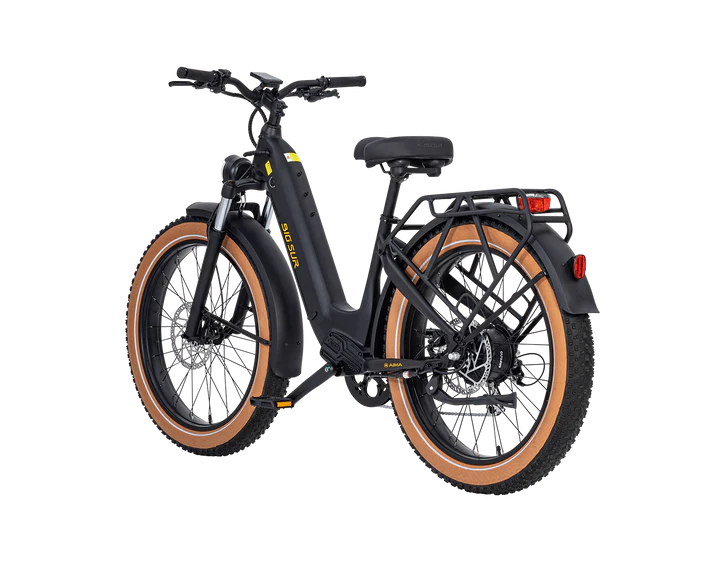

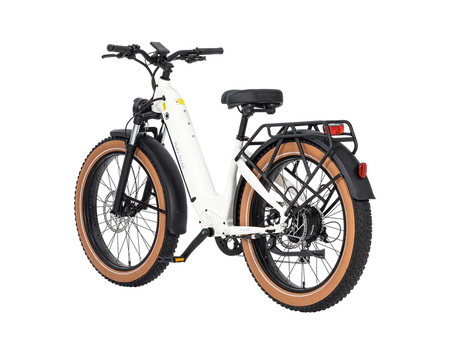

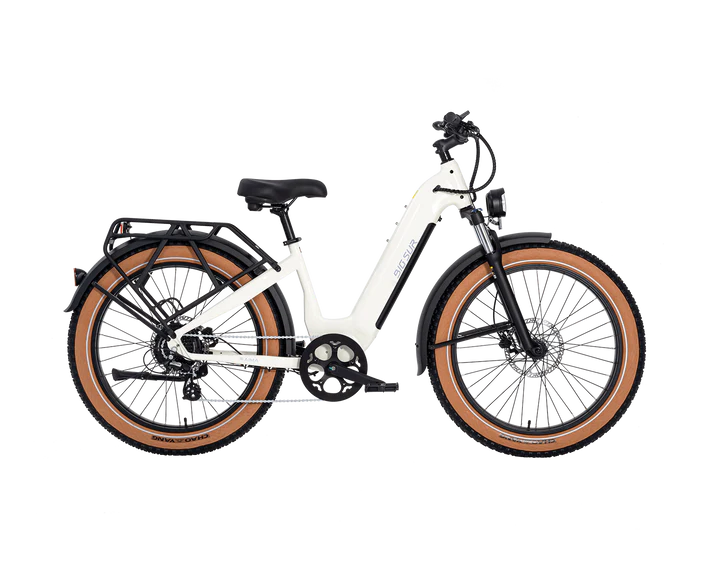

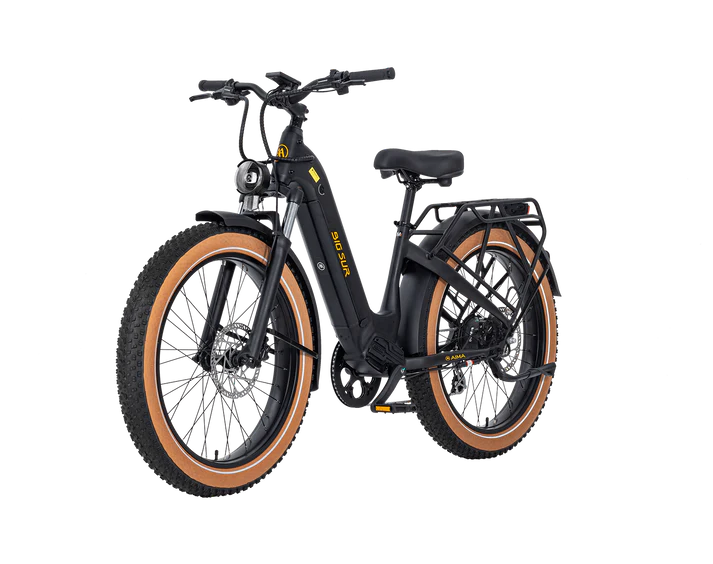

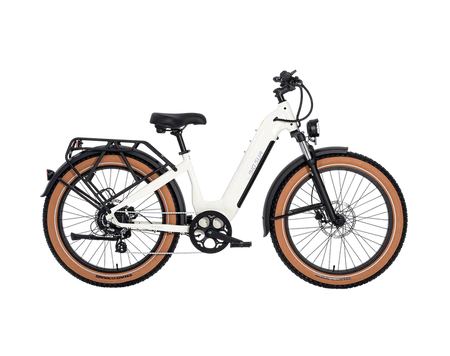

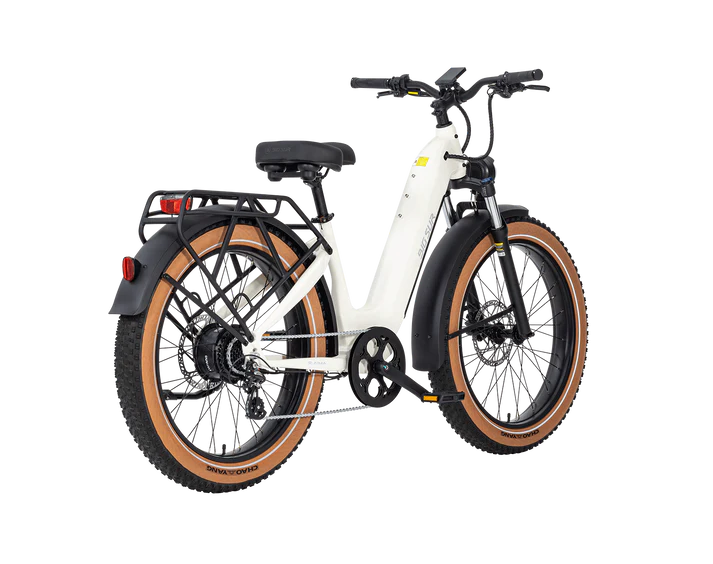

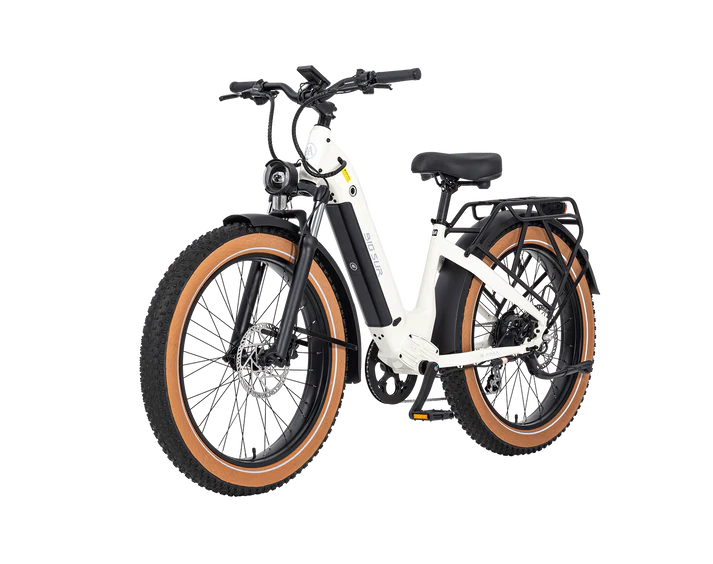

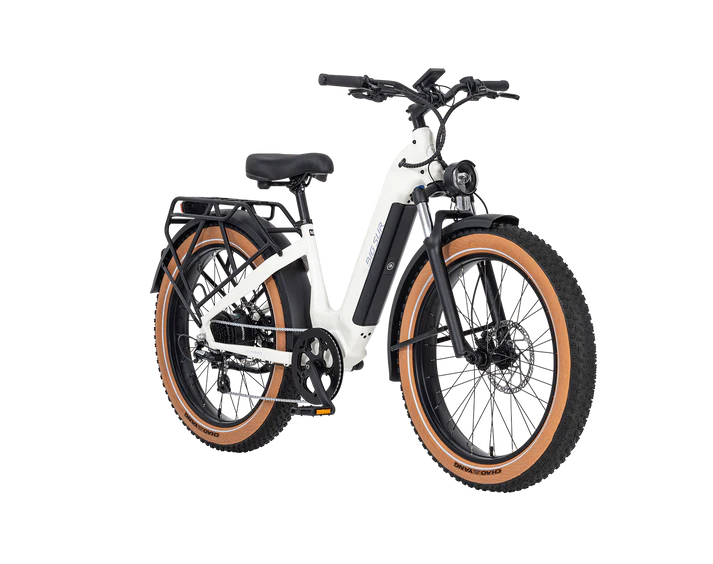

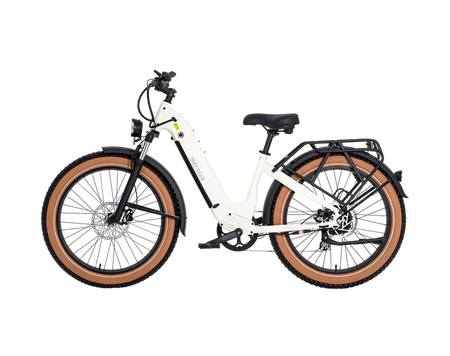

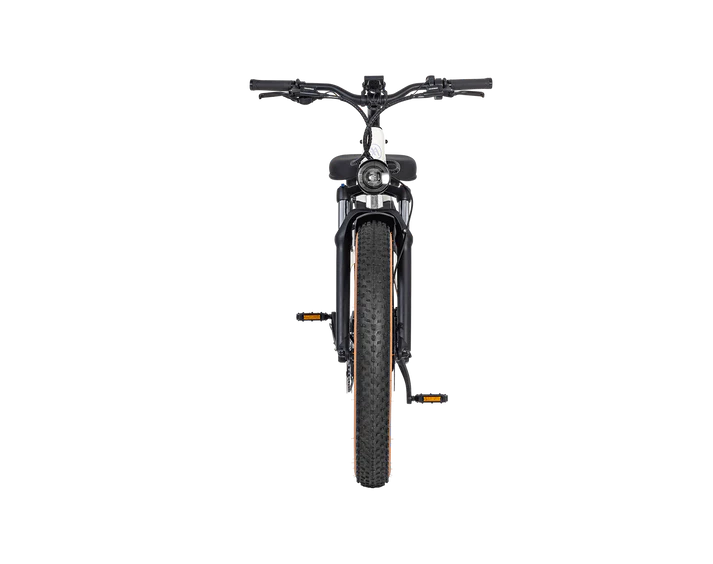

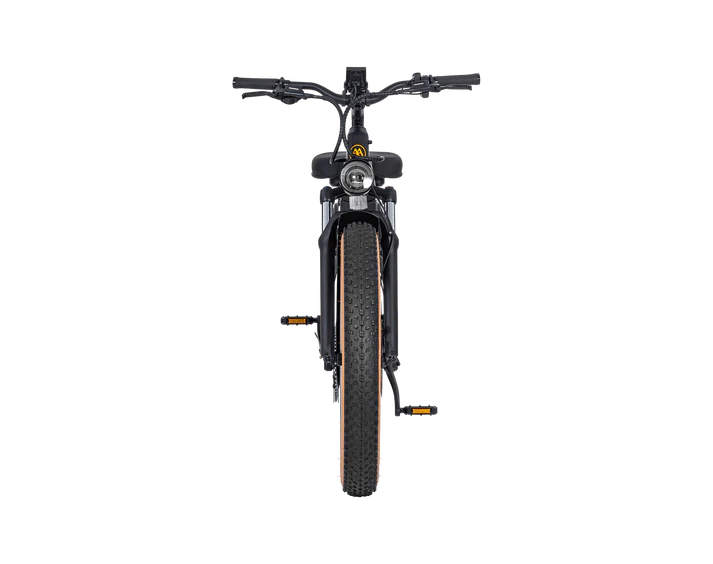

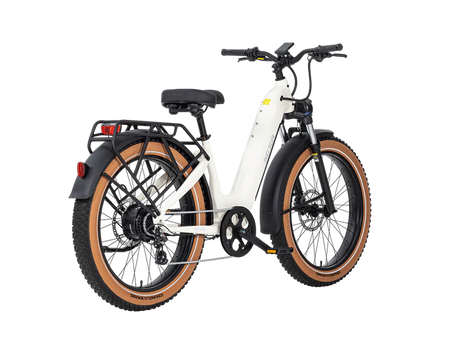

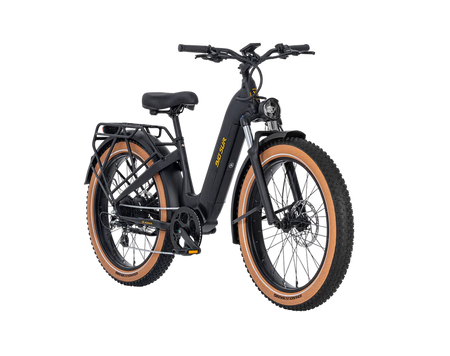

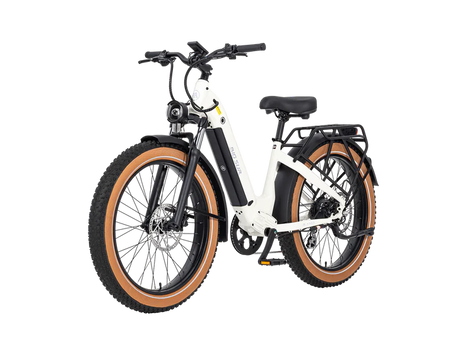

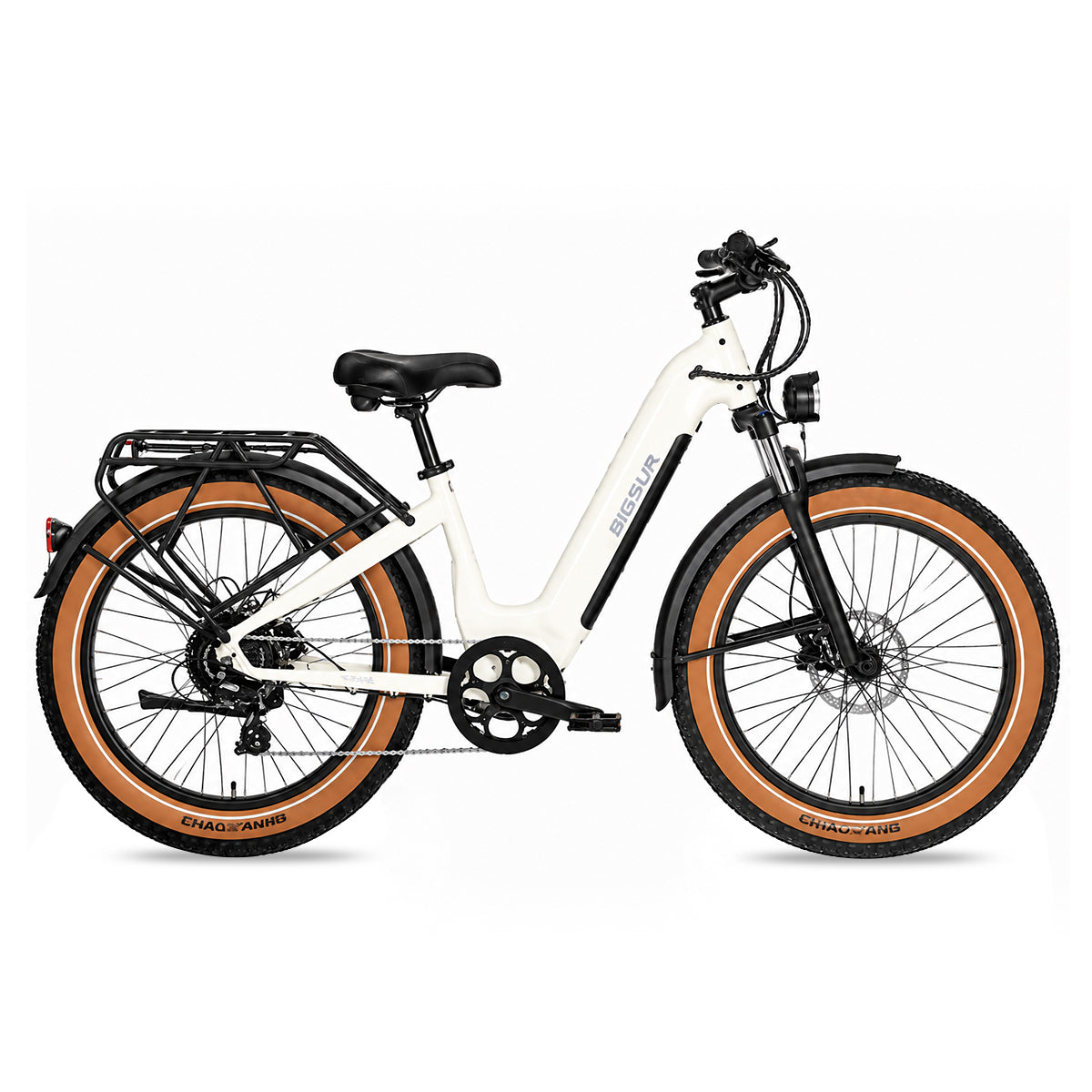

AIMA Big Sur Ebike
Couldn't load pickup availability
IMPORTANT: ELV Motors, Inc. works hard to keep our website up to date. However, prices on the website may not reflect the actual current selling price, and inventory may not reflect current availability. Please call DURING STORE HOURS for the latest price and inventory and/or to complete an online order. Positive reviews are always welcome!
Hub Motor and Battery
Powered by a 48V 15Ah battery using LG high-capacity cells, Big Sur's 750W Bafang rear hub motor has the juice to take you just about anywhere.
Torque Sensor
One of the latest e-bike innovations, a torque sensor sees how hard you pedal in real time and matches your input power using the motor. This leads to a safer and more intuitive ride, as well as conserving battery life.
Full Color Backlit LCD Display
View essential stats at any time with a bright and daylight-ready full color screen. Choose between several different themes to see your speed, battery life, pedal assist level, and much more.
Suspension Fork
With up to 80mm of travel and adjustable preload and lockout settings, our suspension fork eats up everything in your path, assisted by Big Sur's 4" wide tires.
26” x 4” Fat Tire
Big Sur's puncture-resistant 26" x 4" tires can handle almost any terrain, giving you the confidence you need to push your own riding limits off-road.
Fender & Rear Rack
An MIK HD rear rack comes standard, allowing for endless customization possibilities. Plus, fenders come pre-installed to ensure you're protected from below while riding in any weather conditions.
Flat Position Welding
We've taken great care and utilized some of the newest aluminum welding techniques available on our frame, which comes with a lifetime warranty. These techniques allow the frame to maintain its structural rigidity while also appearing flat and smooth.
Walk Assist
Walk your bike alongside you, up a hill, or anywhere you need to with Walk Assist, which allows the bike to maintain a constant ~2-3mph based on your walking speed.
Controller Compartment
Big Sur's controller is mounted right near the pedals, allowing for easy access during repairs and maintenance. Plus, this mounting style allows the controller to utilize the entire frame as a heat sink, greatly improving safety and performance under load.
Full Specifications
Performance & Power
- Motor: 750W, 48V Brushless Rear Hub Motor
- Torque Sensor: Yes
- Throttle: Throttle on Demand
- Pedal Assist: 5 PAS Levels
- Max Speed: Up to 20 MPH (Pedal Assist & Throttle)
- Range: 30 to 60 Miles
Battery & Charging
- Battery: 48V, 15Ah (720Wh) Removable Lithium-ion with LG M50LT 21700 cells
- Charger: 48V 3 Amp Fast Charger
- Charge Time: ~5 Hours to Full Charge
Frame & Build
- Frame: 6061 Single-Butted Aluminum Alloy with Internal Battery
- Weight: 82 lbs (Battery Included)
- Weight Limit: 400 lbs
- Fork: Suspension Fork, 80mm Travel, Lockout
Drivetrain & Gearing
- Crankset: 170mm w/ 52T Chainring
- Shifter: Shimano 8-Speed
- Cassette: 8-Speed, 11-34T
- Chain: 130 Link, 8-Speed
Brakes & Safety
- Brakes: Tektro Hydraulic Disc Brakes
- Rotors: 203mm Front & Rear
- Kickstand: Aluminum Alloy Kickstand
Wheels & Tires
- Rims: Double Wall Aluminum Alloy
- Spokes: Black Stainless 12G (Front & Rear)
- Tubes: Butyl Rubber
- Hubs: Front Aluminum Alloy Disc Hub
- Tires: 26" x 4" Puncture Resistant
Comfort & Handling
- Saddle: AIMA Comfort, 280mm x 270mm
- Seatpost: Aluminum Alloy, 30.4mm 2-Bolt Clamp
- Seat Clamp: 34.9mm Quick Release
- Stem: Threadless, 31.8mm, 7° Rise, Ext 75mm
- Handlebars: Aluminum Alloy Double Wall, 31.8mm, 680mm
- Headset: Sealed Bearing Headset
- Grips: Ergonomic Comfort
Technology & Extras
- Display: Color LCD, Smart Easy-to-Read with Backlight
- Rear Rack: MIK HD Compatible
- Pedals: 9/16" Alloy Platform
