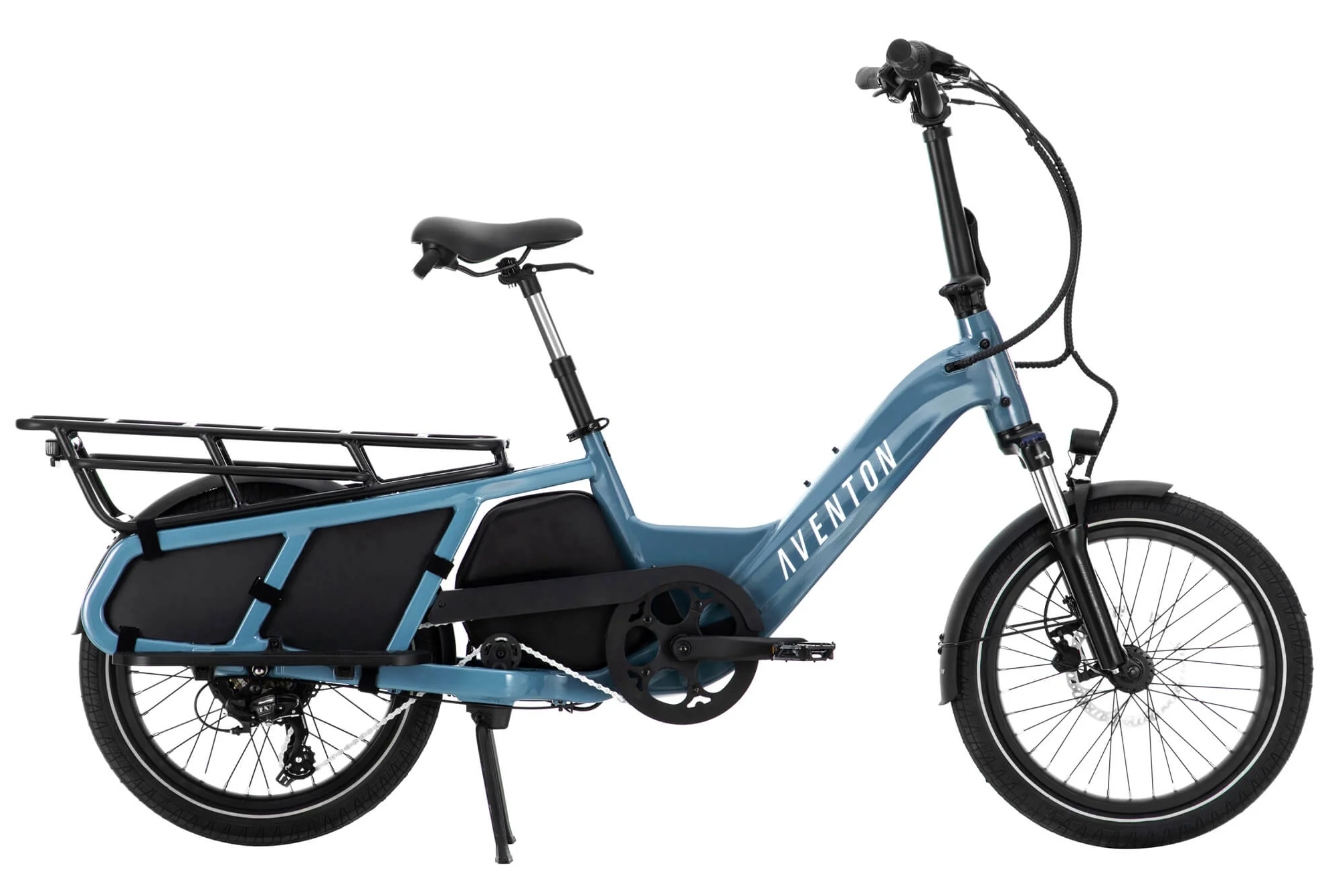

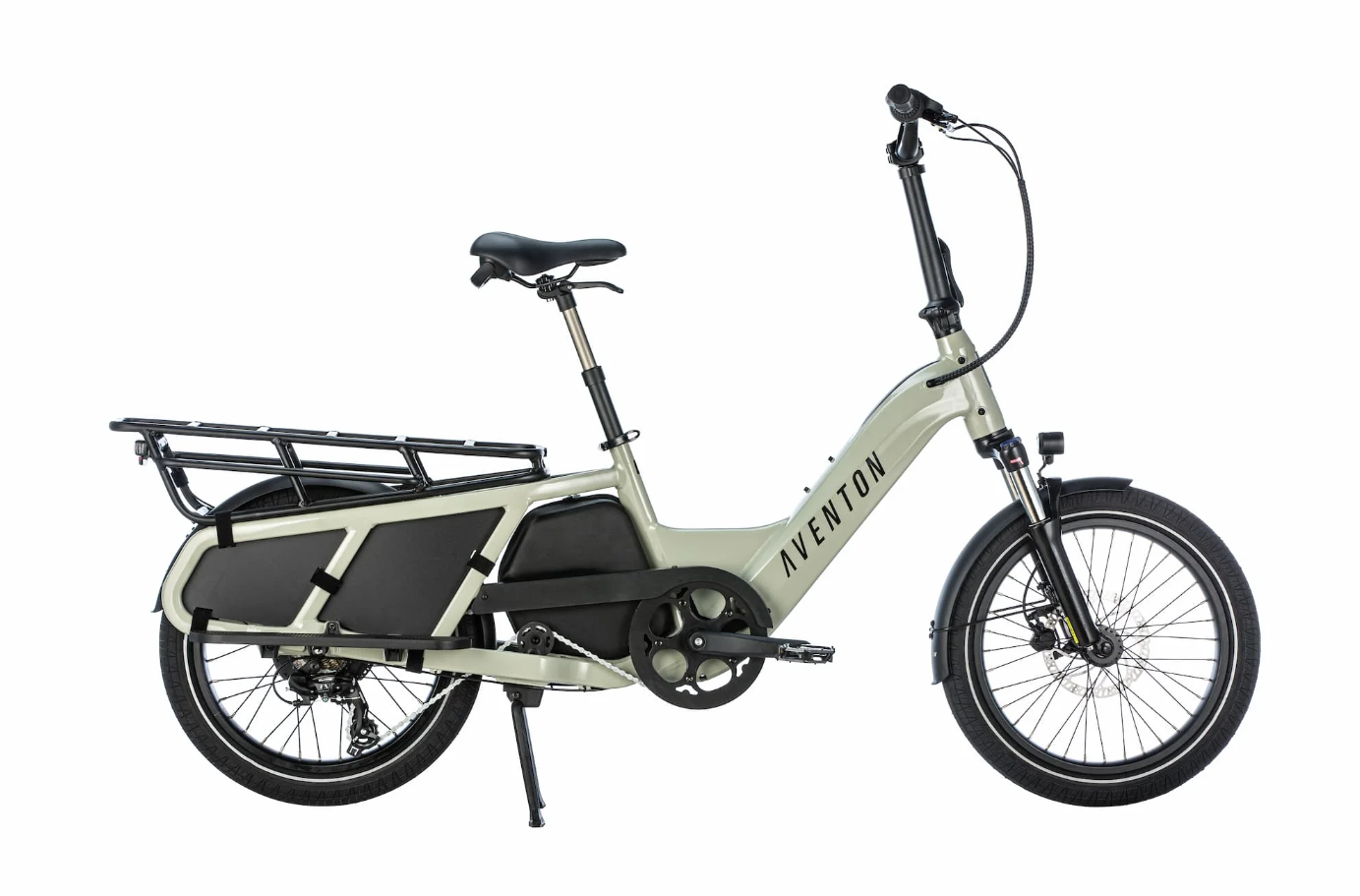

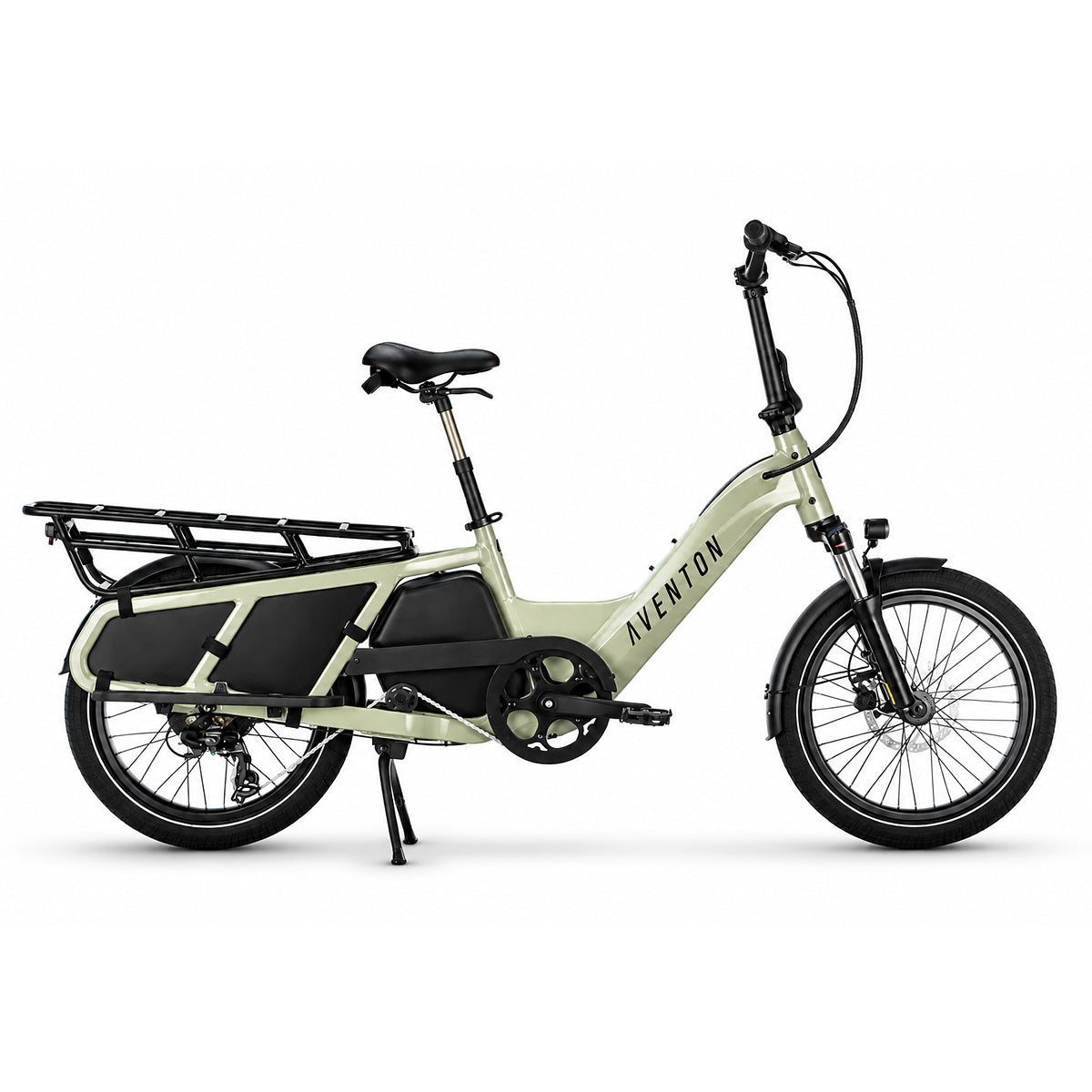

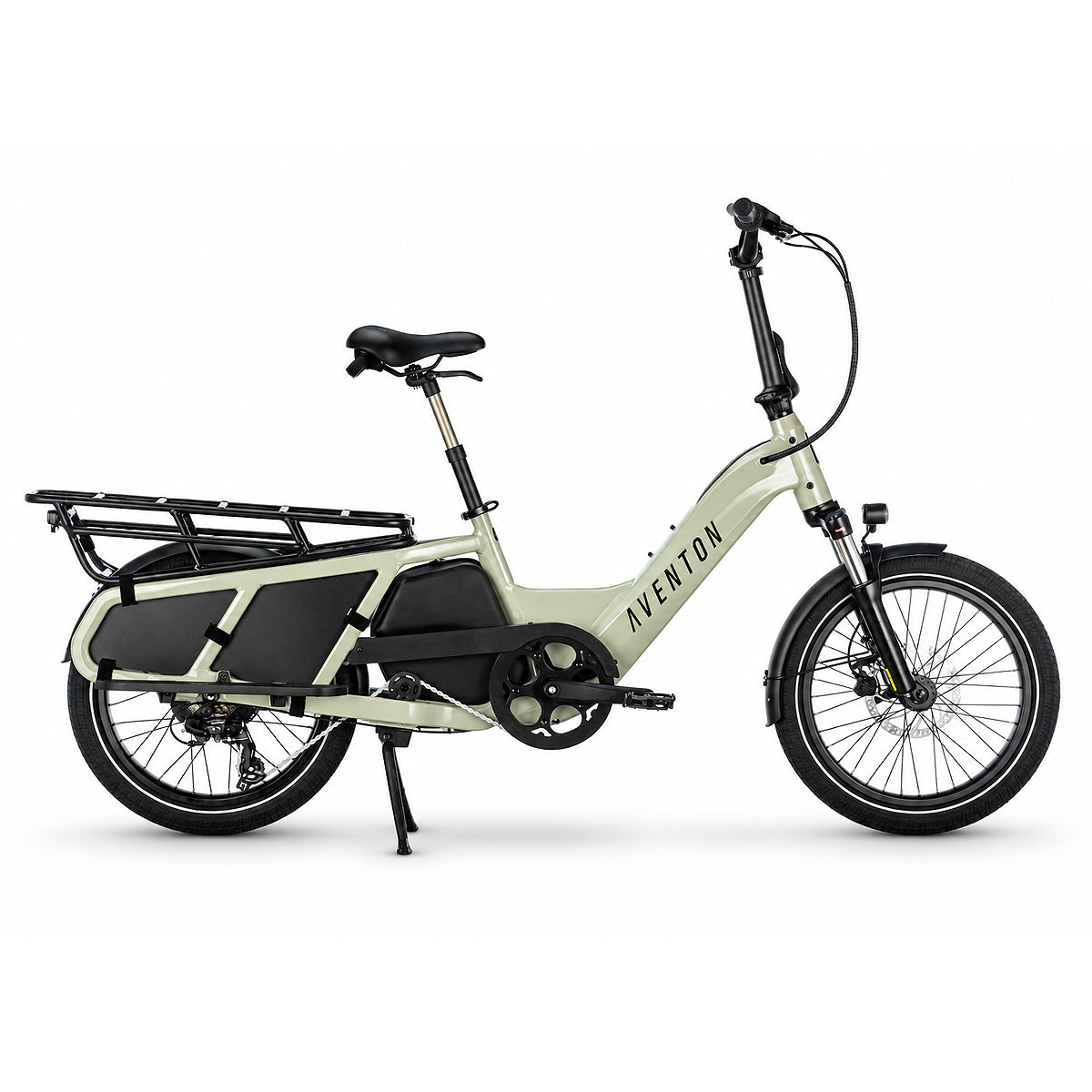

Aventon Abound

Haul it all with the Abound, Aventon’s first ever cargo ebike! Its versatility and step-through frame puts the you in you-tility. Rack it, stack it, and load the kiddos, too! Equipped with a torque sensor and powerful 750W rear hub motor, getting around with everything you need in tow has never been easier. Let Abound do most of the heavy lifting by switching between the four new pedal assist levels: eco, tour, sport, and turbo. The all-new turn signal functionality alerts others that you’re making moves, while the front headlight sheds light on the road ahead. With Abound, the possibilities are boundless.

The Abound ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Using PAS 1 throughout flat terrain with a rider weight of 160 lb.

AVENTON ABOUND E-BIKE SPECIFICATIONS

MOTOR

750W (Sustained), 48V Brushless Rear Hub Motor

THROTTLE

Throttle on demand - Throttle from a complete stop

DISPLAY

LCD Smart Easy Read Display with Backlight, Colorful screen with app

SPEED

Up to 20 MPH on Pedal Assist

BATTERY

Removable Internal Lithium-ion 48V, 15Ah (720Wh)

SENSORS

Torque Sensor

PEDAL ASSIST

4 Levels

CHARGER

48V 3 Amp Fast Charger, 4-5 Hour Charging

RANGE

Up to 50 Miles* on PAS 22 Miles on Throttle

FRAME

6061 Single-Butted Aluminum Alloy with Internal Battery

WEIGHT

81 lbs

PEDALS

9/16' Alloy Platform

FORK

Suspension Fork with 50mm travel, with lockout

TOTAL WEIGHT LIMIT

440 lbs

REAR RACK WEIGHT LIMIT

143 lbs

CENTER STAND

Included, Center Mount

BOTTOM BRACKET

Square Taper, Sealed, Torque Sensor

CRANKSET

170mm w/ 52 T

REAR DERAILLEUR

7 Speed

CASSETTE

14-28T, 7 Speed

SHIFT LEVER

7 Speed Twist

BRAKES

Hydraulic Disc Brakes

CHAIN

148 Link, 7 Speed

RIM

Double Wall Aluminum 36h Front & Rear

SPOKES

Black Stainless 13G Front / 12G Rear

TUBES

Butyl Rubber, Schrader Valve

HUBS

36H Disc Nutted Front, Nutted Rear

TIRES

20" x 2.4" Puncture Resistant, Reflective Sidewalls

SADDLE

Aventon Saddle

SEATPOST

Dropper Seatpost, 30.9mm x 440mm

STEM

Folding, Height Adjustable, 31.8mm, 9 Degree Rise

SEAT CLAMP

34.9 mm Quick Release

HANDLEBARS

Aluminum 31.8mm, 700mm

HEADSET

Sealed Bearing Headset

GRIPS

Ergonomic Comfort

FOOTBOARDS

Aluminum

STORAGE BAG

Polyester, EVA Waterproof

DIMENSIONS

Bike Box: 167 cm x 37 cm x 73 cm Built Bike: 1910 mm (l) x 1125 mm (h) Rear Rack: 28 in (l) x 6.75 in (w)
