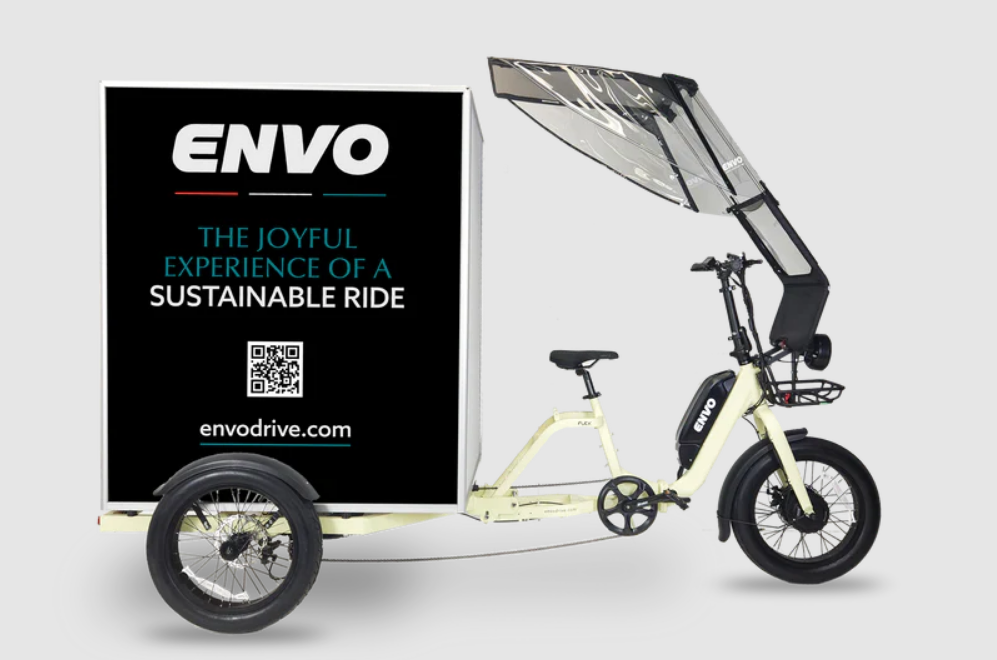

ENVO Flex Cargo Trike

Engineered in Canada, the Flex Cargo is a versatile and stylish cargo electric bike equipped with a 20 inch fat tire and a compact, foldable aluminum frame. The powerful front hub delivers a maximum of 500W of street-legal power and a range of up to 100 km with a dual battery option. The cargo ebike is perfect for carrying groceries, packages or other supplies with ease. ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENT.

Engineered in Canada, the Flex Trike is a stylish light, and compact 20 inch fat tire electric adult trike with foldable aluminum unisex and unisize step-thru frame

Engineered to be a full-featured, no compromise bicycle first, with the added benefit of power assist when you need it. Switch the power off and experience the unparalleled ride quality of this hybrid bicycle.

• ESE – ENVO Sustainable Engineering

• Torque emulating smooth PAS, providing incomparable riding experience.

• Full cargo capacity, with front rack.

• 20in off road style fat tires – perfect for low noise and low drag yet provides adequate grip and load capacity

Features:

• 25Km/h / 15.5mph Maximum Speed

• 50 Km / 30 miles (Single battery) Maximum Range up to 100 km (62 miles) with dual batteries

• 400 lb Rated for 180Kg payload capacity

• Foldable Step Thru Frame The Only Folding Cargo Bike in Market

• Lightest & Most Compact eTrike

• Lowest Q-factor of Any Fat Trike in Market

BATTERY PACK

The ENVO Battery powering the Flex Trike is super lightweight, down tube mounting Li-Ion pack in a stylish thin ABS case with an auto-connect socket, a charge indicator, security lock. The battery is removable and can reach a range of up to 50km / 30miles per charge on pedal assist level 1. The battery can be charged on or off the bike frame using the little portable CC-CV smart Li-Ion battery charger. The ENVO Battery is an A-grade branded Li-Ion battery, comprising of LG or Panasonic Li-Ion cells and a BMS that avoids battery from overcharging, overloading, and other hazardous activities, thereby increasing both cyclic and calendar life of the battery. Battery cells have been selected for best operating in freezing temperatures. Flex comes with a dual battery option, allowing you to go twice as far in your travels. Dual batteries on Flex Cargo Trike gives you 920Wh of battery capacity, allowing you to travel up to 100km / 62miles on a single charge.

E-ASSIST SYSTEM

The ENVO Flex is equipped with an advanced pedal-assist sensor with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedalling depending on the level of assistance you select while riding. The ENVO Flex is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist, does not matter if you are pedaling, to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.

GEARED MOTOR HUB

ENVO FLEX Flex is equipped with a sealed, powerful, upkeep free, geared hub motor that offers 500W power and 60Nm torque. Our motors are designed efficiently and hence are lighter than most powered geared hub motors in Canada, yet they deliver high torque and efficiency. These ENVO motors are developed for over 20,000Km / 12,500miles maintenance-free ride.

ADJUSTABLE STEM

The FLEX Trike comes with an adjustable telescopic handlebar, this lets the rider do the ergonomic fine tuning allowing them to choose efficient pedaling position.

TIRES

Flex Trike comes with 20inch urban style fat tires. These fat tires are cushion enough to improve ride comfort, dynamic maneuverability, and handling in different terrains. Tires are fat and knobby enough for the best grip on wet cement, asphalt paved, dirt or gravel trails which creates minimum noise and drag for normal urban paved rides.

DISK BRAKE

Top of the line mechanical disk brakes equipped with electric cut-off sensors provide more safety to the bike as well as the rider. Flex Trike comes with brakes on all of the wheels, allowing for better handling and safer ride.

TRANSMISSION SYSTEM

Well-engineered 52T chain ring and 7 speed 11-32 teeth cassette transmission help you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h / 25mph speed on gear 6 with gentle peddling.

HEADLIGHT

The FLEX Trike is fitted with high efficiency and bright LED headlight powered by the main battery and controlled by a keypad on the handlebar.

SADDLE

The unisex saddles, professionally designed with cuts and curves for high performance pedaling, and wide enough for long upright cruises, are the most relaxing, cushion saddles with ultimate comfort and style for all riders.

ENVO FLEX CARGO TRIKE SPECIFICATIONS

Electronics

Trike

Battery

36V, 12.8Ah

Controller

36V, 500W

Display

LCD Display with speedometer, odometer, pedal-assist indicator, etc

Hub Motor

500W

Lights

Brake triggered Backlight

Pedal Assist

5 Level Pedal assist

Wiring

Water Resistant Wiring

Brakes

Mechanical Disc Brake

Brake Pad Material

Ceramic Pad

Brake Rotors

180mm

Crankset

52T, 170mm crank

Derailleur

8 Speed

Fenders

Front and Rear

Frame

6061 Foldable Aluminum Frame

Fork

Solid Fork

Freewheel

11-32T

Handlebar

Foldable Telescopic

Racks

Front Rack

Saddle

Ergonomic Saddle with suspension seat post
