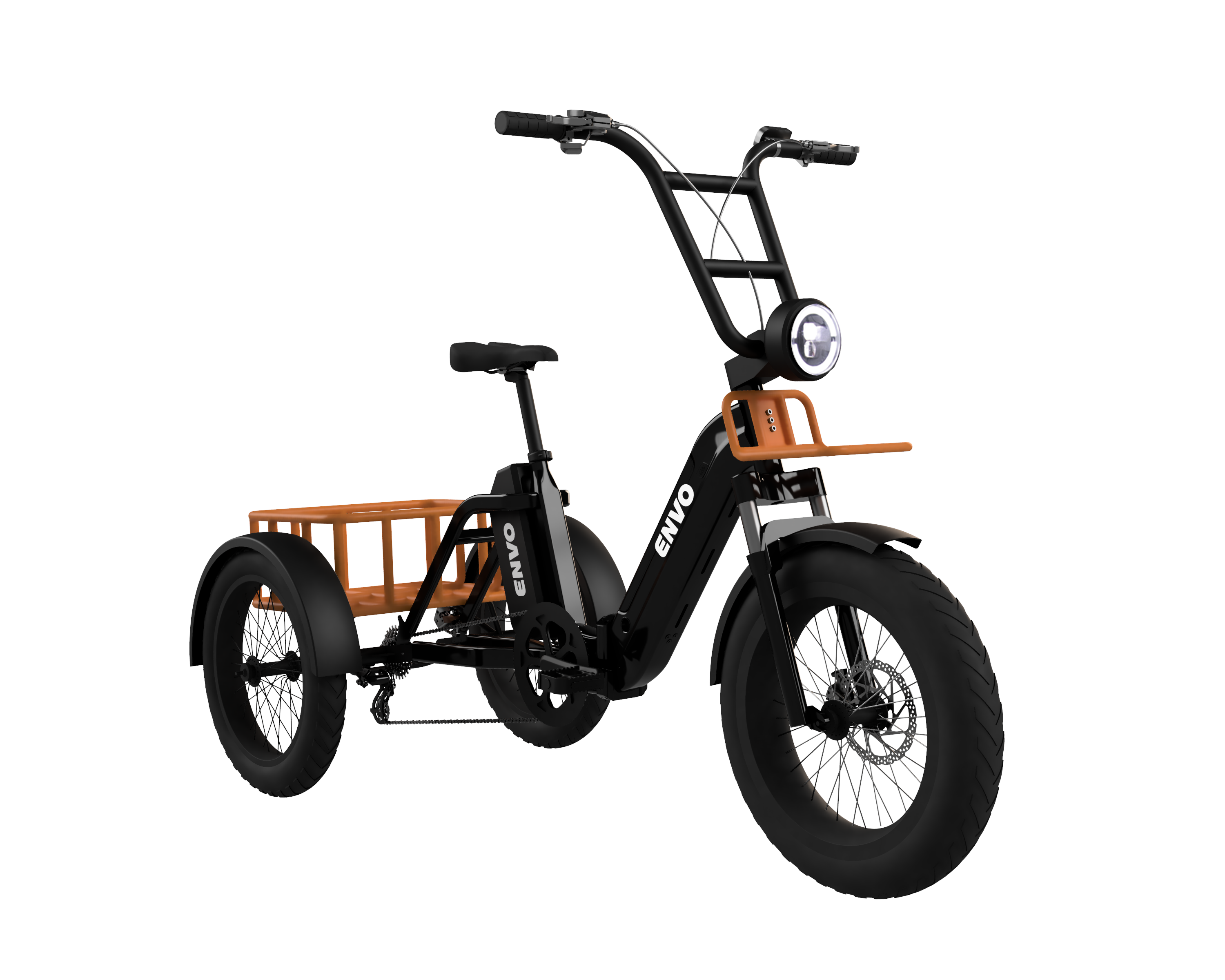

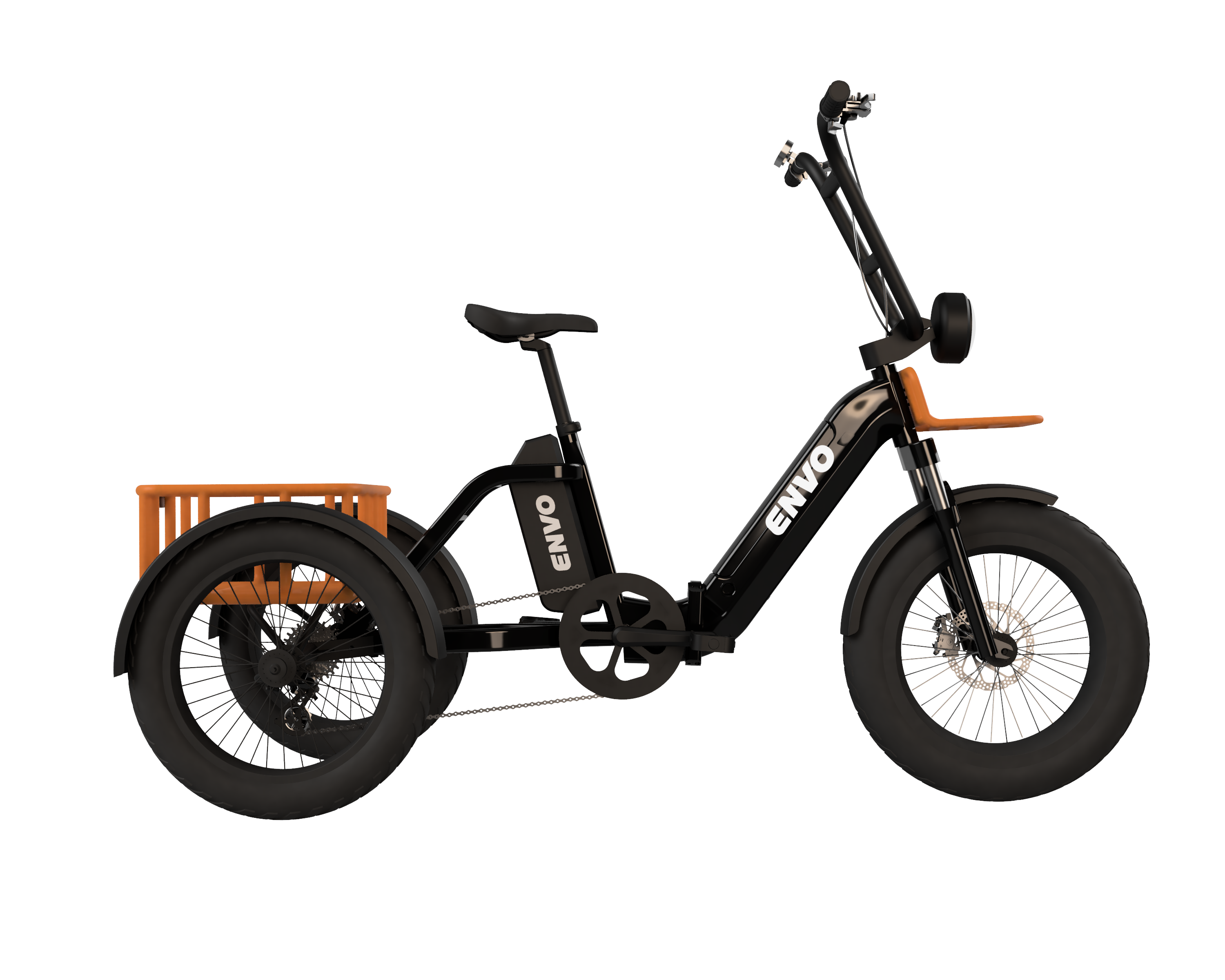

ENVO Flex Trike

Engineered in Canada, the Flex Trike is a stylish light, and compact 20 inch fat tire electric adult trike with foldable aluminum unisex and unisize step-thru frame. The proprietary front hub delivers a maximum of 500W of street-legal power and a range of up to 200 km with a dual battery option. ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENT.

Engineered to be a full-featured, no compromise bicycle first, with the added benefit of power assist when you need it. Switch the power off and experience the unparalleled ride quality of this hybrid bicycle.

• ESE – ENVO Sustainable Engineering

• Torque emulating smooth PAS, providing incomparable riding experience.

• Full cargo capacity, with front rack and rear basket

• 20in off road style fat tires – perfect for low noise and low drag yet provides adequate grip and load capacity

FRAME

The Flex is built with a solid, lightweight, foldable and unisex hydro-formed aluminum alloy frame suitable for people from 4’11’’ all the way to 6’5” rider. It is capable of supporting up to 400lbs of payload and offers a step thru design, which makes it easy for the rider to get on and off. The frame is specially designed to minimize all the vibrations and noise from the drive- system, the right wheelbase for a high speed and a pleasurable ride on both paved and unpaved roads.

BATTERY PACK

The Flex Trike features a UL-certified battery (48V, 15 A.h) capable of over 100 km on the lowest pedal assist setting and up to 50 km on the highest. For extended range, a dual battery setup offers approximately 220 km per charge, totaling 1560 Wh. These batteries, either LG or Panasonic Li-Ion cells, come with a protective BMS to prevent overcharging and overloading, enhancing their lifespan. Additionally, they are designed to perform efficiently in cold temperatures.

E-ASSIST SYSTEM

The ENVO Flex is equipped with an advanced pedal-assist sensor with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedaling depending on the level of assistance you select while riding. The ENVO Flex is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist, does not matter if you are pedaling, to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.

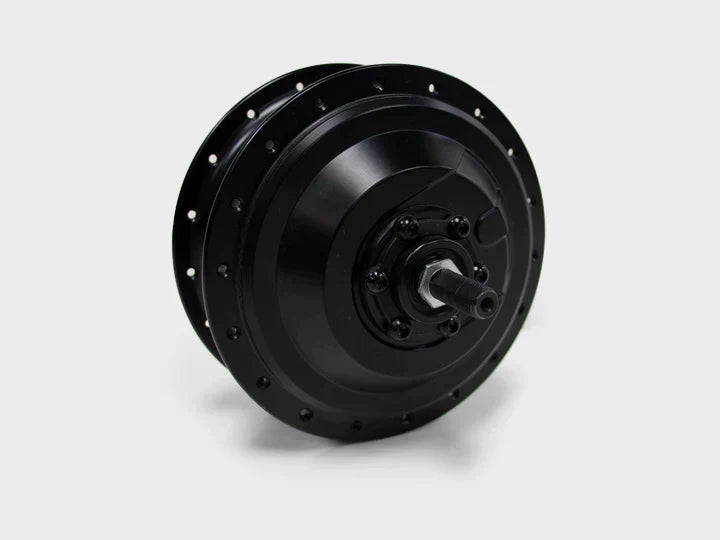

GEARED MOTOR HUB

ENVO FLEX Flex is equipped with a sealed, powerful, upkeep free, geared hub motor that offers 500W power and 80Nm torque. Our motors are designed efficiently and hence are lighter than most powered geared hub motors in Canada, yet they deliver high torque and efficiency. These ENVO motors are developed for over 20,000Km maintenance-free ride.

ADJUSTABLE STEM

The FLEX Trike comes with an adjustable telescopic MTB style handlebar, this lets the rider do the ergonomic fine tuning allowing them to choose efficient pedaling position.

FAT TIRES

Flex Trike comes with 20"x3" off-road style fat tires. These fat tires are cushion enough to improve ride comfort, dynamic maneuverability, and handling in different terrains. Tires are fat and knobby enough for the best grip on wet cement, asphalt paved, dirt or gravel trails which creates minimum noise and drag for normal urban paved rides.

HYDRAULIC BRAKES

Top of the line Tektro Hydraulic disk brakes equipped with electric cut-off sensors provide more safety to the bike as well as the rider. Flex Trike comes with brakes that stops all the wheels, allowing for better handling and safer ride.

TRANSMISSION SYSTEM

Well-engineered 52T chain ring and 7 speed 11-32 teeth cassette transmission help you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h / 25mph speed on gear 7 with gentle pedaling.

REAR RACK

Flex Trike comes with a specially designed cargo rear basket with rating of 150lbs weight. The basket dimensions are 44.5cm x 36.5cm x 20.5cm (Inner dimensions) making it practical to carry anything from grocery, food delivery bags, to cargo boxes.

HEADLIGHT

The FLEX Trike is fitted with high efficiency and bright LED headlight powered by the main battery and controlled by a keypad on the handlebar.

TAIL LIGHT

Taillight and reflector provide more safety riding in the dark. It powers up once the headlight is switched on. These taillights also double as brake light, turning on when brake is applied.

SADDLE

The unisex saddles, professionally designed with cuts and curves for high performance pedaling, and wide enough for long upright cruises, are the most relaxing, cushion saddles with ultimate comfort and style for all riders.

ENVO FLEX TRANSFORMATION

As a bonus the Flex Overland allows you the ability to adapt two products using the same platform. Using modular design components, the Overland can easily be transformed into the Flex SnowBike giving the outdoors man a winter option that is light weight and easily transportable.

ENVO FLEX TRIKE SPECIFICATIONS

Electronics

Trike

Battery

48V, 15Ah (Second Battery 48V 17.5Ah)

Controller

48V, 500W

Display

LCD Display with speedometer, odometer, pedal-assist indicator, Bluetooth Connectivity, etc.

Hub Motor

Rear - 500W

Lights

Brake triggered Backlight

Pedal Assist

5 Level Pedal assist

Wiring

Water Resistant Wiring

Brakes

Shimano Tektro Hydraulic Disc Brake

Brake Pad Material

Ceramic Pad

Brake Rotors

180mm

Crankset

42T, 170mm crank

Derailleur

7 Speed

Fenders

Front and Rear

Frame

6061 Foldable Aluminum Frame

Fork

20*4.0" with suspension

Freewheel

11-32T

Handlebar

Foldable Telescopic

Racks

Rear Basket and Front Rack

Saddle

Ergonomic Saddle - Leather
