Magnum Cosmo
Couldn't load pickup availability
IMPORTANT: ELV Motors, Inc. works hard to keep our website up to date. However, prices on the website may not reflect the actual current selling price, and inventory may not reflect current availability. Please call DURING STORE HOURS for the latest price and inventory and/or to complete an online order. Positive reviews are always welcome!

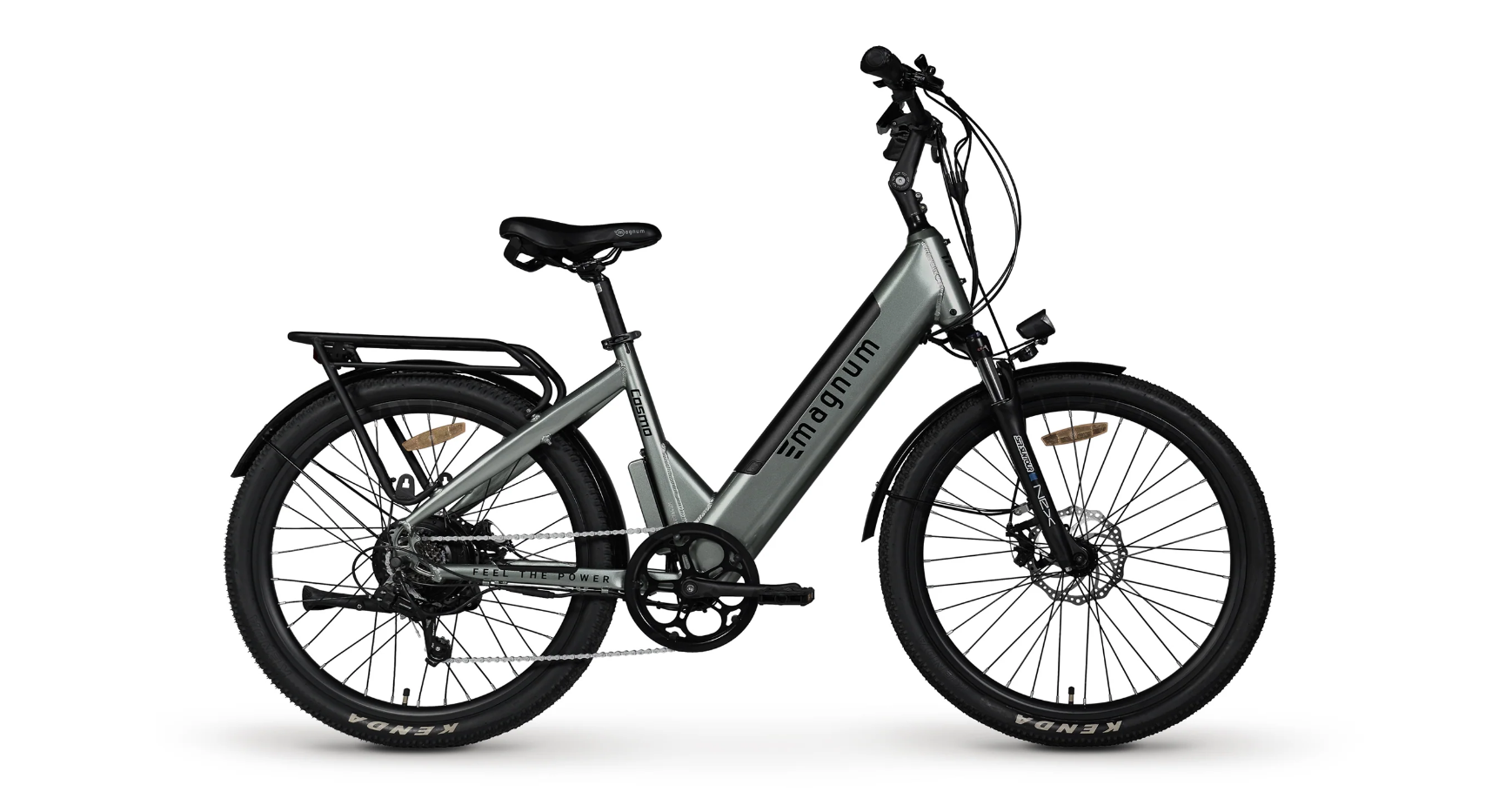

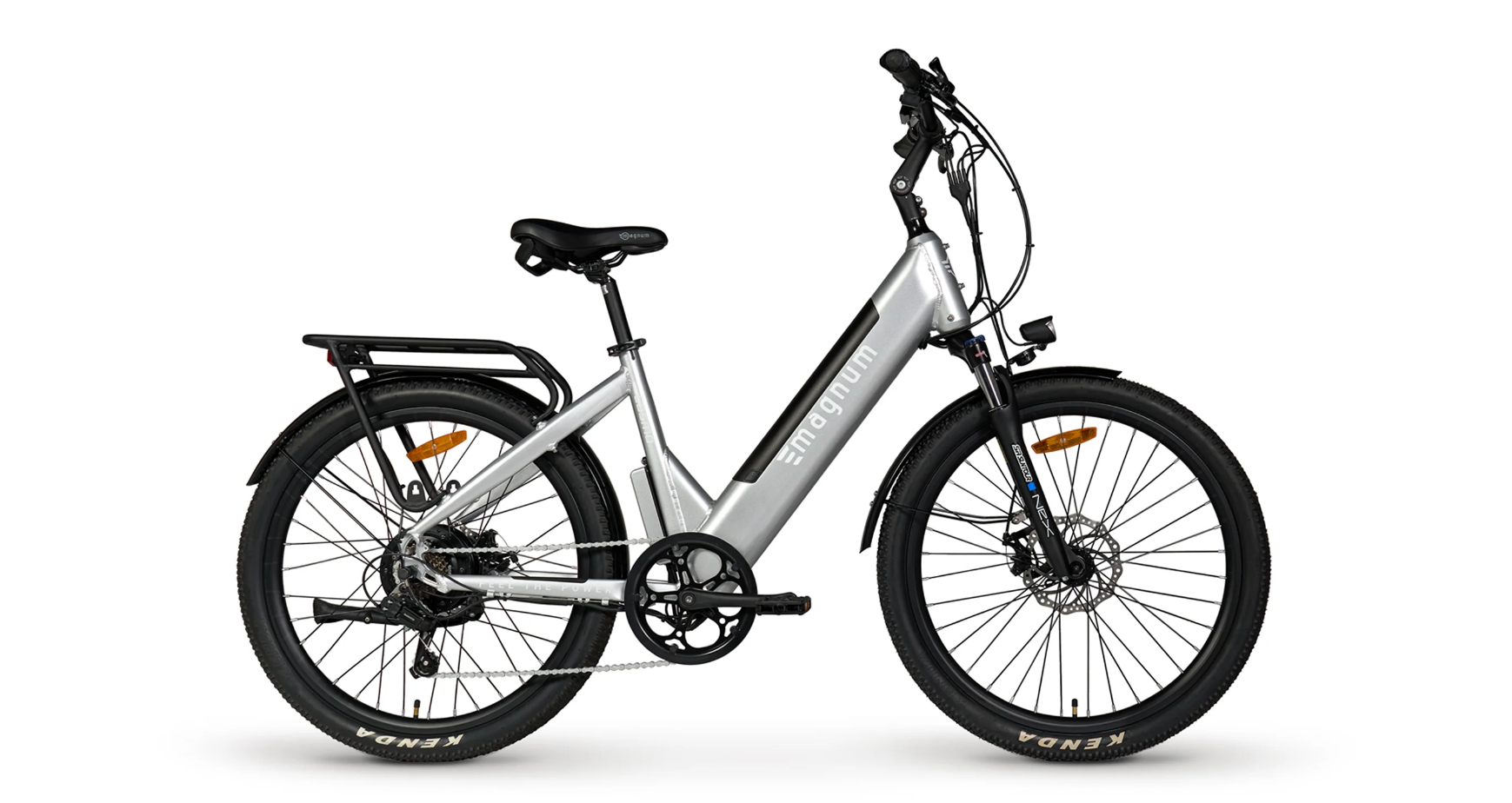

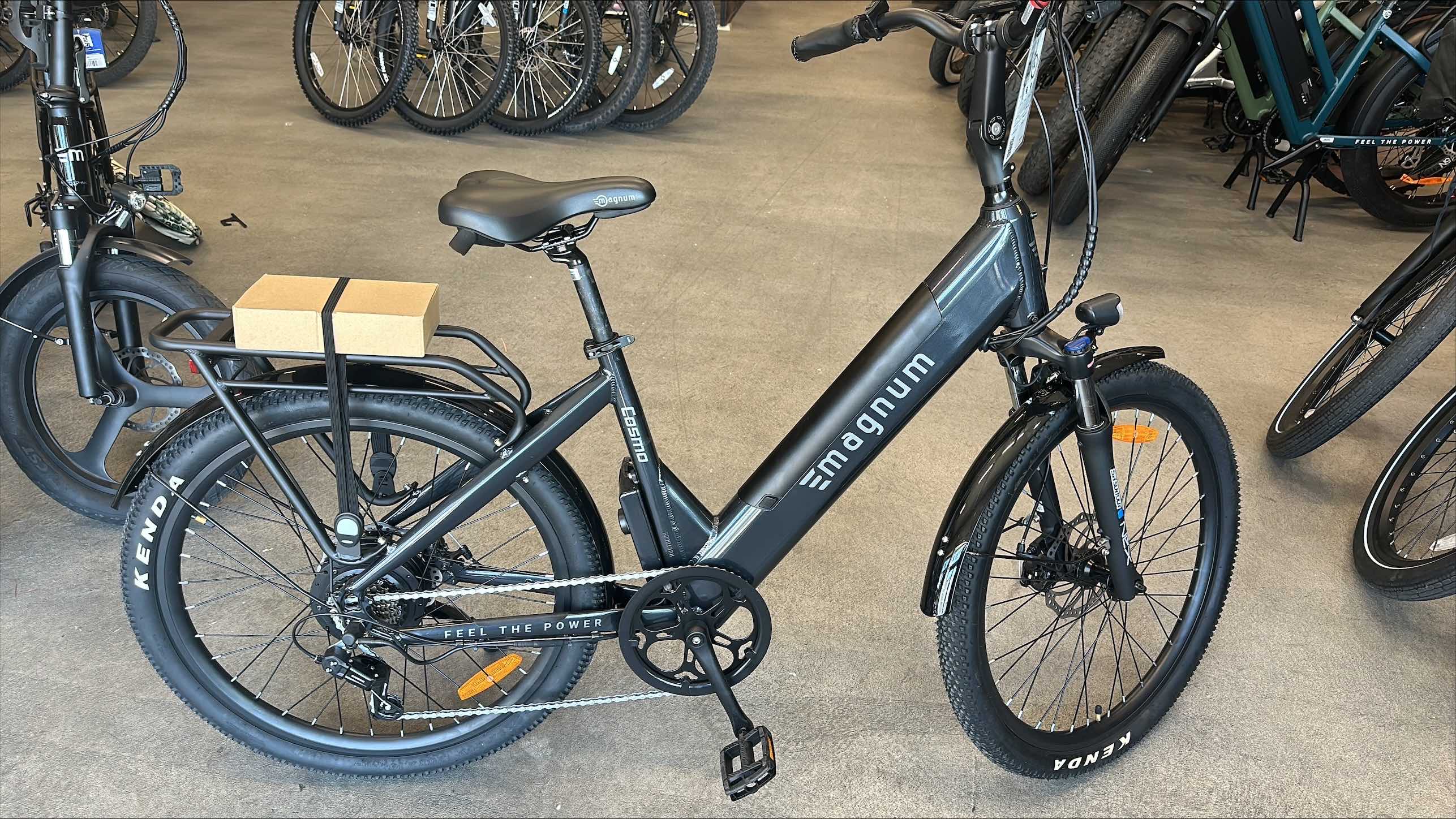

The Magnum Cosmo is a budget friendly option in our popular Cosmo series. The Cosmo has a light low step frame with a fully integrated battery. The power system is 48 Volts running on a 500 Watt motor and a 10Ah battery for the range and power you need to run errands or go on a relaxing bike ride.
THE BATTERY.
The heart of the Magnum Cosmo is the integrated, long-range 48V / 10Ah / 480Wh Samsung battery that powers rides up to 40 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.
STYLE MEETS EASE
Low-step geometry
Designed and built with the city and commuter cyclist in mind, the low-step frame design is a breeze to mount and dismount, and it comes in stylish colors with a sleek, integrated battery.
MAGNUM COSMO SPECIFICATIONS
ELECTRONIC DETAILS
Motor Brand
Bafang
Motor Type
Geared Rear Hub
Motor Nominal Output
500 Watts
Motor Peak Output
750 Watts
Battery Brand
Samsung Cells
Battery Voltage
48 Volts
Battery Ah
10Ah
Battery Wh
480Wh
Battery Chemistry
Li-NMC
Battery Charge Time (from empty)
5 Hours
Minimum Range
20 Miles (32 Kilometers)
Maximum Range
40 Miles (64 Kilometers)
Display Type
Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD
Display Readouts
Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
Display Accessories
Drive Mode
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed
25 mph with Pedal Assist, 20 mph with Throttle
Lights
Integrated front and rear light controlled from the display
MECHANICAL DETAILS
Frame material
Aluminum Alloy
Frame size
18” (46 cm)
Frame Type
Fork Details
SR Suntour NEX Suspension Fork with Lockout and Preload Adjustment
Gearing details
Shimano 6-Speed
Shifter Details
Shimano 6-Speed
Crank
Aluminum Alloy, 52T, 170mm
Pedals
Wellgo
Stem
Adjustable Alloy
Brakes
Mechanical Disc Brakes
Grips
Black Faux Leather
Saddle
QF Magnum Saddle
Tire Brand
Innova 26 x 2.1
Wheel size
26”
Fenders
Front and Rear Included
Chain
KMC
