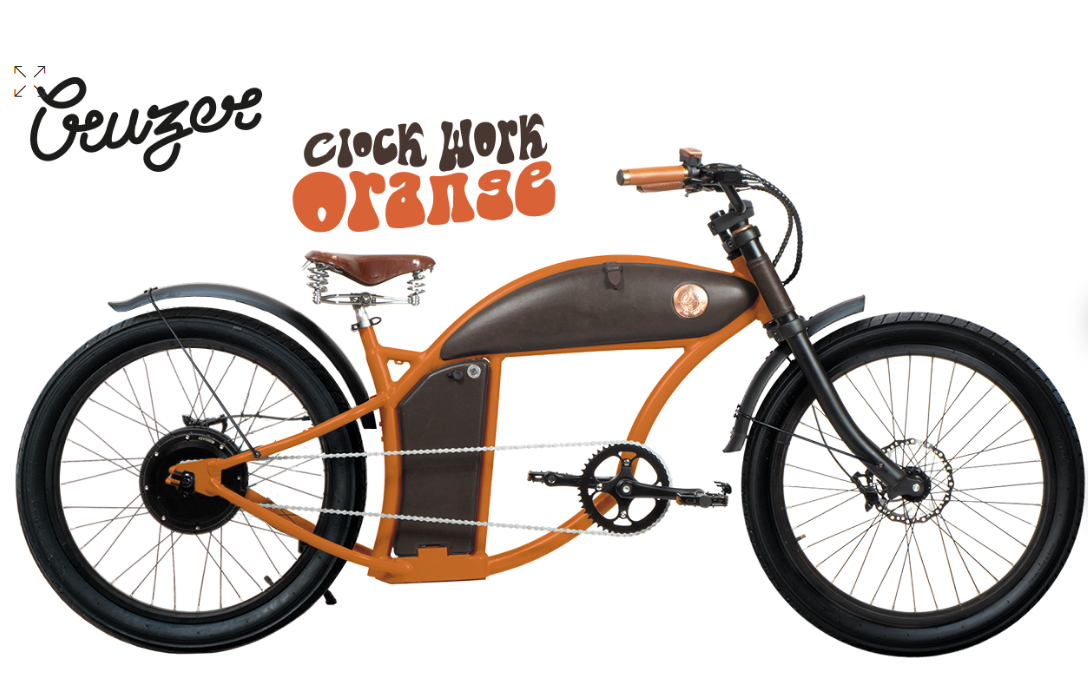

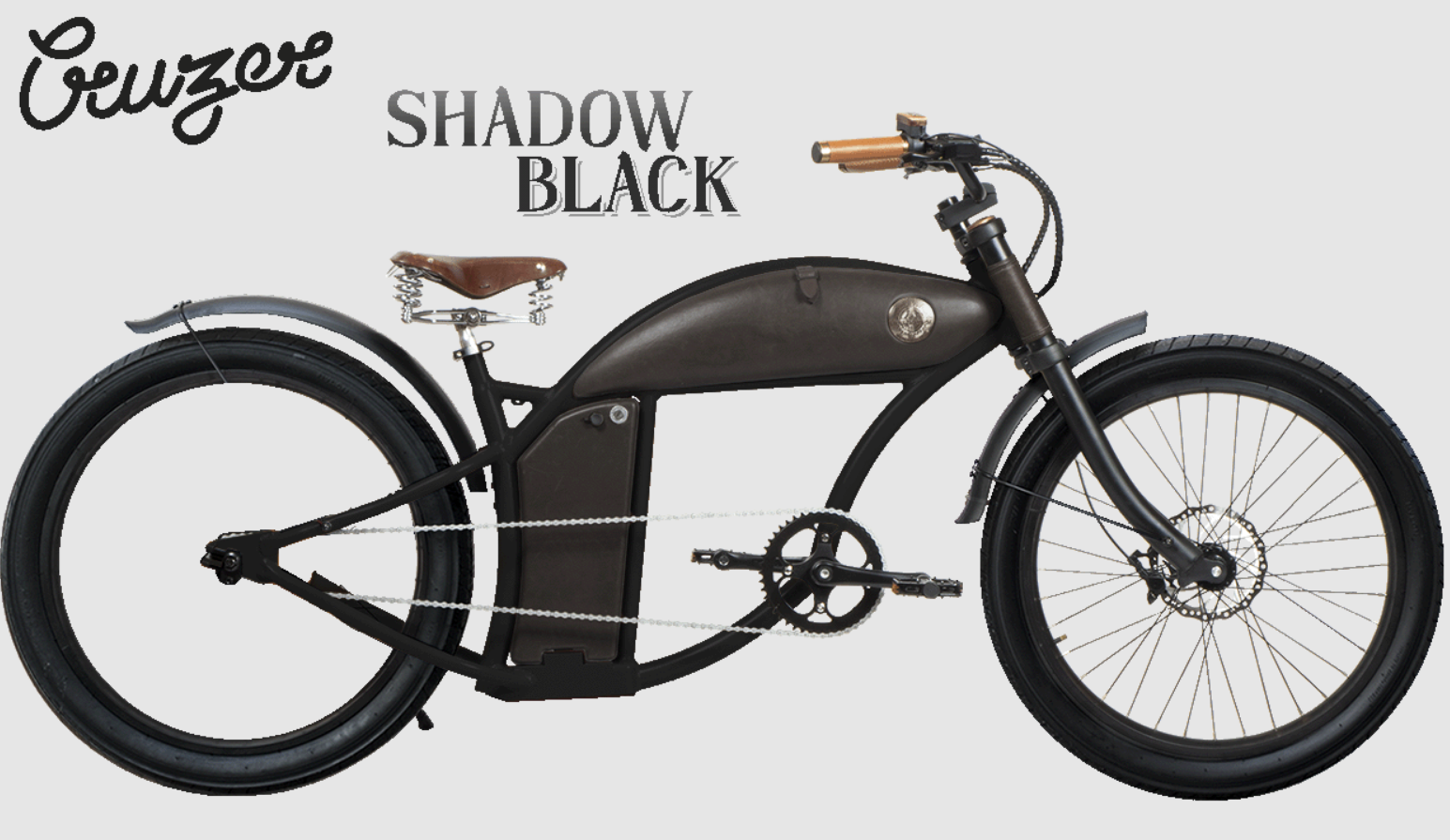

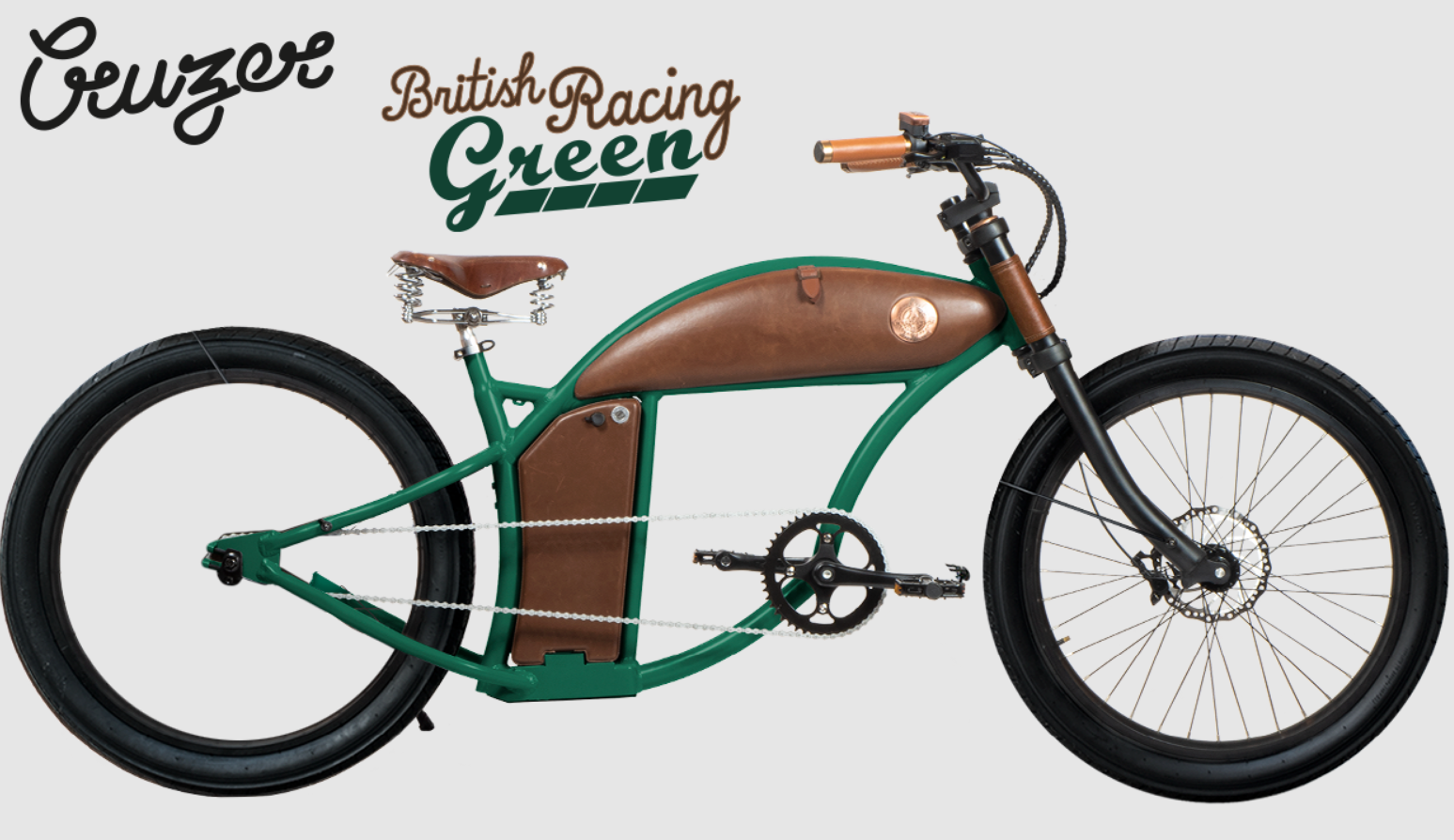

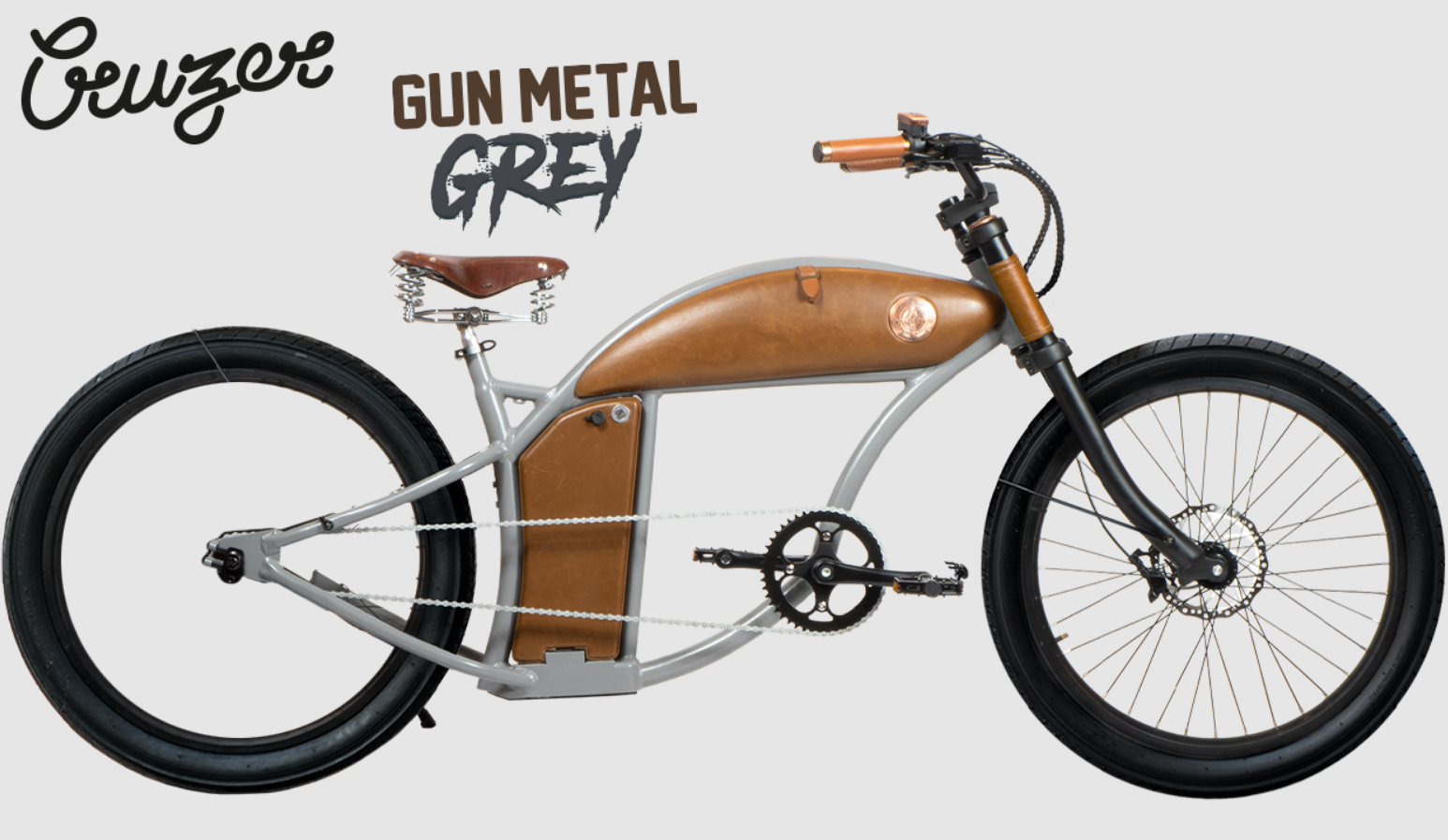

Rayvolt Cruzer

The original Rayvolt, The Cruzer was influenced by the first era of motorcycle from the early 1900s, the counter rock culture of 1960’s Cafe Racer with a twist of California Beach Cruzer. This unique design combined with smart technology (EIVA) and state of the art BLDC motor stands out from the crowd.

RAYVOLT CRUZER SPECIFICATIONS

Weight

29kg - 33kg

Frame

Rayvolt Aluminum 6061

Battery Cover

Removable composite shell covered by leather

Grips

Rayvolt custom leather grips

Saddle

Rayvolt deluxe genuine leather

Brakes

Rayvolt oil disk brakes with e-regenerative 10A-50A

Crankset

Rayvolt two pieces crankset

Pedals

Flat Rayvolt pedals

Chain

KMC silver chain

Rims

Double wall 40mm rear rim

Tires

M: 24” x 3.0
L: 26” x 3.0

Speed Control

PAS (Pedal Assist System)
Thumb Throttle*
Torque Sensor (optional)

E-Drive System:

Rayvolt EIVA Drive

Motor

Smart Hub 50Nm - 250W
Power Hub 100Nm - 250W

Battery (Life of 1,000 cycles)

• Smart Battery - Samsung Li-ion, Removable 48V 21Ah, Range of 80km, charge time of 3 hours
