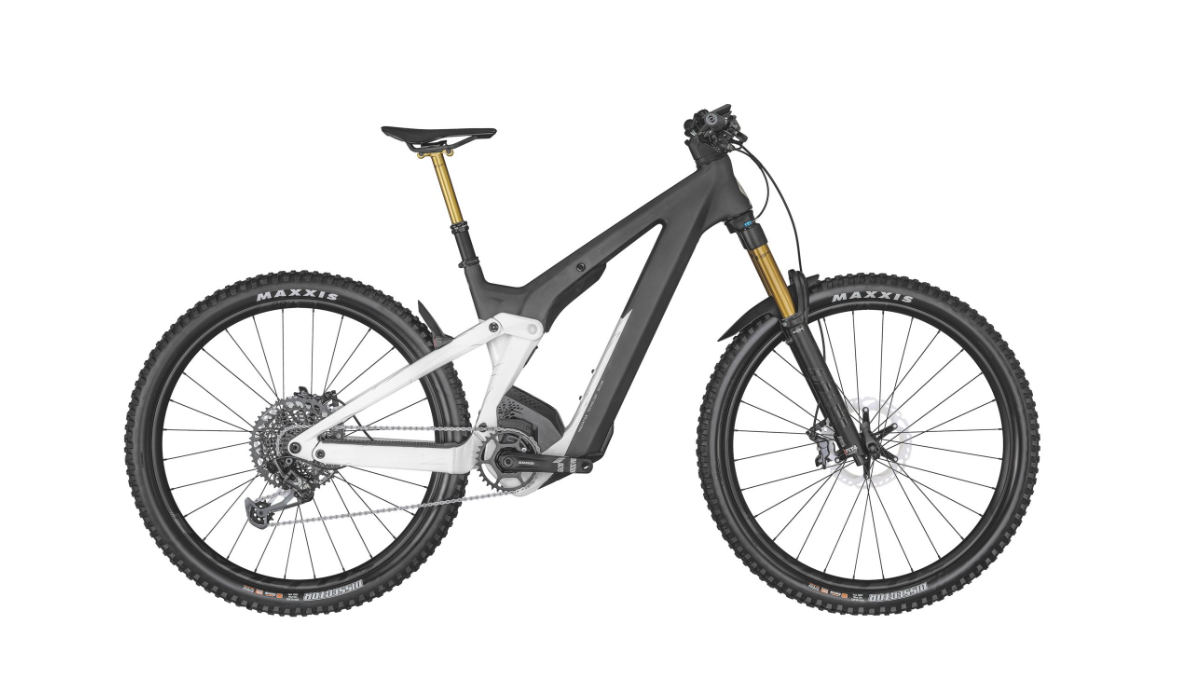

Scott Patron eRIDE 900 Tuned Bike

The all-new Patron eRIDE Tuned was designed as a system optimized for all day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.

Please note that bike specifications are subject to change without prior notice.

KEY FEATURES

• Patron eRIDE Carbon Frame

• FOX 38 Factory 160mm Fork

• FOX Nude T eRIDE EVOL, 160mm, TwinLoc

• SRAM X01-GX Eagle 12 Speed

• Bosch CX, 750Wh PowerTube

• Shimano XT 4 Piston Disc Brakes

• Maxxis Foldable Tires

• FOX Dropper Post / Syncros Parts

• Bosch Light Cable pre-installed F&R

SCOTT PATRON eRIDE 900 TUNED BIKE SPECIFICATIONS

FRAME
Carbon Main Frame & SST / Alloy CST-Link
Virtual 4 link kinematic VLK
29x2.6 / Boost 148x12mm UDH
160mm travel / Bosch Gen4 / Integr. removable Battery
1.8" Headtube, Central Kickstand Mount
Integr. Cable

TRAVEL
Front: 160mm / Rear: 160mm

FORK
FOX 38 Float Factory Air / Kashima / eMTB+ / FIT4
3-Modes with low Speed adj. / QR Axle 15x110mm axle
44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel

REAR SHOCK
FOX NUDE T eRIDE EVOL / Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
custom large air volume / DPS / Reb. Adj.
Travel 160-115-Lockout / 205X60mm

REMOTE SYSTEM
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 modes

DRIVE UNIT
Bosch Performance CX
EU: 25kmh / INT: 20mph

BATTERY
PowerTube 750Wh

DISPLAY
Bosch LED Remote & Kiox 300

CHARGER
4A Charger

REAR DERAILLEUR
SRAM X01 Eagle / 12 Speed

SHIFTERS
SRAM GX Eagle Single Click

CRANKSET
SRAM X1 1000 / 165mm / 34T

CHAINGUIDE
e*thirteen / e*spec Slider

CHAINRING
SRAM Eagle 34T DM / Steel

CHAIN
SRAM NX Eagle

CASSETTE
SRAM XG1275 / 10-52 T

BRAKES
Shimano XT / BR-M8120 4 Piston

ROTOR
Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm

HANDLEBAR
Syncros Hixon iC SL / 15mm Rise / integrated cockpit
S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension
7° backsweep / 6° upsweep / Syncros Pro lock-on grips

SEATPOST
FOX Transfer Factory Dropper Post Kashima
31.6mm / S size 125mm / M & L size 150mm / XL size 175mm

SEAT
Syncros Tofino 1.0 Regular
Carbon rails

HEADSET
Acros / 1.8"
ZS66 OD74 / integr. Cable

WHEELSET
Syncros Revelstoke-E 1.5 CL
F: 15x110mm, R: 12x148mm Boost
30mm Tubeless ready rim 28H
Syncros Axle w/Removable Lever with Tool

FRONT TIRE
Maxxis Dissector 29x2.6"
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra

REAR TIRE
Maxxis Dissector 29x2.6"
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra

LIGHTS
Bosch Light Cable pre-installed F&R

EXTRAS
Syncros Trail 2 fender 36/38
Syncros eRIDE integrated light fender

APPROX WEIGHTS IN KG
24

APPROX WEIGHTS IN LBS
52.91

MAX. SYSTEM WEIGHT
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
