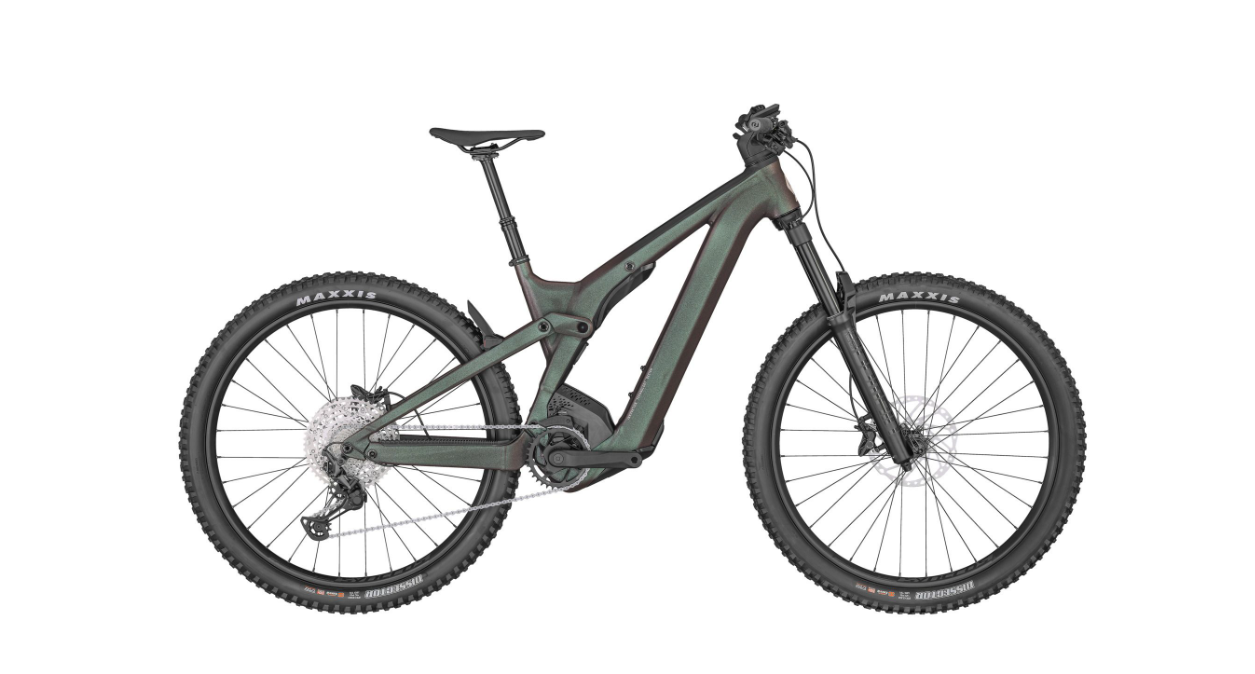

Scott Patron eRIDE 920 Bike Black

Scott Patron eRIDE 920 was designed as a system optimized for all day trail riding. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.

Please note that bike specifications are subject to change without prior notice

KEY FEATURES

• Patron eRIDE Alloy Frame

• RockShox Domain 160mm Fork

• FOX Float EVOL eRIDE, 160mm, TwinLoc

• Shimano XT-Deore 12 Speed

• Bosch CX, 750Wh PowerTube / SmartSystem

• SRAM DB8 4 Piston Disc

SCOTT PATRON ERIDE 920 BIKE BLACK SPECIFICATIONS

FRAME
Alloy Frame & Link
Virtual 4 link kinematic VLK
29x2.6 / Boost 148x12mm UDH
160mm travel / Bosch SmartSystem / Integr. removable Battery
1.8" Headtube
Central Kickstand Mount
Integr. Cable

TRAVEL
Front: 160mm / Rear: 160mm

FORK
RockShox Domain Air
15x110mm QR axle / 1.8" Tapered Steerer
Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike

REAR SHOCK
FOX Float EVOL eRIDE Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 160mm / 205x60mm

REMOTE SYSTEM
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 modes

DRIVE UNIT
Bosch Performance CX
EU: 25kmh / INT: 20mph

BATTERY
PowerTube 750Wh

DISPLAY
Bosch System Controller / Mini Remote & Kiox 300

CHARGER
4A Charger

REAR DERAILLEUR
Shimano XT / 12 Speed

SHIFTERS
Shimano SL-M6100

CRANKSET
FSA CK-745 165mm / 34T

CHAINGUIDE
e*thirteen / e*spec Slider

CHAINRING
FSA W0138+WB499 / 34T / Steel

CHAIN
Shimano CN-M6100

CASSETTE
Shimano CS-M6100 / 10-51 T

BRAKES
Shimano BR-MT520 4 Piston Disc

ROTOR
Shimano SM-RT64 & SM-EM600 CL Rotors 203mm F&R

HANDLEBAR
Syncros Hixon 2.0 / Alloy 6061D.B.
12mm rise / 9° / 780mm
Syncros Endurance lock-on grips

H'STEM
Syncros AM2.0 / 6061 Alloy
31.8mm / 4° / 1 1/8"

SEATPOST
Syncros Duncan Dropper Post 2.5
31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm

SEAT
Syncros Tofino 2.5 Regular

HEADSET
Acros / 1.8"
ZS66 OD74 / integr. Cable

HUB (FRONT)
Formula CL-811 / 15x110mm

HUB (REAR)
Formula ECT-1481 / Boost 148x12mm

SPOKES
Stainless Black

RIMS
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready

FRONT TIRE
Maxxis Dissector 29x2.6"
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra

REAR TIRE
Maxxis Dissector 29x2.6"
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra

LIGHTS
Syncros integrated rear fender light
Front Light Cable pre-installed

APPROX WEIGHTS IN KG
26.5 (with tubes)

APPROX WEIGHTS IN LBS
58.42 (with tubes)

MAX. SYSTEM WEIGHT
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
