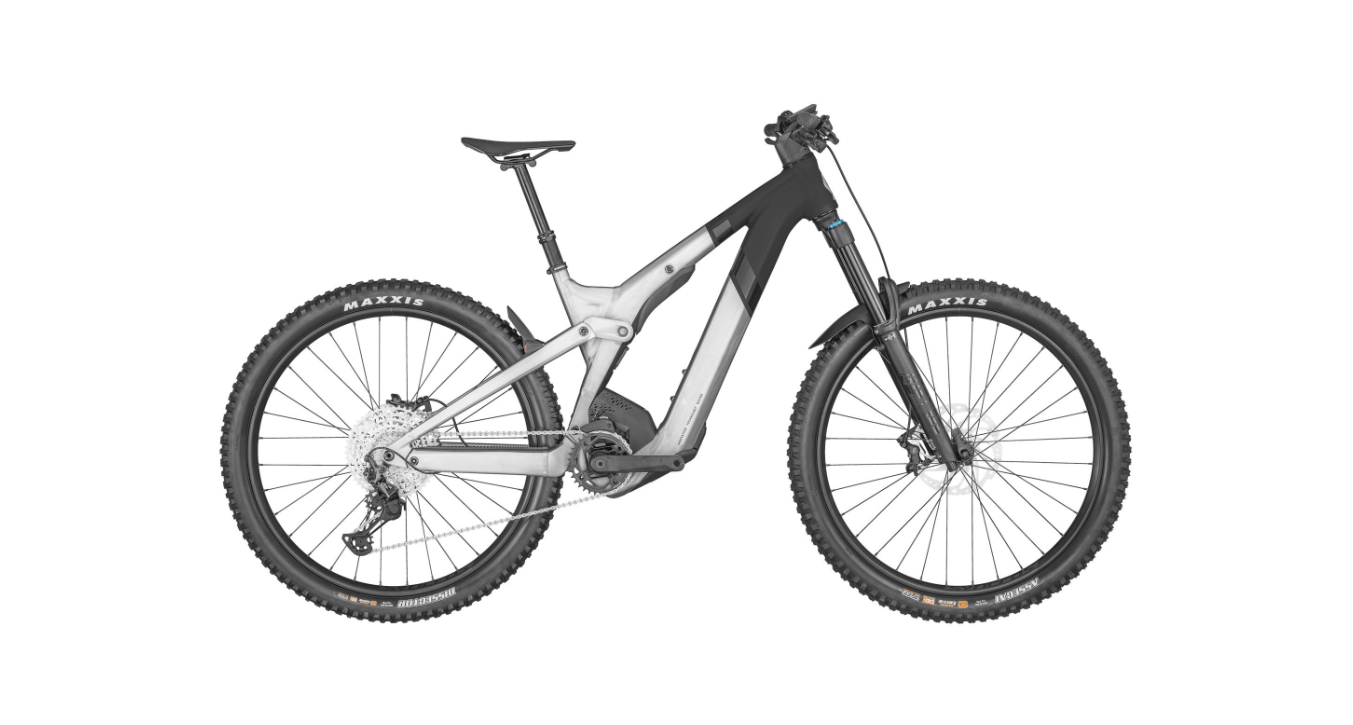

Scott Patron ST eRIDE 910 Bike

ST for Super Trail, the Patron ST eRIDE 910 is based on the classic Patron platform but optimized for the ones who like spending more time in the air and in steeper terrain. No Twinloc on the fork, more travel with 170 front and beefier tires. Boss the trails!

Please note that bike specifications are subject to change without prior notice.

KEY FEATURES

• Patron eRIDE Alloy Frame

• FOX 38 Perf. 170mm Fork

• FOX Float EVOL eRIDE, 160mm, TwinLoc

• Shimano XT-Deore 12 Speed

• Bosch CX, 750Wh PowerTube / SmartSystem

• Shimano 4 Piston Disc Brakes

• FOX Dropper Post / Syncros Parts

SCOTT PATRON ST ERIDE 910 BIKE SPECIFICATIONS

FRAME
Alloy Frame & Link
Virtual 4 link kinematic VLK
29x2.6 / Boost 148x12mm UDH
160mm travel / Bosch SmartSystem / Integr. removable Battery
1.8" Headtube
Central Kickstand Mount
Integr. Cable

TRAVEL
Front: 170mm / Rear: 160mm

FORK
FOX 38 FIT Perf Grip Air
Adjustable Rebound / QR Axle 15x110mm
44mm offset / tapered steerer
170mm travel

REAR SHOCK
FOX Float EVOL eRIDE Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 160mm / 205x60mm

REMOTE SYSTEM
TracLoc Technology
Rear Suspension & Dropper Remote
3 Rear Suspension modes

DRIVE UNIT
Bosch Performance CX
EU: 25kmh / INT: 20mph

BATTERY
PowerTube 750Wh

DISPLAY
Bosch System Controller / Mini Remote & Kiox 300

CHARGER
4A Charger

REAR DERAILLEUR
Shimano XT / 12 Speed

SHIFTERS
Shimano SL-M6100

CRANKSET
FSA CK-745 165mm / 34T

CHAINGUIDE
e*thirteen / e*spec Slider

CHAINRING
FSA W0138+WB499 / 34T / Steel

CHAIN
Shimano CN-M6100

CASSETTE
Shimano CS-M6100 / 10-51 T

BRAKES
Shimano SLX / BR-M7120 4 Piston

ROTOR
Front&Rear: SM-RT70 CL 203mm

HANDLEBAR
Syncros Hixon 2.0 / Alloy 6061D.B.
12mm rise / 9° / 780mm
Syncros Endurance lock-on grips

H'STEM
Syncros AM2.0 / 6061 Alloy
31.8mm / 4° / 1 1/8"

SEATPOST
FOX Transfer Dropper Post
31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm

SEAT
Syncros Tofino 2.0 Regular

HEADSET
Acros / 1.8"
ZS66 OD74 / integr. Cable

HUB (FRONT)
Formula CL-811 / 15x110mm

HUB (REAR)
Formula ECT-148M / Boost 148x12mm

SPOKES
Stainless Black

RIMS
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready

FRONT TIRE
Maxxis Assegai 29x2.6"
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra

REAR TIRE
Maxxis Dissector 29x2.6"
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra

LIGHTS
Syncros integrated rear fender light
Front Light Cable pre-installed

EXTRAS
Syncros Fork Fender

APPROX WEIGHTS IN KG
26.5 (with tubes)

APPROX WEIGHTS IN LBS
58.42 (with tubes)

MAX. SYSTEM WEIGHT
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
