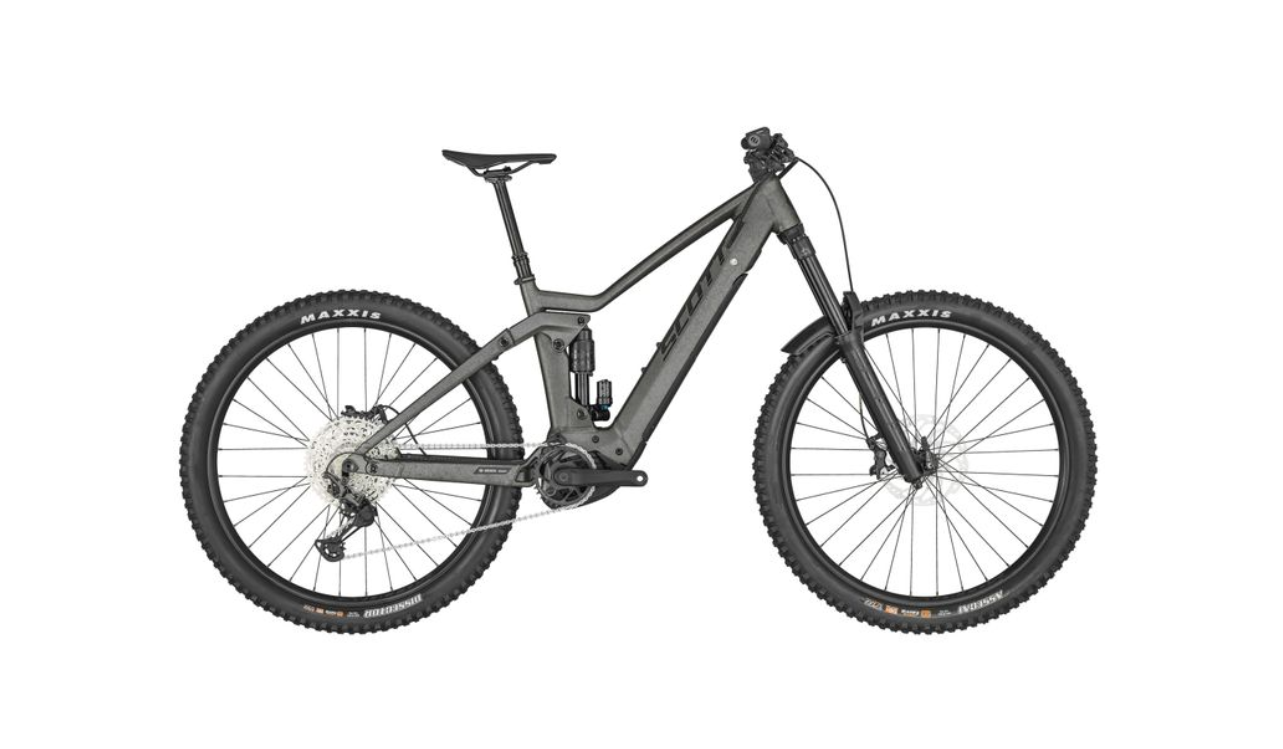

Scott Ransom eRIDE 920 Bike

Having won nearly every test in which it was featured, there was only one thing we could do to make the Ransom more fun and versatile: make an E-Bike version. Ransom eRIDE - more ups, more down, more hoots, more hollers, more Ransom.

Please note that bike specifications are subject to change without prior notice.

KEY FEATURES

• Ransom eRIDE Alloy Frame

• RockShox ZEB 180mm Fork

• FOX Float X2 / Air, LSC-LSR w/2-Pos. lever

• Shimano XT-Deore 12 Speed

• Bosch CX, PowerTube 625Wh

• Shimano SLX 4 Piston Disc Brakes

SCOTT RANSOM ERIDE 920 BIKE SPECIFICATIONS

FRAME
Alloy Frame / Virtual 4 link kinematic VLK
27.5" and 29" compatible / geo adj. / Boost 148x12mm
180mm travel / Bosch Gen4 / Integr. removable Battery
Tapered Headtube E2, Central Kickstand Mount

TRAVEL
Front: 180mm / Rear: 180mm

FORK
RockShox ZEB / Air
15x110mm QR axle
tapered steerer / Reb. Adj. / 180mm travel

REAR SHOCK
FOX Float X2 Performance / Air
LSC, LSR w/2-Pos. lever

DRIVE UNIT
Bosch Performance CX
EU: 25kmh / INT: 20mph

BATTERY
PowerTube 625Wh

DISPLAY
Bosch Purion

CHARGER
4A Charger

REAR DERAILLEUR
Shimano XT / 12 Speed

SHIFTERS
Shimano SL-M6100

CRANKSET
FSA CK-745 165mm / 34T

CHAINGUIDE
SCOTT Custom

CHAINRING
FSA WB604 / 34T / DM / Steel

CHAIN
Shimano CN-M6100

CASSETTE
Shimano CS-M6100 / 10-51 T

BRAKES
Shimano BR-M7120 4 Piston

ROTOR
Front&Rear: SM-RT70 CL 203mm

HANDLEBAR
Syncros Hixon 2.0 Rise / Alloy 6061D.B.
20mm rise / 8° / 800mm
Syncros Pro lock-on grips

H'STEM
Syncros XM1.5 / Alloy 6061
integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8"

SEATPOST
Syncros Duncan Dropper Post 2.5
31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm

SEAT
Syncros Tofino 2.0 Regular
CRMO rails

HEADSET
Acros Blocklock / Tapered 1.5"-1 1/8"
OD 52/62mm / ID 44/56mm

HUB (FRONT)
Shimano HB-MT410-B CL / 15x110mm

HUB (REAR)
Shimano FH-MT410-B CL / Boost 12x148mm

SPOKES
Stainless Black

RIMS
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready

FRONT TIRE
Maxxis Assegai 29x2.6"
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra

REAR TIRE
Maxxis Dissector 29x2.6"
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra

LIGHTS
Bosch Light Cable pre-installed F&R

EXTRAS
RockShox Fork Fender

APPROX WEIGHTS IN KG
24.8 (with tubes)

APPROX WEIGHTS IN LBS
54.67 (with tubes)

MAX. SYSTEM WEIGHT
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
