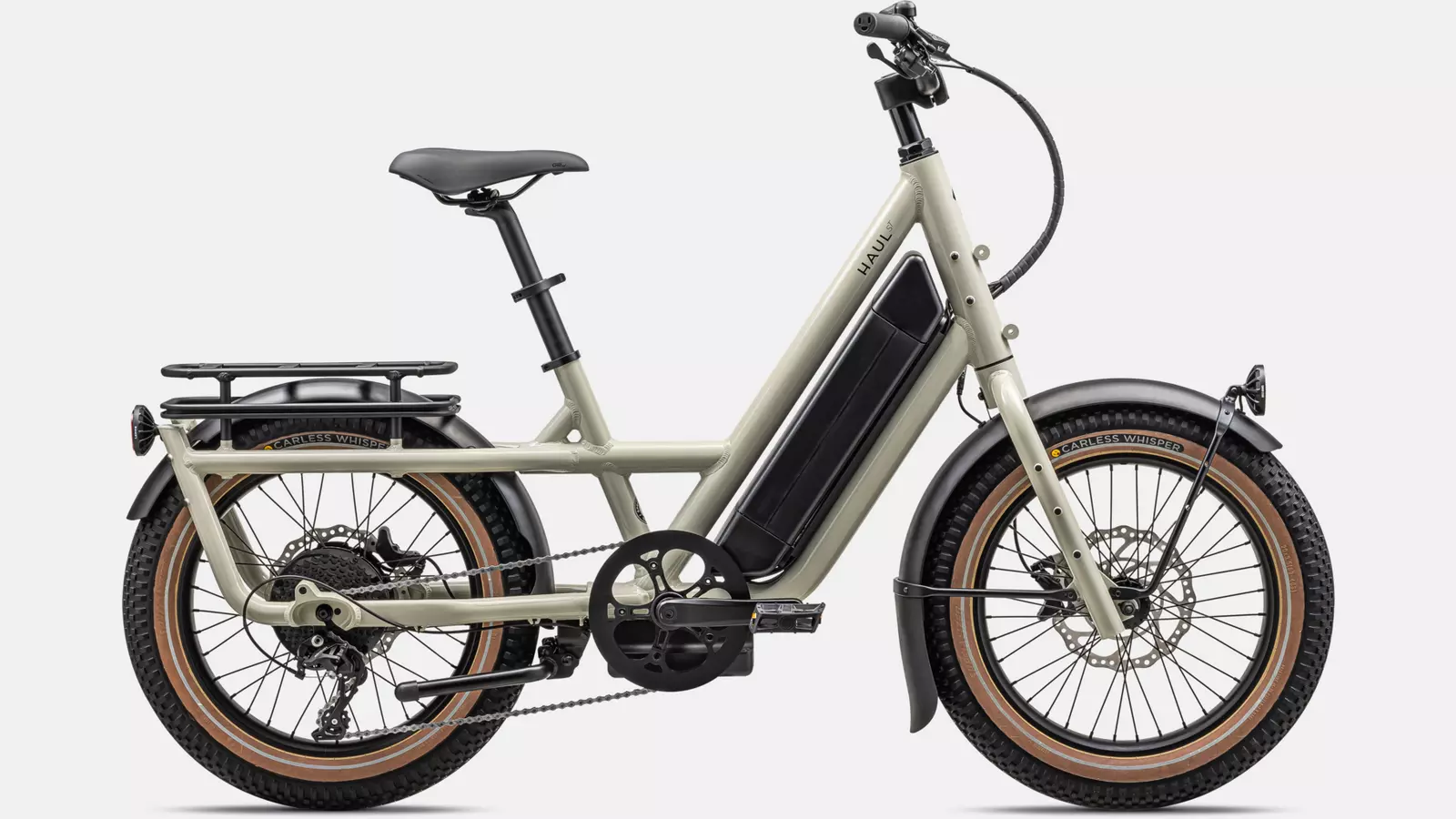

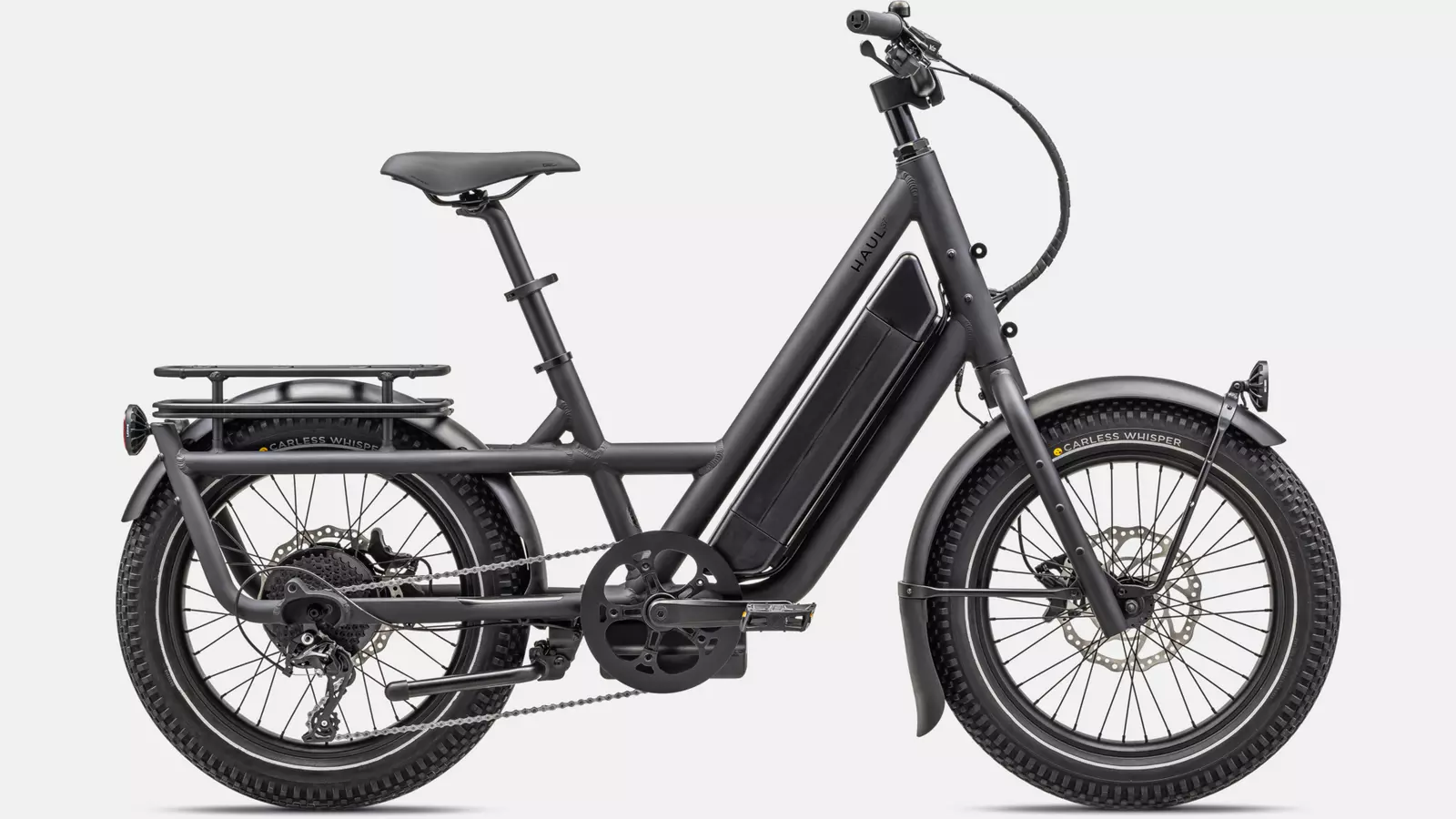

Specialized Haul ST

Whatever you’re into, get more into it with the Specialized Globe Haul ST. It’s down for the ride. With 419 pounds of cargo capacity (rider included) up to 60 miles at a time, this fully customizable electric bike has the speed, power, range, and stability to get you wherever you need to go with whatever you need. With a grip of mounting opportunities you can bring the kids, a kayak, and stop on the way home for groceries. Don’t sweat it getting dark on you either. Integrated front and rear lights will have you dialed from dawn patrol to golden hour.

POWERED UP. The rear hub motor will have you zooming up hills with all your gear. Need a little extra boost to make it through an intersection safely? Crank up the power to get up to top speed quick, then dial it back and hit the pedals for max range.

INCLUSIVE. All bodies, all fun. The unique single size frame fits riders comfortably all over the size spectrum. Using the Retül database, the adjustable fit was designed to be perfect for you. Make it longer here, shorter there, and you're ready to ride comfortably. The low center of gravity means it’s easy to handle for a newcomer or a pro, loaded up or loaded down.

READY TO ROLL. The Globe Haul ST is ready to rock straight out of the box with an included MIK-compatible rear rack, full coverage fenders, integrated lights and center stand. D.I.Y. yourself into gear-nirvana, with a whole host of Globe accessories compatible with the auxiliary mounting points… It’s your Globe, we’re just living in it.

• 700w rear hub motor delivers enough power to get you and all your gear up steep hills and all the way across town at top speed. The 772wh battery provides up to 60 miles of range at the lower levels of pedal assist.

• 419 lbs carrying capacity, rider included.

• All rear racks have been updated to 132 lbs (60kg) max weight capacity - even those labeled ‘40kg’. So get Haulin’.

• Unique, single-size frame fits riders from around 4’5” all the way up to 6'4". The telescoping seatpost has over 13 inches of adjustability, and the quill stem can extend almost six inches. It provides a comfortable ride to almost everyone measured in our Retül database.

• 20” diameter wheels help keep weight low to the ground for improved stability. The extra wide 3.5” Carless Whisper tires provide comfort and traction on any terrain and feature a 3-ply casing for superior flat protection.

• A lifetime warranty on the frame, and two-year e-system warranty will keep your bases covered. With the Specialized network of service centers and superior customer service, you’re never on your own.

SPECIALIZED HAUL ST SPECIFICATIONS

Rims

20'', double-wall alloy, 50X20mm, 36h

Chainrings

50T

Chain

KMC e9S EPT, anti-rust coating, 9-speed w/ reusable Missing Link™

Cassette

SunRace, 9-Speed, 11-36t

Shift Levers

microSHIFT Advent, 9-speed

Front Hub

Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, bolt on, 36h

Rear Tire

Carless Whisper Reflect, 20X3.5

Front Tire

Carless Whisper Reflect, 20X3.5

Inner Tubes

Schrader, 32mm valve

Spokes

Stainless, 13g/2.3mm

Seat Binder

Alloy, Bolt-type, 39mm

Fork

Globe Steel, Post mount disc brake, fender/rack mounts

Frame

Haul ST Premium Aluminum, Post mount disc brake, fender/rack mounts

Crankset

Forged alloy arm, alloy chainring guard, 160mm

Bottom Bracket

Square-tapered, 100mm BB width, 184mm spindle, w/ torque sensor

Rear Derailleur

microSHIFT, short cage, 9-speed

Headlight

Globe Cargo Drive, 1500 Lumen, remote switch, multiple modes.

Taillight

Globe Cargo Drive, 50 Lumen

Fenders

Globe Cargo fenders, w/headlight mount

Rack

Globe, Short Tail, MIK HD interface, rail system

Kickstand

Globe, Short Tail, center mount

Pedals

Specialized Flat pedal

Bell

Brass bell

Charger

Globe charger, 48V System w/ Globe system charger plug, AC power cord included

Grips

Globe closed end slip on type, 155mm

Stem

Globe, cargo 1.5X150mm quill stem

Handlebars

Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width

Saddle

Specialized Body Geometry Comfort Gel

Grips

Globe closed end slip on type, 155mm

Stem

Globe, cargo 1.5X150mm quill stem

Handlebars

Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width

Saddle

Specialized Body Geometry Comfort Gel

Motor

Globe custom tuned motor, alloy, 6-bolt disc, 9 speed freehub, bolt on, 36h

Battery

Globe external battery, 772Wh, UL 2271 certified, IPX7

UI/Remote

Globe handlebar remote HMI, State of charge, Ride Mode display, USB plug, BLE

Wiring Harness

Globe wiring harness, IP65

Rear Brake

Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor

Front Brake

Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor

SeatPost

Telescoping, alloy, 2-bolt Clamp, 20mm offset, 34.9mm, 525mm

Weight

35.0kg (77 lb, 2.6 oz)

Weight Size

One Size

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
