Discover the Mid Drive perfection, a versatile e-bike designed for urban commutes and weekend adventures. With a powerful 500W motor it reaches speeds of up to 28mph when unlocked. The 48V 20Ah battery offers up to 65 miles per charge. Features include a mid-drive motor, adjustable stem, integrated lights, and hydraulic disc brakes for a smooth, safe ride.

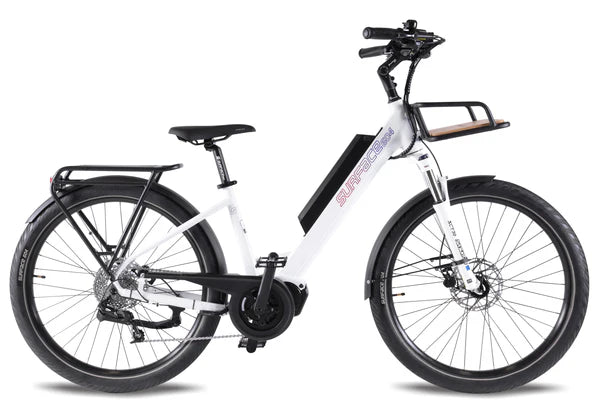

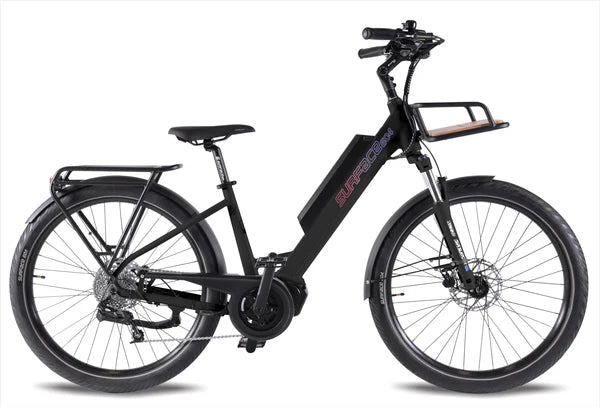

Surface 604 V Rook Mid Drive E-Bike Specifications
Motor
Ananda M100BBTR 500W 48V MID DRIVE, Gear Drive, Gear Shift Sensor, Walk Assist
Drive Mode
Integrated Torque and Cadence Sensor, Walk Assist
Throttle
Thumb Push Activated Throttle
Torque
130Nm of Torque
Controller
Ananda M100BBTR 25Ah
Motor Wire Harness
30Ah, can handle up to 120C current (upgraded)
Battery
48V 20Ah / 960Wh Samsung lithium-ion 21700 cells
Battery Range
Up to 80mi (130km) with a 48V20Ah Battery
Battery Charge Time
3-4 Hours for a Full Charge from Empty
Display Type
Ananda D16 TFT 48V 2.4" Color Display
Lights
BÜCHEL "SHINY 120" LED headlight with 120 lumens
Fork
SR SUNTOUR XCM 27.5, 120mm with Quick Release Axle
Frame Type
Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes
Frame Material
6061 Aluminum Alloy
Stem
SATORI Up2+, Adjustable
Handlebar
PROMAX Aluminum, 30mm Rise With 45° Backsweep, 710mm Wide
Derailleur
SRAM X5 10-Speed 1-Piece Forged CNC with 2 Sealed Bearings
Cassette
SRAM X5 11-36T
Shift Levers
SRAM X5 Trigger Shift
Brakes
TEKTRO Auriga Hydraulic Disc Brakes Post Mount, with Motor Inhibitors
Crank Set
SAMOX 40T Front Chainring
Rotors
180mm Front/Rear x 2.34mm Thick
Bottom Bracket
Ananda M100BBTR Mid Drive
Pedals
WELLGO Platform, with Die Casting Body
Chain
KMC 10-Speed
Seat Post Diameter
30.4mm
Saddle
Selle Royal Gel Saddle "Essenza Plus" with elastomer (Relaxed). Adjustable up to 9 degrees.
Wheels/Tire
27.5" X 2.4" Custom S604 Tires With Puncture Protections 3mm “Green Shield” technology
Battery weight
20AH battery 4.65KG/10lbs
Net weight
31.75KG/70lbs (20ah)
Recommended rider height
Frame Sizes: S/M - 17.5", M/L - 19.5" For Riders: S/M 5’2”-5’7”, M/L 5’8” - 6’6”
Standover height
Small-Medium: 28.5” (724mm)" Medium-Large: 30” (762mm)
