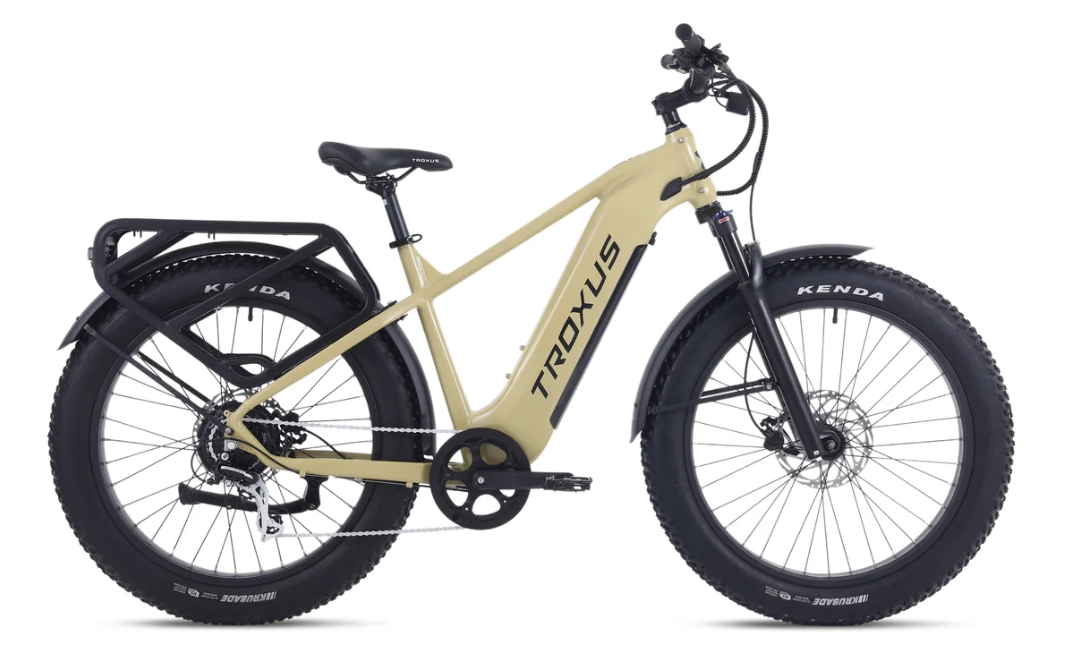

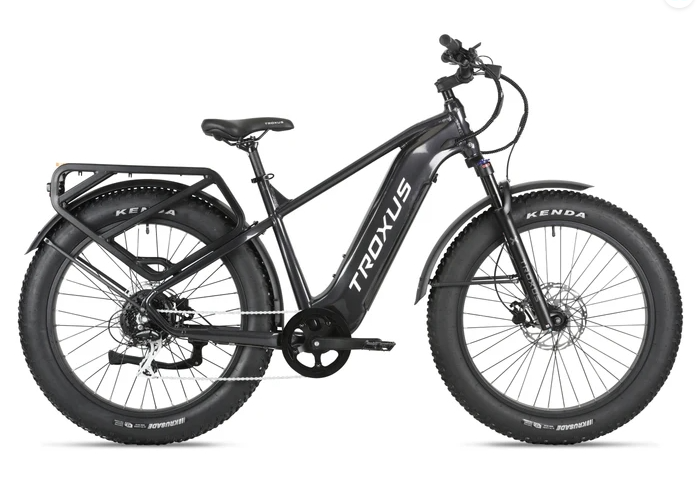

Troxus Explorer Plus Step Over E-Bike

Call us at (888) 612 9883
$2,099.00
Color

IMPORTANT: ELV Motors, Inc. works hard to keep our website up to date. However, prices on the website may not reflect the actual current selling price, and inventory may not reflect current availability. Please call DURING STORE HOURS for the latest price and inventory and/or to complete an online order. Positive reviews are always welcome!

The upgraded eXplorer Plus is the ultimate daily commuter, and weekend adventure companion. With new color screen that allows easy access to all your ride data, and the ability to select between cadence or torque sensors to tune your ride experience. New lighting system is brighter, includes turn signals at the rear, and even has daytime flashing mode for enhanced safety and visibility. Rear rack capable of carrying up to 100 pounds of cargo or passengers.

Big Tires For Big Adventures.
Wide 26"x4.0" tires provide exceptional power transfer and stability for hunting, fishing or wherever the road or trail takes you.

Power And Range To Explore.
Bafang® 750 Watt (sustained) hub-drive motor with exceptional 86Nm torque and long range 960 Wh 20 Ah battery provides the power and range you need for that epic adventure.

Easily Carry What You Need.
Heavy duty semi-integrated rack keeps all your loads secure, providing an ultra stable ride. Rear rack capable of carrying up to 100 pounds of cargo or passengers.

Easy Access To Important Features.
Bluetooth color display with integrated lights, turn signals and switchable torque and cadence sensors.

Troxus Explorer Plus Step Over E-Bike Specifications

Motor
Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque

Battery
UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells

Display
Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging

Throttle
Thumb Throttle on Handlebar

Sensor
Switchable Torque And Cadence Sensor Modes

Pedal Assist
0~5 Level Pedal Assist

Charger
3A / 100-240V Input / 54.6V Output

Lights
80 Lux Front Light, Rear Light w/ Turn & Hazard Signals

Controller
48Vx22A/6V

Frame
6061-T6 Aluminum Step-Over Frame

Fork
Front Suspension Fork, 90mm Travel

Chain
KMC® 1/2"x3/32"

Crankset
Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm

Rear Derailleur
Shimano® RD-M310-L, Altus, 8-Speed

Cassette
Shimano® 8-Speed, 12-32T

Shifter
Shimano® 8-Speed

Bottom Bracket Set
Square Taper Sealed Bearings, Torque & Cadence Sensors Included

Tires
KENDA® 26"x4.0", w/ Anti-Puncture K-Shield

Front Hub
Alloy, 36H, 135mm, 3/8" Axle

Rear Hub
Bafang® 48V 750W/ 28 MPH. 86Nm

Rims
Alloy Single Wall Front / Double Wall Rear, 36H, 26"x4.0", w/ Eyelets

Spokes
Stainless 13G. Front / 12G. Rear

Brakes
Tektro® Hydraulic, w/ Brake Sensors

Rotors
203mm / 203mm

Saddle
Troxus Comfort

Seat Post
Zoom® Alloy, 30.9x350mm, Adjustable

Seat-Post Clamp
Alloy, 35mm w/ Quick Release

Stem
Zoom® Alloy, Threadless, 1-1/8", Ext. 75mm, 28.6mm, 7-Degree Rise

Handlebar
Zoom® Alloy 31.8mmx700mm Wide

Grips
Ergonomic Comfort

Pedals
9/16″ Alloy Platform

Headset
Threadless, Locking Internal 1-1/8"

Max Speed
Up To 20 MPH on Throttle / 28 MPH on Pedal Assist

Range
Up To 90 Miles Per Charge

Weight Limit
Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs

Net Weight
83.8 lbs

Rack
Semi-Integrated Alloy Rear Model

Fenders
Alloy, 27.5"x4.0", Full coverage

Kickstand
Adjustable Side Kickstand

Packaged
Above All Accessories Are Included.
