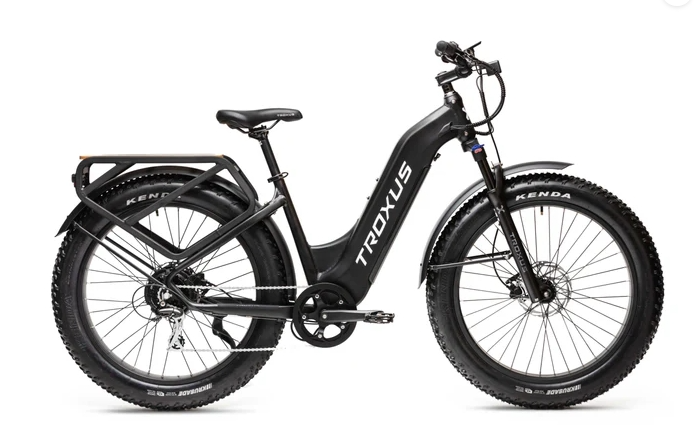

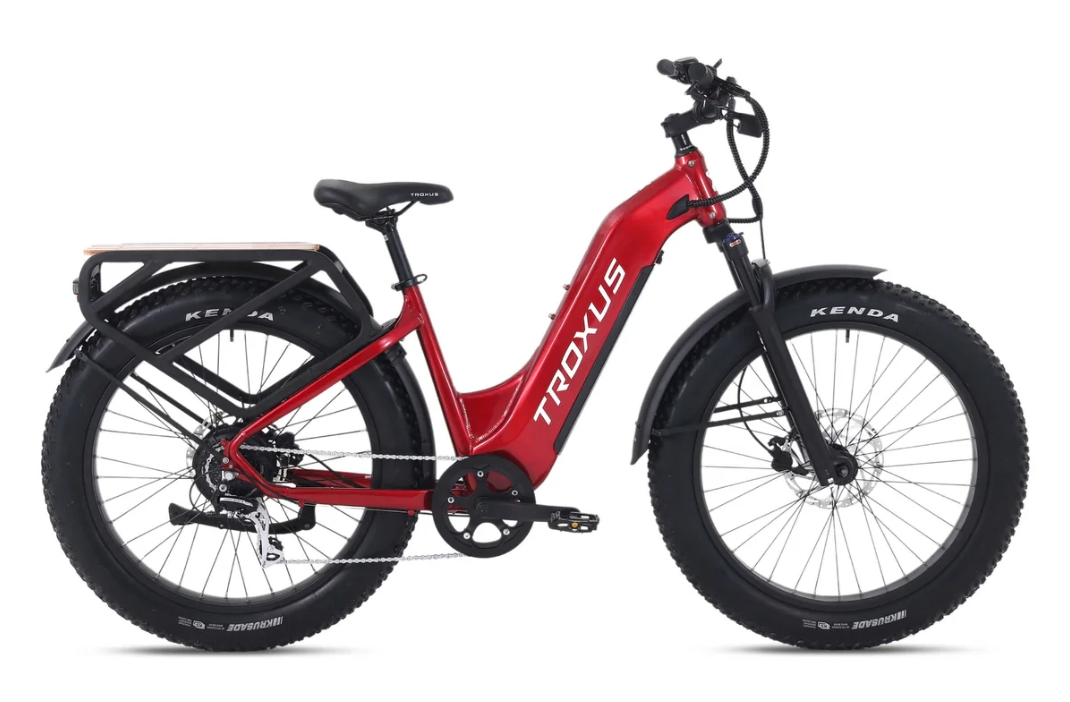

Troxus Explorer Plus Step Thru E-Bike
Couldn't load pickup availability
IMPORTANT: ELV Motors, Inc. works hard to keep our website up to date. However, prices on the website may not reflect the actual current selling price, and inventory may not reflect current availability. Please call DURING STORE HOURS for the latest price and inventory and/or to complete an online order. Positive reviews are always welcome!
The upgraded eXplorer Plus is the ultimate daily commuter, and weekend adventure companion. With new color screen that allows easy access to all your ride data, and the ability to select between cadence or torque sensors to tune your ride experience. New lighting system is brighter, includes turn signals at the rear, and even has daytime flashing mode for enhanced safety and visibility. Rear rack capable of carrying up to 100 pounds of cargo or passengers.
Big Tires For Big Adventures.
Wide 26"x4.0" tires provide exceptional power transfer and stability for hunting, fishing or wherever the road or trail takes you.
Power And Range To Explore.
Bafang® 750 Watt (sustained) hub-drive motor with exceptional 86Nm torque and long range 960 Wh 20 Ah battery provides the power and range you need for that epic adventure.
Easily Carry What You Need.
Heavy duty semi-integrated rack keeps all your loads secure, providing an ultra stable ride. Rear rack capable of carrying up to 100 pounds of cargo or passengers.
Easy Access To Important Features.
Bluetooth color display with integrated lights, turn signals and switchable torque and cadence sensors.
Troxus Explorer Plus Step Thru E-Bike Specifications
Motor
Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque
Battery
UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells
Display
Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging
Throttle
Thumb Throttle on Handlebar
Sensor
Switchable Torque And Cadence Sensor Modes
Pedal Assist
0~5 Level Pedal Assist
Charger
3A / 100-240V Input / 54.6V Output
Lights
80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
Controller
48Vx22A/6V
Frame
6061-T6 Aluminum Step-Thru Frame
Fork
Front Suspension Fork, 90mm Travel
Chain
KMC® 1/2"x3/32"
Crankset
Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm
Rear Derailleur
Shimano® RD-M310-L, Altus, 8-Speed
Cassette
Shimano® 8-Speed, 12-32T
Shifter
Shimano® 8-Speed
Bottom Bracket Set
Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires
KENDA® 26"x4.0", w/ Anti-Puncture K-Shield
Front Hub
Alloy, 36H, 135mm, 3/8" Axle
Rear Hub
Bafang® 48V 750W/ 28 MPH. 86Nm
Rims
Alloy Single Wall Front / Double Wall Rear, 36H, 26"x4.0", w/ Eyelets
Spokes
Stainless 13G. Front / 12G. Rear
Brakes
Tektro® Hydraulic, w/ Brake Sensors
Rotors
203mm / 203mm
Saddle
Troxus Comfort
Seat Post
Zoom® Alloy, 30.9x350mm, Adjustable
Seat-Post Clamp
Alloy, 35mm w/ Quick Release
Stem
Zoom® Alloy, Threadless, 1-1/8", Ext. 75mm, 28.6mm, 7-Degree Rise
Handlebar
Zoom® Alloy 31.8mmx700mm Wide
Grips
Ergonomic Comfort
Pedals
9/16″ Alloy Platform
Headset
Threadless, Locking Internal 1-1/8"
Max Speed
Up To 20 MPH on Throttle / 28 MPH on Pedal Assist
Range
Up To 90 Miles Per Charge
Weight Limit
Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs
Net Weight
83.8 lbs
Rack
Semi-Integrated Alloy Rear Model
Fenders
Alloy, 27.5"x4.0", Full coverage
Kickstand
Adjustable Side Kickstand
Packaged
Above All Accessories Are Included.
