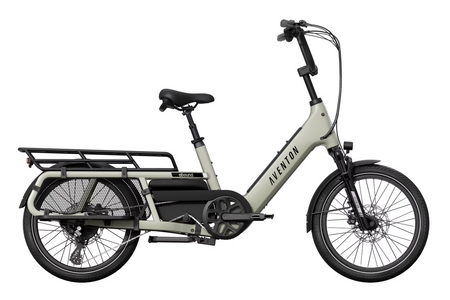

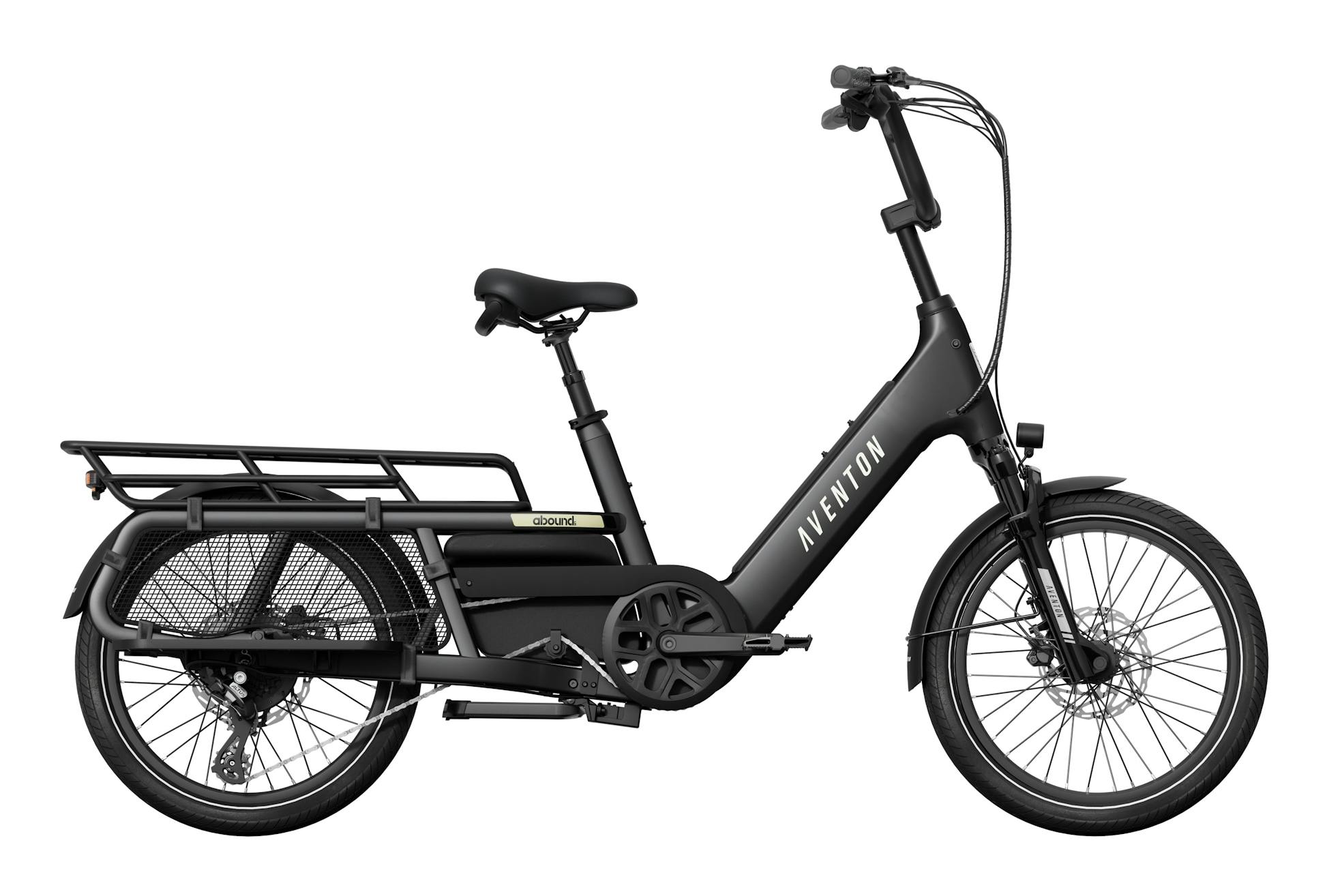

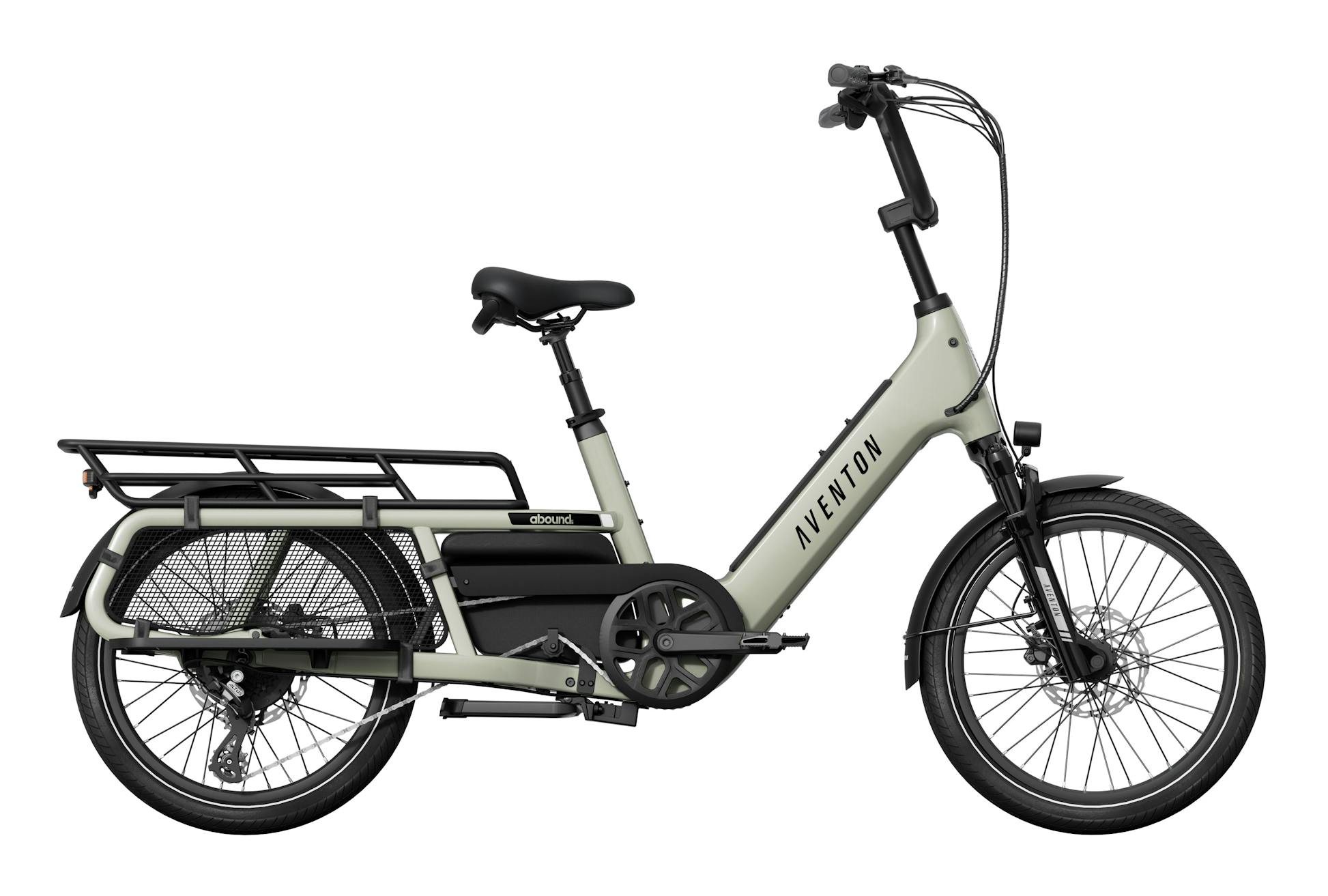

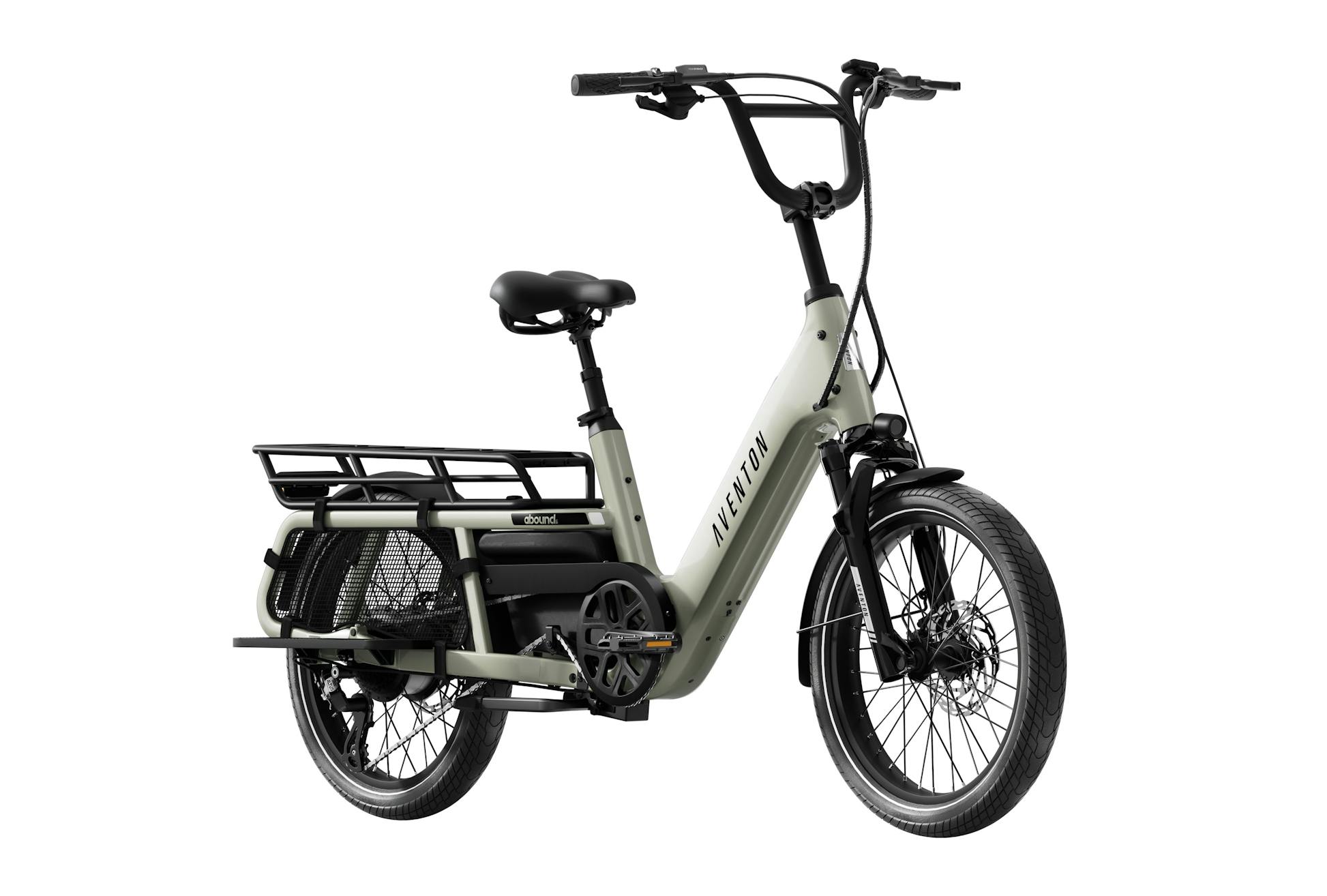

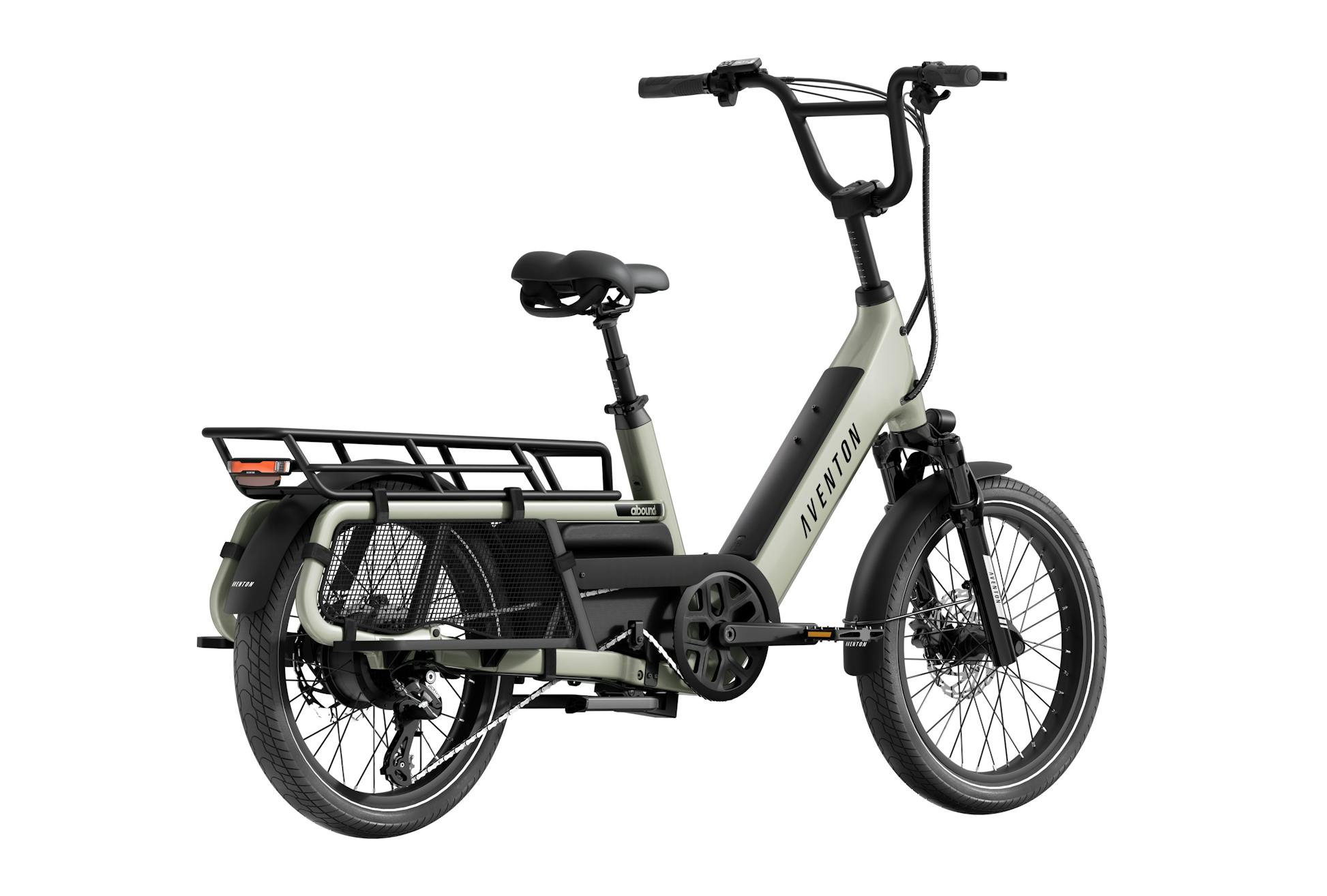

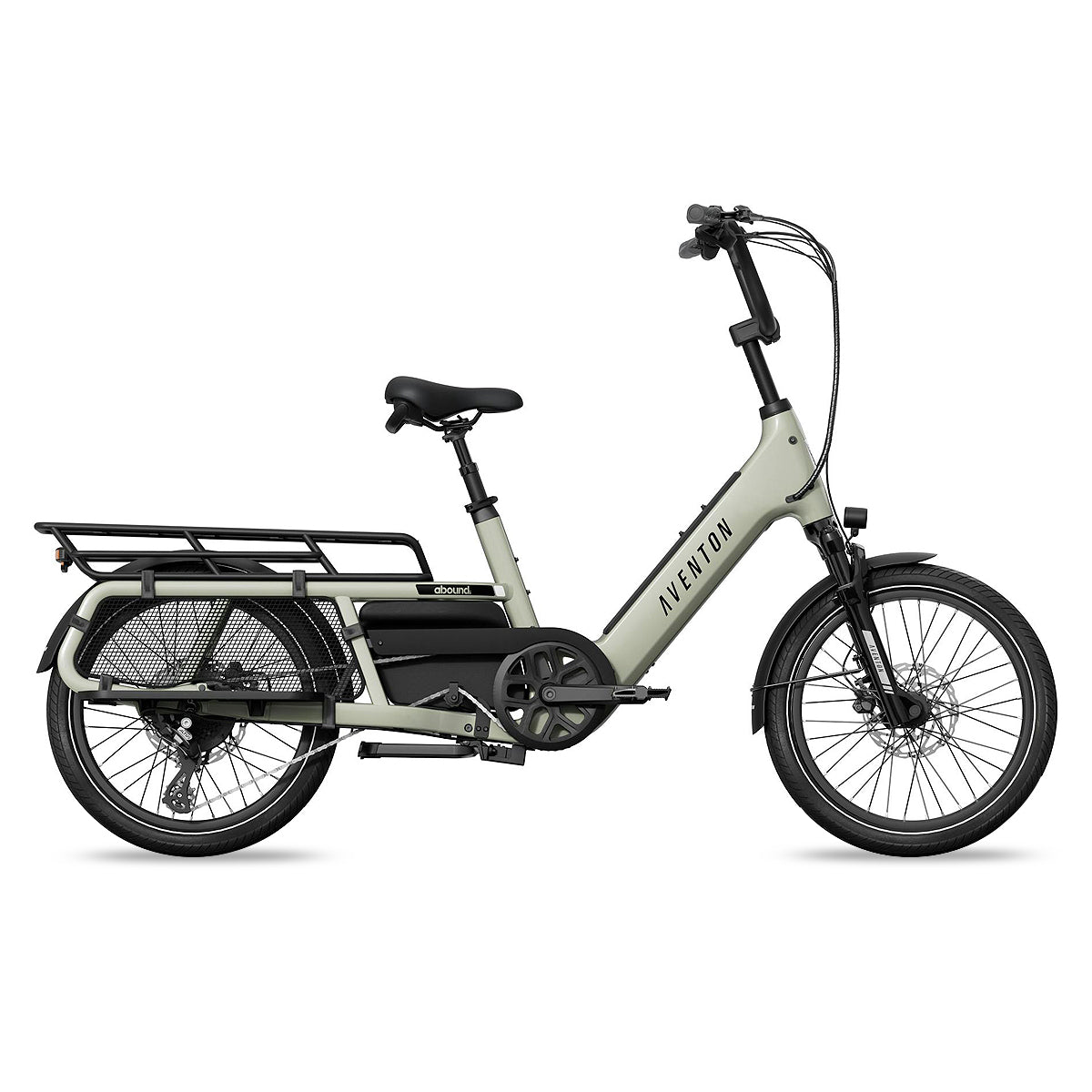

Aventon Abound LR Ebike

In stock
Regular price $1,999.00
Color

IMPORTANT: ELV Motors, Inc. works hard to keep our website up to date. However, prices on the website may not reflect the actual current selling price, and inventory may not reflect current availability. Please call DURING STORE HOURS for the latest price and inventory and/or to complete an online order. Positive reviews are always welcome!

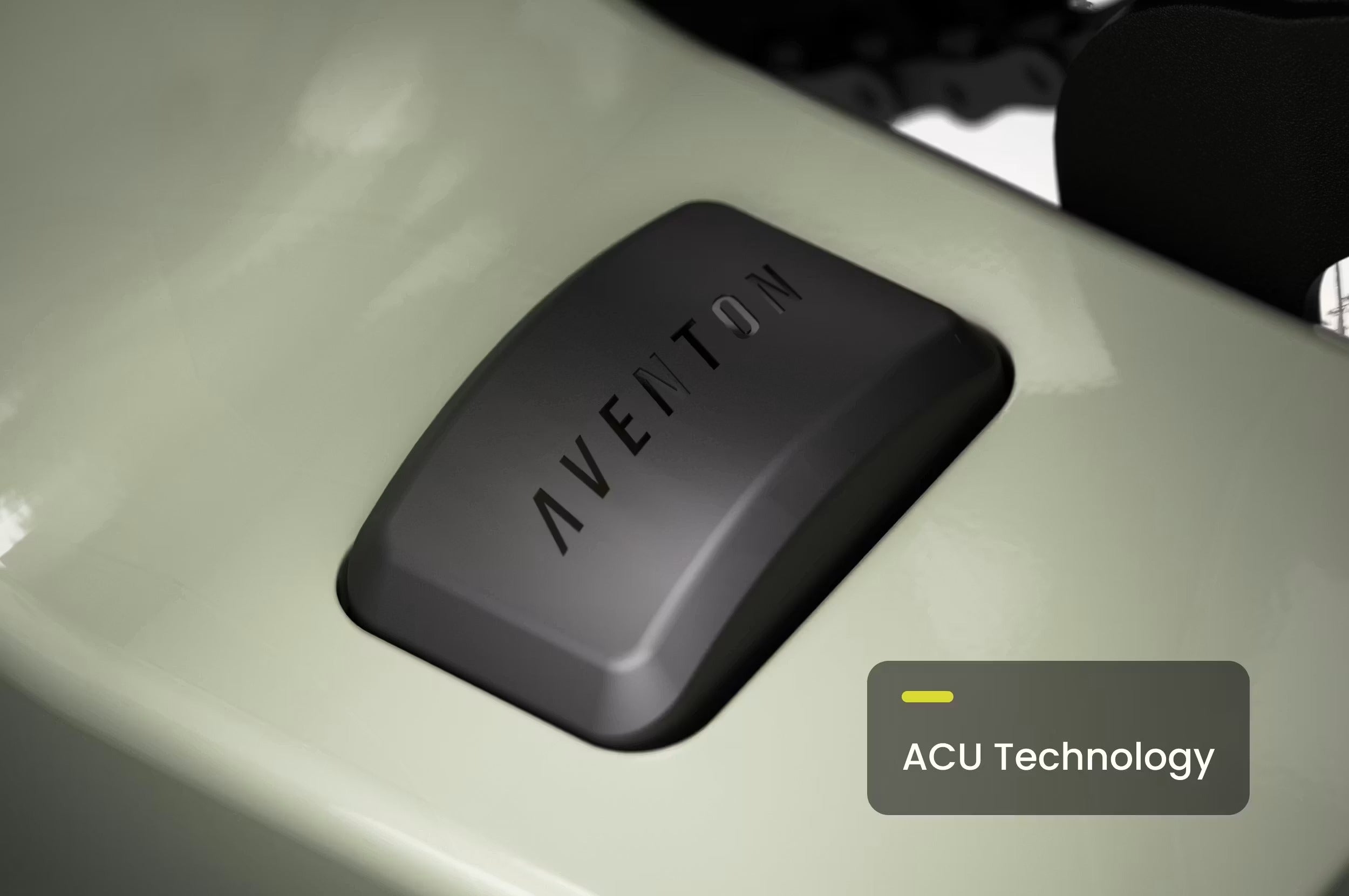

The Aventon Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.

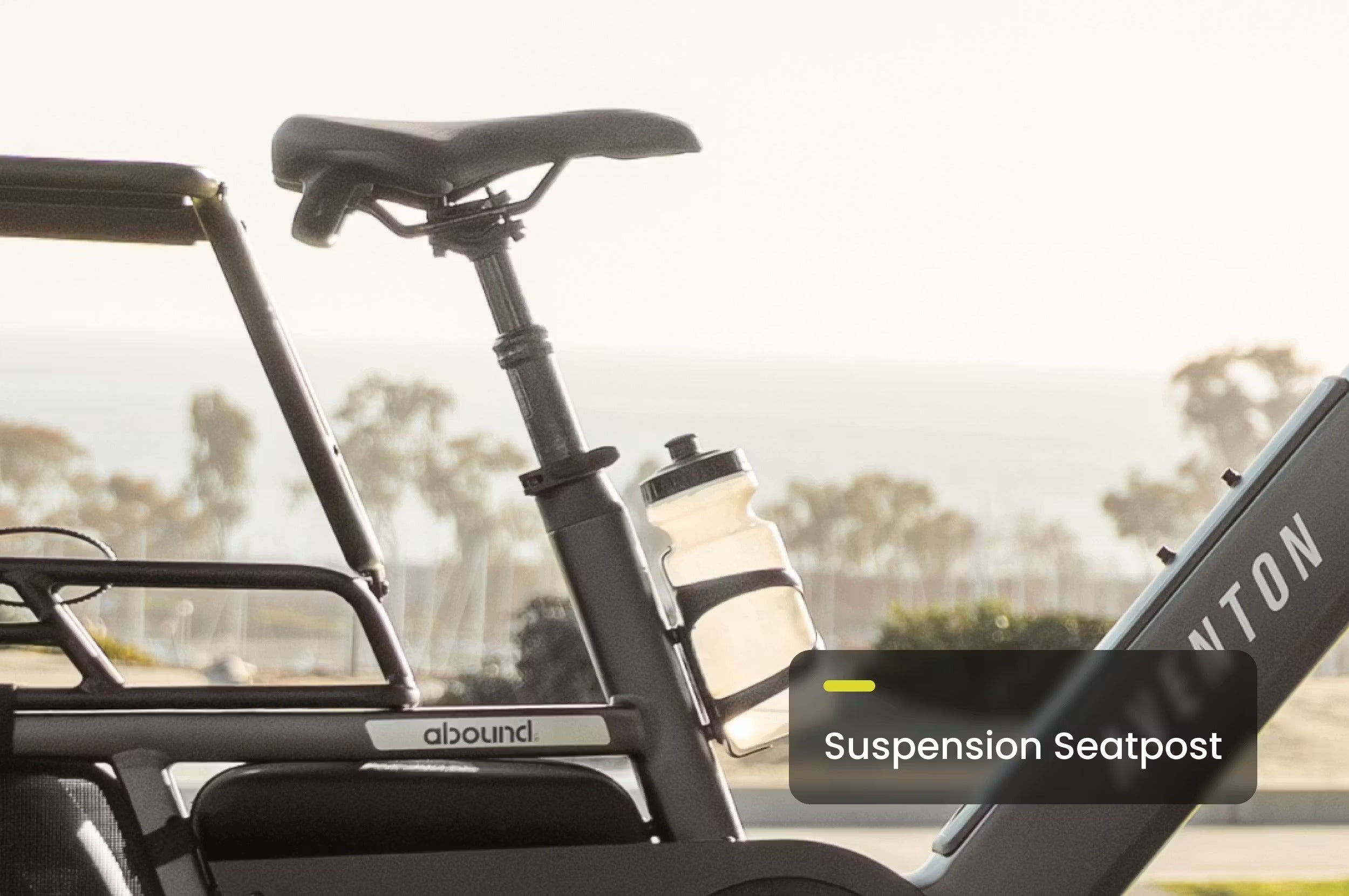

Suspension Seatpost

The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.

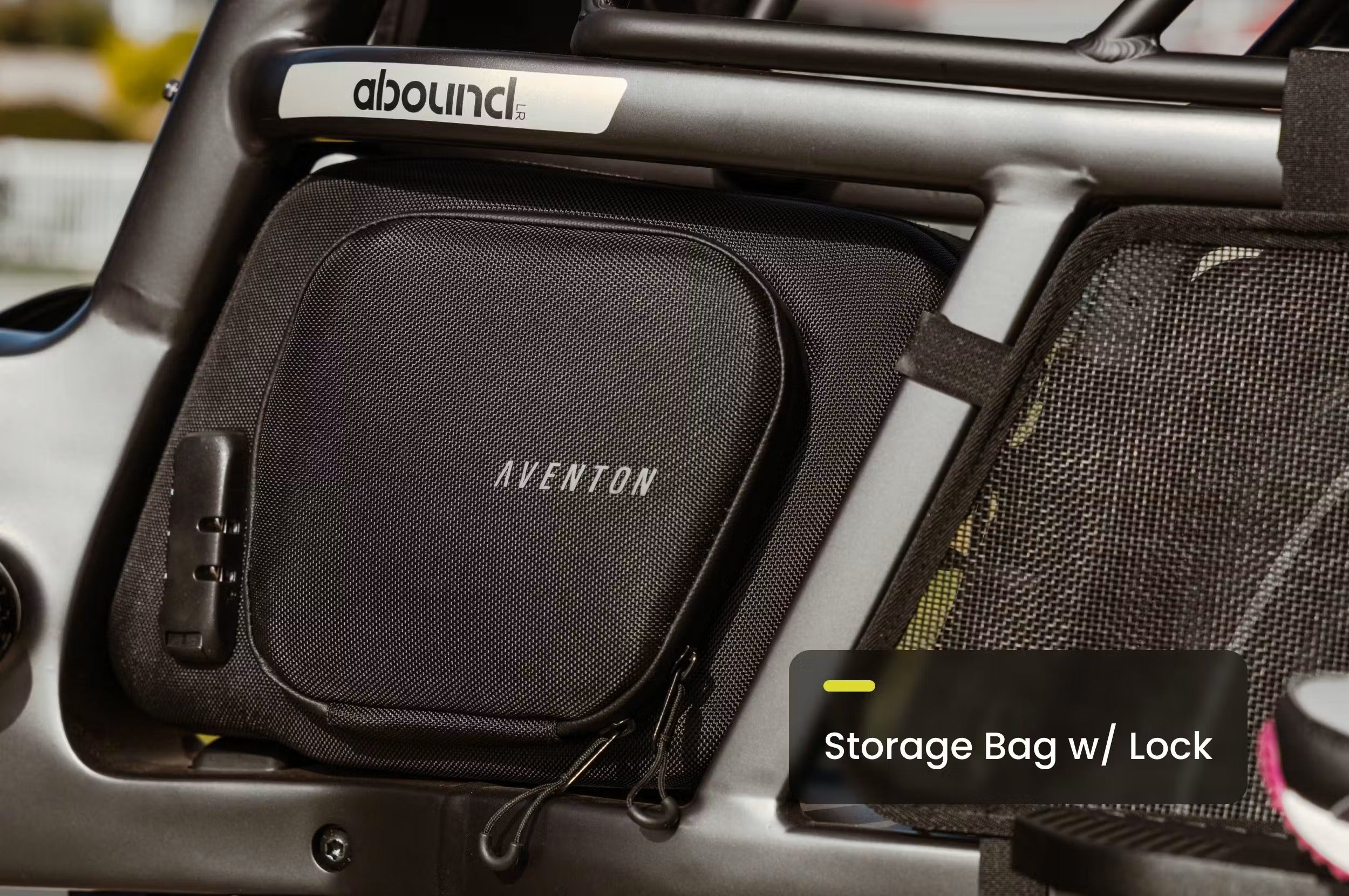

Storage Bag with Lock

The lockable storage bag lets you store and protect the valuable items you might need to bring along for the long haul. Create your own 3 digit combo password to unlock the zippers and access your essentials.

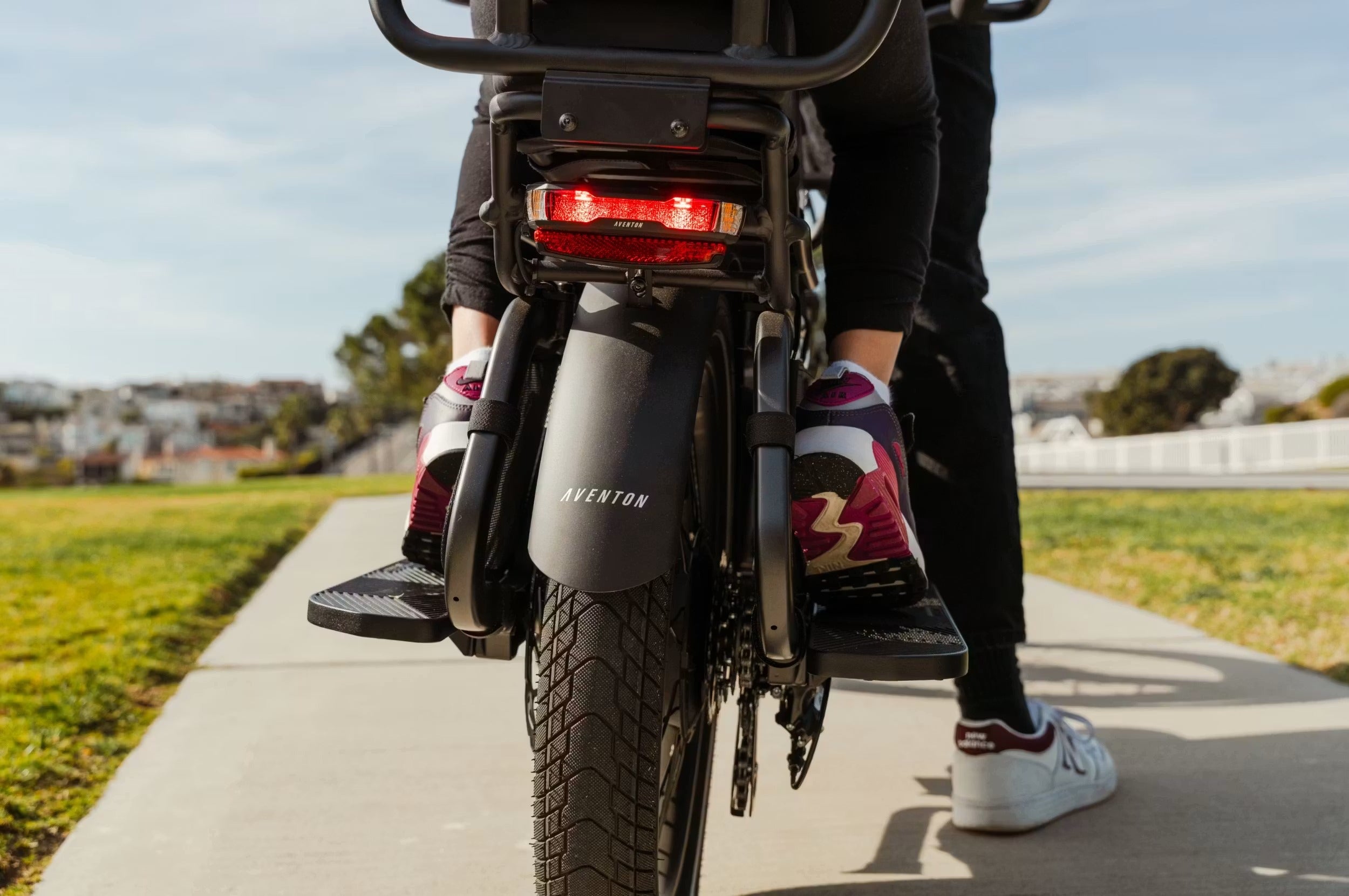

Footboards

Rest assured that your passengers have a place to rest their feet and ride comfortably out of harm's way.

Front Suspension

A suspension fork with 50mm of travel provides comfort for you and your cargo.

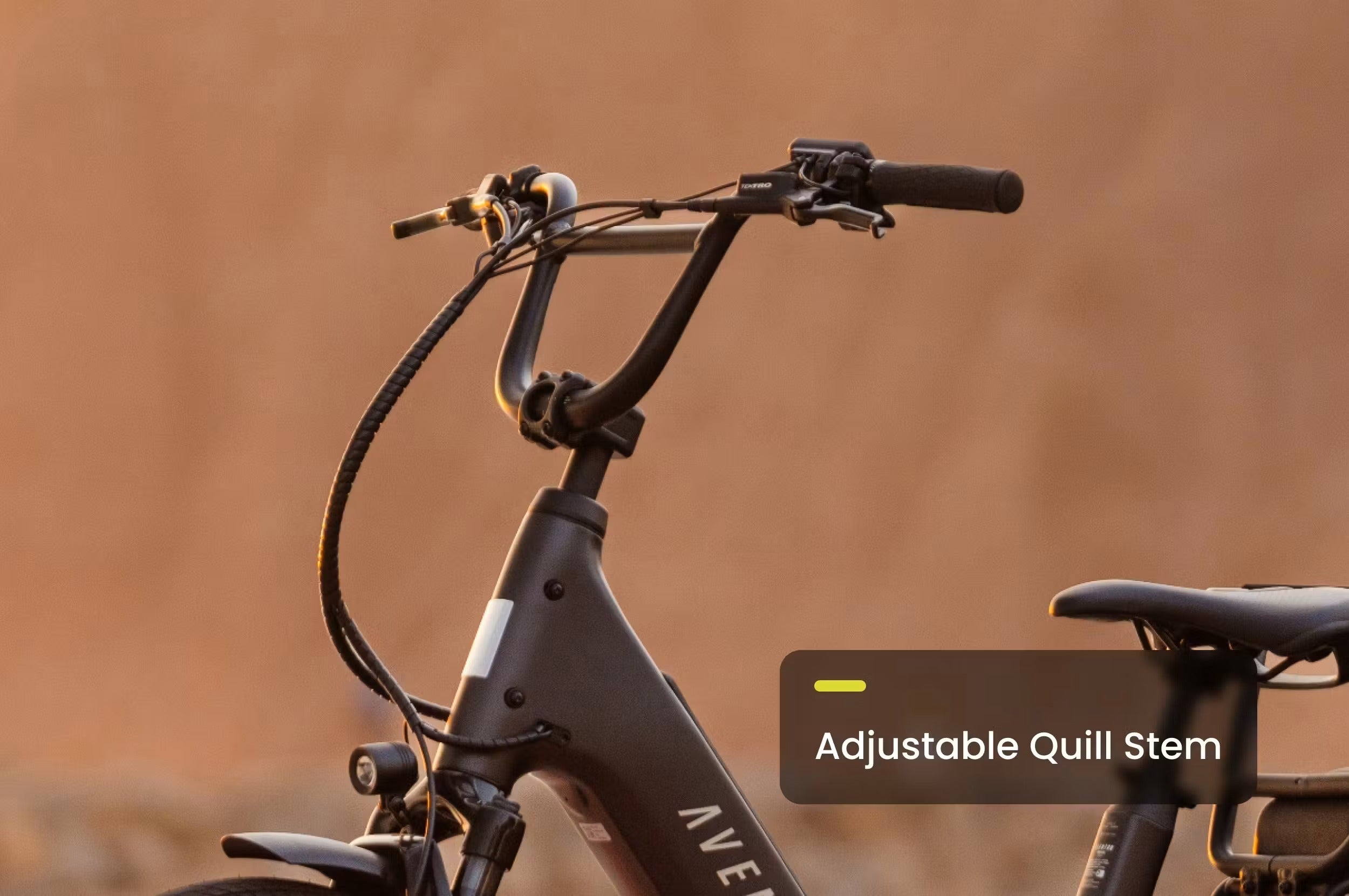

Adjustable Quill Stem & BMX Style Handlebars

140mm of vertical adjustment paired with stylish BMX handlebars make for a comfortable, customizable fit. The integrated quill stem and handlebar ensure you can confidently maneuver and transport cargo with confidence.

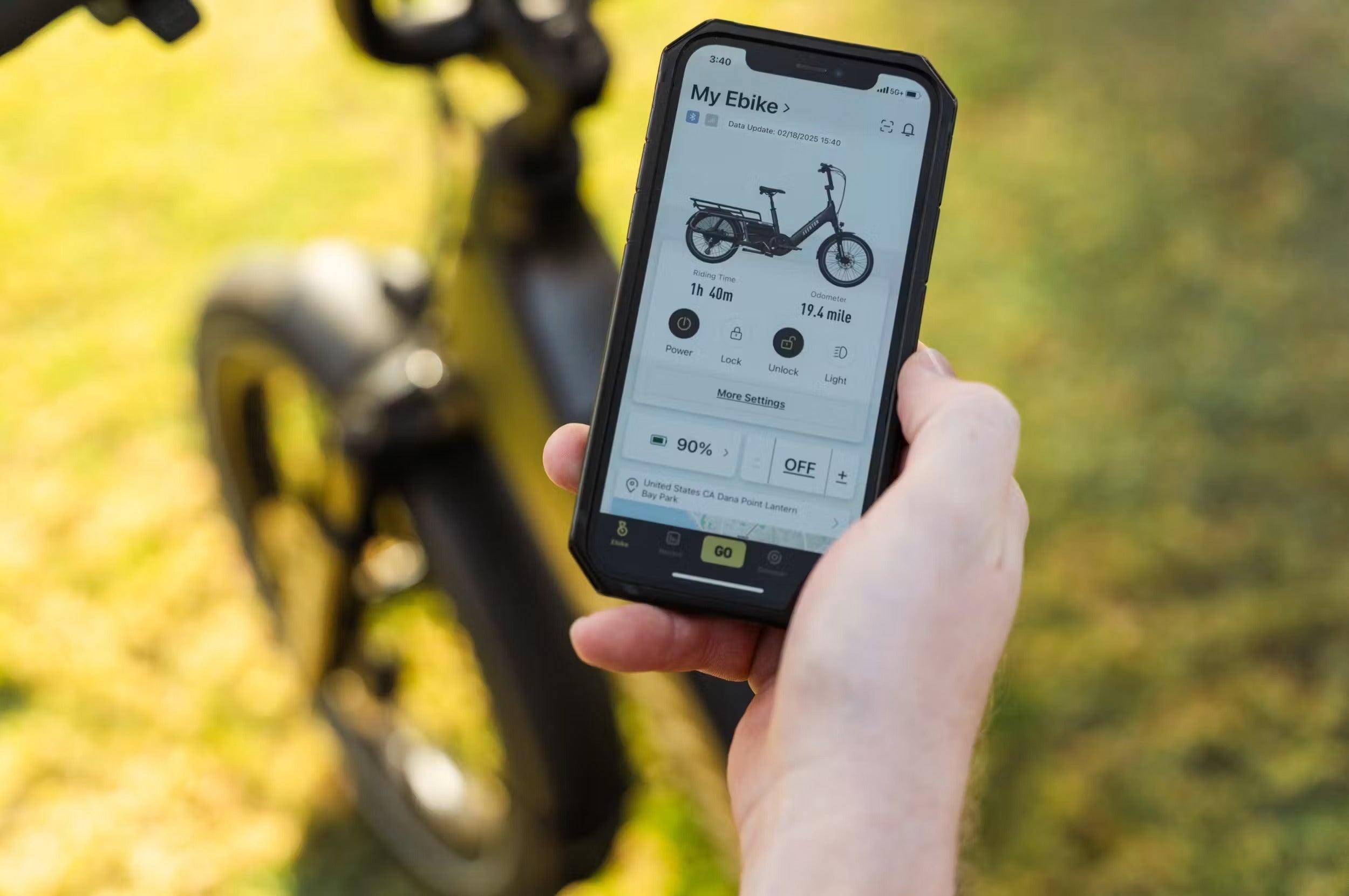

Remote Lock and Geofencing

The smart remote locking functionality lets you immobilize your bike right from the Aventon app. And the Geofencing feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control.

E-Lock Kickstand & Alarm

Quickly and easily activate a kickstand lock from your display or the Aventon app. Furthermore, whenever your bike is moved or tampered with, an alarm system will activate audio and visual alerts to deter theft.

Aventon Abound LR E-bike Specifications

General Info
Model
Abound LR Ebike

Weight
88lbs

Total Weight Limit
440 lbs

Rider Height
4'11" - 6'3"

Ebike Class
Class 2 Ebike

Water Resistance
IPX5

Range
Up to 60 miles

Battery Safety Certifications

Ideal Use
Cargo & Utility

Pedal Assist
3 Levels (with Ride Tune Customization)

Carry Capacity
Carry Up To 2 Passengers

Frameset
Frame
Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery

Fork
Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions

Rear Spacing
175mm

Fork Spacing
110mm

Frame Style
Step-Through

Wheelset
Front Wheel
Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve

Rear Wheel
Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve

Tires
20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls

Ebike System
Motor

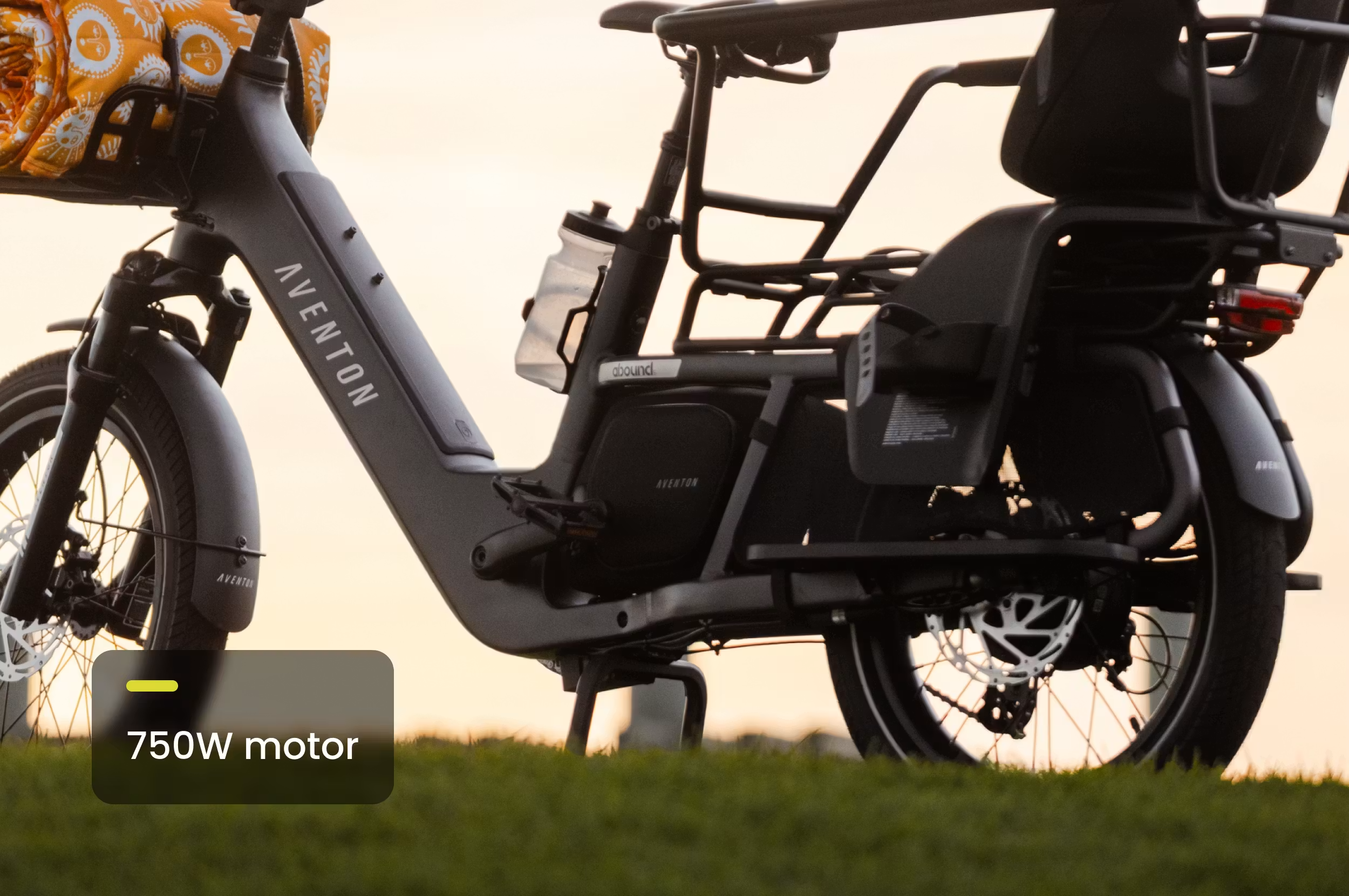

Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)

Motor Torque
80Nm

Display
Aventon BC147

Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

Battery Weight
8.7lbs

Controller
36V/33A

Throttle
Aventon LH Handlebar Mounted

Sensors
Double Sided Bottom Bracket Torque Sensor

Charger
36V Output: 42V/ 4A

Charging time from 0% to 100%
5 hours

Lights
Front and Rear Lights Integrated w/ Turn Signals

Speed
Class 2

Brakes
Front Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Rear Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Front Brake Rotor
180mm 6 bolt

Rear Brake Rotor
203mm 6-bolt

Drivetrain
Rear Derailleur
Shimano Altus RD-M310 8 Speed

Shifter
Shimano 8 Speed Trigger SL-M315-8R

Chain
7/8 speed 154L

Cassette
12-32T / 8 Speed Shimano CS HG200-8

Chainring
52 tooth

Chainring BCD
104

Crank
3pc, 165mm crank arm

Bottom Bracket
Square Taper, Sealed, Dual-Sided Torque Sensor

Pedals
9/16" Composite Platform

Cockpit
Saddle
Aventon Saddle w/ grab handle by Selle Royal

Seatpost
Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel

Seatpost Clamp
34.9mm

Handlebars
BMX Style Aluminum 31.8mm, 720mm

Grips
Aventon Ergonomic Comfort lock on grips

Headset
H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs

Included Accessories
Fenders
Included

Rear Rack
Included

Rear Rack Weight Limit
143 lbs

Technical Overview

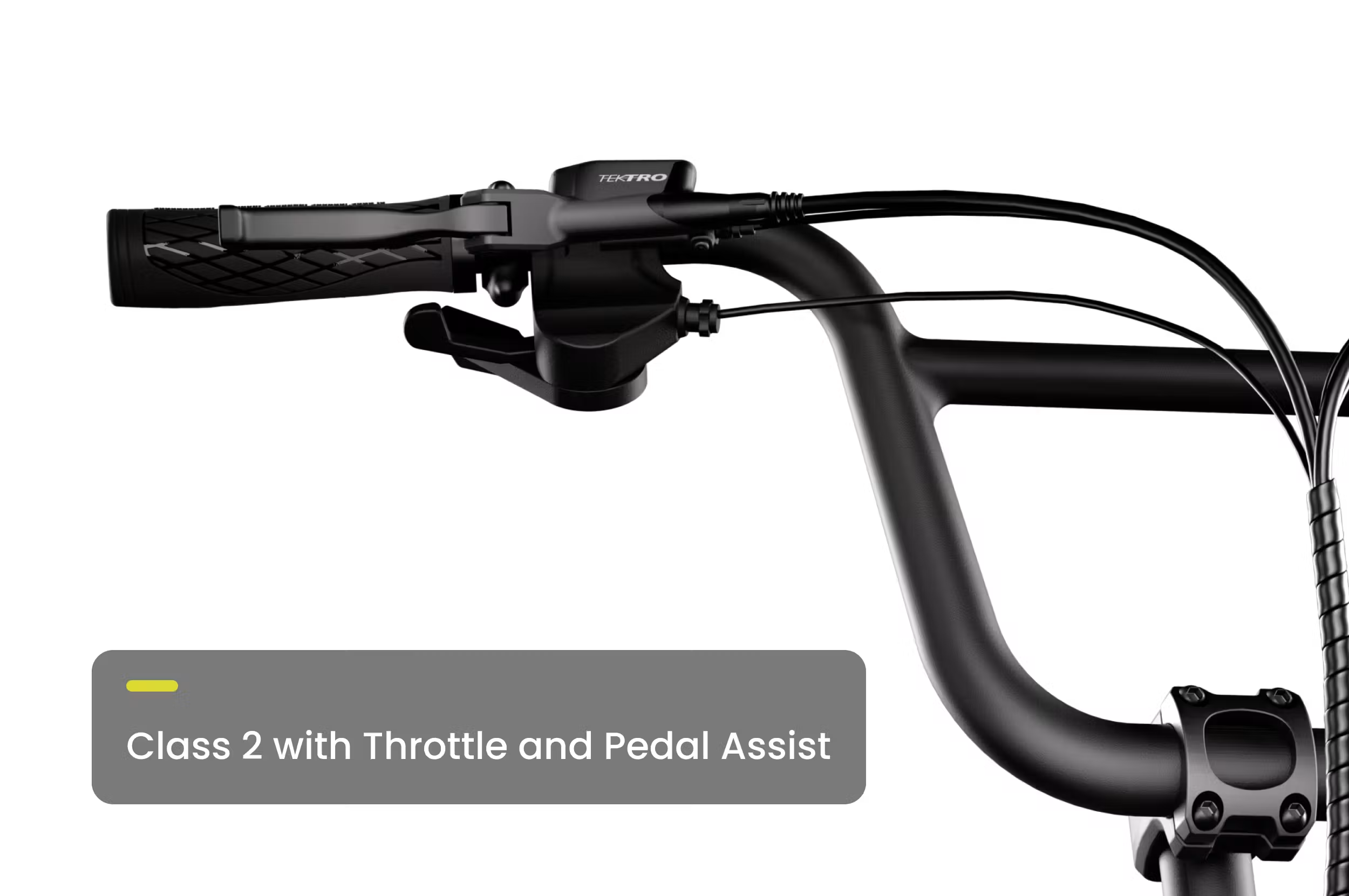

The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I E-bike or throttles are prohibited. Aventon ebikes are built to the IPX5 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your E-bike in light rain. It won't be harmed by spray from a wet road or raindrops. Your E-bike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your E-bike. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*
