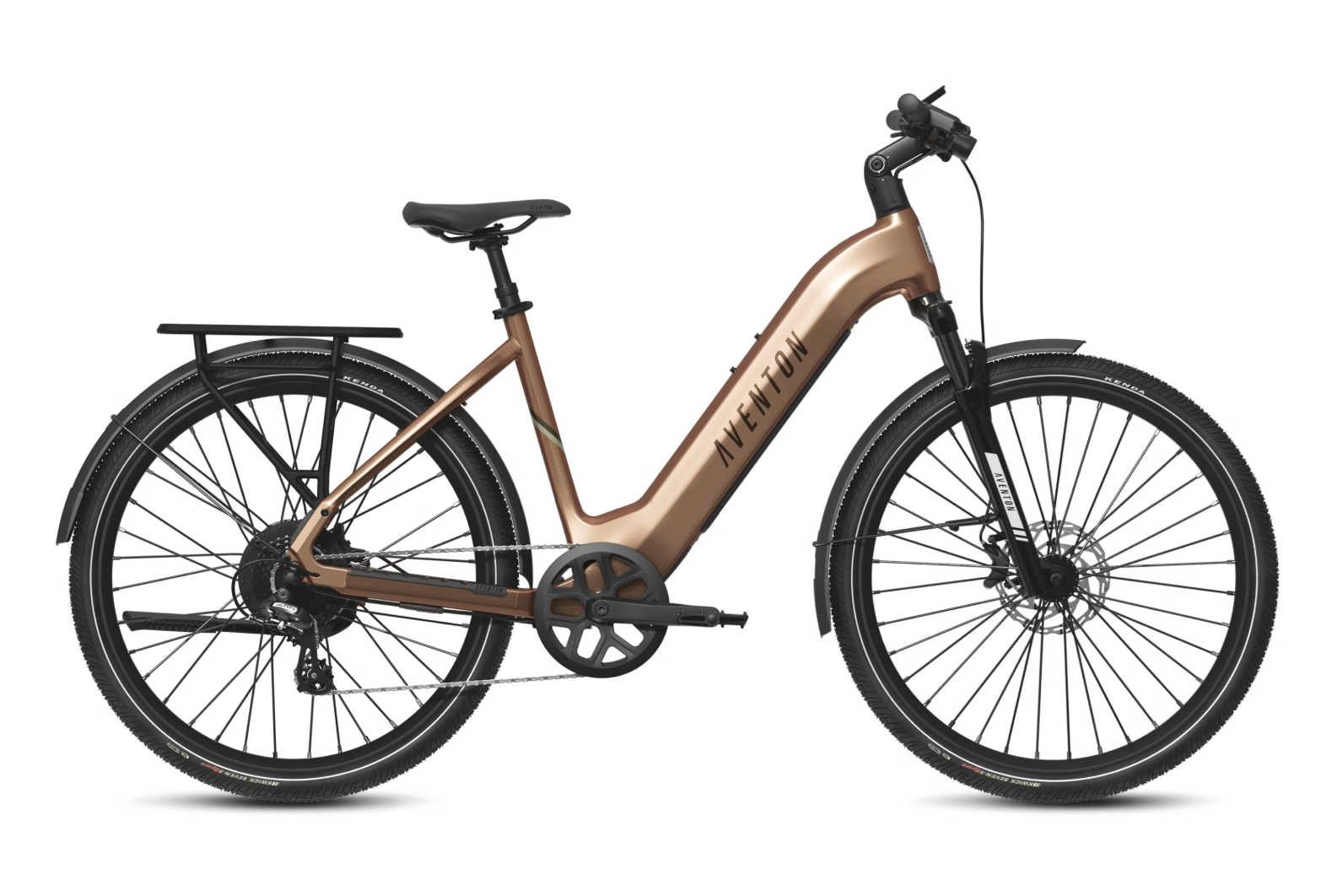

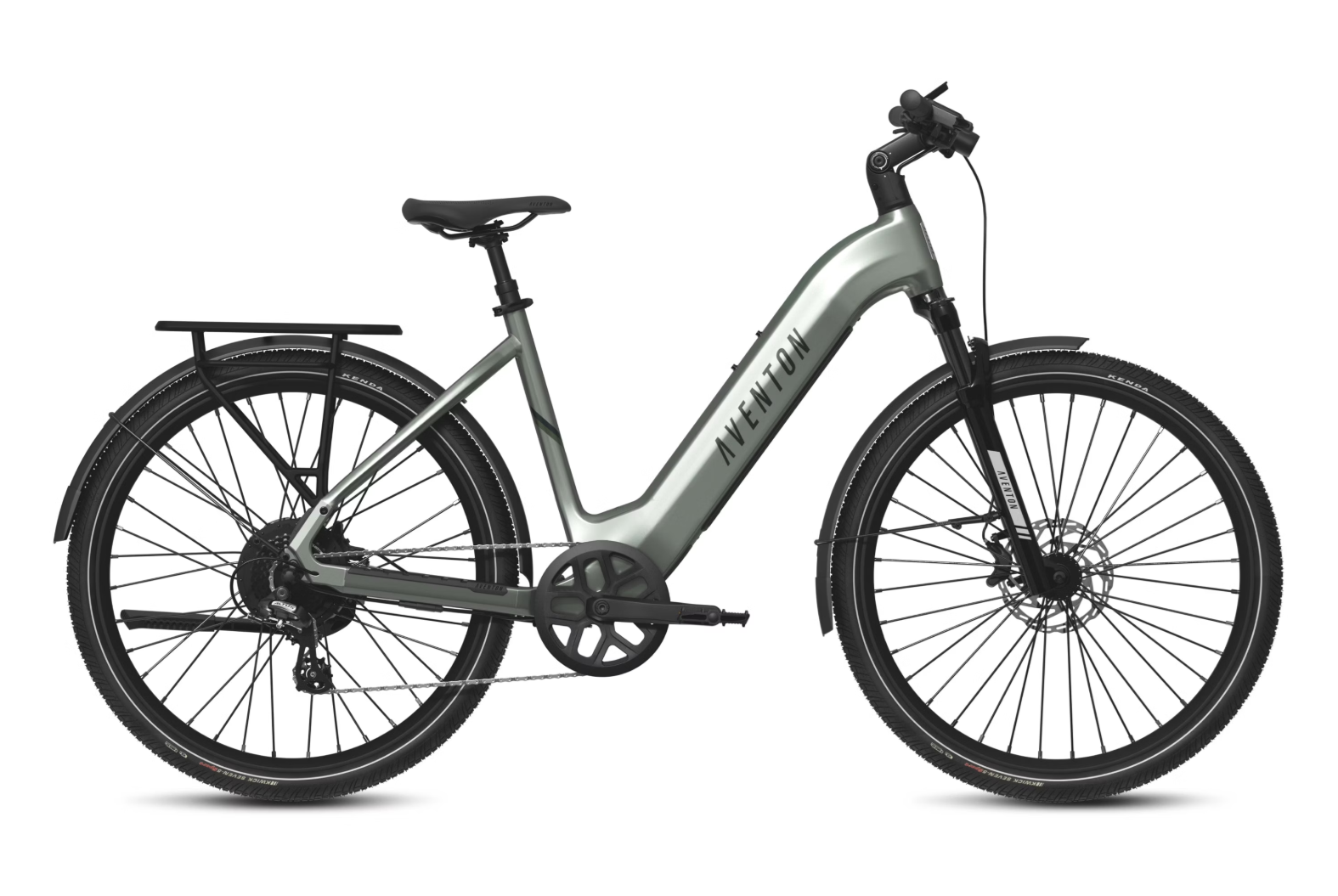

Aventon Level 3 Step Through Commuter Ebike

Only 2 left
Regular price $1,899.00
Color

IMPORTANT: ELV Motors, Inc. works hard to keep our website up to date. However, prices on the website may not reflect the actual current selling price, and inventory may not reflect current availability. Please call DURING STORE HOURS for the latest price and inventory and/or to complete an online order. Positive reviews are always welcome!

Take your commutes to the next LEVEL. The all new Aventon Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3.

Enhanced Security meets Advanced Technology

The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock, Geofencing and Passcode safeguards your Level 3 and deliver an ultimate peace of mind. When cruising, you can rely on GPS tracking, 4G connection and cloud synchronization to get your bike stats in real time.

Remote Lock and Geofencing

The smart remote locking functionality lets you immobilize your bike right from the Aventon app. And the Geofencing feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control.

Startup Password and Keyless Battery

Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.

Electronic Rear Wheel Lock

 Easily activate a locking mechanism that restricts the rear wheel from rotating. This adds a layer of security when leaving your bike unattended.

Suspension Seatpost

The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.

Ride Tune

Stay in perfect sync with your bike. Ride Tune lets you personalize your riding style via the Aventon App. Optimize and realize the full potential of your Level 3.

Over the Air Updates

Stay in the know while on the go. Enjoy optimal performance with intelligent over-the-air software updates through the Aventon app. No need to plug in or stop at a shop. Ride on.

Rack and Fenders

Pre-installed fenders will protect you from the elements, rain or shine, while an attached rear rack means you can transport all of your essentials, whether you're heading out for a picnic or heading home from work!

Pedal Assist and Throttle

Five levels of pedal assist mean you're in charge of how much or how little electric assist you get from your ebike, while a throttle will propel you at speeds up to 20 MPH, keeping you moving when pedaling is just an afterthought!

Aventon Level 3 Step Through Commuter Ebike Specifications

General Info
Model
Level 3 Step Through Commuter Ebike
Weight
67lbs
Total Weight Limit
300 lbs
Box Size
61"x13"x34"
Rider Height
4'11" - 6'1"
Ebike Class
Class 2 Ebike
Water Resistance
IPX5
Range
Up to 70 Miles
Battery Safety Certifications
Safety Certifications
Ideal Use
Commuting
Pedal Assist
3 Levels (with Ride Tune Customization)
Frameset
Frame
6061 Aluminum, Gravity Cast Front Triangle
Fork
Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
Rear Spacing
142mm
Fork Spacing
110mm
Frame Style
Step-Through
Wheelset
Front Wheel
27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
Rear Wheel
27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
Tires
Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
Ebike System
Motor
36V, 500W (sustained), 864W (peak)
Motor Torque
60Nm
Display
Aventon BC280
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight
8.7lbs
Controller
36V, 24A
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
36V Output: 42V/ 4A
Charging time from 0% to 100%
5 hours
Lights
Front and rear lights integrated
Speed
Class 2
Brakes
Front Brake
Magura AT-2 Hydraulic disc brake
Rear Brake
Magura AT-2 Hydraulic disc brake
Front Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor
Rear Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Shifter
Shimano 8 Speed Trigger SL-M315-8R
Chain
7/8 speed 120L
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Chainring
48T
Chainring BCD
104
Crankset
3pc, 170mm crank arm
Bottom Bracket
Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals
9/16" Composite Platform
Cockpit
Saddle
Aventon Saddle
Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel
Seatpost Clamp
34.9mm
Handlebars
Aluminum 31.8mm, 680mm
Grips
Aventon Lock on grips
Headset
Sealed Bearing Headset
Included Accessories
Rear Rack Weight Limit
60lbs

Technical Overview
The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX5 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
