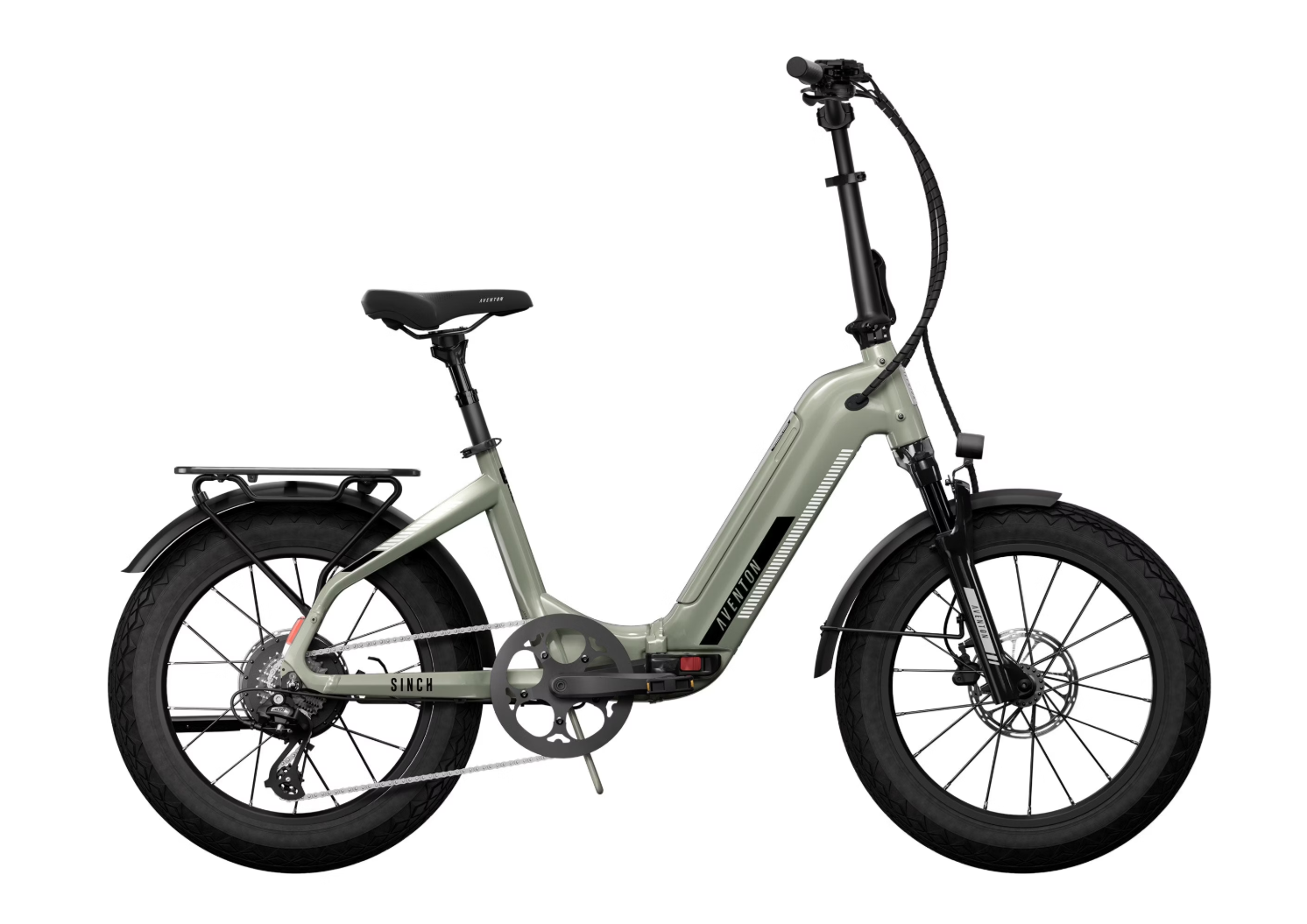

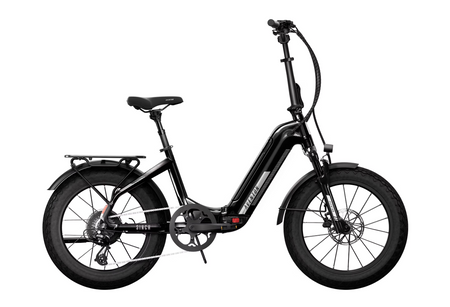

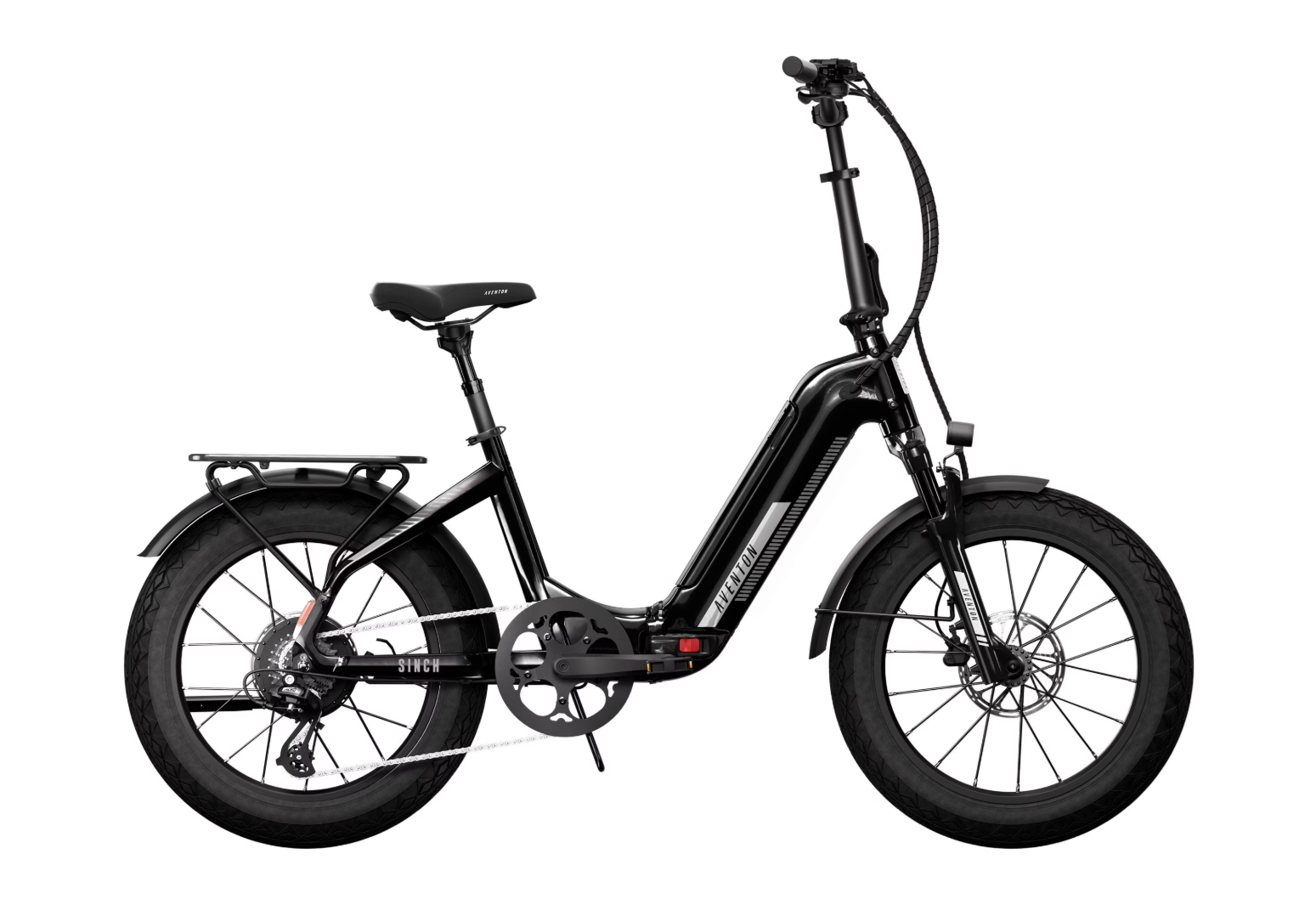

Aventon Sinch 2.5

Aventon's Sinch 2.5 is the perfect companion for your next adventure! Easily foldable to maximize storage space, the Sinch 2.5 is the perfect choice for a transportable, adjustable e-bike to amplify every ride. Now with upgraded hydraulic disc brakes, suspension seatpost, and a sleek new side display, the Sinch 2.5 is more comfortable and capable than ever before.

New Side Display with Intuitive Controls

Inspired by the simplicity and function of iconic MP3 players, the controls on the sleek new side display gives you an easy access to everything you need. Rest assured, it now has a USB-C port to conveniently charge your phone while you ride.

Torque Sensor

The Sinch 2.5's torque sensor measures the amount of force being applied to the pedals, then provides assistance based on your efforts, creating a more natural riding experience.

Integrated Lights w/ Turn Signal Functionality

Sinch 2.5's front headlight allows you to see and be seen on the road, while the integrated rear lights double as turn signals that communicate to motorists or other cyclists when you're changing lanes for your safety.

Hub Motor & Battery

A 750W rear-hub (peak) motor coupled with a fast charging, fully integrated 48V battery with LG cells means there's plenty of power to hit the streets or go off-roading.

Fat Tires

4” fat tires will take you off the beaten path and add more adventure to your next ride.

Fenders & Rear Rack

Bring whatever you need wherever you go with the rear rack, and let the fenders protect you from water spray or mud as you make your way.

Front Suspension

Sinch 2.5's front suspension with up to 45mm of travel means there's more ground to cover on the road or off-the-beaten-path.

Suspension Seatpost

No shocks. No vibrations. Just smooth riding. The sleek, padded suspension seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.

Hydraulic Disc Brakes

 Hydraulic disc brakes offer superior stopping power, with improved modulation. This ensures you are able come to a complete stop faster and easier, making for an overall safer ride.

Aventon Sinch 2.5 E-Bike Specifications

General Info
Model
Sinch 2.5 Ebike

Weight
68 lbs

Total Weight Limit
300 lbs

Rider Height
4'11" - 6'2"

Box Size
43 x 24 x 33

Class
Class 2 Ebike

Water Resistance
IPX4

Safety Certifications
UL and TUV Safety Certified
UL 2849 / UL 2271

Battery Safety Certifications
Certified to UL 2271

Range
Up to 55 Miles

Pedal Assist
4 Levels

Ideal Use
All-Terrain

Frameset
Frame
6061 Single-Butted Folding Aluminum Alloy with Internal Battery

Fork
Aventon coil fork with lock out and black stanchions.

Rear Spacing
177mm

Fork Spacing
135mm

Frame Style
Step-Through

Wheelset
Front Wheel
20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, with a nutted axle, 13g stainless steel spokes (173mm NDS/175mm DS), 135mm spacing, Schrader valve.

Rear Wheel
20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, hub drive motor with a nutted axle, 12g stainless steel spokes (128mm NDS/127mm DS), 177mm spacing, Schrader valve.

Tires
Innova IA-2579 20x4.0

Ebike System
Speed
Class 2

Motor
Motor: 48v, 500w sustained, 1056w peak brushless hub motor

Motor Torque
60Nm

Display
Aventon BC147

Battery
Removable Internal Lithium-ion Battery, 48.8V, 14Ah (636.4Wh)

Battery Weight
7.6 lbs

Controller
48v 22A

Throttle
Aventon LH Handlebar Mounted

Sensors
Double Sided Bottom Bracket Torque Sensor

Charger
48V, 3 Amp Fast Charger

Charging time from 0% to 100%
4-5 Hours

Lights
Front and rear lights integrated

Brakes
Front Brake Rotor
180mm 6 bolt

Rear Brake Rotor
180mm 6 bolt

Front Brake
Tektro HD-T280 Hydraulic disc brake w/o e-cutoff

Rear Brake
Tektro HD-T280 Hydraulic disc brake w/o e-cutoff

Drivetrain
Rear Derailleur
Shimano Altus RD-M310 8 Speed

Chain
114 Link, 8 Speed

Cassette
12-32T / 8 Speed Shimano CS HG200-8

Chainring BCD
130

Crankset
3pc, 170mm crank arm

Bottom Bracket
Square Taper, Sealed, Dual-Sided Torque Sensor, 100x159.5mm

Pedals
9/16" Composite folding pedals

Chainring
48T

Cockpit
Seatpost
Aventon Suspension Seatpost, 30.9, 350mm Length

Seat Clamp
34.9mm Quick Release

Handlebars
Aluminum 25.4mm diameter, 580mm wide

Grips
Aventon glue on grips

Headset
Sealed Bearing Headset ZS44/28.6| ZS55/40

Saddle
Aventon Saddle

Included Accessories
Kickstand

Included, rear mount
Rear Rack
Included

Rear Rack Weight Limit
55 lbs

Fenders
Included

Technical Overview
Sinch 2.5 ships as a Class II ebike, with pedal assist and throttle. Sinch 2.5 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS Eco throughout flat terrain with a rider weight of 160 lb.
