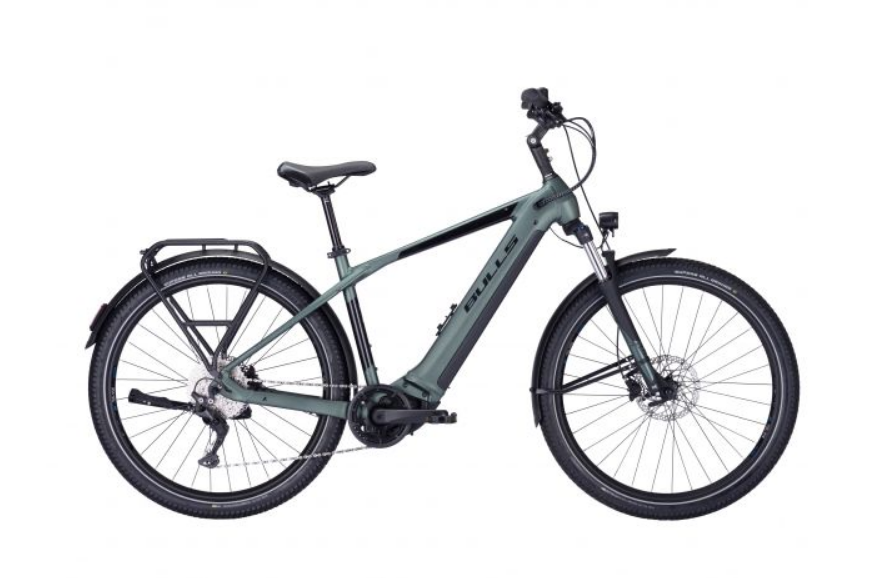

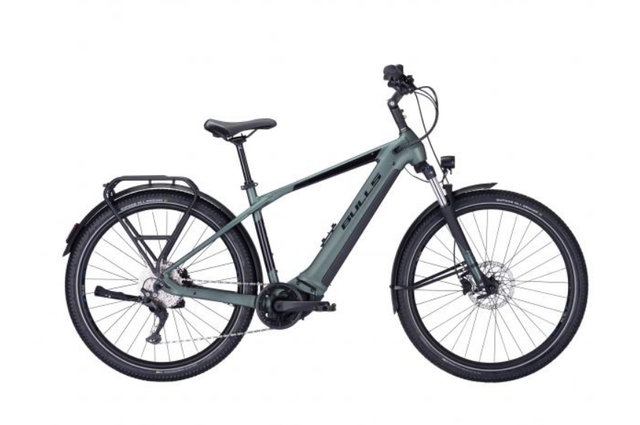

Bulls Iconic Evo 1 750 Diamond

For those seeking a sporty commute or touring experience, the Iconic EVO 1 750’s hardtail design offers great road feedback and snappy acceleration, though its ride would not be considered harsh due to its 27.5x2.4” tires and 120mm travel Suntour fork.  Getting you up to speed is a Shimano Deore 10 speed rear derailleur shifting across its 11-42t range, while 180mm Tektro hydraulic disc brakes ensure smooth stopping power.  Use it as a grocery getter, a work commuter, a touring bike or a car replacement with its included MonkeyLoad rear rack, fenders, lights and kickstand.

THE MOTOR: Performance Line CX

As part of the new Smart System, the Performance CX motor delivers 85 Nm torque. This drive unit is ideal for challenging eMTB and trekking rides. The eMTB mode gives you full control and intuitive handling without having to switch between different riding modes. Whether on long climbs or steep descents, the multi-sensor concept and innovative Bosch motor controller enable the Performance Line CX to respond flexibly and with great sensitivity, even on challenging trails.

THE BATTERY: PowerTube 750

PowerTube stands for batteries that are elegantly integrated into the frame. The PowerTube rated at 750Wh is ideal for long day rides. The new battery is slightly larger than the previous ones and thus required a new frame body which was developed in-house from the ground up.

THE DERAILLEUR: Shimano Deore

The classic among the Shimano groupsets. Lightweight, responsive shifting for all riding styles. Robust enough for daily routine rides, reliable enough for long trekking tours on and off-road with stable and precise performance.

BULLS ICONIC EVO 1 750 DIAMOND SPECIFICATIONS

Drive Unit
Bosch Performance Line CX Smart System (85 Nm)

Battery
BOSCH PowerTube 750 Wh Smart System

Charger
4A Charging time appx. 6.0 hrs.

Charging Time
appx. 6.0 hrs.

Display
LCD Remote + Kiox 300

Frame
aluminum 6061

Framesize
41/44/48/54cm

Fork
SR Suntour XCM32-DS LOR Coil, 120 mm

Derailleur
Shimano Deore RD-M5120SGS

Gears
10-speed

Crankset
FSA 165 mm

Cassette
Shimano CS-M4100, 11-42T

Brakes
Tektro HD-M390 hydraulic disc, 180/180 mm

Handlebar
STYX MTB Alloy, Dia 31.8 mm, 740 mm, 25 mm raise, 9° back swept

Stem
aluminum, adjustable

Seatpost
Limotec A3-Z suspension dropper, 30.9 mm

Seat
Iconic SUV

Hubs
Formula HCL-81/CL-2241QR

Rims
Ryde Disc 30

Tires
Supero All Ground 62-584/27.5 x 2.40

Pedals
Wellgo C-098DU black body

Front Light
Fuxon FS-50EB, 50 Lux

Rear Light
Supernova E3

Carrier
MonkeyLoad system carrier

*Specifications subject to change without notice.
