(TVALVE) Air Force T1/T2/T3 Floor Pump Valve
Regular price
$2.00
Unit price
Shipping calculated at checkout.
(TVALVE) Air Force T1/T2/T3 Floor Pump Valve is backordered and will ship as soon as it is back in stock.
Care information
Care information
Online inventory may differ from in-store availability. If visiting, please contact us first to confirm.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
(TVALVE) Air Force T1/T2/T3 Floor Pump Valve
Regular price
$2.00
Unit price

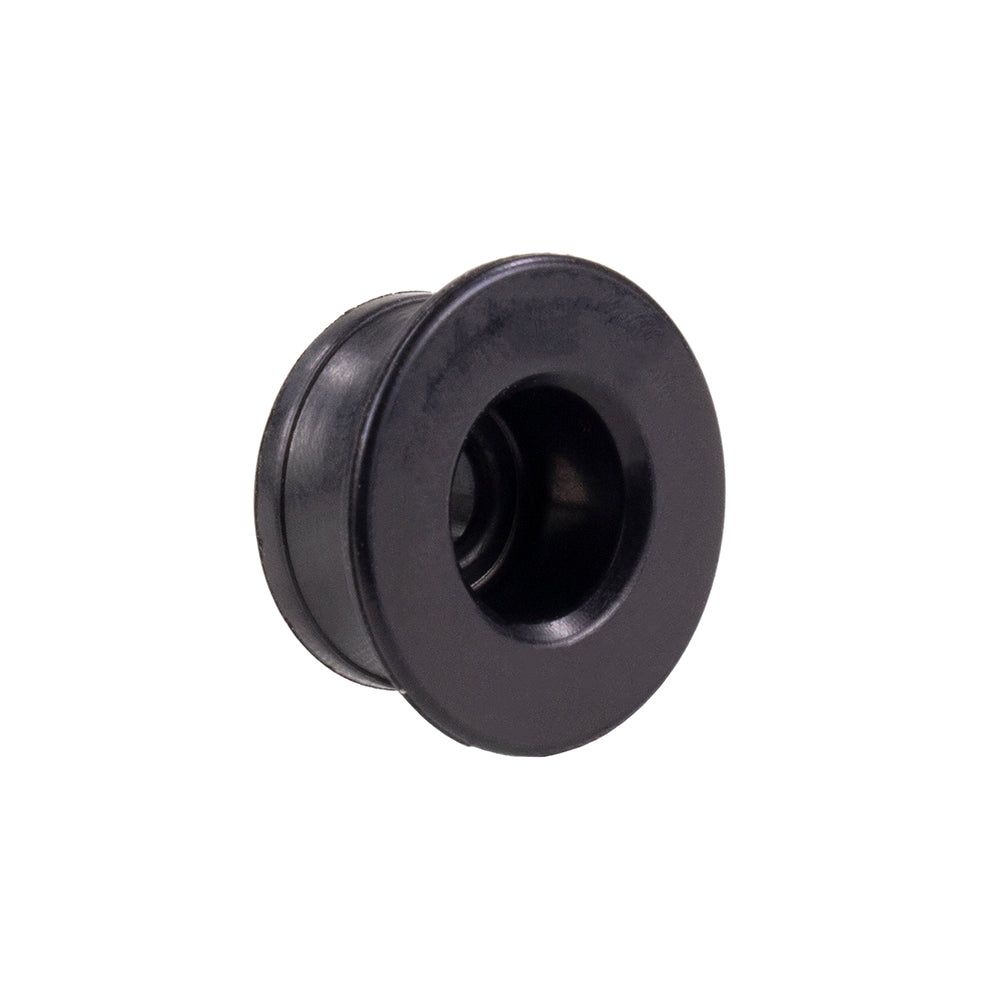

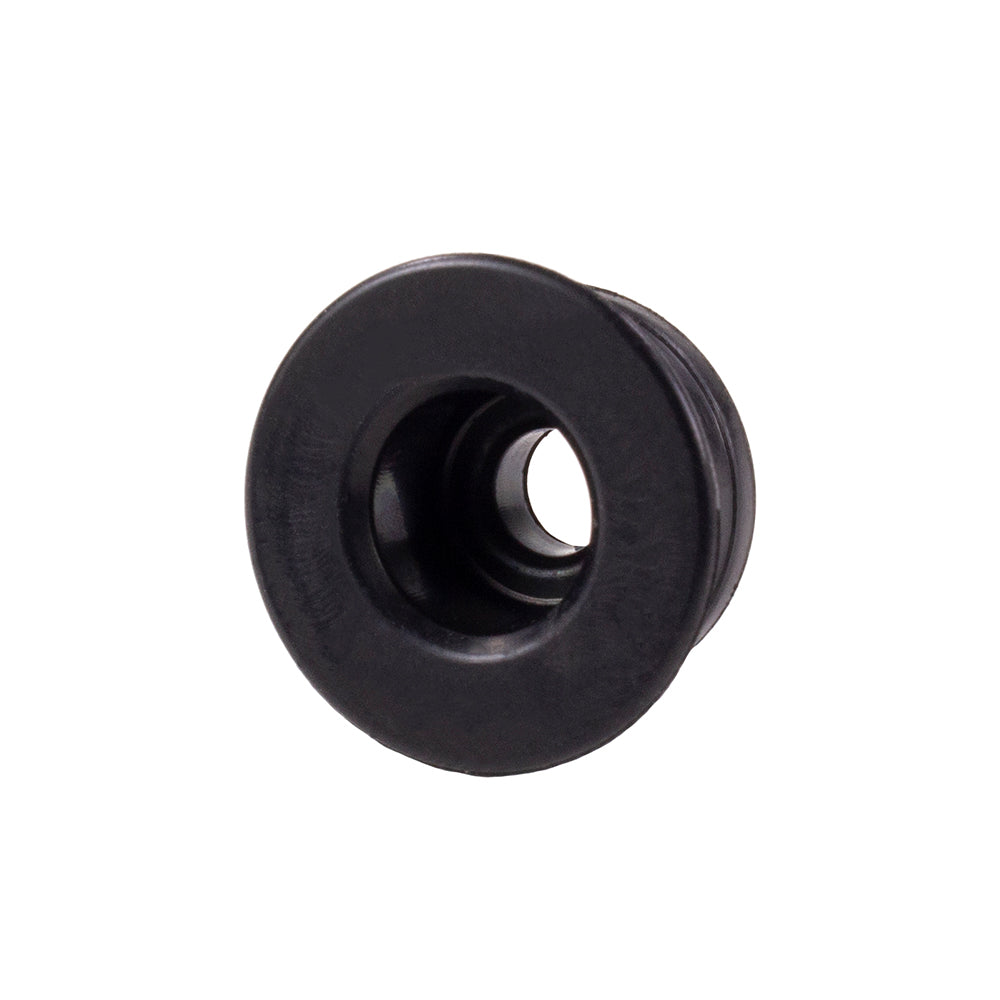

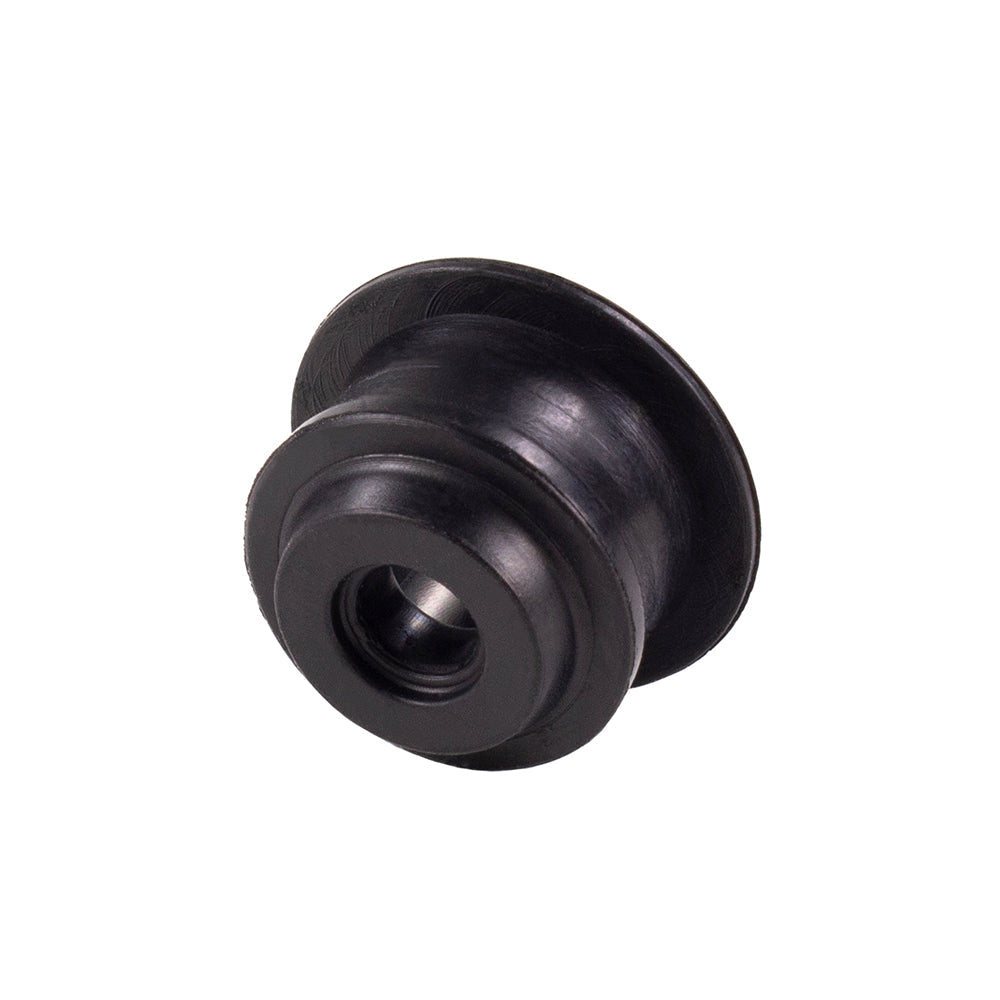

Replacement Valve For Air Force T1/T2/T3 Floor Pumps:
For Reference, Links Below To View Pumps:
FP-T1 Air Force Tier One Floor Pump
FP-T2 Air Force Tier Two Floor Pump
FP-T3 Air Force Tier Three Floor Pump

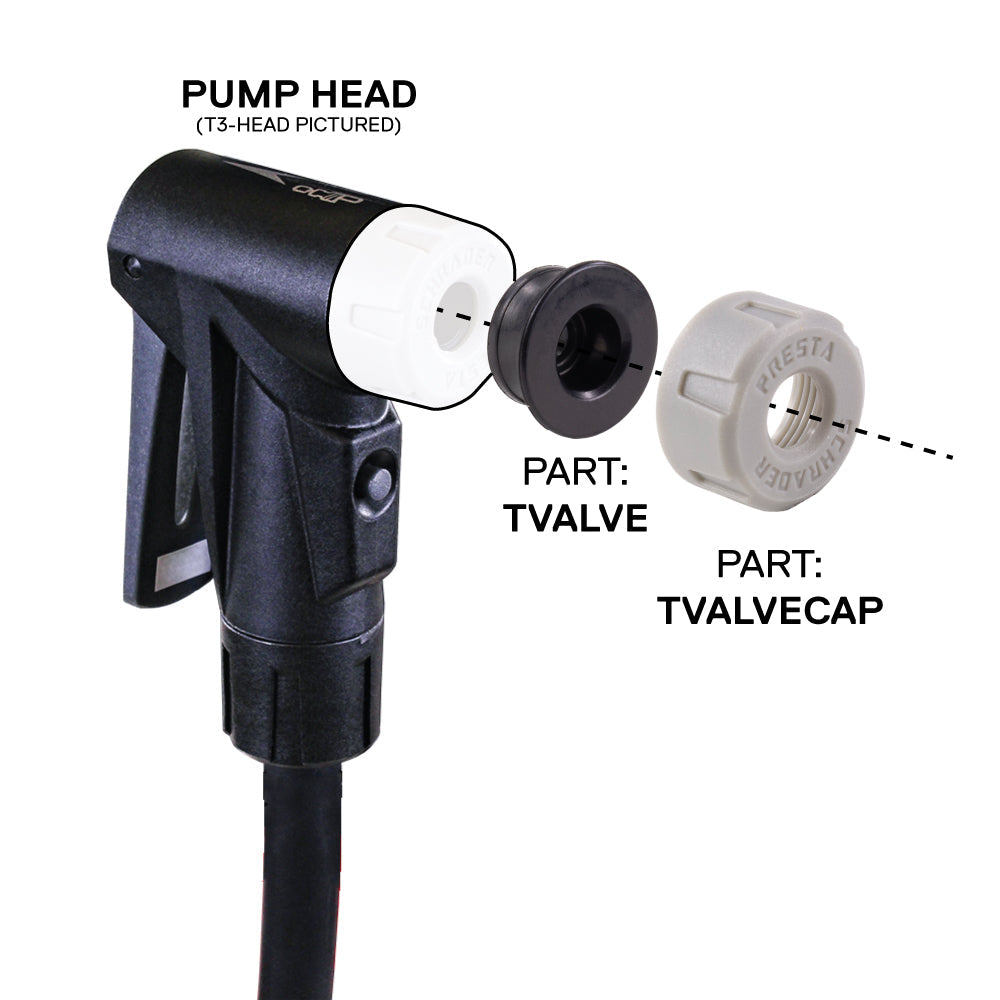

Removal: Grasp TVALVECAP body (gray cap marked PRESTA and SCHRADER) with thumb and forefinger. Rotate counterclockwise until separated from threaded head nozzle. TVALVE is located between the cap and head. Upon disassembly TVALVE may be found loosely seated within the removed TVALVECAP or on the threaded head nozzle.

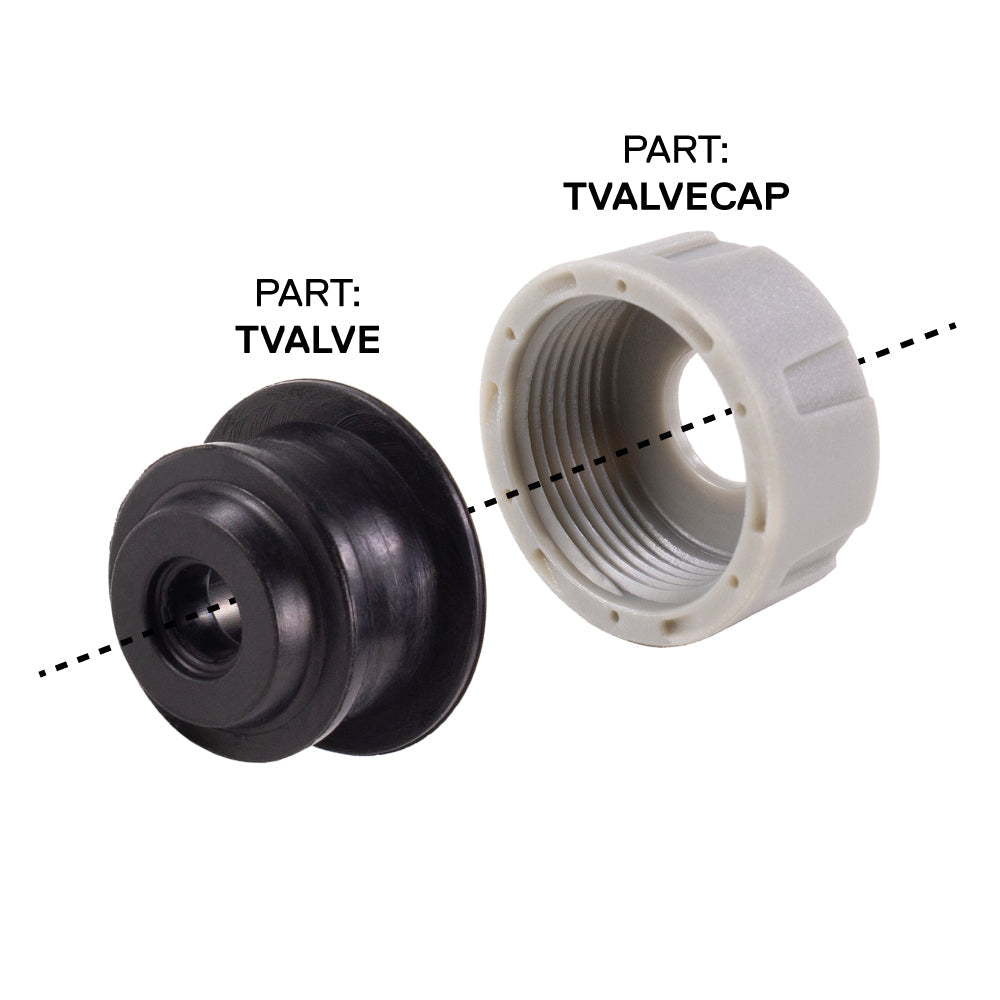

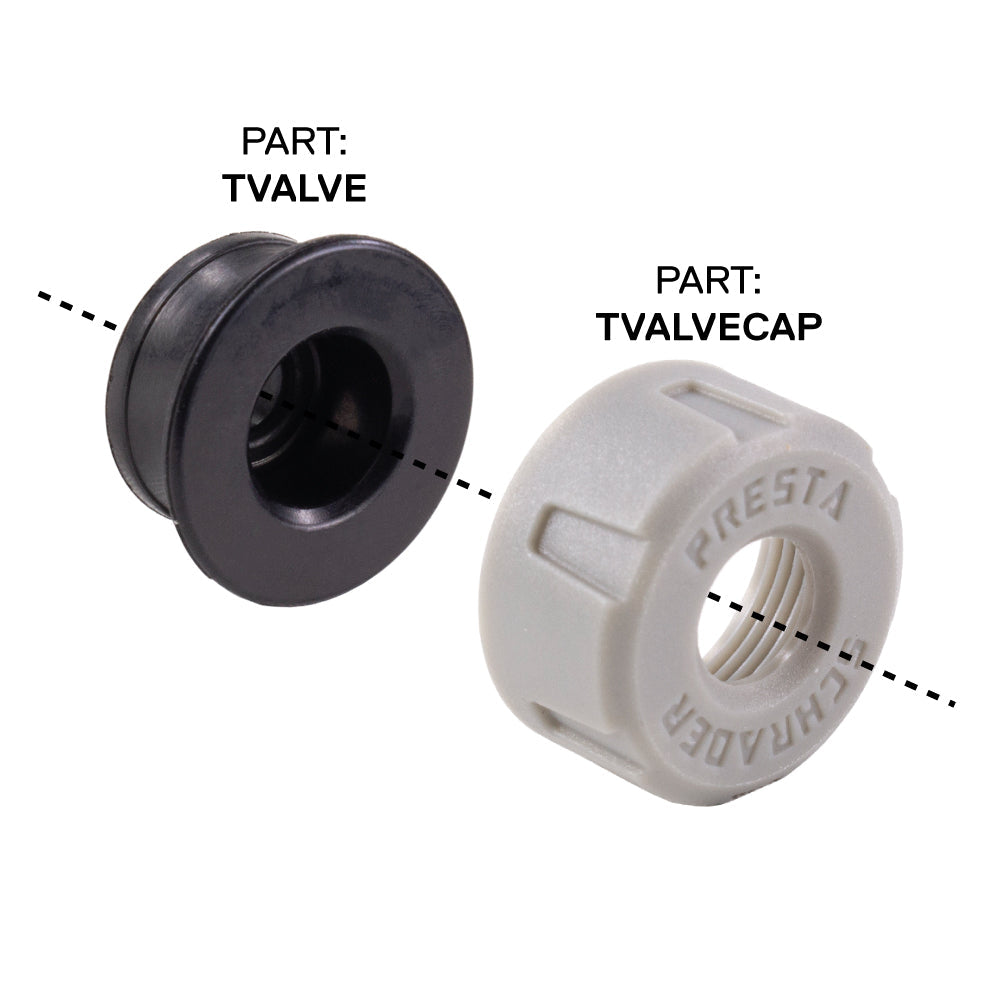

Installation: Insert smaller plug end of replacement TVALVE into head nozzle, flange side out and flush with end of threaded nozzle. Grasp TVALVECAP body with thumb and forefinger and rotate clockwise back onto pump head.
- Material: Injection Molded Polymer

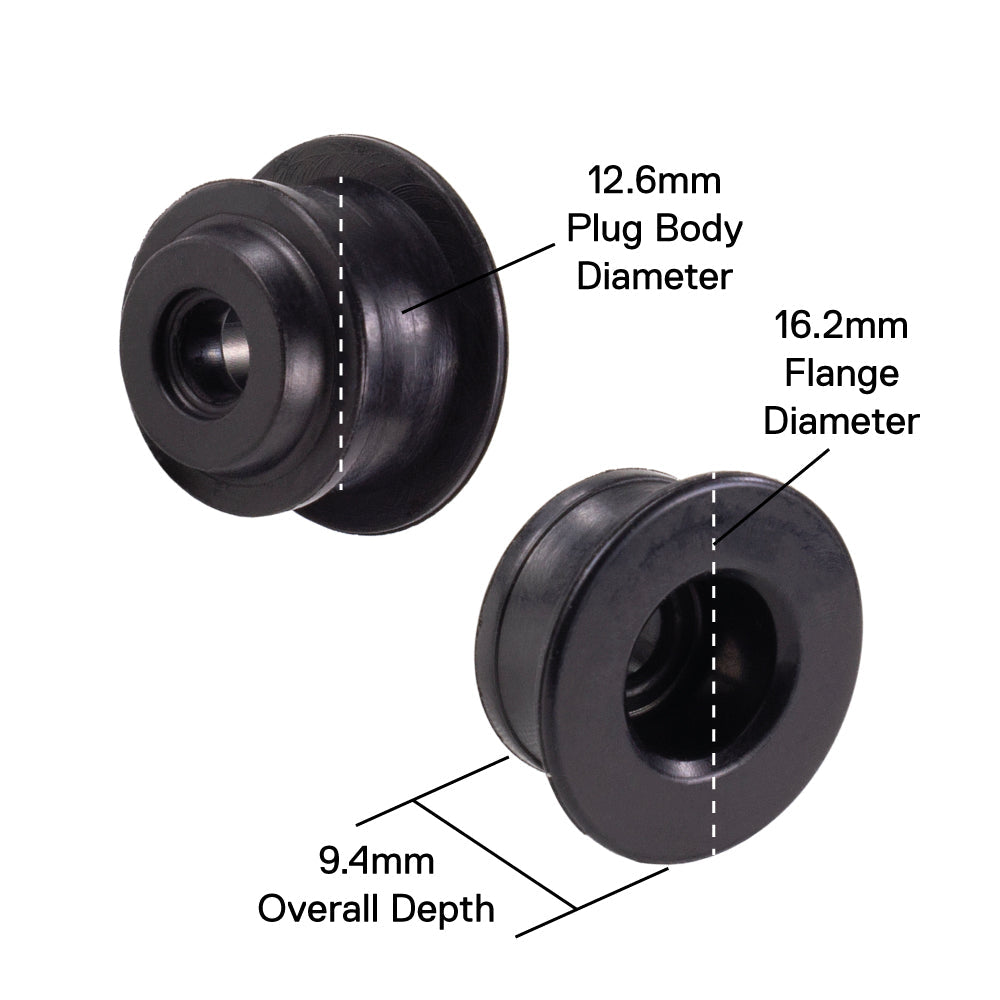

- Size: 9.4mm Overall Depth, 16.2mm Flange Diameter, 12.6mm Plug Diameter
- Color: Gray
- Quantity: (1)
For Reference, Links Below To View Pumps:
FP-T1 Air Force Tier One Floor Pump
FP-T2 Air Force Tier Two Floor Pump
FP-T3 Air Force Tier Three Floor Pump
Removal: Grasp TVALVECAP body (gray cap marked PRESTA and SCHRADER) with thumb and forefinger. Rotate counterclockwise until separated from threaded head nozzle. TVALVE is located between the cap and head. Upon disassembly TVALVE may be found loosely seated within the removed TVALVECAP or on the threaded head nozzle.
Installation: Insert smaller plug end of replacement TVALVE into head nozzle, flange side out and flush with end of threaded nozzle. Grasp TVALVECAP body with thumb and forefinger and rotate clockwise back onto pump head.
