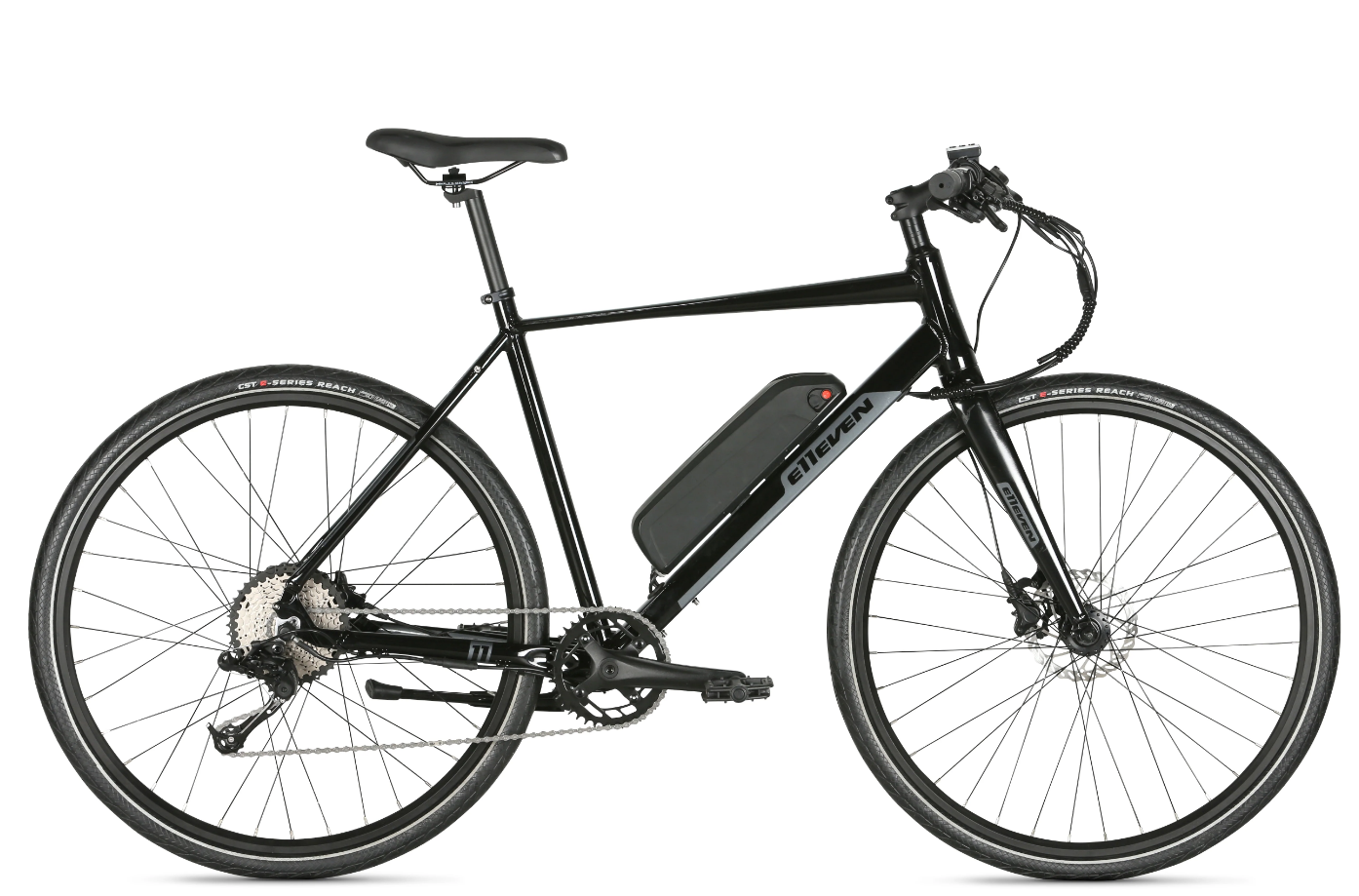

e11even’s eFitness model is designed for those who are looking for an efficient way to get around, get some exercise, and get a little boost along the way. The powerful 500W efficient hi-torque rear hub motor reaches top speeds of 20mph, and the 48V/ 10AH battery provides a range of 25-35 miles, depending on rider weight and assist level used. With a very reliable 1x10 drivetrain, and wide range 11x42 gearing, the eFitness is ready to zip past stuck traffic, as well as provide the right gearing and power to haul groceries or work supplies.

The eFitness is a Class-2 e-bike with 20mph max speed, and throttle assistance that provides five different power-assist levels. An LCD display with three brightness levels, lets you always know what power level you’re using, battery level, and the usual cycling computer details. Hydraulic disc brakes provide excellent stopping power, and automatically cut power from the motor when stopping.

Features and Benefits

Motor and Battery
The powerful 500Wrear hub motor delivers 60Nm of torque and a maximum speed of 20mph, while the light weight 48V 10AH Li-On battery provides up to 30 miles of range. Charging is a breeze with the simple smart charger.

Brakes
Hydraulic disc brakes with 160mm rotors deliver lots of stopping power, and the e-motor shut off automatically cuts power to the rear hub motor when braking.

Frame
Its alloy frame has an upright riding position and sporty geometry for predictable, fun handling. The 6000 series aluminum tubing is semi-hydroformed for light weight and tuned stiffness, reinforced at the down tube for the battery pack. The alloy fork sheds pounds and provides an optimally tuned ride.

e11even eFitness Specifications

Frame
e11even Alloy e-Fitness

Fork
e11even Alloy, disc mount

Headset
1 1/8" - 1 1/2" Taper Threadless

Battery
48V 10AH Lithium-Ion battery w/54.6V DC 2 Amp smart charger w/5.5 x 2.1mm charge port

Motor
500W, 48V rear hub motor w/Max torque 60Nm

Display
LCD Display - 3 Levels of brightness and 5 Levels of Power Assist

Rear Derailleur
S-Ride M400 10 speed

Shift Lever
S-Ride M400 10 speed

Brakes
HD-220 Hydraulic disc w/160mm rotors and e-motor cut off

Bottom Bracket
Cartridge BB 68mm w/ integrated power assist sensor

Crankset
Alloy 3pc forged, 40t chainring

Cassette
CS-M5010 10 speed 11-42T

Chain
KMC X10R

Wheelset
Alloy doublewall 36 hole rims, 500W rear hub motor

Tires
CST 700 x 40c

Handlebar
Alloy flat 31.8 x 600mm

Grips
No flange w/integrated twist throttle

Stem
Alloy forged 31.8 bar bore 105mm x 7 degree

Seatpost
Alloy micro adjust 27.2 x 350mm

Saddle
e-Sport w/steel rails

Other
Adjustable Kickstand

Available sizes
S (49cm), M (53cm), L (57cm)

Color
Black
