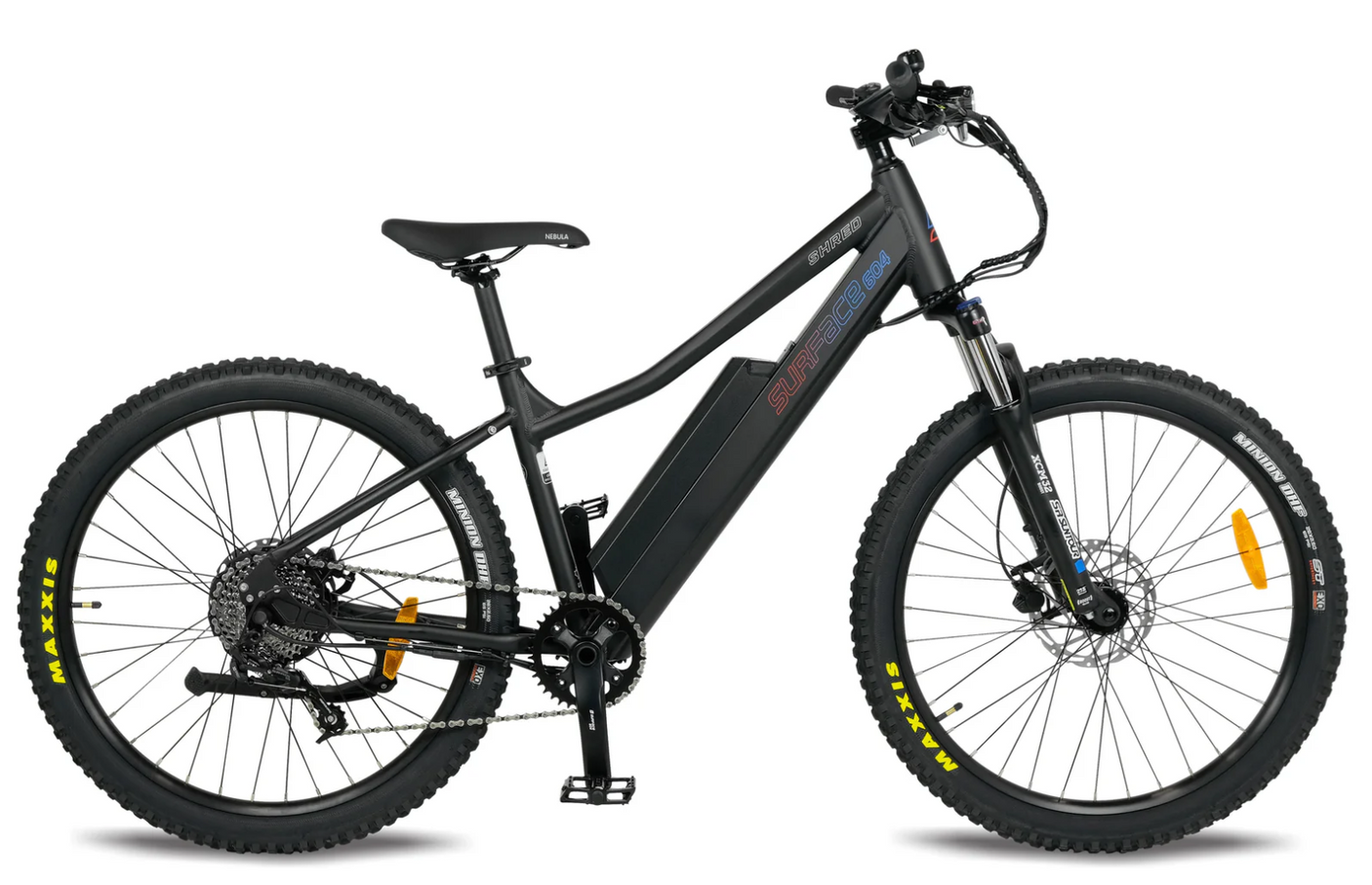

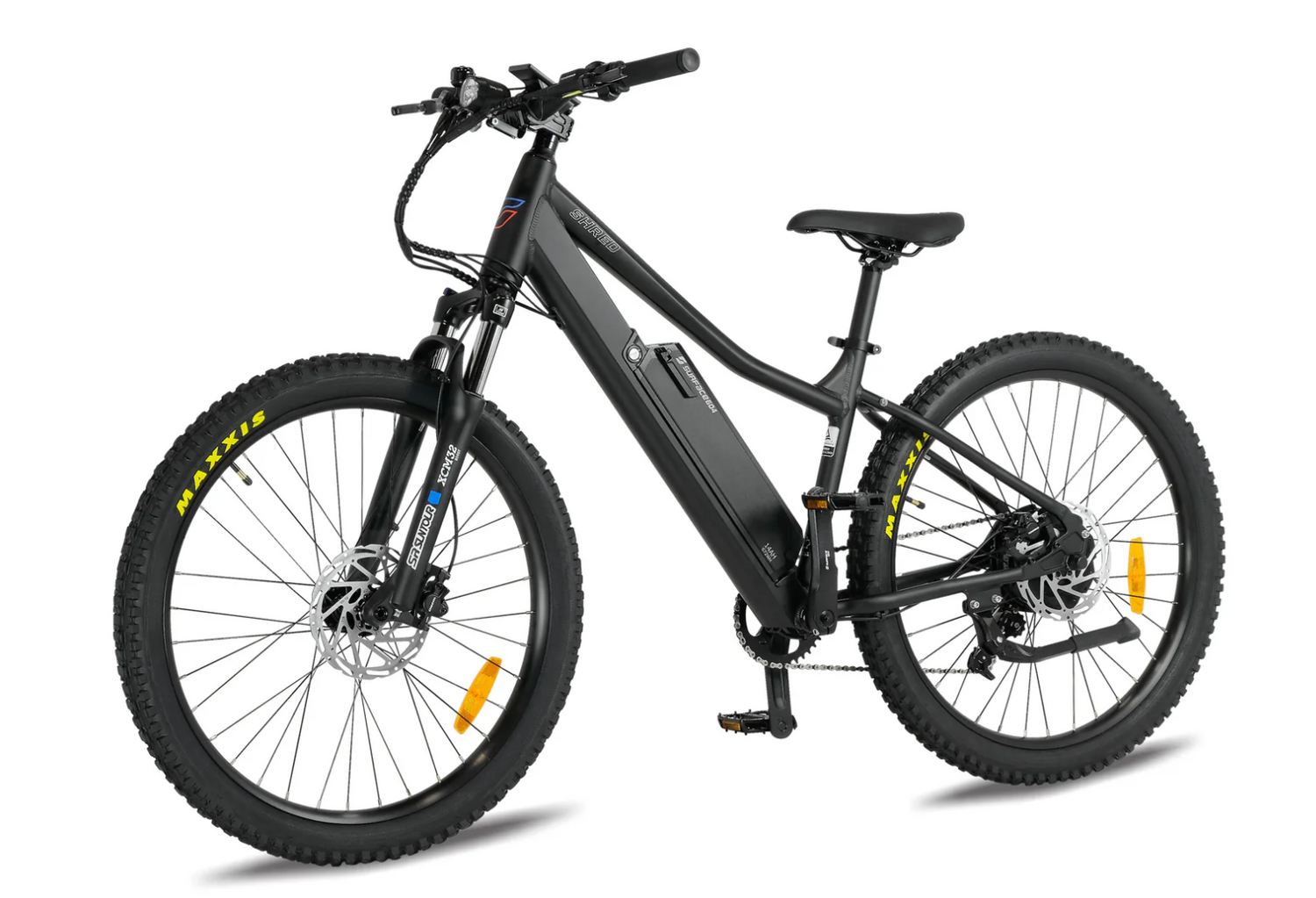

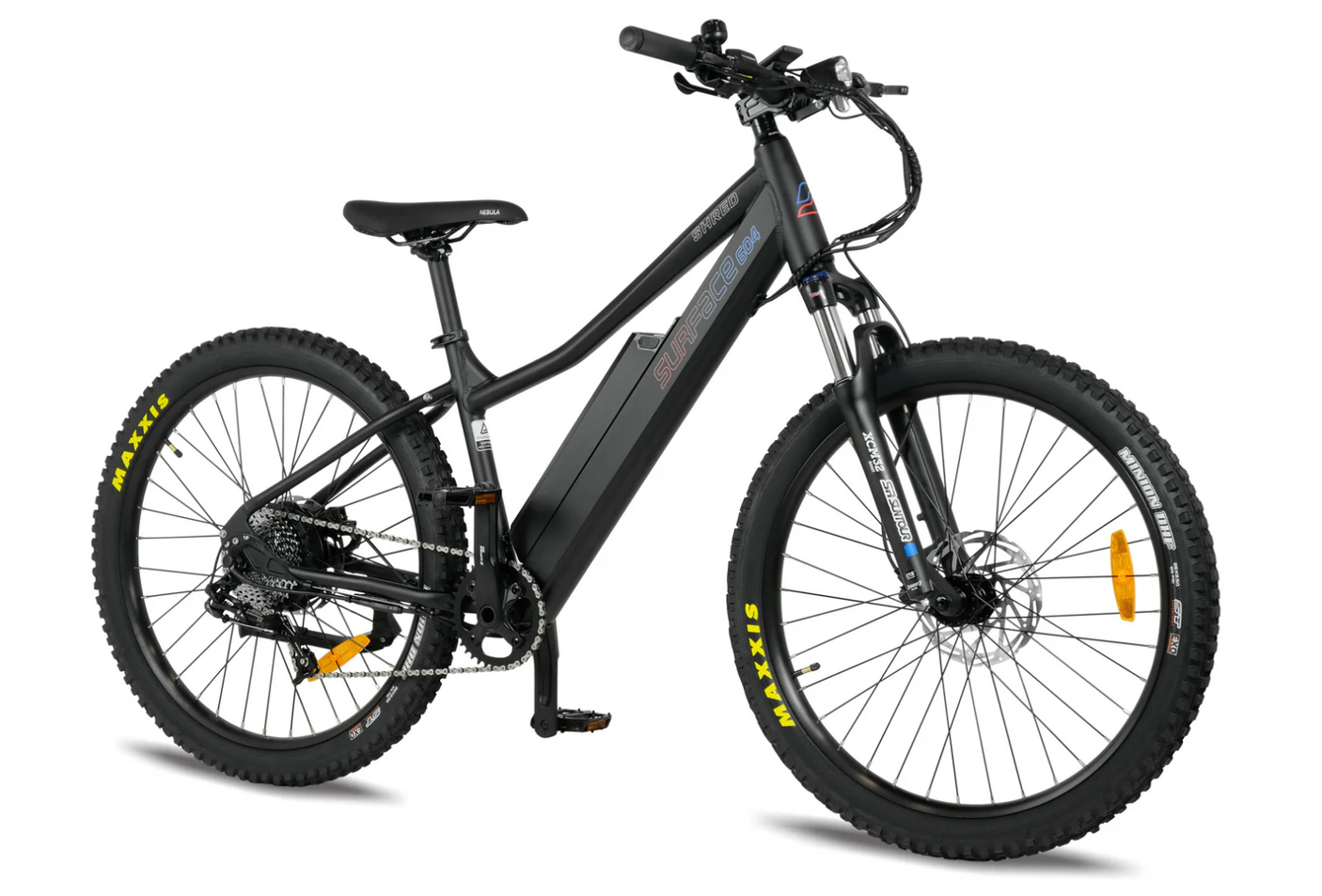

Introducing the Shred XS, a compact yet powerful e-bike designed for off-road adventures. With a 500W motor, it reaches speeds up to 28mph, and the 48V 20Ah battery provides up to 65 miles per charge. Built for versatility and performance, this bike is perfect for tackling trails and rugged landscapes.
The Shred XS features a sturdy frame and advanced suspension system for a smooth ride over rough terrain. Hydraulic disc brakes ensure reliable stopping power, while the wide tires offer superior traction. Experience the thrill of off-road riding with the agile and robust Shred XS, ready for any challenge.
SURFACE 604 SHRED XS E-BIKE SPECIFICATIONS
Drive System
Motor
eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
Drive Mode
Drop Out Torque Sensing Pedal Assist with a Throttle
Throttle
Thumb Push Activated Throttle
Torque
65Nm of Torque
Controller
SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
Motor Wire Harness
30Ah, can handle up to 120C current
Electronics
Battery
Included: 48V 20Ah / 960Wh Samsung lithium-ion 21700 cells
Battery Range
Up to 65mi (105km) with a 48V20Ah Battery
Battery Charge Time
3-4 Hours for a Full Charge from Empty
Display Type

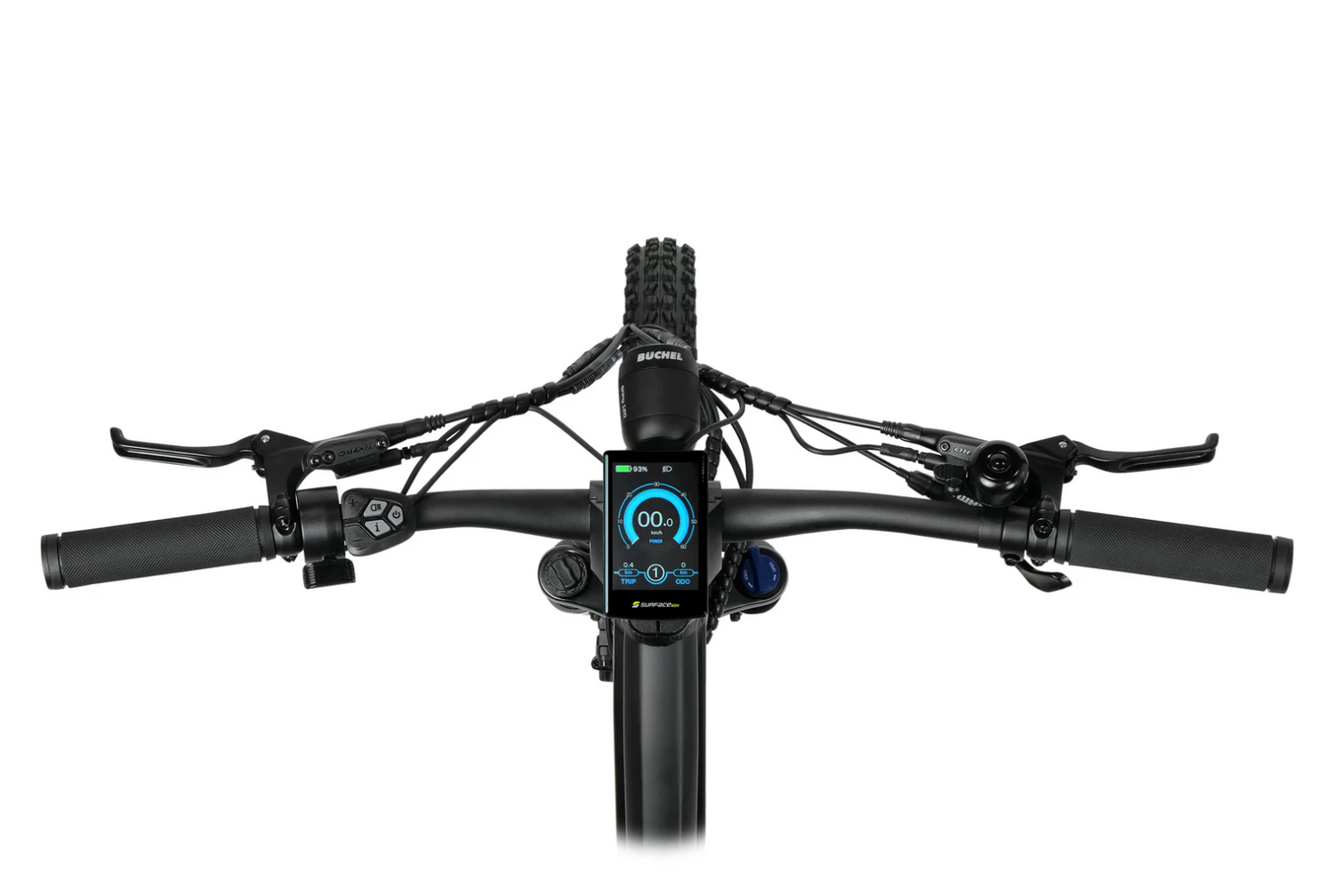

SURFACE604 Color LCD Display with USB Jack Bigger display: 3.5"
Lights
BÜCHEL "SHINY 120" front headlight with 120 lumens Pre-Wired To Connect Rear Stop
Light
Frame & Suspension
Fork

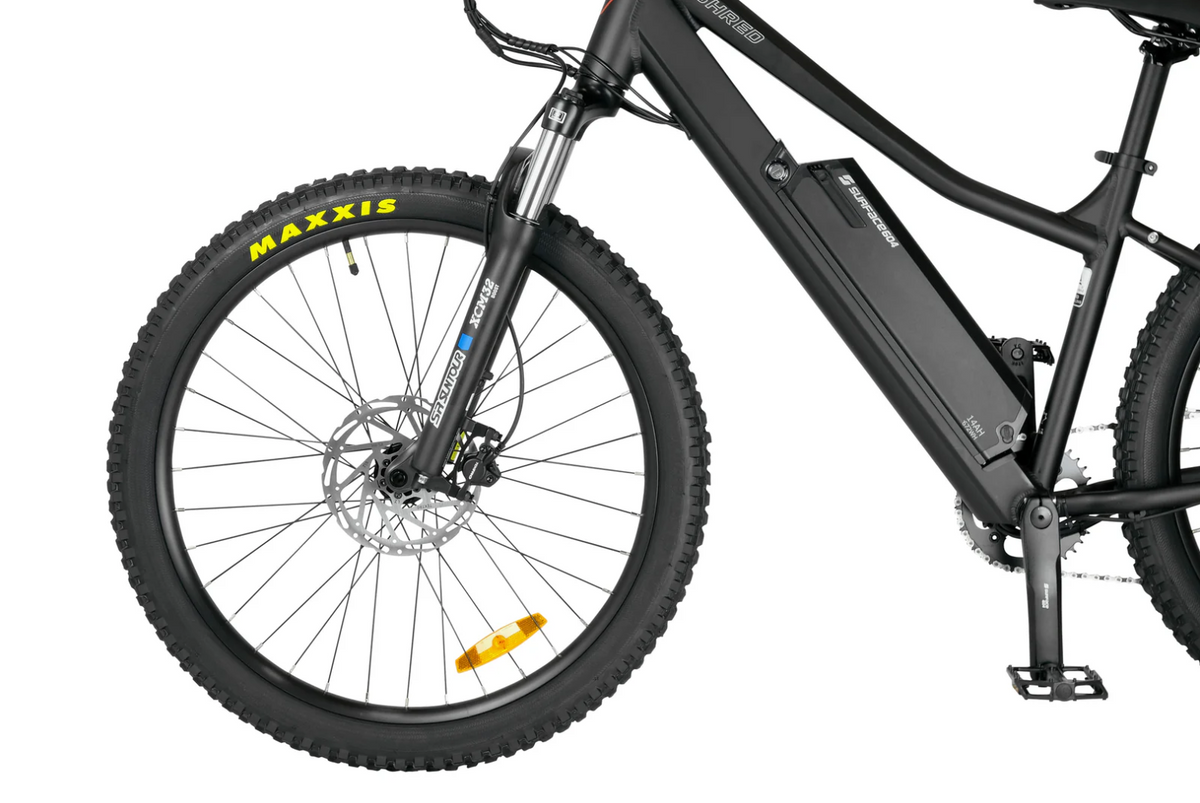

SR Suntour XCM32, Suspension Air Fork (110mm Axle Thru Hub)
Frame Type
Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes
Frame Material
6061 Aluminum Alloy
Stem
SURFACE604 3D forged alloy, barbore 31.8mm, height 45mm (New)
Handlebar
PROMAX Aluminum, 30mm Rise With 9° Backsweep, 700mm Wide
Components
Derailleur
SRAM X5 10-Speed 1-Piece Forged CNC with 2 Sealed Bearings
Cassette
SRAM 11-36T
Shift Levers
SRAM X5 Trigger Shift
Brakes
TEKTRO E500, MTB Specific Hydraulic Disc Brakes Post Mount, with Motor Inhibitors
Crank Set
SAMOX 38T Front Sprocket, 170mm Crank Arms
Rotors
180mm Front/Rear x 2.34mm Thick
Bottom Bracket
SAMOX Sealed Bottom Bracket
Pedals
WELLGO Platform, with Die Casting Body
Chain
KMC 10-Speed
Seat Post Diameter
30.4mm
Saddle
SR Selle Royal "Nebula" High Density Silicon Gel soft and comfortable
Wheels/Tire
Maxxis Minion DHF 26" x 2.50 ST Supertacky EXO Protection
Size & Weight
Battery weight
20AH battery 4.65KG/10lbs
Net weight
27 KG/59.5 lbs (20AH)
Recommended rider height
For Extra Small Riders: 4’8” - 5’7” Frame Sizes: XS 16”
Standover height
Extra Small-Small: 26” (660mm)
